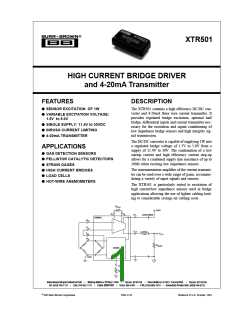

XTR501
HIGH CURRENT BRIDGE DRIVER
and 4-20mA Transmitter
DESCRIPTION
FEATURES
The XTR501 contains a high efficiency DC/DC con-
verter and 4-20mA three wire current transmitter. It
provides regulated bridge excitation, optional half
bridge, differential inputs and current transmitter nec-
essary for the excitation and signal conditioning of
low impedance bridge sensors and high integrity sig-
nal transmission.
● SENSOR EXCITATION OF 1W
● VARIABLE EXCITATION VOLTAGE:
1.5V to 5.0V
● SINGLE SUPPLY: 11.4V to 30VDC
● INRUSH CURRENT LIMITING
● 4-20mA TRANSMITTER
The DC/DC converter is capable of supplying 1W into
a regulated bridge voltage of 1.5V to 5.0V from a
supply of 11.4V to 30V. The combination of a low
startup current and high efficiency current step-up
allows for a combined supply line resistance of up to
100Ω when exciting low impedance sensors.
APPLICATIONS
● GAS DETECTION SENSORS
● PELLISTOR CATALYTIC DETECTORS
● STRAIN GAGES
The instrumentation amplifier of the current transmit-
ter can be used over a wide range of gains, accommo-
dating a variety of input signals and sensors.
● HIGH CURRENT BRIDGES
● LOAD CELLS
● HOT-WIRE ANEMOMETERS
The XTR501 is particularly suited to excitation of
high current/low impedance sensors used in bridge
applications allowing the use of lighter cabling lead-
ing to considerable savings on cabling costs.
RSPAN
+24V
GA
GB
Long Cables
+VS
XTR501
+VIN
–VIN
IOUT
4-20mA
VBB
+VB
VOUT
RSENSE
DC/DC
Com
SET
VB
RSET
International Airport Industrial Park
•
Mailing Address: PO Box 11400
Cable: BBRCORP
•
Tucson, AZ 85734
•
Street Address: 6730 S. Tucson Blvd. • Tucson, AZ 85706
Tel: (520) 746-1111 Twx: 910-952-1111
•
•
•
Telex: 066-6491
•
FAX: (520) 889-1510
•
Immediate Product Info: (800) 548-6132
©1994 Burr-Brown Corporation
PDS-1212
Printed in U.S.A. October, 1994
SPECIFICATIONS
ELECTRICAL
TA = +25°C, VS = 24V, VBRIDGE = 2V, ILOAD = 300mA unless otherwise specified.
XTR501
TYP
PARAMETER
CONDITIONS
MIN
MAX
UNITS
INSTRUMENTATION AMPLIFIER/CURRENT TRANSMITTER
SIGNAL OUTPUT
Output Current Equation
Output Current
RG in Ω, VIN in V
Linear Operating Range
IO = 0.004 + 0.016 [(1 + 50kΩ/RG)/4.94] VIN
A
4
20
mA
mA
mA
Over-scale Limit
Under-scale Limit
25
27
0
ZERO
Output Current
Offset Error
vs Temperature
vs Supply Voltage
4
mA
µA
µA/°C
µA/V
±50
0.2
0.5
±100
VS = 11.4V to 30V
2
SPAN
Span Equation
Untrimmed Error
RG in Ω,VIN in V
G = 1
Span = 0.016[(1 + 50kΩ/RG)/4.94]
A/V
%
%
ppm/°C
%
±0.2
±1.5
50
±2.5
±10
G = 250
vs Temperature
Nonlinearity
G = 1, IO = 4mA to 20mA
±0.025
INPUT
Common-Mode Range
Offset Voltage
0
4.94(1)
V
mV
16
50
vs Temperature
µV/°C
dB
vs Supply Voltage
75
Common-Mode Rejection
Impedance; Differential, Common-Mode
85
1010 || 6
dB
Ω || pF
DC/DC CONVERTER
BRIDGE EXCITATION VOLTAGE SOURCE
Output Voltage
vs Temperature
vs Long Term Stability
Output Power
1.5
5
1
V
VIN = 0V, G= 1
200
100
ppm/°C
ppm/1000hrs
W
%
%
Line Voltage Regulation
Load Voltage Regulation
VS = 11.4V to 30.0V
Load Current 160mA to 340mA
Load Voltage 2V
0.25
0.25
Output Voltage Ripple
Load Current 300mA
Load Voltage 2V
150
mV
Output Voltage Ripple Frequency
Output Short-Circuit Current
Input Current
100
2.6
150
kHz
A
mA
Limited Duration
Output Short-Circuit
POWER SUPPLY
Supply Voltage, VS
Supply Current
11.4
24
30
V
See Typical Curve
TEMPERATURE
Operating
Storage
–40
–40
+70
+85
°C
°C
NOTE: (1) Common-Mode Range is based on a multiple of a bandgap reference of 1.235V.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
®
XTR501
2
ABSOLUTE MAXIMUM RATINGS
ORDERING INFORMATION
TEMPERATURE
RANGE
Supply Voltage, VS ............................................................................... 30V
Input Voltage ....................................................................................... 10V
Output Power ........................................................................................ 1W
Operating Temperature Range ............................................. 0°C to +70°C
Storage Temperature Range ............................................ –40°C to +85°C
MODEL
XTR501
PACKAGE
24-Pin Plastic Module
–40°C to +70°C
PACKAGE INFORMATION
PACKAGE DRAWING
NUMBER(1)
PIN CONFIGURATION
MODEL
XTR501
PACKAGE
Top View
24-Pin Plastic Module
902
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix D of Burr-Brown IC Data Book.
SET
SET
1
2
3
24 GA
23 GA
GB
PIN DESCRIPTION
SENSE
SENSE
GB
PIN
NAME
DESCRIPTION
–VIN
22 +VIN
SET
1
2
3
GB
Connect to RSPAN to set transconductance.
SENSE
SET
SET
GB
Sense pin for GB
connect to GA
.
–VIN
IOUT
Inverting input to transmitter.
10
Output Current connect through RSENSE to
common.
XTR501
11
12
Common
VS
Supply return for sense and VB connectors.
Supply to XTR501 +11.4V to 30.0V.
VBB
–VB
+VB
+VB
18
17
16
15
14
SET
14
VB
Single resistor to common sets the bridge
excitation voltage.
SENSE
15
+VB
Positive bridge sense input connect to positive
excitation voltage at bridge.
SENSE
10
11
12
IOUT
16
17
18
+VB
–VB
VBB
Positive bridge excitation voltage.
Negative bridge excitation voltage.
SET
VB
Common
VS
Output from internal half bridge connect to –VIN
.
22
23
24
+VIN
Non-Inverting input to transmitter.
Sense pin for GASET connect to GA
SENSE
SET
GA
.
SET
GA
Connect to RSPAN to set transconductance.
®
3
XTR501
TYPICAL PERFORMANCE CURVES
TA = +25°C, VS = 24V, VBRIDGE = 2V, ILOAD = 300mA unless otherwise specified.
NON-LINEARITY (Low Gain)
25
NON-LINEARITY (High Gain)
25
20
20
VBRIDGE = 2.0V, ILOAD = 300mA, VS = 24V
VBRIDGE = 2.0V, ILOAD = 300mA, VS = 24V
15
10
15
10
5
5
0
0
–5
–5
–10
–15
–20
–25
–10
–15
–20
–25
0
5
10
15
20
25
30
0
1
2
3
4
5
VIN (mV)
V
IN (V)
SMALL SIGNAL TRANSIENT RESPONSE
RLOAD = 250Ω
LARGE SIGNAL TRANSIENT RESPONSE
RLOAD = 250Ω
VIN
IO
IO
VIN
IO = 4-20mA, VIN = 27mV
IO = 4-20mA, VIN = 5V
5ms/Div
2ms/Div
OUTPUT NOISE
NOTES: IO into 250Ω.
FFT of OUTPUT NOISE
(1) No smoothing. (2) 5µF capacitor across 250Ω.
310kHz
(1)
(2)
1µs/Div
100kHz/Div
®
XTR501
4
TYPICAL PERFORMANCE CURVES (CONT)
TA = +25°C, VS = 24V, VBRIDGE = 2V, ILOAD = 300mA unless otherwise specified.
ZERO CURRENT TC (µA/°C)
MAXIMUM CURRENT LOOP RESISTANCE
20
15
10
5
30
20
10
0
Operating point must
be within this region
Example:
24V Supply
RMAX = 700Ω
0
0
0.05
0.1
0.15
0.2
0.25
300
400
500
600
700
800
900
Zero Current Drift (µA/°C)
Average = 0.100µA/°C
3σ = 0.115µA/°C
Resistance (Ω)
UNTRIMMED ERROR TC G = 1 (ppm/°C)
BRIDGE VOLTAGE LINE REGULATION
14
12
10
8
0.1
0.08
0.06
0.04
0.02
0
VBRIDGE = 2.0V, ILOAD = 300mA, VS = 12V - 30V
6
4
2
–0.02
–0.04
0
12
18
24
30
0
10
20
30
40
50
VS (V)
Untrimmed Error TC Drift (ppm/°C)
Average = 21ppm/°C
3σ = 25ppm/°C
BRIDGE VOLTAGE REGULATION vs TEMPERATURE
VBRIDGE = 2.0V, ILOAD = 300mA, VS = 24V
BRIDGE VOLTAGE LOAD REGULATION
VBRIDGE = 2.0V, VS = 24V
0.05
0.04
0.03
0.02
0.01
0
0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
–0.01
–0.02
–0.03
–40
–10
25
55
85
0.06
0.12
0.18
0.24
Temperature (°C)
Output Current (A)
®
5
XTR501
TYPICAL PERFORMANCE CURVES (CONT)
TA = +25°C, VS = 24V, VBRIDGE = 2V, ILOAD = 300mA unless otherwise specified.
SUPPLY CURRENT vs EXCITATION LOAD CURRENT
Bridge Voltage (VEX) = 2.0V
BRIDGE EXCITATION VOLTAGE TC (ppm/°C)
110
100
90
80
70
60
50
40
30
20
16
14
12
10
8
6
4
2
0
0
100
200
300
400
500
0
30
60
90
120
150
I
LOAD (mA)
Bridge Excitation Voltage Temperature Drift (ppm/°C)
Average = 70ppm/°C
3σ = 70ppm/°C
METHOD OF OPERATION
APPLICATIONS
The XTR501 consists of a high efficiency DC/DC converter
with current and voltage mode control and a current loop
transmitter.
The XTR501 is designed to be used with a wide range of
pellistor catalytic gas detectors. The pellistor gas detector
consists of a matched pair of elements; an active bead which
is the sensing element, and an inactive bead which is the
compensating element. These elements form one side of a
Wheatstone bridge arrangement. The bridge serves a dual
purpose: to raise the temperature of the elements to about
500°C, which is their working temperature, and to allow
detectionofthepresenceofcombustiblegasesthroughimbal-
ance of the bridge. This happens as the pellistor increases
temperature due to oxidation of the flammable gas and thus
increases its resistance.
The pulse-width modulation controller monitors the current
and voltage control signals and varies the conduction period
to regulate the bridge excitation voltage, VB.
A soft-start feature is provided to negate problems caused by
high in-rush currents and lead resistances, thus allowing the
XTR501 to be driven through cables of up to 100Ω of supply
line resistance with no reduction in performance.
A single resistor, RSET, determines the regulated bridge
excitation voltage which may be in the range 1.5V to 5.0V.
In general, pellistor catalytic gas detectors are limited in use
to monitoring up to 100% of the LEL (lower explosive
limit). Beyond this point ambiguous results can occur due to
the inability of the pellistor to oxidize the gas as the avail-
able oxygen decreases (see Figure 3).
The gain of the transconductance amplifier, which forms the
current loop transmitter, is again determined by a single
resistor RSPAN and allows input voltages from 25mV to drive
the 4-20mA current loop.
LEL Methane
Bridge Voltage VEX
=
=
=
=
=
5% = VIN = 50mV
2.0V
21.858kΩ
4-20mA
470µH
RSET
IO
RSPAN
+24V
12
VS
+
XTR501
10µF
510Ω
Tantalum
24
16
15
+VB
+VBSENSE
SET
GA
23
RT
SENSE
GA
100Ω
Compensator
10kΩ
RSPAN
VBB
18
1
V
OUT = IO RLOAD
SENSE
SET
(1)
GB
100Ω
2
IO = 4 to 20mA
GB
VOUT
Detector
10
14
IO
17
11
SET
1V to 5V
– VB
VB
+
5µF
Tantalum
RLOAD
250Ω
RSET
COM
–VIN
+VIN
22
3
NOTE: (1) VQ 21 Gas Sensor - EEV Gas Sensors.
FIGURE 1. Basic Connection
®
XTR501
6
100
RT
100µH
Compensator
Detector
50
For additional bridge
smoothing, 100µH
inductors may be
inserted as shown.
Note that inductors
must be able to handle
high bridge current.
100µH
0
10
20
30
40
50
60
70
80
90
% Methane In Concentration
FIGURE 3. Typical Pellistor Response.
FIGURE 2. Bridge Smoothing.
An interesting feature of pellistor elements, and those tested
in the applications, is that they create a similar bridge output
at LEL for almost all hydrocarbons. This feature allows a
comparative measurement to be made of one gas when an
instrument has been calibrated for another.
10
SENSE
+VB
10kΩ
(a)
50kΩ
X
T
R
5
0
1
11
SET
+VB
e.g. Instrument calibrated for Methane (K=112) measuring
Hydrogen (K=85.8).
RSET
Actual % of LEL will be 1.31 x meter reading. (112/85.8).
This is an approximation and it is recommended that for
exact conversions the instrument should be calibrated using
the relevant gases.
SET
FIGURE 4. Internal Circuit +VB
.
Tables of these constants can be sourced through the manu-
facturers of gas sensing products.
To Calculate RSPAN
An example of the XTR501 used with a pellistor catalytic
gas detector is shown in Figure 1.
1+ 50kΩ / RSPAN
IO = 0.004 + 0.016
VIN
4.94
To Calculate RSET
See Figure 4. Point (a) will be maintained at 1.235V.
For VIN = 10mV and IO = 20mA
1.235 50kΩ + R
(
)
VB –1.235
SET
1+ 50kΩ / RSPAN
=
0.02 = 0.004 + 0.016
0.01
10kΩ
RSET 50kΩ
4.94
50kΩ V –1.235
(
)
50kΩ + RSET
B
1+ 50kΩ / R
(
)
0.016
SPAN
=
=
10kΩ 1.235
RSET
(
) (
)
0.016 0.01
) (
4.94
(
)
50kΩ
= 1+
494 = 1+ 50kΩ / RSPAN
50kΩ
RSET
5 V –1.235
(
)
–1 =
50kΩ
B
RSPAN =
493
= 101.4
1.235
RSET
50kΩ 1.235
) (
(
)
RSET
=
5 V −1.235 –1.235
(
)
B
i.e
Example:
4.94
VIN
50kΩ
= 1+
RSPAN
VB
RSET Calculated
1.5
2.0
3.0
4.0
5.0
Open
21.858kΩ
7.891kΩ
4.815kΩ
3.464kΩ
50kΩ
RSPAN
=
4.94
–1
VIN
®
7
XTR501
厂商 型号 描述 页数 下载

ETC

 		XTR100 [ ] 12 页

BB

 		XTR100AM [ Instrumentation Amplifier, 1 Func, 50uV Offset-Max, MDIP14, ] 12 页

BB

 		XTR100AP [ Instrumentation Amplifier, 1 Func, 50uV Offset-Max, PDIP14, ] 12 页

BB

 		XTR100BM [ Instrumentation Amplifier, 1 Func, 25uV Offset-Max, MDIP14, ] 12 页

BB

 		XTR100BP [ Instrumentation Amplifier, 1 Func, 25uV Offset-Max, PDIP14, ] 12 页

BB

 		XTR101 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 15 页

TI

 		XTR101 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 25 页

BB

 		XTR101AG 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 15 页

TI

 		XTR101AG 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 25 页

BB

 		XTR101AG-BI [ Instrumentation Amplifier, 1 Func, 60uV Offset-Max, CDIP14, ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215620s
