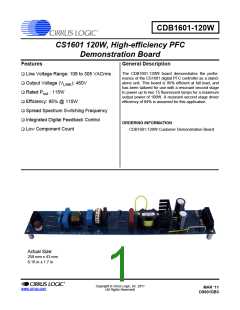

CDB1601-120W

CS1601 120W, High-efficiency PFC

Demonstration Board

Features

General Description

The CDB1601-120W board demonstrates the perfor-

mance of the CS1601 digital PFC controller as a stand-

alone unit. This board is 95% efficient at full load, and

has been tailored for use with a resonant second stage

to power up to two T5 fluorescent lamps for a maximum

output power of 108W. A resonant second stage driver

efficiency of 94% is assumed for this application.

 Line Voltage Range: 108 to 305 VACrms

 Output Voltage (V ): 460V

LINK

 Rated P : 115W

out

 Efficiency: 95% @ 115W

 Spread Spectrum Switching Frequency

 Integrated Digital Feedback Control

 Low Component Count

ORDERING INFORMATION

CDB1601-120W Customer Demonstration Board

Actual Size:

258 mm x 43 mm

8.16 in x 1.7 in

MAR ‘11

DS931DB3

www.cirrus.com

CDB1601-120W

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all safety instructions prior to using this demonstration board.

ꢀꢁꢂꢃꢄꢅꢆꢇꢂꢆꢈꢈꢉꢂꢆꢇꢄꢅꢊꢋꢌꢍꢋꢎꢂꢏꢆꢄꢐꢆꢂꢎꢄꢏꢉꢄꢑꢈꢒꢏꢆꢃꢎꢉꢋꢎꢂꢏꢆꢄꢓꢏꢋꢉꢔꢄ ꢒꢍꢃꢎꢄꢏꢆꢌꢕꢄꢖꢈꢄꢍꢃꢈꢔꢄꢗꢏꢉꢄ ꢋꢃꢃꢈꢃꢃꢂꢆꢇꢄꢘꢙꢄ ꢚꢈꢉꢗꢏꢉꢒꢋꢆꢛꢈꢄꢂꢆꢄꢋꢄ

ꢌꢋꢖꢏꢉꢋꢎꢏꢉꢕꢄꢃꢈꢎꢎꢂꢆꢇꢜꢄꢀꢁꢂꢃꢄꢚꢉꢏꢔꢍꢛꢎꢄꢂꢃꢄꢆꢏꢎꢄꢂꢆꢎꢈꢆꢔꢈꢔꢄꢗꢏꢉꢄꢋꢆꢕꢄꢏꢎꢁꢈꢉꢄꢍꢃꢈꢄꢏꢉꢄꢂꢆꢛꢏꢉꢚꢏꢉꢋꢎꢂꢏꢆꢄꢂꢆꢎꢏꢄꢚꢉꢏꢔꢍꢛꢎꢃꢄꢗꢏꢉꢄꢃꢋꢌꢈꢜꢄ

ꢀꢁꢂꢃꢄꢚꢉꢏꢔꢍꢛꢎꢄꢒꢍꢃꢎꢄꢏꢆꢌꢕꢄꢖꢈꢄꢍꢃꢈꢔꢄꢖꢕꢄꢝꢍꢋꢌꢂꢗꢂꢈꢔꢄꢎꢈꢛꢁꢆꢂꢛꢂꢋꢆꢃꢄꢏꢉꢄꢚꢉꢏꢗꢈꢃꢃꢂꢏꢆꢋꢌꢃꢄ ꢁꢏꢄꢋꢉꢈꢄꢎꢉꢋꢂꢆꢈꢔꢄꢂꢆꢄꢎꢁꢈꢄꢃꢋꢗꢈꢎꢕꢄꢚꢉꢏꢛꢈꢔꢍꢉꢈꢃꢄ

ꢋꢃꢃꢏꢛꢂꢋꢎꢈꢔꢄ ꢂꢎꢁꢄꢎꢁꢈꢄꢍꢃꢈꢄꢏꢗꢄꢔꢈꢒꢏꢆꢃꢎꢉꢋꢎꢂꢏꢆꢄꢖꢏꢋꢉꢔꢃꢜꢄ

ꢄ

ꢄRisk of Electric Shock

•ꢄ ꢀꢁꢈꢄꢔꢂꢉꢈꢛꢎꢄꢛꢏꢆꢆꢈꢛꢎꢂꢏꢆꢄꢎꢏꢄꢎꢁꢈꢄ !ꢙꢄꢚꢏ ꢈꢉꢄꢌꢂꢆꢈꢄꢋꢆꢔꢄꢎꢁꢈꢄ ꢏꢚꢈꢆꢄꢋꢆꢔꢄꢍꢆꢚꢉꢏꢎꢈꢛꢎꢈꢔꢄꢖꢏꢋꢉꢔꢃꢄꢚꢉꢈꢃꢈꢆꢎꢄꢋꢄꢃꢈꢉꢂꢏꢍꢃꢄꢉꢂꢃ"ꢄꢏꢗꢄꢈꢌꢈꢛꢎꢉꢂꢛꢄ

ꢃꢁꢏꢛ"ꢄꢋꢆꢔꢄꢛꢋꢆꢄꢛꢋꢍꢃꢈꢄꢃꢈꢉꢂꢏꢍꢃꢄꢂꢆ#ꢍꢉꢕꢄꢏꢉꢄꢔꢈꢋꢎꢁꢜꢄꢅ$ꢎꢉꢈꢒꢈꢄꢛꢋꢍꢎꢂꢏꢆꢄꢆꢈꢈꢔꢃꢄꢎꢏꢄꢖꢈꢄꢈ$ꢈꢉꢛꢂꢃꢈꢔꢄ ꢁꢂꢌꢈꢄꢁꢋꢆꢔꢌꢂꢆꢇꢄꢎꢁꢂꢃꢄꢖꢏꢋꢉꢔꢜꢄ

•ꢄ !ꢊꢏꢂꢔꢄꢛꢏꢆꢎꢋꢛꢎꢄ ꢂꢎꢁꢄꢎꢁꢈꢄꢈ$ꢚꢏꢃꢈꢔꢄꢛꢏꢆꢔꢍꢛꢎꢏꢉꢄꢏꢉꢄꢎꢈꢉꢒꢂꢆꢋꢌꢃꢄꢏꢗꢄꢛꢏꢒꢚꢏꢆꢈꢆꢎꢃꢄꢏꢆꢄꢎꢁꢈꢄꢖꢏꢋꢉꢔꢜꢄ%ꢂꢇꢁꢄꢊꢏꢌꢎꢋꢇꢈꢄꢂꢃꢄꢚꢉꢈꢃꢈꢆꢎꢄꢏꢆꢄ

ꢈ$ꢚꢏꢃꢈꢔꢄꢛꢏꢆꢔꢍꢛꢎꢏꢉꢄꢋꢆꢔꢄꢂꢎꢄꢒꢋꢕꢄꢖꢈꢄꢚꢉꢈꢃꢈꢆꢎꢄꢏꢆꢄꢎꢈꢉꢒꢂꢆꢋꢌꢃꢄꢏꢗꢄꢋꢆꢕꢄꢛꢏꢒꢚꢏꢆꢈꢆꢎꢃꢄꢔꢂꢉꢈꢛꢎꢌꢕꢄꢏꢉꢄꢂꢆꢔꢂꢉꢈꢛꢎꢌꢕꢄꢛꢏꢆꢆꢈꢛꢎꢈꢔꢄꢎꢏꢄꢎꢁꢈꢄ!ꢙꢄ

ꢌꢂꢆꢈꢜꢄꢄ

•ꢄ ꢑꢋꢆꢇꢈꢉꢏꢍꢃꢄꢊꢏꢌꢎꢋꢇꢈꢃꢄꢋꢆꢔ&ꢏꢉꢄꢛꢍꢉꢉꢈꢆꢎꢃꢄꢒꢋꢕꢄꢖꢈꢄꢂꢆꢎꢈꢉꢆꢋꢌꢌꢕꢄꢇꢈꢆꢈꢉꢋꢎꢈꢔꢄꢋꢆꢔꢄꢋꢛꢛꢈꢃꢃꢂꢖꢌꢈꢄꢋꢎꢄꢊꢋꢉꢂꢏꢍꢃꢄꢚꢏꢂꢆꢎꢃꢄꢋꢛꢉꢏꢃꢃꢄꢎꢁꢈꢄꢖꢏꢋꢉꢔꢜꢄ

•ꢄ ꢙꢁꢋꢉꢇꢈꢔꢄꢛꢋꢚꢋꢛꢂꢎꢏꢉꢃꢄꢃꢎꢏꢉꢈꢄꢁꢂꢇꢁꢄꢊꢏꢌꢎꢋꢇꢈ'ꢄꢈꢊꢈꢆꢄꢋꢗꢎꢈꢉꢄꢎꢁꢈꢄꢛꢂꢉꢛꢍꢂꢎꢄꢁꢋꢃꢄꢖꢈꢈꢆꢄꢔꢂꢃꢛꢏꢆꢆꢈꢛꢎꢈꢔꢄꢗꢉꢏꢒꢄꢎꢁꢈꢄ!ꢙꢄꢌꢂꢆꢈꢜꢄꢄ

•ꢄ (ꢋ"ꢈꢄ ꢃꢍꢉꢈꢄꢎꢁ ꢋꢎꢄꢎꢁꢈꢄ ꢚꢏ ꢈꢉꢄ ꢃꢏꢍꢉꢛꢈꢄꢂ ꢃꢄꢏꢗꢗꢄ ꢖꢈꢗꢏꢉꢈꢄ ꢂ ꢉꢂꢆꢇꢄ ꢋꢆꢕꢄ ꢛꢏꢆꢆꢈꢛꢎꢂꢏꢆꢜꢄ(ꢋ "ꢈꢄꢃꢍ ꢉꢈꢄꢎꢁꢋꢎꢄꢋꢌ ꢌꢄ ꢛꢏꢆꢆꢈꢛꢎꢏꢉꢃꢄ ꢋꢉꢈꢄ ꢈꢌꢌꢄ

ꢛꢏꢆꢆꢈꢛꢎꢈꢔꢄꢖꢈꢗꢏꢉꢈꢄꢎꢁꢈꢄꢚꢏ ꢈꢉꢄꢃꢏꢍꢉꢛꢈꢄꢂꢃꢄꢏꢆꢜꢄ

•ꢄ )ꢏꢌꢌꢏ ꢄꢋꢌꢌꢄꢌꢋꢖꢏꢉꢋꢎꢏꢉꢕꢄꢃꢋꢗꢈꢎꢕꢄꢚꢉꢏꢛꢈꢔꢍꢉꢈꢃꢄꢈꢃꢎꢋꢖꢌꢂꢃꢁꢈꢔꢄꢖꢕꢄꢕꢏꢍꢉꢄꢈꢒꢚꢌꢏꢕꢈꢉꢄꢋꢆꢔꢄꢉꢈꢌꢈꢊꢋꢆꢎꢄꢃꢋꢗꢈꢎꢕꢄꢉꢈꢇꢍꢌꢋꢎꢂꢏꢆꢃꢄꢋꢆꢔꢄꢇꢍꢂꢔꢈꢌꢂꢆꢈꢃ'ꢄ

ꢃꢍꢛꢁꢄꢋꢃꢄꢎꢁꢈꢄꢏꢆꢈꢃꢄꢌꢂꢃꢎꢈꢔꢄꢍꢆꢔꢈꢉ'ꢄ*+%!ꢄ,ꢈꢆꢈꢉꢋꢌꢄꢘꢆꢔꢍꢃꢎꢉꢕꢄ-ꢈꢇꢍꢌꢋꢎꢂꢏꢆꢃꢄ.ꢄ+ꢍꢖꢚꢋꢉꢎꢄ+ꢄꢋꢆꢔꢄ/)0!ꢄ12ꢅꢜꢄ

+ꢍꢂꢎꢋꢖꢌꢈꢄꢈꢕꢈꢄꢚꢉꢏꢎꢈꢛꢎꢂꢏꢆꢄꢒꢍꢃꢎꢄꢖꢈꢄ ꢏꢉꢆꢄ ꢁꢈꢆꢄ ꢏꢉ"ꢂꢆꢇꢄ ꢂꢎꢁꢄꢏꢉꢄꢋꢉꢏꢍꢆꢔꢄꢔꢈꢒꢏꢆꢃꢎꢉꢋꢎꢂꢏꢆꢄꢖꢏꢋꢉꢔꢃꢜꢄ!ꢌ ꢋꢕꢃꢄ

ꢛꢏꢒꢚꢌꢕꢄ ꢂꢎꢁꢄꢕꢏꢍꢉꢄꢈꢒꢚꢌꢏꢕꢈꢉRꢃꢄꢚꢏꢌꢂꢛꢂꢈꢃꢄꢉꢈꢇꢋꢉꢔꢂꢆꢇꢄꢎꢁꢈꢄꢍꢃꢈꢄꢏꢗꢄꢚꢈꢉꢃꢏꢆꢋꢌꢄꢚꢉꢏꢎꢈꢛꢎꢂꢊꢈꢄꢈꢝꢍꢂꢚꢒꢈꢆꢎꢜꢄ

!ꢌꢌꢄꢛꢏꢒꢚꢏꢆꢈꢆꢎꢃ'ꢄꢁꢈꢋꢎꢄꢃꢂꢆ"ꢃꢄꢏꢉꢄꢒꢈꢎꢋꢌꢌꢂꢛꢄꢚꢋꢉꢎꢃꢄꢒꢋꢕꢄꢖꢈꢄꢈ$ꢎꢉꢈꢒꢈꢌꢕꢄꢁꢏꢎꢄꢎꢏꢄꢎꢏꢍꢛꢁꢄ ꢁꢈꢆꢄꢈꢌꢈꢛꢎꢉꢂꢛꢋꢌꢌꢕꢄꢋꢛꢎꢂꢊꢈꢜꢄ

%ꢈꢋꢎꢃꢂꢆ"ꢂꢆꢇꢄꢂꢃꢄꢉꢈꢝꢍꢂꢉꢈꢔꢄꢗꢏꢉꢄ45ꢜꢄꢀꢁꢈꢄꢈꢆꢔꢄꢚꢉꢏꢔꢍꢛꢎꢄꢃꢁꢏꢍꢌꢔꢄꢍꢃꢈꢄꢎꢋꢉꢄꢚꢂꢎꢛꢁꢄꢏꢉꢄꢋꢆꢄꢈꢝꢍꢂꢊꢋꢌꢈꢆꢎꢄꢛꢏꢒꢚꢏꢍꢆꢔꢄꢗꢏꢉꢄꢎꢁꢂꢃꢄ

ꢚꢍꢉꢚꢏꢃꢈꢜꢄ)ꢏꢉꢄꢌꢋꢖꢄꢈꢊꢋꢌꢍꢋꢎꢂꢏꢆꢄꢚꢍꢉꢚꢏꢃꢈꢃ'ꢄꢋꢄꢗꢋꢆꢄꢂꢃꢄꢉꢈꢛꢏꢒꢒꢈꢆꢔꢈꢔꢄꢎꢏꢄꢚꢉꢏꢊꢂꢔꢈꢄꢋꢔꢈꢝꢍꢋꢎꢈꢄꢛꢏꢏꢌꢂꢆꢇꢜꢄ

Contacting Cirrus Logic Support

For all product questions and inquiries contact a Cirrus Logic Sales Representative. To find the one nearest to you

go to www.cirrus.com

IMPORTANT NOTICE

Cirrus Logic, Inc. and its subsidiaries ("Cirrus") believe that the information contained in this document is accurate and reliable. However, the information is subject

to change without notice and is provided "AS IS" without warranty of any kind (express or implied). Customers are advised to obtain the latest version of relevant

information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale

supplied at the time of order acknowledgment, including those pertaining to warranty, indemnification, and limitation of liability. No responsibility is assumed by Cirrus

for the use of this information, including use of this information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third

parties. This document is the property of Cirrus and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask work rights,

copyrights, trademarks, trade secrets or other intellectual property rights. Cirrus owns the copyrights associated with the information contained herein and gives

consent for copies to be made of the information only for use within your organization with respect to Cirrus integrated circuits or other products of Cirrus. This con-

sent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROP-

ERTY OR ENVIRONMENTAL DAMAGE ("CRITICAL APPLICATIONS"). CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED FOR

USE IN PRODUCTS SURGICALLY IMPLANTED INTO THE BODY, AUTOMOTIVE SAFETY OR SECURITY DEVICES, LIFE SUPPORT PRODUCTS OR OTHER

CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK

AND CIRRUS DISCLAIMS AND MAKES NO WARRANTY, EXPRESS, STATUTORY OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR PARTICULAR PURPOSE, WITH REGARD TO ANY CIRRUS PRODUCT THAT IS USED IN SUCH A MANNER. IF THE CUSTOMER

OR CUSTOMER'S CUSTOMER USES OR PERMITS THE USE OF CIRRUS PRODUCTS IN CRITICAL APPLICATIONS, CUSTOMER AGREES, BY SUCH USE,

TO FULLY INDEMNIFY CIRRUS, ITS OFFICERS, DIRECTORS, EMPLOYEES, DISTRIBUTORS AND OTHER AGENTS FROM ANY AND ALL LIABILITY, IN-

CLUDING ATTORNEYS' FEES AND COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTION WITH THESE USES.

Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this document may be trademarks

or service marks of their respective owners.

DS931DB3

CDB1601-120W

1. INTRODUCTION

The CS1601 is a high-performance Variable Frequency Discontinuous Conduction Mode (VF-DCM), ac-

tive Power Factor Correction (PFC) controller, optimized to deliver the lowest PFC system cost for elec-

tronic ballast applications. The CS1601 uses a digital control algorithm that is optimized for high efficiency

and near unity power factor over a wide input voltage range (108-305 VAC).

The CS1601 uses an adaptive digital control algorithm. Both the ON time and the switching frequency are

varied on a cycle-by-cycle basis over the entire AC line to achieve close to unity power factor. The varia-

tion in switching frequency also provides a spread frequency spectrum, thus minimizing the conducted

EMI filtering requirements.

The feedback loop is closed through an integrated digital control system within the IC. Protection features

such as overvoltage, overcurrent, overpower, open circuit, overtemperature, and brownout help protect

the device during abnormal transient conditions. Details of these features are provided in the CS1601 data

sheet.

The CDB1601-120W board demonstrates the performance of the CS1601 over a wide input voltage range

of 108 to 305 VAC, typically seen in universal input ballast applications. This board has been designed

for a 460 V, 115 W full load output application.

Extreme caution needs to be exercised while handling this board. This board is to be powered up by

trained professionals only.

Prior to applying AC power to the CDB1601-120W board, the CS1601 needs to be biased using an exter-

nal 13 VDC power supply, applied across pins 1 and 3 of terminal block J5. Terminal block J6 is used to

connect the AC line. The load is connected to J7. As a safety measure, jumper J1 is provided as a means

to apply a small resistive load (200 kΩ minium) to rapidly discharge the output capacitors. Other jumpers

and test points are provided to evaluate the behavior of the IC and the various sections of the design.

Output

J7^Terminals

AC Line

Input

V_DDInput

Figure 1. Board Connections

DANGER

High Voltage Hazard

ONLY QUALIFIED PERSONNEL SHOULD HANDLE THE CDB1601-120W.

WARNING:

Heatsinking is required for Q4.

The end product should use tar pitch or an equivalent compound for this purpose.

For lab evaluation purposes, a fan is recommended to provide adequate cooling.

DS931DB3

CDB1601-120W

2. SCHEMATIC

E P R

R I E J U W M 5 0 0 0 . "

3 P J M

D 4

4 L 1 L 4 8

7 5 V

G N

1 0

1 2

E P R

R I E J W U M 1 5 1 " .

1 P J M

E P R

R I E J U W M 7 5 0 0 . "

2 P J M

DS931DB3

CDB1601-120W

3. BILL OF MATERIALS

DS931DB3

CDB1601-120W

4. BOARD LAYOUT

DS931DB3

CDB1601-120W

DS931DB3

CDB1601-120W

5. TYPICAL PERFORMANCE PLOTS

100

277V

230V

120V

100

110

120

Output Power (Watts)

Figure 9. Efficiency vs. Output Power

1.00

0.98

0.96

0.94

0.92

0.90

0.88

0.86

0.84

0.82

0.80

120V

230V

277V

100

110

120

Output Power (Watts)

Figure 10. Power Factor vs. Output Power

DS931DB3

CDB1601-120W

277V

230V

120V

100

110

120

Output Power (Watts)

Figure 11. THD vs. Output Power

470

468

466

464

462

460

458

456

454

452

450

277V

120V

230V

100

110

120

Output Power (Watts)

Figure 12. V

Voltage vs. Output Power

Link

DS931DB3

CDB1601-120W

Figure 13. Steady State Waveforms — 120 VAC

Figure 14. Steady State Waveforms — 230 VAC

DS931DB3

CDB1601-120W

Figure 15. Steady State Waveforms — 277 VAC

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 16. Switching Frequency Profile at Peak of AC Line Voltage — 120 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 17. Switching Frequency Profile at Peak of AC Line Voltage — 120 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 18. Switching Frequency Profile at Trough of AC Line Voltage —120 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 19. Switching Frequency Profile at Trough of AC Line Voltage — 120 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 20. Switching Frequency Profile at Peak of AC Line Voltage — 230 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 21. Switching Frequency Profile at Peak of AC Line Voltage — 230 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 22. Switching Frequency Profile at Trough of AC Line Voltage — 230 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 23. Switching Frequency Profile at Trough of AC Line Voltage — 230 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 24. Switching Frequency Profile at Peak of AC Line Voltage — 277 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 25. Switching Frequency Profile at Peak of AC Line Voltage — 277 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 26. Switching Frequency Profile at Trough of AC Line Voltage — 277 VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 27. Switching Frequency Profile at Trough of AC Line Voltage — 277 VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 28. Transient — 15W to 115W Load at 10W/μs, Vin = 120VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 29. Transient — 15W to 115W Load at 10W/μs, Vin = 120VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 30. Transient — 15W to 115W Load at 10W/μs, Vin = 230VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 31. Transient — 15W to 115W Load at 10W/μs, Vin = 230VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 32. Transient — 15W to 115W Load at 10W/μs, Vin = 277VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 33. Transient — 15W to 115W Load at 10W/μs, Vin = 277VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 34. Transient — 115W to Zero Load at 10W/μs, Vin = 120VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 35. Transient — 115W to Zero Load at 10W/μs, Vin = 120VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 36. Transient — 115W to Zero Load at 10W/μs, Vin = 230VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 37. Transient — 115W to Zero Load at 10W/μs, Vin = 230VAC (cont.)

DS931DB3

CDB1601-120W

Ch. 1–VLINK

Ch. 2–VRECT

Ch. 3–Gate

Ch. 4–Inductor Current

Figure 38. Transient — 115W to Zero Load at 10W/μs, Vin = 277VAC

Ch. 1–VDS

Ch. 2–VRECT

Ch. 3–CS

Ch. 4–ZCD

Figure 39. Transient — 115W to Zero Load at 10W/μs, Vin = 277VAC (cont.)

DS931DB3

CDB1601-120W

6. REVISION HISTORY

Revision

DB1

Date

Changes

FEB 2011

MAR 2011

Initial Release.

DB2

Minor BOM change.

DB3

Updated BOM & Layers to rev C.

DS931DB3

厂商	型号	描述	页数
E-SWITCH	600	拨动开关 - 小型[ SLIDE SWITCHES - MINIATURE ]	2 页
SWITCH	600	杰克封面[ JACK COVERS ]	1 页
ETC	600-00005-02	吸顶扬声器设计（ CNSRD ）[ CEILING SPEAKER DESIGN (CNSRD) ]	4 页
GLENAIR	600-004	手持式扭力扳手[ Hand Held Torque Wrenches ]	1 页
CIRRUS	600-00467-Z1	高效率PFC荧光灯驱动器参考设计[ High-efficiency PFC Fluorescent Lamp Driver Reference Design ]	12 页
CIRRUS	600-00473-Z2	高效率PFC演示板[ High-efficiency PFC Demonstration Board ]	16 页
GLENAIR	600-006-08	圆形的后壳组装扳手和Repacement插入垫[ Circular Backshell Assembly Wrenches and Repacement Insert Pads ]	1 页
GLENAIR	600-006-10	圆形的后壳组装扳手和Repacement插入垫[ Circular Backshell Assembly Wrenches and Repacement Insert Pads ]	1 页
GLENAIR	600-006-12	圆形的后壳组装扳手和Repacement插入垫[ Circular Backshell Assembly Wrenches and Repacement Insert Pads ]	1 页
GLENAIR	600-006-14	圆形的后壳组装扳手和Repacement插入垫[ Circular Backshell Assembly Wrenches and Repacement Insert Pads ]	1 页
