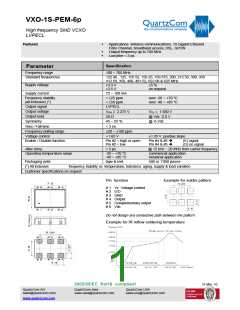

VXO-1S-PEM-6p
High frequency SMD VCXO
LVPECL
Features
Applications: wireless communications, 10 Gigabit Ethernet
Fibre Channel, broadband access, DSL, GPON
Output frequency up to 700 MHz
Low jitter < 3 ps
Specification
Parameter
Frequency range
100 ~ 700 MHz
Standard frequencies
122.88 , 125, 155.52, 156.25, 159.375, 200, 212.50, 300, 350
312.50, 350, 400, 491.52, 622.08 & 625 MHz
Supply voltage
+3.3 V
+2.5 V
±5 %
on request
Supply current
75 ~ 100 mA
Frequency stability
(all inclusive) (*)
< ±25 ppm
< ±50 ppm
LVPECL
over -20 ~ +70 °C
over -40 ~ +85 °C
Output signal
Output voltage
Output load
VOH ≥ 2.275 V
50 Ω
45 ~ 55 %
< 3 ns
VOL ≤ 1.680 V
@ Vdc -2.0 V
@ ½ Vdc
Symmetry
Rise / Fall time
Frequency pulling range
Voltage control
±50 ~ ±100 ppm
+1.65 V
±1.35 V positive slope
Enable / Disable function
Pin #2 = high or open
Pin #2 = low
Pin #4 & #5 Î
Pin #4 & #5 Î
(E) signal
(D) no signal
Jitter (rms)
< 3 ps
@ 12 kHz ~ 20 MHz from carrier frequency
Operating temperature range
-20 ~ +70 °C
-40 ~ +85 °C
commercial application
industrial application
Packaging units
tape & reel
500 or 1’000 pieces
(*) All inclusive
frequency stability vs. temperature, tolerance, aging, supply & load variation
Customer specifications on request
Pin function
Example for solder pattern
# 1 Vc Voltage control
# 2 E/D
# 3 GND
# 4 Output
# 5 Complementary output
# 6 Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
31 Mar. 10
