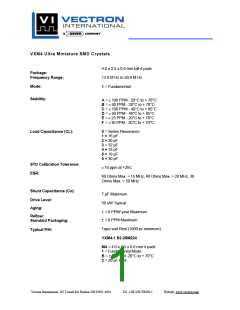

VXM4 Ultra Miniature SMD Crystals
4.0 x 2.5 x 0.6 mm tall 4 pads
Package:
Frequency Range:
13.0 M Hz to 50.0 M Hz
Mode:
1 = Fundamental
Stability:
A = ± 100 PPM - 20°C to + 70°C
B = ± 50 PPM - 20°C to + 70°C
C = ± 100 PPM - 40°C to + 85°C
D = ± 50 PPM - 40°C to + 85°C
E = ± 25 PPM - 20°C to + 70°C
F = ± 30 PPM - 20°C to + 70°C
0 = Series Resonance
1 = 16 pF
Load Capacitance (CL):
2 = 20 pF
3 = 32 pF
4 = 18 pF
5 = 10 pF
6 = 30 pF
STD Calibration Tolerance:
ESR:
± 10 ppm at +25C
60 Ohms Max. > 15 MHz, 40 Ohms Max. > 20 MHz, 30
Ohms Max. > 50 MHz
Shunt Capacitance (Co):
7 pF Maximum
50 uW Typical
Drive Level:
Aging:
± 1.0 PPM/ year Maximum
± 1.0 PPM Maximum
Reflow:
Standard Packaging:
Tape and Reel (1000 pc minimum)
Typical P/N:
VXM4-1 B2-28M224
M4 = 4.0 x 2.5 x 0.6 mm 4 pads
1 = Fundamental Mode
B = ± 50 PPM -20°C to + 70°C
2 = 20 pF load
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
