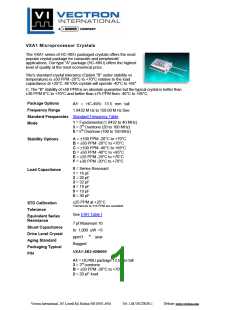

VXA1 Microprocessor Crystals
The VXA1 series of HC-49/U packaged crystals offers the most
popular crystal package for computer and peripherals'
applications. Our type "A" package (HC-49/U) offers the highest
level of quality at the most economical price.
Vite's standard crystal tolerance (Option "B" under stability vs.
temperature) is ±50 PPM -20°C to +70°C relative to the load
capacitance at +25°C. All VXA crystals will operate -40°C to +85°
C. The "B" stability of ±50 PPM is an absolute guarantee but the typical crystal is better than
±30 PPM 0°C to +70°C and better than ±75 PPM from -40°C to +85°C.
Package Options
Frequency Range
A1 = HC-49/U 13.5 mm tall
1.8432 M Hz to 150.00 M Hz See
Standard Frequencies Standard Frequency Table
1 = Fundamental (1.8432 to 40 MHz)
Mode
3 = 3rd Overtone (20 to 100 MHz)
5 = 5th Overtone (100 to 150 MHz)
A = ±100 PPM -20°C to +70°C
B = ±50 PPM -20°C to +70°C
C = ±100 PPM -40°C to +85°C
D = ±50 PPM -40°C to +85°C
E = ±25 PPM -20°C to +70°C
F = ±30 PPM -20°C to +70°C
Stability Options
0 = Series Resonant
1 = 16 pF
Load Capacitance
2 = 20 pF
3 = 32 pF
4 = 18 pF
5 = 10 pF
6 = 30 pF
±25 PPM at +25°C
STD Calibration
Tolerance
Tolerances to ±10 PPM are available
See ESR Table I
7 pf Maximum 10
Equivalent Series
Resistance
Shunt Capacitance
Drive Level Crystal
Aging Standard
Packaging Typical
P/N
to 1,000 uW <5
st
ppm/1
year
Bagged
VXA1-3B2-40M000
A1 = HC/49U package 13.5 mm tall
3 = 3rd overtone
B = ±50 PPM -20°C to +70°C
2 = 20 pF load
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
