2-103669-9

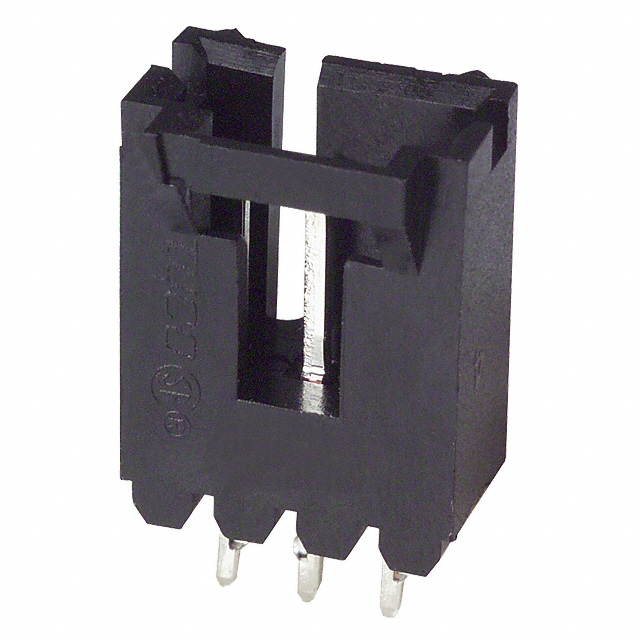

图片源于供应商或网络,实物可能存在差异,请以实物为准

2-103669-9

购买数量

总价金额：￥ 0

样品申购

收藏

推荐替代

查看更多 >

暂无推荐

TE Connectivity AMP Connectors

品牌:

TE Connectivity AMP Connectors

型号:

2-103669-9

编号:

D7888655

包装:

托盘

批号:

-

封装:

-

描述:

CONN HEADER VERT 3POS 2.54MM

数据手册

产品参数
数据手册PDF

详细描述：针座连接器通孔 3 位置 0.100"（2.54mm）

产品参数

产品属性	属性值
侵入防护	-
制造商	TE Connectivity AMP Connectors
加载的针位数	所有
包装	管件
基本产品编号	103669
安装类型	通孔
工作温度	-65°C ~ 105°C
应用	汽车，通用，医疗，电信
总体接触长度	0.545"（13.84mm）
护罩	带遮蔽 - 4 墙
排数	1
排距 - 配接	-
接合堆叠高度	-
接触长度 - 柱	0.130"（3.30mm）
接触长度 - 配接	0.230"（5.84mm）
材料可燃性等级	UL94 V-0
样式	板至板或电缆
特性	键槽
端接	压接，焊接
系列	AMPMODU MTE
紧固类型	锁存器支座
绝缘材料	热塑塑胶
绝缘颜色	黑色
绝缘高度	0.535"（13.60mm）
触头形状	方形
触头材料	黄铜
触头类型	公形引脚
触头表面处理 - 柱	锡
触头表面处理 - 配接	锡
触头表面处理厚度 - 柱	100.0µin（2.54µm）
触头表面处理厚度 - 配接	100.0µin（2.54µm）
连接器类型	接头
针位数	3
间距 - 配接	0.100"（2.54mm）
零件状态	停产
额定电压	-
额定电流（安培）	3A

PDF描述：HDR ASSY, VERT, SINGLE ROW 2.54 [.100] C/L 0.64 [.025] SQ POST WITH PLZN, AMPMODU MTE HDR ASSY ， VERT ，单列2.54 [ .100 ] C / L 0.64 [ 0.025 ] SQ POST与PLZN ， AMPMODU MTE

产品概述

暂无产品概述
