图片源于供应商或网络,实物可能存在差异,请以实物为准

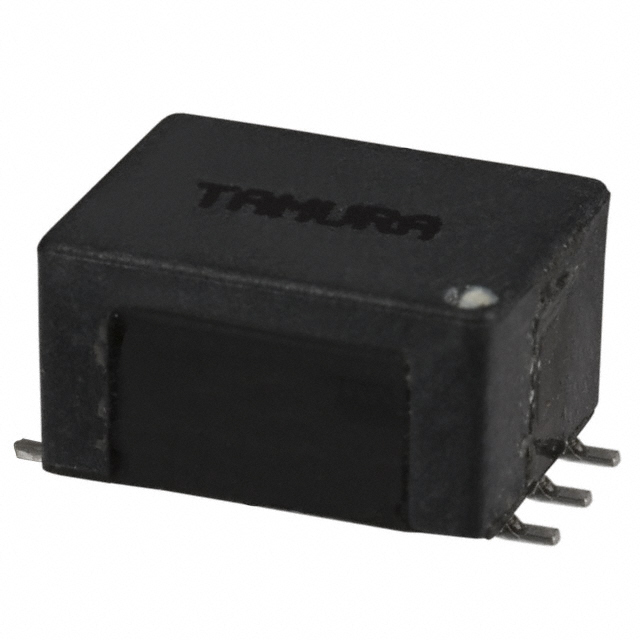

TTC-5023

购买数量

总价金额：￥ 0

样品申购

详细描述：600 初级侧阻抗欧姆 600 次级侧阻抗欧姆 1：1 音频变压器 200Hz ~ 4kHz 表面贴装型

产品参数

产品属性	属性值
DC 电阻 (DCR) - 初级侧	115 欧姆
DC 电阻 (DCR) - 次级侧	115 欧姆
制造商	Tamura
功率水平	-
包装	卷带（TR），剪切带（CT），Digi-Reel® 得捷定制卷带
匝数比 - 初级:次级	1:1
变压器类型	数据、音频耦合
回波损耗	14dB 分钟 @ 200Hz ~ 4kHz
大小、尺寸	0.378" 长 x 0.492" 宽（9.60mm x 12.50mm）
安装类型	表面贴装型
工作温度	-20°C ~ 85°C
插损	2dB 最小值 @ 2kHz
电压 - 隔离	3000VRMS @ 1 分钟
端接样式	扁平引线
系列	TTC
认证机构	UL60950，EN60950
重量	-
阻抗 - 初级侧（欧姆）	600
阻抗 - 次级侧（欧姆）	600
零件状态	在售
频率响应	±0.25dB
频率范围	200Hz ~ 4kHz
高度 - 安装（最大值）	0.299"（7.60mm）

产品概述

暂无产品概述
