图片源于供应商或网络,实物可能存在差异,请以实物为准

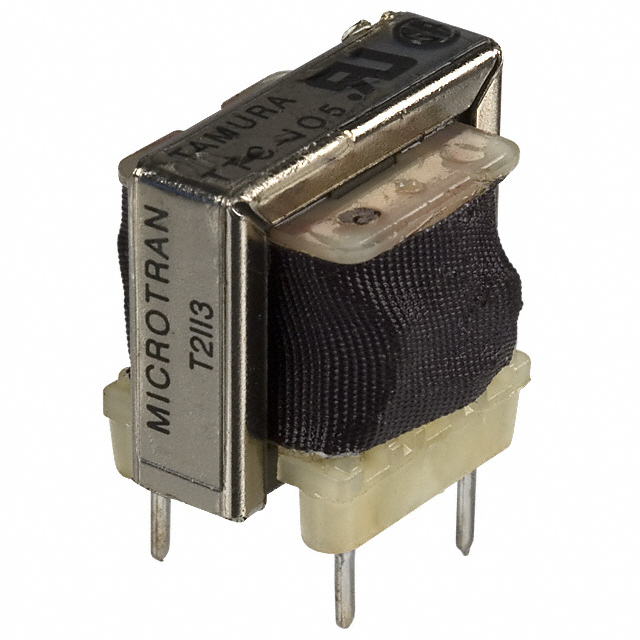

TTC-105

购买数量

总价金额：￥ 0

样品申购

详细描述：600 初级侧阻抗欧姆 600 次级侧阻抗欧姆 1：1 音频变压器 660Hz ~ 3.5kHz 通孔

产品参数

产品属性	属性值
DC 电阻 (DCR) - 初级侧	71 欧姆
DC 电阻 (DCR) - 次级侧	117 欧姆
制造商	Tamura
功率水平	-45dB ~ 10dB
包装	散装
匝数比 - 初级:次级	1:1
变压器类型	数据、音频耦合
回波损耗	-
大小、尺寸	0.839" 长 x 0.630" 宽（21.30mm x 16.00mm）
安装类型	通孔
工作温度	-
插损	3dB 最小值 @ 660Hz ~ 800Hz，2.5dB 最小值 @ 800Hz @ 3.5kHz
电压 - 隔离	1500VRMS @ 1 分钟
端接样式	PC 引脚
系列	TTC
认证机构	CSA-C22.2 No. 66-M1988，UL1459
重量	-
阻抗 - 初级侧（欧姆）	600
阻抗 - 次级侧（欧姆）	600
零件状态	在售
频率响应	-1dB ~ 0.7dB
频率范围	660Hz ~ 3.5kHz
高度 - 安装（最大值）	0.748"（19.00mm）

产品概述

暂无产品概述
