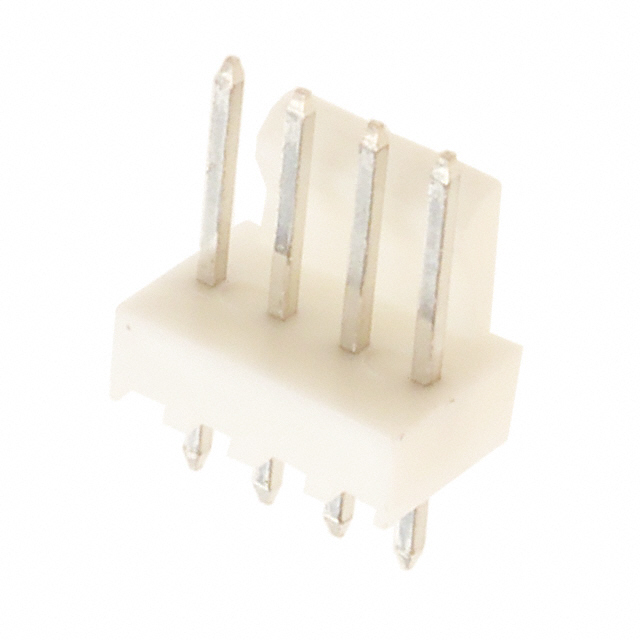

图片源于供应商或网络,实物可能存在差异,请以实物为准

0022232041

购买数量

总价金额：￥ 0

样品申购

详细描述：针座连接器通孔 4 位置 0.100"（2.54mm）

产品参数

产品属性	属性值
侵入防护	-
制造商	Molex
加载的针位数	所有
包装	散装
基本产品编号	002223
安装类型	通孔
工作温度	-
应用	汽车，通用，医疗，电信
总体接触长度	0.560"（14.22mm）
护罩	带遮蔽 - 1 墙
排数	1
排距 - 配接	-
接合堆叠高度	-
接触长度 - 柱	0.140"（3.56mm）
接触长度 - 配接	0.295"（7.49mm）
材料可燃性等级	UL94 V-0
样式	板至板或电缆
特性	-
端接	焊接
系列	KK254, 6373
紧固类型	摩擦锁
绝缘材料	聚酰胺（PA），尼龙
绝缘颜色	白色
绝缘高度	0.322"（8.18mm）
触头形状	方形
触头材料	黄铜
触头类型	公形引脚
触头表面处理 - 柱	锡
触头表面处理 - 配接	锡
触头表面处理厚度 - 柱	100.0µin（2.54µm）
触头表面处理厚度 - 配接	100.0µin（2.54µm）
连接器类型	接头
针位数	4
间距 - 配接	0.100"（2.54mm）
零件状态	在售
额定电压	-
额定电流（安培）	-

PDF描述：2.54mm (.100) Pitch KK® Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating 2.54毫米（ .100 ）间距KK®固体头，垂直，用摩擦锁， 4回路，锡（Sn ）镀层

暂无产品概述
