图片源于供应商或网络,实物可能存在差异,请以实物为准

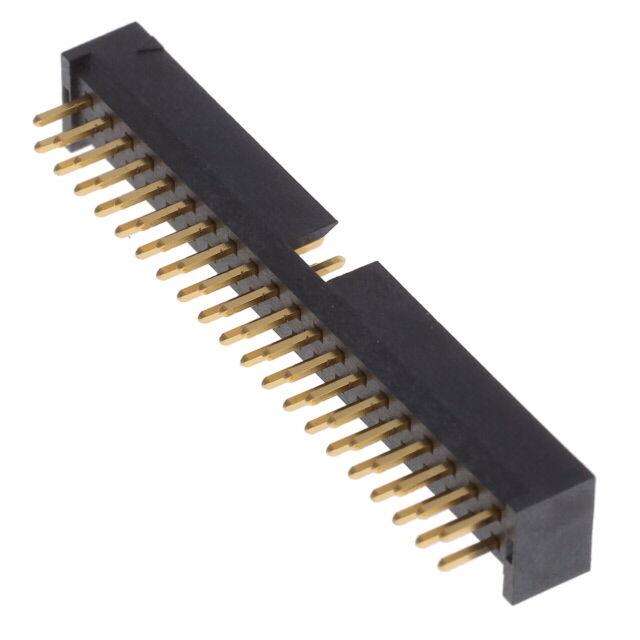

LTMM-120-02-G-D

购买数量

总价金额：￥ 0

样品申购

详细描述：针座连接器通孔 40 位置 0.079"（2.00mm）

产品参数

产品属性	属性值
侵入防护	-
制造商	Samtec Inc.
加载的针位数	所有
包装	管件
基本产品编号	LTMM-120
安装类型	通孔
工作温度	-55°C ~ 125°C
应用	-
总体接触长度	-
护罩	带遮蔽 - 4 墙
排数	2
排距 - 配接	0.079"（2.00mm）
接合堆叠高度	-
接触长度 - 柱	0.117"（2.97mm）
接触长度 - 配接	0.120"（3.05mm）
材料可燃性等级	-
样式	板至板
特性	键槽
端接	焊接
系列	Flex Stack, LTMM
紧固类型	推挽式
绝缘材料	液晶聚合物（LCP）
绝缘颜色	黑色
绝缘高度	0.190"（4.83mm）
触头形状	方形
触头材料	磷青铜
触头类型	公形引脚
触头表面处理 - 柱	镀金
触头表面处理 - 配接	镀金
触头表面处理厚度 - 柱	3.00µin（0.076µm）
触头表面处理厚度 - 配接	20.0µin（0.51µm）
连接器类型	接头
针位数	40
间距 - 配接	0.079"（2.00mm）
零件状态	在售
额定电压	-
额定电流（安培）	-

PDF描述：Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
