图片源于供应商或网络,实物可能存在差异,请以实物为准

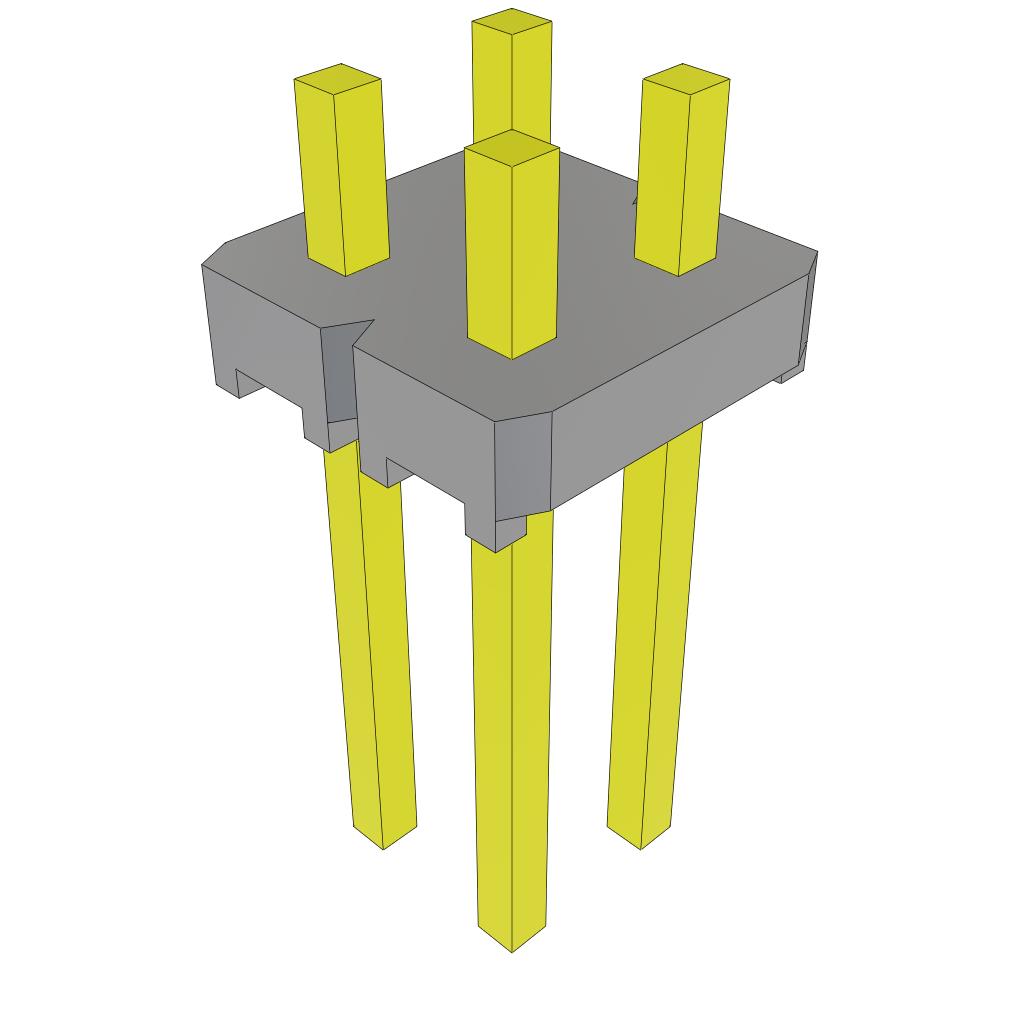

MTLW-102-07-G-D-080

购买数量

总价金额：￥ 0

样品申购

详细描述：针座连接器通孔 4 位置 0.100"（2.54mm）

产品参数

产品属性	属性值
侵入防护	-
制造商	Samtec Inc.
加载的针位数	所有
包装	散装
基本产品编号	MTLW-102
安装类型	通孔
工作温度	-55°C ~ 125°C
应用	-
总体接触长度	0.430"（10.92mm）
护罩	无罩
排数	2
排距 - 配接	0.100"（2.54mm）
接合堆叠高度	-
接触长度 - 柱	0.290"（7.37mm）
接触长度 - 配接	0.080"（2.03mm）
材料可燃性等级	UL94 V-0
样式	板至板或电缆
特性	-
端接	焊接
系列	Flex Stack, MTLW
紧固类型	推挽式
绝缘材料	液晶聚合物（LCP）
绝缘颜色	黑色
绝缘高度	0.060"（1.52mm）
触头形状	方形
触头材料	磷青铜
触头类型	公形引脚
触头表面处理 - 柱	镀金
触头表面处理 - 配接	镀金
触头表面处理厚度 - 柱	3.00µin（0.076µm）
触头表面处理厚度 - 配接	10.0µin（0.25µm）
连接器类型	接头
针位数	4
间距 - 配接	0.100"（2.54mm）
零件状态	在售
额定电压	-
额定电流（安培）	5.2A、触头

产品概述

暂无产品概述
