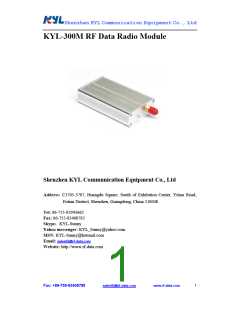

ShenzhenKYLCommunicationEquipmentCo.,Ltd
KYL-300M RF Data Radio Module
Shenzhen KYL Communication Equipment Co., Ltd
Address: C3705-3707, Huangdu Square, South of Exhibition Center, Yitian Road,
Futian District, Shenzhen, Guangdong, China 518048
Tel: 86-755-82943662
Fax: 86-755-83408785
Skype：KYL-Sunny
Yahoo messenger: KYL_Sunny@yahoo.com
MSN: KYL-Sunny@hotmail.com
Email: sales02@rf-data.com
Website: http://www.rf-data.com
1
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
Before using our products, please read the user manual carefully. Any questions,
please contact us at the above mentioned ways.
I: About KYL-300M
KYL-300M, RF data radio is designed to be low cost and high performance radio
modem. The new design makes the modem more flexible for different application in
various configurations. Basically, this type of modem is SMART enough to be
customized to fully meet end user’s requirements.
II: Features of KYL-300M:
1. Low power transmission: 2W
2. Carrier frequency: 433MHz (default), 400-470MHz (optional)
3. High anti- interference and Low BER (Bit Error Rate)
Based on GFSK modulation, high-efficiency forward error correction channel
encoding technology is used to enhance the data’s resistance to both transient
interference and random interference. The actual BER can be achieved to 10-5~
10-6 when channel BER is 10-2.
4. Long Transmission Distance
Within the visible range, when the height of antenna is higher than 2m and The
BER is 10-5, the reliable transmission distance is 7km @1200bps, and is
5km@9600bps respectively.
5. Transparent data transmission
Transparent data interface used in transceivers is to meet many standard and
nonstandard user protocols. Any false data generated in air can be filtrated
automatically (What has been received is exactly what has been transmitted).
6. Multi-channels
We provide 8 channels, expandable for 16, 32 channels according to customers’
requirements.
7. Big data buffer area
With optional interface baud rates: 1200/4800/9600/19200bps and 8N1/8E1/8O1
data format (decide by user), the transceiver can transmit unlimited data frames
with flexible user program.
Note: the RF data rate is only settled down before delivery; please inform our
sales when placing your orders.
8. Intelligent data control system and no other extra programs required
Even for half duplex communication, no other excessive programs are required.
All RF system data transmission/reception and other On-the-Fly conversion and
control are performed by KYL-300M transceivers automatically.
9. Lower power consumption & nice sleep function
With 5V power, the receiving current is less than 30mA, the transmitting current
is less than 1.5A, and the sleeping current is less than 20uA.
10. High reliability, small size and excellent performance
2
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
High sensitivity, small size is suitable for the order-dish system. With Long
transmission distance, strong penetrability, it is preferable for handheld
terminal.
11. More options of configurable antennas for user different applications.
12. Watchdog monitor
Watchdog monitors the inner function, so it can change the traditional product
structure and also improve the reliability of our modules.
13. With beautiful metal shell.
III: Application of KYL-300M:
KYL-300M is suitable for:
* Wireless Order-dish system;
* Wireless POS, PDA, wireless smart terminals;
* Lower power consumption System;
* Automatic Meter Reading (AMR)
* Wireless alarm and security systems
* Building automation, security, wireless monitor and control of room
equipment, Access Control System;
* Wireless data transmission, automatic data collection system;
* Radio modem can be used for Sports training & competition;
* Electronic bus station and intelligent traffic;
* Wireless electronic display screen and queuing machine;
* Wireless telemetry, charging for parking, parking lot;
* Automobile inspection and four-wheel orientation;
* Wireless sensor, Industrial wireless remote control and air condition remote
control;
* LED display in thruway and public place
* Point to multi-point wireless network, wireless on-the-spot bus and automatic
data collection system;
IV: How to use the KYL-300M
KYL-300M provide RS-232, RS-485 and UART/TTL level interface port for direct
connection with PC, RS485 devices, monolithic processors and other UART
components kinds of applications. The schematic diagram is shown below:
3
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
1. Power supply
The factory default setting is +5V (7.5V-12V will inform when placing the
order).By using better ripple factor, KYL-300M transceivers can also share power
supply with other equipment. If possible, a voltage-stabilizing chip with 5V voltage
is more recommended as the only power supply than Switch power supply. But if
only switch power supply available, the jam by switch pulse to the transceivers
should be avoided. In addition, the reliable grounding must be used if there is other
device in the system equipment. In case of failing to connect with the ground, it can
form its own grounding but must be absolutely separated from the municipal
electric supply.
2. Connection Definition with terminal
KYL-300M transceivers supply one 9-pin connector (JP1), their definitions and
connection methods with terminals are shown in Table 1.
Table 1: JP1 Pin Definitions and connection methods
Pin No. Signal Name Function
Level
Connection
with terminal
Ground
Remarks
1
2
3
4
GND
Grounding of power supply
Power supply DC
Vcc
5V
RxD/TTL
TxD/TTL
Serial data input to the transceiver
TTL
TxD
RxD
Transmitted data out of theTTL
transceiver
Signal
5
6
SGND
A (TXD)
A of RS-485(TxD of RS-232)
B of RS-485(RxD of RS-232)
A(RxD)
7
8
B (RXD)
SLEEP
B(TxD)
Sleep control (input)
TTL
TTL
Sleep signal
High
sleep
level
9
RESET
Reset signal(input)
Negative
pulse reset
3. The connection schematic diagram between computer and our
RF module
4
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
4. Setting of channel, interface, and data format
Before using KYL-300M, the user needs to make simple configuration based on
its own needs to determine the channel, interface mode and data format. The user
can change or view the module's interface baud rate, channel and address code.
Parameter setting or reading as per the testing software KYLCOM in the PC (in
products box).And the configuration is as follows:
i. Channel configuration:
Channel No.
Frequency
Channel No.
Frequency
1
2
3
4
429.0325MHZ
430.0325MHZ
431.0325MHZ
432.0325MHZ
5
6
7
8
433.0325MHZ
434.0325MHZ
435.0325MHZ
436.0325MHZ
Note: the frequency points corresponding to each channel can be adjusted
based on the user’s needs.
5. Installation dimension:
5
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
6. The Function-indicator light
a. The LED indicator light will glitter red for 0.5S once after switched on.
b. The LED indicator light will glitter green continually while receiving data from
air.
c. The LED indicator light will glitter red continuously when transmitting data into
air after receiving from COM.
d. If the module enables the sleep function, LED indicator light is always dark.
7. Supported protocol and Transmit capability
KYL-300M standard transceivers offer transparent protocol to support various
applications and protocols of users. If the user needs to decrease his cost or ease the
workload of terminal CPU, we can add other specific functions based on the
transparent protocol, such as addressing, data acquisition, command interpretation,
etc.
8. Sleep function instruction:
Due to reducing more consumption, KYL-300M transceivers support Sleep
function. In sleep mode, the current consumption is less than 20uA.
a. How to use the Sleep function:
The Pin8 ‘SLP’ in JP1 is the signal of sleep control. In high power level,
transceiver stays in working mode. In low power level (<0.5V), transceiver stays
in sleep mode. The SLP signal can convert transceiver from working to sleep
mode in 1ms after falling edge. If the Sleep signal arrives when the transceiver is
transmitting data, the module will enter sleep mode after finishing transmission.
From sleep mode to working, it takes the transceiver 1ms after rising edge.
To disable the opened sleep function of KYL-300M, the SLP (SLEEP) pin
should be definitely connected with 0 or ground.
b. Attentions about use of sleep function:
When the sleep function enabled, any supply glitches, such as switch dithering,
fire striking or quick switching on and off, could cause the transceiver to be
switched to the wrong sleep mode.
After switching on, users can avoid this error by making a compulsive
restoration once after the CPU delays 100ms.
Sleep Timing Diagram:
6
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
8. The attentions of data transmission
a. The delay time (tc) of conversion between transmitting and receiving is less than
1ms.
Timing diagram:
b. The delay time of transceivers between the first bit sent by TxD to the first
bit received by RxD.
Due to a data processing will be made on user’s data by KYL-300M transceiver
using FEC (Forward Error Correction) or other correction algorithm, when RxD
of a KYL-300M transceiver ‘A’ receives the data, then transmits it, the other one
transceiver ‘B’ will have a delay (ts) to receive and transmit by TxD. Different
RF data rate causes different delay time. Please see the specific delay time
below:
RF Date Rate Delay
RF Date Rate Delay
(bps)
1200
Ts(mS)
90
(bps)
9600
Ts(mS)
16
2400
48
19200
10
7
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
4800
30
Timing diagram:
c. Error dealing procedure:
To enhance the reliability and stability of user’s systems, a verify bit or a Cyclic
Redundancy Check (CRC) mode is highly recommended to resent the wrong
information while using KYL-300M modules.
d. Large-number data transmission
In theory, when the interface data rate is faster than the RF data rate, KYL-300M
transceivers can sent unlimited-long data package, but any long packages more
than 120B are not recommended. The length of each package should be between
60~100B. We also recommend user to resent the wrong information using
Automatic Error Request Equipment (ARQ).
The analyzing as below:
What if the actual transmission BER (Bit Error Rate) is 10-4, 1 packet with 1KB
data, which is about 10-thousand bits, is sent, theoretically, at least 1 bit will be
received wrongly, then the 1KB information will never be received correctly.
But if we package the data into 10 packets with 100B for each, when all 10
packets are sent, there will be only 1 packet wrong according to this probability.
After that, resend this wrong packet using ARQ mode. So by resending one more
packet and the efficiency rate is reduced 10%, all data will be absolutely received
correctly.
10. Antenna configuration:
Many appropriative antennas for low power RF modules are selected for meeting
different user antenna configurations. Please ask our Sales office for further
information about the antenna’s dimension and performance.
a. Helical SMA antennas
KYL-ANT-433-10-SMA: 100mm helical SMA antennas with high gain and low
cost, reach a long distance.
8
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
KYL-ANT-433-3-SMA: 28mm SMA helical antenna with magnetic core, small size,
beautiful appearance (like the mobile phone antenna)
KYL-ANT-433-10-ZSMA: 100mm SMA helical antenna with folding joint, easy for
adjusting the direction and fixing.
b. Magnetic vehicle antenna
KYL-ANT-O433S-300H1.5-SMA: include magnetic antenna base, suitable for
equipment with metal shell, easy for fixing, effective to enhance the transmission
distance.
More
kinds
of
antenna,
please
browse
our
website:
http://www.kylcom.com/Products_list_en.asp?classid=163
If the user has special demands on antennas, we can design and produce for them
specially.
V. Networking Application of KYL-300M
The communication channel of KYL-300M is half duplex, which is most suitable
for the communication mode of point to multi-point. Under this mode, one
master station must be set, and all of the rest are slave stations. A unique address
is given to each station. The coordination of communication is controlled by
master station that uses data frames containing address code to transmit data or
command. Slave station will receive all of the data and command and compare
the received address code with local address code. If they are different, the data
9
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
ShenzhenKYLCommunicationEquipmentCo.,Ltd
will be deserted without any response. If those address codes are the same, it
means the data is sent to the local. Slave station will make different responses
according to the transmitted data or command and send back the data of response.
All these jobs must be performed by upper protocol, and it is assured that there is
only one transmitter-receiver in the state of transmission in the communication
network at any instant moment so as to avoid the cross-interference.
KYL-300M can also be used for point-to-point communication with easier
operation. For the programming of serial port, all you have to do is to remember
that its communication mode is semi duplex while always observing the time
sequence of come-and-go for receiving and transmitting.
VI. Technical specification of KYL-300M
* Modulation mode: GFSK/FSK
* Working frequency: 400MHz~470MHz;
* Power supply: DC 5V (7.5V~12V will inform when placing the order);
* RF power: ≤2W;
* RF data rate: 1200/2400/4800/9600/19200bps (Set before delivery);
* Receive current: <30mA (TTL connect);
* Receive sensitivity: -123dBm (1200bps); -118dBm (9600bps);
* Transmitting current: <1.5A;
* Sleep current: <20uA;
* Interface data format: 8E1/8N1/8O1;
* Working humidity: 10%~90% relative humidity without condensation;
* Working temperature: -35ꢀ~+75ꢀ( industrial)
* RF Line-of-sight Range: 5000m(BER=10-5@9600bps);
7000m(BER=10-5@1200bps)；
* Size: 80mm*45mm*20mm (without antenna port).
VII. Description of type
KYL-300M-96
Baud Rate
12:1200bps
manufacturer
type
24:2400bps
48:4800bps
96:9600bps
192:19200bps
10
Fax: +86-755-83408785
sales02@rf-data.com
www.rf-data.com
厂商 型号 描述 页数 下载

KYL

 		KYL-200L KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-12 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-192 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-24 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-48 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L-96 KYL- 200L低PowerWireless收发器DataModule中[ KYL-200L Low PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200L_1 低PowerWireless数据收发模块[ Low PowerWireless Transceiver Data Module ] 11 页

KYL

 		KYL-200U KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U-12 KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

KYL

 		KYL-200U-192 KYL- 200UMicro PowerWireless收发器DataModule中[ KYL-200UMicro PowerWireless Transceiver DataModule ] 15 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.221015s
