KXTC9-4100

型号：

KXTC9-4100

描述：

2克三轴模拟加速计产品规格[ 2g Tri-axis Analog Accelerometer Specifications ]

品牌：

ETC[ ETC ]

页数：

11 页

PDF大小：

312 K

下载PDF手册

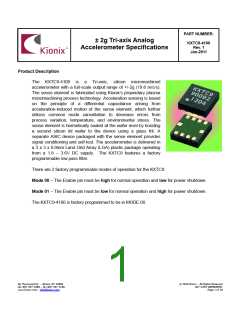

PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Product Description
The KXTC9-4100 is
a
Tri-axis, silicon micromachined
accelerometer with a full-scale output range of +/-2g (19.6 m/s/s).
The sense element is fabricated using Kionix’s proprietary plasma
micromachining process technology. Acceleration sensing is based
on the principle of a differential capacitance arising from
acceleration-induced motion of the sense element, which further
utilizes common mode cancellation to decrease errors from
process variation, temperature, and environmental stress. The
sense element is hermetically sealed at the wafer level by bonding
a second silicon lid wafer to the device using a glass frit. A
separate ASIC device packaged with the sense element provides
signal conditioning and self-test. The accelerometer is delivered in
a 3 x 3 x 0.9mm Land Grid Array (LGA) plastic package operating
from a 1.8 – 3.6V DC supply. The KXTC9 features a factory
programmable low pass filter.
There are 2 factory programmable modes of operation for the KXTC9:
Mode 00 – The Enable pin must be high for normal operation and low for power shutdown.
Mode 01 – The Enable pin must be low for normal operation and high for power shutdown.
The KXTC9-4100 is factory programmed to be in MODE 00.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 1 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Functional Diagram
32K
X
6
7
8
Output X
Output Y
Output Z
Sensor
Low
Pass
Filter
32K
32K
Charge
Amplifier
Y
Sensor
Z
Sensor
Oscillator
Vdd
1
9
GND
Logic
3
4
ST
Enable
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 2 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Product Specifications
Table 1. Mechanical
(specifications are for operation at 1.8V and T = 25C unless stated otherwise)
Parameters
Operating Temperature Range
Zero-g Offset
Units
ºC
Min
Typical
Max
-
-40
85
V
0.855
0.9
0.7 (xy)
0.4 (z)
360
0.945
Zero-g Offset Variation from RT over Temp.
Sensitivity
mg/ºC
mV/g
%/ºC
%
349
371
0.01 (xy)
0.04 (z)
0.2
Sensitivity Variation from RT over Temp.
Offset Ratiometric Error (Vdd = 1.8V ± 5%)
Sensitivity Ratiometric Error (Vdd = 1.8V ± 5%)
0.3 (xy)
0.15 (z)
0.8 (x)
0.7 (y)
0.5 (z)
3500 (xy)
1800 (z)
0.1
%
Self Test Output change on Activation
Mechanical Resonance (-3dB)1
g
Hz
Non-Linearity
% of FS
%
Cross Axis Sensitivity
Noise Density (on filter pins)
2
g / √Hz
125
Notes:
1. Resonance as defined by the dampened mechanical sensor.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 3 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Table 2. Electrical
(specifications are for operation at 1.8V and T = 25C unless stated otherwise)
Parameters
Units
Min
Typical
Max
Supply Voltage (Vdd) Operating
V
1.7
1.8
3.6
Operating (full power)
A
A
k
ms
Hz
170
240
310
Current Consumption
Standby
5
32
Analog Output Resistance(Rout
Power Up Time1
)
24
-
40
-
5*Rout*C
Bandwidth (-3dB)2
40
50
60
Notes:
1. Power up time is determined by 5 times the RC time constant of the factory programmed or
user defined low pass filter.
2. Factory programmable to have a switched capacitor low pass filter at 2kHz, 1kHz, 500Hz,
100Hz, 50Hz, or no low pass filter. Optionally, the user can define with external capacitors.
Maximum defined by the frequency response of the sensors.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 4 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Table 3. Environmental
Parameters
Units
V
Min
-0.3
-40
Typical
Max
6.0
Supply Voltage (Vdd) Absolute Limits
Operating Temperature Range
Storage Temperature Range
-
-
-
ºC
85
ºC
-55
150
5000 for 0.5ms
10000 for 0.2ms
Mech. Shock (powered and unpowered)
g
-
-
-
-
ESD
HBM
V
2000
Caution: ESD Sensitive and Mechanical Shock Sensitive Component, improper handling
can cause permanent damage to the device.
This product conforms to Directive 2002/95/EC of the European Parliament and of the Council of the
European Union (RoHS). Specifically, this product does not contain lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), or polybrominated diphenyl ethers (PBDE)
above the maximum concentration values (MCV) by weight in any of its homogenous materials.
Homogenous materials are "of uniform composition throughout."
This product is halogen-free per IEC 61249-2-21. Specifically, the materials used in this product
contain a maximum total halogen content of 1500 ppm with less than 900-ppm bromine and less than
900-ppm chlorine.
HF
Soldering
Soldering recommendations are available upon request or from www.kionix.com.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 5 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Application Schematic
10
1
Vdd
C1
9
Z
Y
8
7
6
2
3
4
C4
KXTC9
ST
C3
X
Enable
5
C2
Table 4. KXTC9 Pin Descriptions
Pin
1
Name
Vdd
Description
The power supply input. Decouple this pin to ground with a 0.1uF ceramic capacitor (C1).
2
Res
Reserved – Connect to Vdd or Ground
3
4
5
ST
Enable
NC
Self Test: Low - Normal operation; High - Device is in self-test mode. Connect to Ground if not used.
Enable (1 = Enabled, 0 = Disabled)
Not Connected Internally – may be connected to Vdd or Ground
6
7
8
9
X Output
Y Output
Z Output
GND
Analog output of the x-channel. Optionally, a capacitor (C2) placed between this pin and ground will form a low pass filter.
Analog output of y-channel. Optionally, a capacitor (C3) placed between this pin and ground will form a low pass filter.
Analog output of z-channel. Optionally, a capacitor (C4) placed between this pin and ground will form a low pass filter.
Ground
10
NC
Not Connected Internally – may be connected to Vdd or Ground
Application Design Equations
The bandwidth is determined by a factory programmable switched capacitor filter. The filter can be set at the
factory to be 2kHz, 1kHz, 500Hz, 100Hz, 50Hz, or no low pass filter. Alternatively, bandwidth can be reduced
by addition of a capacitor on the output pins 5, 6, and 7 according to the equation:
4.97x106
C2 C3 C4 
fBW
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 6 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Test Specifications
!
Special Characteristics:
These characteristics have been identified as being critical to the customer. Every part is tested to verify its
conformance to specification prior to shipment.
Table 5. Test Specifications
Parameter
Zero-g Offset @ RT
Sensitivity @ RT
Specification
0.9 +/- 0.045 V
360 +/- 11 mV/g
Test Conditions
25C, Vdd = 1.8 V
25C, Vdd = 1.8 V
Current Consumption -- Operating 170 <= Idd <= 310 uA 25C, Vdd = 1.8 V
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 7 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Package Dimensions and Orientation
3 x 3 x 0.9 mm LGA
All dimensions and tolerances conform to ASME Y14.5M-1994
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 8 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Static X/Y/Z Output Response versus Orientation to Earth’s surface (1-g):
Position
1
2
3
4
5
6
Diagram
Top
Bottom
Bottom
Top
X
Y
Z
0.9 V
1.26 V
0.9 V
1.26 V
0.9 V
0.9 V
0.9 V
0.54 V
0.9 V
0.54 V
0.9 V
0.9 V
0.9 V
0.9 V
0.9 V
0.9 V
1.26 V
0.54 V
X-Polarity
Y-Polarity
Z-Polarity
0
+
0
+
0
0
0
-
0
-
0
0
0
0
+
0
0
-
(1-g)
Earth’s Surface
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 9 of 10
PART NUMBER:
± 2g Tri-axis Analog
Accelerometer Specifications
KXTC9-4100
Rev. 1
Jan-2011
Revision History
REVISION DESCRIPTION
DATE
1
Initial product release 24-Jan-2011
"Kionix" is a registered trademark of Kionix, Inc. Products described herein are protected by patents issued or pending. No license is granted by implication or otherwise
under any patent or other rights of Kionix. The information contained herein is believed to be accurate and reliable but is not guaranteed. Kionix does not assume
responsibility for its use or distribution. Kionix also reserves the right to change product specifications or discontinue this product at any time without prior notice. This
publication supersedes and replaces all information previously supplied.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2010 Kionix – All Rights Reserved
367-1783-1009020951
Page 10 of 10
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Kionix:
KXTC9-4100
厂商 型号 描述 页数 下载

CK-COMPONENTS

 		KXT [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT111LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT121LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT131LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT2 [ Double Action Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT211LHS [ Double Action Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT3 [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT311LHS [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT321LHS [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT331LHS [ High number of cycle ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

代理产品

代理品牌

代理器件

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.225056s
