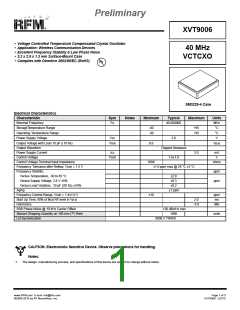

Preliminary
XVT9006
• Voltage Controlled Temperature Compensated Crystal Oscillator
• Application: Wireless Communication Devices
• Excellent Frequency Stability & Low Phase Noise
• 3.2 x 2.5 x 1.3 mm Surface-Mount Case
40 MHz
VCTCXO
• Complies with Directive 2002/95/EC (RoHS)
Pb
SM3225-4 Case
Maximum
Electrical Characteristics
Characteristic
Sym
Notes
Minimum
Typical
Units
MHz
°C
Nominal Frequency
Fo
40.000000
StorageTemperature Range
Operating Temperature Range
Power Supply Voltage
-40
-30
+85
+85
°C
Vcc
2.8
V
Output Voltage with Load 10 pF || 10 KΩ
Output Waveform
Vout
0.8
Vp-p
Clipped Sinewave
1.4±1.0
Power Supply Current
Icc
2.0
mA
V
Control Voltage
Vcon
Control Voltage Terminal Input Impedance
Frequency Tolerance after Reflow, Vcon = 1.5 V
Frequency Stability:
100K
ohms
±1.0 ppm max @ 25 °C ±3 °C
ppm
ppm
Versus Temperature, -30 to 85 °C
Versus Supply Voltage, 2.8 V ±5%
Versus Load Variation, 10 pF ||10 KΩ ±10%
Aging
±2.0
±0.3
±0.2
±1 ppm
Frequency Control Range, Vcon = 1.4±1.0 V
Start Up Time, 90% of final RF level in Vp-p
Harmonics
±10
ppm
ms
2.0
-5.0
dBc
SSB Phase Noise @ 10 kHz Carrier Offset
Stanard Shipping Quantity on 180 mm (7”) Reel
Lid Symbolization
-130 dBc/Hz max
1000
units
9006 // YWWS
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1.
The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
©2009-2010 by RF Monolithics, Inc.
Page 1 of 3
XVT9006 - 2/2/10
