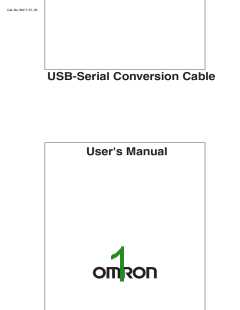

Cat. No. W417-E1-03

USB-Serial Conversion Cable

User's Manual

USB-Serial Conversion Cable

CS1W-CIF31

User's Manual

Notice:

OMRON products are manufactured for use according to proper procedures by a

qualified operator and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual.

Always heed the information provided with them. Failure to heed precautions can result

in injury to people or damage to property.

DANGER

Indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

Caution

Indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized

when it refers to an OMRON product, regardless of whether or not it appears in the

proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON products,

often means “word” and is abbreviated “Wd” in documentation in this sense.

The abbreviation “PLC” means Programmable Controller. “PC” is used, however, in

some Programming Device displays to mean Programmable Controller.

Visual Aids

The following headings appear in the left column of the manual to help you locate

different types of information.

Note

Indicates information of particular interest for efficient and convenient

operation of the product.

1,2,3... 1. Indicates lists of one sort or another, such as procedures, checklists,

etc.

 OMRON, 2003

form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written

permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is

constantly striving to improve its high-quality products, the information contained in this manual is subject to change

without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no

responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the

information contained in this publication.

2

TABLE OF CONTENTS

Notice: ......................................................................................................................... 2

OMRON Product References...................................................................................... 2

Visual Aids................................................................................................................... 2

TABLE OF CONTENTS........................................................................... 3

About this Manual.................................................................................... 4

PRECAUTIONS....................................................................................... 5

Overview and Components...................................................................... 8

Overview ..................................................................................................................... 8

Appearance and Component Names.......................................................................... 8

Packing Lists............................................................................................ 9

D-sub Connector Cable (CS1W-CIF31)...................................................................... 9

Specifications........................................................................................... 10

Compatible Operating Systems .................................................................................. 10

Compatible Software Applications .............................................................................. 10

Compatible PLCs, PTs and Programmable Relay...................................................... 11

Connection Configurations.......................................................................................... 12

General Specifications ................................................................................................ 13

Dimensions.............................................................................................. 14

D-sub Connector Cable............................................................................................... 14

System Configuration............................................................................... 15

CS/CJ-series PLCs ..................................................................................................... 15

C-series PLCs............................................................................................................. 17

CVM1 and CV-series PLCs......................................................................................... 20

PTs (NS and NT Series) ............................................................................................. 21

Programmable Relay (ZEN)........................................................................................ 21

USB to PLC/PT Connection Tables......................................................... 22

Connecting with the CS1W-CIF31 (D-sub Connector Cable)..................................... 22

Application Procedure.............................................................................. 27

Cable Connections .................................................................................. 28

Connecting the Cable.................................................................................................. 28

Installing the Drivers ................................................................................ 29

Uninstalling the Drivers............................................................................ 33

Connecting Online from the CX-Programmer.......................................... 34

Using More than One Conversion Cable ................................................. 38

Revision History....................................................................................... 39

Index........................................................................................................ 40

3

About this Manual

Thank you for purchasing the CS1W-CIF31 USB-Serial Conversion Cable.

The CS1W-CIF31 USB-Serial Conversion Cable connects an OMRON PLC (or PT) to a

personal computer's USB port.

Please read this manual carefully and be sure you understand the information provided

before attempting to install or operate the USB-Serial Conversion Cables. Be sure to

read the precautions provided in the following section.

Precautions provides general precautions for using the USB-Serial Conversion Cables

and related devices.

Overview and Components describes the parts of the USB-Serial Conversion Cables

and gives an overview of their application.

Packing Lists shows the various items that come with the USB-Serial Conversion

Cables.

Specifications provides the hardware and software specifications.

Dimensions shows external cable dimensions.

System Configuration shows the application of the USB-Serial Conversion Cables

with various models of PLC.

USB to PLC/PT Connection Tables lists the possible combinations of Cables, Units,

and ports that can be used.

Application Procedure gives an overview of the steps required to use USB-Serial

Conversion Cables.

DIP Switch Settings and Cable Connections describes switch settings and cable

connections.

Installing the Drivers tells how to install the software drivers.

Uninstalling the Drivers tells how to uninstall the software drivers.

Connecting Online from the CX-Programmer tells how to connect to a PLC or PT

from a computer running the CX-Programmer.

WARNING Failure to read and understand the information provided in this manual may result in

personal injury or death, damage to the product, or product failure. Please read each

section in its entirety and be sure you understand the information provided in the section

and related sections before attempting any of the procedures or operations given.

4

PRECAUTIONS

This section provides general precautions for using the USB-Serial Conversion Cable

and related devices.

The information contained in this section is important for the safe and reliable

application of the USB-Serial Conversion Cable. You must read this section and

understand the information contained before attempting to set up or operate a

USB-Serial Conversion Cable and PLC system.

█ Intended Audience

This manual is intended for the following personnel, who must also have knowledge of

electrical systems (an electrical engineer or the equivalent).

•Personnel in charge of purchasing FA devices.

•Personnel in charge of designing FA systems.

•Personnel in charge of managing FA systems and facilities.

█ General Precautions

•The user must operate the product according to the performance specifications

described in the operation manuals.

•Consult your OMRON representative before using the product under conditions which

are not described in the manual or applying the product to nuclear control systems,

railroad systems, aviation systems, vehicles, combustion systems, medical

equipment, amusement machines, safety equipment, and other systems, machines,

and equipment that may have a serious influence on lives and property if used

improperly.

•This manual provides important information for using the CS1W-CIF31 USB-Serial

Conversion Cable. Be sure to read this manual before attempting to use the

Conversion Cable and keep this manual close at hand for reference during operation.

WARNING It is extremely important that a PLC and all PLC Units be used for the specified purpose

and under the specified conditions, especially in applications that can directly or

indirectly affect human life. You must consult with your OMRON representative before

applying a PLC system to the above mentioned applications.

█ Operating Environment Precautions

Do not use the USB-serial Conversion Cable in the following places:

•Locations subject to strong electromagnetic fields.

•Locations subject to direct sunlight.

•Locations subject to temperatures or humidity outside the range specified in the

specifications.

•Locations subject to condensation as the result of severe changes in temperature.

•Locations subject to corrosive or flammable gases.

•Locations subject to excessive dust, or salts, or metal filings.

•Locations subject to exposure to water, oil, or chemicals.

•Locations subject to shock or vibration.

Provide proper shielding when installing in the following locations:

•Locations subject to static electricity or other sources of noise.

•Locations subject to strong electromagnetic fields.

•Locations subject to possible exposure to radiation.

•Locations near power supply lines.

5

PRECAUTIONS

█ Application Precautions

Observe the following precautions when using the USB-Serial Conversion Cable.

•These cables are designed specifically to connect a personal computer to an OMRON

PLC or PT. Do not use them to connect any other devices and do not use a

commercially available USB-serial conversion cable in place of these cables. Improper

usage of these cables may result in damage to external devices, the PLC, or the PT.

•Do not attempt to disassemble, repair, or modify any Units.

•Touch a grounded metal object to discharge any static electricity before connecting the

Conversion Cable to the PLC's connector, a PLC Connecting Cable, or the personal

computer's USB port.

•To avoid malfunctions due to noise, do not route the Conversion Cable parallel or close

to a high-tension power line.

•Tighten the D-sub connector screws to a torque of 0.4 N⋅m.

•Either turn OFF the power supply to the computer or disconnect the cable from the

USB connector before setting the DIP switch.

•Always lock any connectors that are equipped with locking mechanisms.

•Do not place anything on the cable.

•Do not bend the cable past it's normal bending radius or pull on the cable.

•Touch the Unit only after touching a grounded metal object to release static electricity

from your body.

•Disconnect or connect the cable only after confirming that communications are not in

progress.

•Do not quickly and repeatedly connect and disconnect the USB connector. Doing so

may cause the computer to malfunction.

•It may take some time for the computer to detect the cable after the cable is connected.

This is not a malfunction.

•Do not connect the RS-232C connector on the CS1W-CIF31 Cable (D-sub type)

directly to the RS-232C or RS-422/485 connector on the PLC. The cable may

malfunction.

•Do not connect this cable to a USB hub; connect it directly to a USB connector on the

computer.

The cable may malfunction.

•Do not extend the USB portion of this cable with an extension cable. The cable may

malfunction.

•Set the communications port (COM port) number used by the software to the

communications port (COM port) number allocated to the Conversion Cable.

Caution Perform wiring so that the power supply wires are not exposed and do not come into

contact with any metal parts. Contact with metal parts may cause a fire.

6

PRECAUTIONS

█ EC Directives

●Applicable Directives

•EMC Directives

•Low Voltage Directive

●Concepts

• EMC Directives

OMRON devices that comply with EC Directives also conform to the related EMC

standards so that they can be more easily built into other devices or the overall machine.

The actual products have been checked for conformity to EMC standards (see the

following note). Whether the products conform to the standards in the system used by

the customer, however, must be checked by the customer.

EMC-related performance of the OMRON devices that comply with EC Directives will

vary depending on the configuration, wiring, and other conditions of the equipment or

control panel on which the OMRON devices are installed. The customer must, therefore,

perform the final check to confirm that devices and the overall machine conform to EMC

standards.

Note: Within the EMC (Electromagnetic Compatibility) standards, the applicable EMS

(Electromagnetic Susceptibility) standard is EN61000-6-2 and the applicable EMI

(Electromagnetic Interference) standard is EN61000-6-4 (10-m regulations.)

• Low Voltage Directive

Always ensure that devices operating at voltages of 50 to 1,000 VAC and 75 to 1,500

VDC meet the required safety standards (EN61131-2).

• Conformance to EC Directives

The CS1W-CIF31 USB-Serial Conversion Cables comply with EC Directives. Observe

the following precautions to ensure that the machine or device in which the Conversion

Cable is used complies with EC directives:

1. The CS1W-CIF31 USB-Serial Conversion Cable must be installed within a control

panel.

2. Reinforced insulation or double insulation must be used for the DC power supplies

providing the communications power supply and I/O power supplies.

3. CS1W-CIF31 USB-Serial Conversion Cables complying with EC Directives also

conform to the Common Emission Standard (EN61000-6-4). Radiated emission

characteristics (10-m regulations) may vary depending on the configuration of the

control panel used, other devices connected to the control panel, wiring, and other

conditions. You must therefore confirm that the overall machine or equipment

complies with EC Directives.

7

Overview and Components

Overview

The CS1W-CIF31 USB-Serial Conversion Cable connects an OMRON PLC

(Programmable Controller) or PT (Programmable Terminal) to a personal computer's

USB port. The cable can be used once the required drivers (on the provided CD-ROM)

have been installed in the personal computer.

The Conversion Cable can be used with OMRON PLC/PT software, such as the

CX-Programmer, which use the CX-Server or FinsGateway as a communications driver,

as well as other OMRON Software, such as the DeviceNet Configurator.

Appearance and Component Names

█ D-sub Connector Cable

●CS1W-CIF31 (USB Connector to D-sub Connector)

D-Sub 9-pin connector (male)

USB connector

(A plug connector, male)

LED Indicators

Indicator

TD

Color

Status

Description

Yellow Flashing

Data is being sent from the USB-Serial Conversion

Cable.

OFF

Data is not being sent from the USB-Serial Conversion

Cable.

RD

Yellow Flashing

OFF

The USB-Serial Conversion Cable is receiving data.

The USB-Serial Conversion Cable is not receiving

data.

8

Packing Lists

D-sub Connector Cable (CS1W-CIF31)

Name

Appearance

CS1W-CIF31

(USB Connector to D-sub Connector

Conversion Cable)

Drivers

(On CD-ROM)

User's Manual (this manual)

(On CD-ROM in PDF format)

Instruction Sheet

9

Specifications

Compatible Operating Systems

Windows 98/ME/2000/XP/Vista

Compatible Software Applications

The compatible software applications communicate with the PLC using the CX-Server

or FinsGateway. The following software applications use CX-Server or FinsGateway.

Name

Communications software

CX-Programmer

CX-Simulator

CX-Protocol

CX-Position

CX-Motion

CX-Server (FinsGateway is used for network communications.)

FinsGateway

CX-Server (FinsGateway is used for network communications.)

FinsGateway

CX-Server

CX-Process

NS-Designer

PLC Reporter

FinsGateway or CX-Server

FinsGateway

The following software applications are also compatible.

• DeviceNet Configurator

• NT Support Tool for Windows

• ZEN Support Software Ver. 3.0 or later

• Software applications in CX-One

• Communications Port Limitations with the NT Support Tool

1) Version 4.00 and Earlier Versions

Only communications ports COM1 and COM2 can be used. Always change the

communications port allocation for this device to COM1 or COM2 in the Microsoft

Windows Device Manager (see note 1) and specify that port in the NT Support Tool's

communications settings. Once the communications port is specified correctly in the

Windows Device Manager and the NT Support Tool's communications settings, data

such as screen data can be downloaded to the PT or uploaded from the PT through the

USB-Serial Conversion Cable.

Note: In most personal computers, COM1 is allocated to the RS-232C port and

communications port COM2 can be allocated to the Conversion Cable. Refer to

Changing the Allocated Communications Port on page 36 for details on changing the

communications port. Furthermore, if there is another driver using the allocated port,

that driver must be uninstalled.

2)Version 4.60E and Later Versions

Any communications port between COM 1 and COM8 can be used. Check the NT

Support Tool's communications settings and verify that the communications port

allocated to the Conversion Cable is also specified in the NT Support Tool.

10

Specifications

• Limitations when Using the NT Support Tool's System Installer

1)Windows 98 and Windows Me

The system program cannot be downloaded to the PT through the USB-Serial

Conversion Cable.

2)Windows 2000, Windows XP, and Windows Vista

Only communications ports COM1 and COM2 can be used. Always change the

communications port allocation for this device to COM1 or COM2 in the Microsoft

Windows Device Manager (see note 1) and specify that port in the NT Support Tool's

communications settings. Once the communications port is specified correctly in the

Windows Device Manager and the NT Support Tool's communications settings, the

system program can be downloaded to the PT through the USB-Serial Conversion

Cable.

Note: In most personal computers, COM1 is allocated to the RS-232C port and

communications port COM2 can be allocated to the Conversion Cable. Refer to Changing

the Allocated Communications Port on page 36 for details on changing the communications

port. Furthermore, if there is another driver using the allocated port, that driver must be

uninstalled.

Compatible PLCs, PTs and Programmable Relay

The following OMRON PLCs, PTs and Programmable Relay are supported by the

compatible software applications.

• PLCs

CS/CJ-series, C-series (see note 1), and CVM1/CV-series

• PT

NS-series and NT-series

• Programmable Relay

ZEN (see note 2)

Note 1. The following C-series PLCs are supported: C200HS, C200HX/HG/HE, C200H, C1000H,

C2000H, CQM1, CPM1, CPM1A, CPM2A, SRM1, CQM1H, and CPM2C.

Note 2. The ZEN Programmable Relay is supported only if ZEN Support Software Ver. 3.0 or later

is used.

11

Specifications

Connection Configurations

The following table shows the connection configurations that can be used to connect an

OMRON PLC (or PT) to a personal computer's USB port.

USB-Serial

Conversion

Cable

Conversion

Cable's serial

connector

D-sub 9-pin

male

Required adapters or cables

Compatible

PLC or PT

connector

CS/CJ-series

peripheral

port

Compatible PLCs

and PTs

CS1W-CIF31

(D-sub version)

•CS1W-CN226/626

CS/CJ-series,

CQM1H, and

CPM2C

(Programming Device Connecting Cable for a

CS/CJ-series peripheral port and personal

computer)

•XW2Z-200/500S-CV or XW2Z-200/500S-V

(Programming Device Connecting Cable for

an RS-232C port and personal computer)

+

•CS1W-CN118

(RS-232C to CS/CJ-series peripheral port

Conversion Cable)

•CQM1-CIF02

(Programming Device Connecting Cable for a

C-series peripheral port and personal

computer)

+

•CS1W-CN114

(C-series peripheral port to CS/CJ-series

peripheral port Conversion Cable)

•CQM1-CIF02

C-series

peripheral

port

C200HS,

(Programming Device Connecting Cable for a

C-series peripheral port and personal

computer)

C200HX/HG/HE,

CQM1, CPM1,

CPM1A, CPM2A,

and SRM1

•RS-232C 9-pin to 25-pin adapter

CV-series

peripheral

port

CVM1/CV-series

+

•CV500-CIF01

(Programming Device Connecting Cable for a

CV-series peripheral port and PC98-type

personal computer)

•XW2Z-200/500S-CV or XW2Z-200/500S-V

(Programming Device Connecting Cable for

an RS-232C port and personal computer)

RS-232C port PLCs (CPU Unit

(D-sub 9-pin)

or Serial

Communication

Unit/Board

connection) or

PTs

ZEN-CIF01

Personal

Computer

Connecting

port

ZEN

(Personal Computer Connecting Cable)

Note

The USB-Serial Conversion Cables are for connections between a USB port and an

OMRON PLC/PT only. In particular, the CS1W-CIF31 Cable can be used only with

compatible OMRON software applications even though it has a standard D-sub 9-pin

connector on one end.

12

Specifications

General Specifications

USB Interface rating

DTE speed

Conforms to USB Specification 1.1

115.2 kbps

Connector specifications

Computer end USB (type A plug, male)

PLC end

RS-232C (D-sub 9-pin, male)

Power supply

Bus power (5 VDC power from upstream)

Current consumption

35 mA

0 to 55°C

Operating

Ambient temperature

Ambient humidity

Atmosphere

environment

10% to 90% humidity (with no condensation)

No corrosive gases

50 g

Weight

13

Dimensions

D-sub Connector Cable

█ CS1W-CIF31

72.4

6

500

(46)

(11.75)

14

System Configuration

CS/CJ-series PLCs

●Connecting to the Peripheral Port

• Using a CS1W-CN226/626 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CS/CJ-series PLC connection

Customizable Counter Unit connection

CS/CJ-series peripheral connector

D-sub Connector

(9-pin female)

Peripheral port

Recommended cable:

CS1W-CN226/626

• Using a CQM1-CIF02 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CS/CJ-series PLC connection (see note)

CS/CJ-series peripheral

connector

D-sub Connector

(9-pin female)

C-series peripheral connector

Peripheral port

Recommended cable:

CQM1-CIF02

CS1W-CN114

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

15

System Configuration

• Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C

Connection

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CS/CJ-series PLC connection

Customizable Counter Unit connection

D-sub Connector (9-pin male)

D-sub Connector

(9-pin female)

Peripheral port

XW2Z-200S-CV/500S-CV

or

XW2Z-200S-V/500S-V (See note.)

D-sub Connector

(9-pin female)

CS/CJ-series peripheral connector

CS1W-CN118

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

●Connecting to the RS-232C Port

• Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C

Connection

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CS/CJ-series PLC connection

D-sub Connector

(9-pin male)

D-sub Connector

(9-pin female)

RS-232C port

D-sub Connector

(9-pin female)

Recommended cable:

XW2Z-200S-CV/500S-CV

or

XW2Z-200S-V/500S-V (See note.)

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

16

System Configuration

C-series PLCs

█ C200HS, C200HX/HG/HE, C200H, C1000H, C2000H, CQM1, CPM1, CPM1A,

CPM2A, or SRM1

• Connecting to the Peripheral Port

Using a CQM1-CIF02 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

C-series PLC connection

D-sub Connector

C-series peripheral connector

(9-pin female)

Peripheral port

Recommended cable:

CQM1-CIF02

• Connecting to the RS-232C Port

Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C

Connection

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

C-series PLC connection

D-sub Connector

(9-pin male)

D-sub Connector

(9-pin female)

RS-232C port

D-sub Connector

(9-pin female)

Recommended cable:

XW2Z-200S-CV/500S-CV

or

XW2Z-200S-V/500S-V

17

System Configuration

█ CQM1H and CPM2C PLCs

• Connecting to the Peripheral Port

Using a CS1W-CN226/626 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CQM1H PLC connection

CPM2C PLC connection

CS/CJ-series peripheral connector

D-sub Connector

(9-pin female)

Peripheral port

Recommended cable:

CS1W-CN226/626

Using a CQM1-CIF02 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CQM1H PLC connection

CPM2C PLC connection

D-sub Connector

(9-pin female)

C-series peripheral connector

CS/CJ-series peripheral connector

Peripheral port

Recommended cable:

CQM1-CIF02

CS1W-CN114

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

18

System Configuration

Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C

Connection

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CQM1H PLC connection

CPM2C PLC connection

D-sub Connector

D-sub Connector (9-pin male)

(9-pin female)

Peripheral port

XW2Z-200S-CV/500S-CV

or

CS/CJ-series peripheral connector

D-sub Connector

(9-pin female)

XW2Z-200S-V/500S-V

(See note.)

CS1W-CN118

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

• Connecting to the RS-232C Port

Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C

Connection

USB type A plug, male

CS1W-CIF31

CQM1H PLC connection

CPM2C PLC connection

D-sub Connector

(9-pin male)

D-sub Connector

(9-pin male)

D-sub Connector

(9-pin female)

RS-232C port

D-sub Connector

(9-pin female)

XW2Z-200S-CV/500S-CV

or

XW2Z-200S-V/500S-V

(See note.)

Note: With a CS/CJ-series PLC, the connection must be a host link connection.

19

System Configuration

CVM1 and CV-series PLCs

●Connecting to the Peripheral Port

• Using a CV500-CIF01 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

D-sub 25-pin (female) to

9-pin (female) Adapter

CVM1/CV-series PLC connection

D-sub Connector

(25-pin male)

CV-series peripheral connector

Peripheral port

Recommended cable:

CV500-CIF01

●Connecting to the RS-232C Port

• Using a XW2Z-200S-V/500S-V Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

CVM1/CV-series PLC connection

D-sub Connector (9-pin male)

D-sub Connector

(9-pin female)

RS-232C port

D-sub Connector

(9-pin female)

Recommended cable:

XW2Z-200S-V/500S-V

20

System Configuration

PTs (NS and NT Series)

●Connecting to the RS-232C Port

• Using a XW2Z-S002 Cable

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

D-sub

Connector

PT connection

D-sub Connector

(9-pin female)

(9-pin male)

XW2Z-S002

RS-232C port

Programmable Relay (ZEN)

USB type A plug, male

CS1W-CIF31

D-sub Connector

(9-pin male)

Personal Computer

Connector

D-sub Connector

(9-pin female)

ZEN

Personal Computer

Connecting Cable

ZEN-CIF01

Personal Computer

Connecting port

21

USB to PLC/PT Connection Tables

Connecting with the CS1W-CIF31 (D-sub Connector Cable)

Cable 2

Computer CS1W-CIF31

Cable 1

PLC

(when necessary)

CS1W-N226/626 Programming

Device Connecting Cable for a

CS/CJ-series peripheral port

CS1W-CN114

C-series peripheral port to CS/CJ-series

peripheral port Conversion Cable

OR

CQM1H-CIF02 Programming

Device Connecting Cable for a

C-series peripheral port

CS1W-CIF31 USB

Conversion Cable

CS1W-CN118

RS-232C to CS/CJ-series peripheral

port Conversion Cable

+

OR

XW2Z-@@@ Programming Device

Connecting Cable for RS-232C

█ CS/CJ-series Units

●CS/CJ-series CPU Units

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, CS1W-CN226/626 CS/CJ-series

CS/CJ-series Peripheral bus

female

(Length: 2 or 6 m) peripheral

peripheral

(Toolbus) or Host

link (SYSWAY)

Host link

D-sub 9-pin, CQM1-CIF02

C-series

CS1W-CN114

(Length: 5 cm)

CS/CJ-series

peripheral

CS/CJ-series

peripheral

female (Length: 3.3 m)

peripheral

(SYSWAY)

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin, D-sub 9-pin, CS1W-CN118

Peripheral bus

(Toolbus) or Host

link (SYSWAY)

Host link

female

/500S-CV

male

female

(Length: 0.1 m)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin, D-sub 9-pin, CS1W-CN118

CS/CJ-series

peripheral

female

/500S-V

male

female

(Length: 0.1 m)

(SYSWAY)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-CV

RS-232C

Not necessary

RS-232C

Peripheral bus

female

/500S-CV

D-sub 9-pin,

D-sub 9-pin, (Toolbus) or Host

(Length: 2 or 5 m) male

female

link (SYSWAY)

Host link

D-sub 9-pin, XW2Z-200S-V

RS-232C

Not necessary

female /500S-V

D-sub 9-pin,

(SYSWAY)

(Length: 2 or 5 m) male

22

USB to PLC/PT Connection Tables

●CS/CJ-series Serial Communications Board or Unit

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

RS-232C

Serial

communications

mode

Model

Connector

Model

Connector

RS-232C

D-sub 9-pin,

male

Connector

Model

Connector

(Network type)

Host link

CS1W-CIF31 D-sub 9-pin, XW2Z-200S-CV

Not necessary

female

/500S-CV

D-sub 9-pin, (SYSWAY)

female

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

RS-232C

D-sub 9-pin,

male

Not necessary

Cable 2

female

/500S-V

(Length: 2 or 5 m)

●Customizable Counter Unit

USB

Conversion

Cable

Cable 1

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, CS1W-CN226/626 CS/CJ-series

CS/CJ-series Peripheral bus

female

(Length: 2 or 6 m)

peripheral

(Toolbus)

Peripheral bus

(Toolbus)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin, D-sub 9-pin, CS1W-CN118

male female (Length: 0.1 m)

CS/CJ-series

peripheral

female

/500S-V

(Length: 2 or 5 m)

█ C-series Units

Note: In this table, the C-series refers to the C200HS, C200HX/HG/HE, C200H, C1000H,

C2000H, CQM1, CPM1, CPM1A, CPM2A, SRM1, CQM1H, and CPM2C.

●C200HS, C200HX/HG/HE, CQM1, CPM1, CPM1A, CPM2A, and SRM1

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

Model

Not necessary

Connector

(Network type)

Peripheral bus

(Toolbus) or Host

link (SYSWAY)

(See note.)

CS1W-CIF31 D-sub 9-pin, CQM1-CIF02

C-series

female

(Length: 3.3 m)

peripheral

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin,

male

Not necessary

RS-232C

Host link

female

/500S-CV

D-sub 9-pin, (SYSWAY)

female

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin,

male

female

/500S-V

(Length: 2 or 5 m)

Note: The host link mode can be used in all of these PLCs, but the peripheral bus mode cannot be

used in CPM2@ PLCs that have a 9 as the 4^thdigit of the lot number. (The lot number may be 4

or 5 digits long.)

●C200H, C1000H, and C2000H CPU Units

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

C-series

peripheral

Connector

C-series

Model

Connector

Built-in peripheral port

(Network type)

Host link

CS1W-CIF31 D-sub 9-pin, CQM1-CIF02

C200H-IP007

female

(Length: 3.3 m)

peripheral

(SYSWAY)

23

USB to PLC/PT Connection Tables

●CQM1H CPU Units

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, CS1W-CN226/626 CS/CJ-series

CS/CJ-series Peripheral bus

female

(Length: 2 or 6 m)

peripheral

(Toolbus) or Host

link (SYSWAY)

D-sub 9-pin, CQM1-CIF02

C-series

CS1W-CN114 CS/CJ-series

(Length: 5 cm) peripheral

female (Length: 3.3 m)

peripheral

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin, D-sub 9-pin, CS1W-CN118 CS/CJ-series

female

/500S-CV

male

female

(Length: 0.1 m) peripheral

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin, D-sub 9-pin, CS1W-CN118 CS/CJ-series

Host link

female

/500S-V

male

female

(Length: 0.1 m) peripheral

(SYSWAY)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin,

male

Not necessary

RS-232C

Host link

female

/500S-CV

D-sub 9-pin, (SYSWAY)

female

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin,

male

Not necessary

Cable 2

female

/500S-V

(Length: 2 or 5 m)

●CPM2C

USB

Conversion

Cable

Cable 1

Model

Unit's port

Serial

communications

mode

Model

Connector

C-series

Connector

C-series

Model

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, CQM1-CIF02

CS1W-CN114 CS/CJ-series CS/CJ-series Peripheral bus

female

(Length: 3.3 m)

peripheral

(Length: 5 cm) peripheral

peripheral

(Toolbus) or Host

link (SYSWAY)

(See note 1.)

D-sub 9-pin, CQM1-CIF02

female (Length: 3.3 m)

C-series

CPM2C-CN111 CS/CJ-series

(Peripheral port peripheral

connector)

peripheral

D-sub 9-pin, CS1W-CN226/626 CS/CJ-series

Not necessary

Host link

female

(Length: 2 or 6 m)

(See note 2.)

peripheral

(SYSWAY)

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin, D-sub 9-pin, CS1W-CN118 CS/CJ-series RS-232C

Host link

female

/500S-CV

male female (Length: 0.1 m) peripheral D-sub 9-pin, (SYSWAY)

(Length: 2 or 5 m)

female

D-sub 9-pin, XW2Z-200S-CV

D-sub 9-pin, D-sub 9-pin, CPM2C-CN111 CS/CJ-series

female

/500S-CV

male

female

(RS-232C port peripheral

connector)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin, D-sub 9-pin, CS1W-CN118 CS/CJ-series

female

/500S-V

male

female

(Length: 0.1 m) peripheral

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin, D-sub 9-pin, CPM2C-CN111 CS/CJ-series

female

/500S-V

male

female

(RS-232C port peripheral

connector)

(Length: 2 or 5 m)

Note 1: The host link mode can be used in all of these PLCs, but the peripheral bus mode cannot

be used in CPM2@ PLCs that have a 9 as the 4^thdigit of the lot number. (The lot number

may be 4 or 5 digits long.)

Note 2: Only host link mode can be used.

24

USB to PLC/PT Connection Tables

●C-series Host Link Unit (C200H-LK201-V1 or C120-LK201-V1)

Note: The Host Link Unit cannot be used to connect a Programming Device (such as the

CX-Programmer) to a C200HX/HG/HE with the "-ZE" suffix at the end of the model number.

USB

Conversion

Cable

Cable 1

Model

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

D-sub 25-pin,

male

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200P-V

RS-232C Host link

female

/500P-V

D-sub

25-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

●C-series Communications Board (C200HX/HG/HE PLCs Only)

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

D-sub 9-pin,

male

Connector

Model

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200S-CV

Not necessary

RS-232C Host link

female

/500S-CV

D-sub

9-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin,

male

Not necessary

female

/500S-V

(Length: 2 or 5 m)

●C200H, C1000H, and C2000H Host Link Units

Note: The C500-LK203 and C500-LK 201-V1 Host Link Units can be used with the C1000H and

C2000H. The C200H-LK201-V1 and C120-LK201-V1 Host Link Units can be used with the

C200H.

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

D-sub 25-pin,

male

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200P-V

RS-232C Host link

female

/500P-V

D-sub

25-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

●CQM1H Serial Communication Board

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

D-sub 9-pin,

male

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200S-CV

RS-232C Host link

female

/500S-CV

D-sub

9-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin,

male

Not necessary

female

/500S-V

(Length: 2 or 5 m)

25

USB to PLC/PT Connection Tables

█ CVM1 and CV-series

●CVM1 and CV-series CPU Units

USB

Cable 1

Cable 2

Model

Unit's port

Serial

communications

mode

Conversion

Cable

Model

Connector

Model

Connector

CV-series

peripheral

(Network type)

CS1W-CIF31 D-sub 9-pin, D-sub 25-pin (female) D-sub 25-pin, D-sub 25-pin, CV500-CIF01

CV-series Peripheral bus

peripheral (Toolbus)

female

to D-sub 9-pin

male

female

(Length: 6 m)

(female) adapter

D-sub 9-pin, XW2Z-200S-V

D-sub 9-pin,

male

Not necessary

RS-232C Host link

female

/500S-V

D-sub

9-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

●CVM1 and CV-series Host Link Units

• CV500-LK201 (Port 1, Full-duplex mode)

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

D-sub 25-pin,

male

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200P-V

RS-232C Host link

female

/500P-V

D-sub

25-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

• CV500-LK201 (Port 2, Full-duplex mode)

USB

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Conversion

Cable

Model

Connector

Model

Connector

D-sub 9-pin,

male

Connector

Model

Not necessary

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-200S-V

RS-232C Host link

female

/500S-V

D-sub

9-pin,

female

(SYSWAY)

(Length: 2 or 5 m)

█ PTs (NS or NT Series)

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

Model

Connector

Model

Connector

D-sub 9-pin,

male

Connector

Model

Not necessary

Connector

(Network type)

CS1W-CIF31 D-sub 9-pin, XW2Z-S002

RS-232C Host link

female

(Length: 2 m)

D-sub

9-pin,

female

(SYSWAY)

█ Programmable Relay (ZEN)

USB

Conversion

Cable

Cable 1

Cable 2

Unit's port

Serial

communications

mode

(Network type)

-

Model

Connector

Model

Connector

Personal

Connector

Model

Not necessary

Connector

CS1W-CIF31 D-sub 9-pin, ZEN-CIF01

Personal

Computer

port

female

(Length: 2 m)

Computer

Connector

26

Application Procedure

This section explains how to connect a PLC CPU Unit to a personal computer with a

USB-Serial Conversion Cable. Use the procedure below when connecting a PLC CPU

Unit and personal computer.

The Conversion Cable uses one of the computer's COM ports for communications.

When communicating with a PLC through a Conversion Cable, set the communications

port (COM port) number used by the software to the communications port (COM port)

number allocated to the Conversion Cable.

1. Connect the Cable(s).

Connect the Conversion Cable to the computer's USB port and the CPU Unit's

peripheral port or RS-232C port.

For details, refer to Connecting the Cable on page 28.

2. Install the communications driver.

The Conversion Cable's communications driver must be installed in the computer in

order for the computer to use the Conversion Cable.

For details, refer to Installing the Driver on page 29.

3. Turn ON the PLC's power.

Turn ON the PLC's power supply.

4. Make an online connection to the CPU Unit through the computer software (when

using the CX-Programmer.)

Select the COM port in the CPU Unit from the CX-Programmer and connect online.

For details, refer to Connecting Online from the CX-Programmer on page 34.

Note

More than one USB-Serial Conversion Cable can be used at a time, so a single

personal computer can be connected to several PLCs/PTs through two or more COM

ports.

When more than one Conversion Cable is being used, connect the second and later

Cables after the first Cable has been connected.

The communications driver is automatically installed for the second and later Cables,

so it is not necessary to install the driver a second time. Each Cable must have its own

unique COM port number. Allocate a different COM port to each Cable.

27

Cable Connections

Connecting the Cable

Connect the computer and CPU Unit with one of the cable configurations shown in the

USB to PLC/PT Connection Tables on page 22.

28

Installing the Drivers

When the USB-Serial Conversion Cable is connected to the computer, the operating

system (OS) will recognize the Cable as a new device. At this point, the driver can be

installed with the wizard.

The actual driver installation method depends on the OS being used. Windows 2000 is

used in the examples in this section.

Note

The USB-Serial Conversion Cables are compatible with Windows XP.

When you install the Conversion Cable's driver, a warning message will appear

indicating that the driver software has not passed Windows Logo testing, but click

Continue Anyway to proceed with the installation. We have thoroughly tested the

driver on Windows XP and verified the it operates properly.

The driver will not be installed properly if the installation process is cancelled before

completion. Normal communications may not be possible if the driver is not installed

properly. If the driver is not installed properly, uninstall it (refer to page 33) and then

reinstall it correctly.

Note

The USB-Serial Conversion Cables are compatible with Windows Vista.

When you install the Conversion Cable's driver, a warning message will appear

indicating that Windows can’t verify the publisher of this driver software, but click

Continue Anyway to proceed with the installation. We have thoroughly tested the

driver on Windows Vista and verified that it operates properly.

The driver will not be installed properly if the installation process is cancelled before

completion. Normal communications may not be possible if the driver is not installed

properly. If the driver is not installed properly, uninstall it (refer to page 33) and then

reinstall it correctly.

1. The following window will be displayed.

2. The following window will be displayed. Click the Next button.

The following window will be displayed.

29

Installing the Drivers

3. Select Search for a suitable driver for my device (recommended) and click the Next

button.

The following window will be displayed.

Select Specify a location and click the Next button.

The following window will be displayed.

4. Insert the CD-ROM containing the driver (the CD-ROM is in the same package as

the Conversion Cable) into the computer's CD-ROM drive. Click the Browse button,

select the ftdibus.inf file, from the following directory of the CD-ROM and click the

OK button.

Windows2000/XP/Vista: win2000_XP

Windows98/Me: win98_Me

If the window's Copy manufacturer's files from field shows the correct folder, click the

OK button.

5. The following window will be displayed. Click the Next button to start the installing

the driver.

30

Installing the Drivers

6. The following window will be displayed if the driver was installed properly. Click the

Finish button.

7. When the Finish button is clicked in step 6, the following window will be displayed for

installation of the USB Serial Port driver.

Follow the same procedure in steps 1 through 7 to install the USB Serial Port driver.

(Driver installation is completed after installation of the USB Serial Port driver.)

8. Verify that the drivers were installed properly with the Windows Device Manager, as

shown in the following diagram. To access the Device Manager, open the Control

Panel, open the System folder, click the Hardware tab, and click the Device

Manager button.

31

Installing the Drivers

Verify that these two devices appear in the

Device Manager.

32

Uninstalling the Drivers

Use the following procedure to delete (uninstall) the drivers for the USB-Serial

Conversion Cable.

1. Disconnect the Conversion Cable from the computer.

2. Select Add/Remove Programs from the Control Panel.

3. Select OMRON USB-to-Serial Converter Drivers and click the Delete button.

The following window will be displayed.

4. Click the Continue button.

When the drivers have been successfully deleted, the message Uninstall complete,

press Finish to exit will be displayed.

5. Click the Finish button.

This completes the deletion (uninstallation) of the Conversion Cable's drivers.

33

Connecting Online from the CX-Programmer

The USB-Serial Conversion Cable uses one of the computer's COM ports to

communicate. The communications port (COM port) allocated to the Conversion Cable

must be selected with the CX-Programmer in order to connect online to a PLC or PT.

Note:It may take some time for the computer to detect the cable after the cable is connected. This

is not a malfunction.

█ Selecting the Cable's COM Port in CX-Programmer

Use the following procedure to select the COM port used by the Conversion Cable.

1. Display the Change PLC dialog box.

2. Click the Settings button in the Network Type area. Select the desired type of

network.

The Network Settings dialog box will be displayed.

3. Click the Driver tab in the Network Settings dialog box.

34

Connecting Online from the CX-Programmer

4. Locate the Port Name setting and select the COM port being used by the Conversion

Cable.

Note

If you fail to connect with this USB Cable, turn OFF auto baud rate

detection if it is being used by your software. With the CX-Programmer,

auto baud rate detection can be turned OFF by clearing the selection for

it on the Network Settings dialog box.

█ Verifying the Allocated Communications Port

The communications port (COM port) being used by the Conversion Cable can be

verified with the following procedure. The actual verification procedure depends on the

operating system. This example shows the procedure for Windows 2000.

1. Open the Control Panel, open the System folder, and click the Hardware tab.

2. Click the Device Manager button.

3. Click the + symbol to the left of the Ports (COM & LPT) device icon to display the

contents of that folder. Verify that there is an entry for the OMRON CS1W-CIF3*

USB Serial Port (COM@) device.

A communications port name will appear in parentheses. This is the communications

port being used by the Conversion Cable.

35

Connecting Online from the CX-Programmer

█ Changing the Allocated Communications Port

The communications port (COM port) being used by the Conversion Cable can be

changed with the following procedure. The actual change procedure depends on the

operating system. This example shows the procedure for Windows 2000.

Note

If the new COM port is being used by another driver, that driver must be uninstalled.

1. Double-click OMRON CS1W-CIF3* USB Serial Port (COM@) in the Device Manager

window.

2. Click the Port Settings tab.

36

Connecting Online from the CX-Programmer

3. Click the Advanced button. The following window will be displayed.

4. Select the new COM port number from the COM Port Number list.

5. Click the OK button to change the COM port used by the Conversion Cable.

37

Using More than One Conversion Cable

The operating system recognizes USB-Serial Conversion Cables individually.

If a second Conversion Cable is connected after the driver has been installed, driver

installation will be requested again. Install the driver from the CD-ROM again.

If you do not own the CD-ROM and will use more than one Conversion Cable, copy the

win2000_XP folder from the CD-ROM to a folder on your hard disk, and select this

folder.

Note: Use the following directory for Windows 98 or Me: Win98_Me

1. Copy the win2000_XP folder from the CD-ROM to your hard disk (the CD-ROM is in

the same package as the Conversion Cable).

2. The following window will be displayed.

Select Install from a list or specific location (Advanced) and click the Next button.

3. Click the Browse button next to the Include this location in the search field, select

the win2000_XP folder copied from CD-ROM onto your hard disk, and click the Next

button.

38

Revision History

A manual revision code appears as a suffix to the catalog number on the front cover of the manual.

Cat. No. W417-E1-03

Revision code

The following table outlines the changes made to the manual during each revision. Page numbers

refer to the previous version.

Revision code Date

Revised content

01

02

February 2003 Original production

October 2006 Page 7: Changed EMI standard number of EC Directives.

Page 30: Changed the reference directory for the driver file.

Page 37: Add section on using more than one Conversion Cable.

03

July 2007

Page 10: Changed the compatible operating systems.

Page 29: Changed information on installing the drivers.

39

Index

C

communications port

changing............................................................................................................. 36

verifying.............................................................................................................. 35

component names.......................................................................................................... 8

configuration, PLC/PT connections

C200HS, C200HX/HG/HE, C200H, C1000H/2000H, CQM1, CPM1, CPM1A,

CPM2A, and SRM1............................................................................................ 17

CQM1H, CPM2C................................................................................................ 18

CS/CJ-series PLCs ............................................................................................ 15

C-series PLCs.................................................................................................... 17

CVM1 and CV-series PLCs ............................................................................... 20

NS-series and NT-series PTs ............................................................................ 21

Programmable Relay (ZEN)............................................................................... 21

CX-Programmer

communications port.......................................................................................... 34

D

dimensions ................................................................................................................... 14

drivers

installing ............................................................................................................. 29

uninstalling ................................................................................................... 33, 38

O

operating system, applicable........................................................................................ 10

overview ......................................................................................................................... 8

P

PLCs, applicable .......................................................................................................... 11

PTs, applicable............................................................................................................. 11

S

software, applicable...................................................................................................... 10

40

OMRON Corporation

Control Devices Division H.Q.

Shiokoji Horikawa, Shimogyo-ku,

Kyoto, 600-8530 Japan

Tel: (81)75-344-7109/Fax: (81)75-344-7149

Regional Headquarters

OMRON EUROPE B.V.

Wegalaan 67-69, NL-2132 JD Hoofddorp

The Netherlands

Tel: (31)2356-81-300/Fax: (31)2356-81-388

OMRON ELECTRONICS LLC

One Commerce Drive Schaumburg,

IL 60173-5302 U.S.A.

Tel: (1) 847-843-7900/Fax: (1) 847-843-7787

OMRON ASIA PACIFIC PTE. LTD.

No. 438A Alexandra Road # 05-05/08 (Lobby 2),

Alexandra Technopark, Singapore 119967

Tel: (65) 6835-3011/Fax: (65) 6835-2711

OMRON (CHINA) CO., LTD.

Room 2211, Bank of China Tower,

200 Yin Cheng Zhong Road,

Pu Dong New Area, Shanghai, 200120, China

Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200

Authorized Distributor:

Printed in Japan

Cat. No. W417-E1-03

Note: Specifications subject to change without notice

厂商	型号	描述	页数
OMRON	XW2B	简化了连接器和接线盒的更换，并且需要更少的面板布线。[ Simplifies Connector and terminal block replacement, and requires less in-panel wiring. ]	10 页
OMRON	XW2B-1	[ ACCY EXPANSION UNIT FOR XW2B ]	11 页
OMRON	XW2B-20G4	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20G5	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20G5-D	螺丝接线端子电缆[ Screw Terminal Block Cables ]	13 页
OMRON	XW2B-20J6-1B	多应用控制器：从高性能计算机C ONTROL高度可靠的过程控制[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ]	70 页
OMRON	XW2B-20J6-3B	简化电机控制和欧姆龙位置控制PLC模块之间的接线[ Simplify Wiring between Motor Controls and Omrons Position Control PLC Modules ]	12 页
OMRON	XW2B-20J6-6	[ Multi-application Controllers: From High-performance Machine C ontrol to Highly Reliable Process Control ]	70 页
OMRON	XW2B-20J6-8A	自2001年以来， CJ1M系列PLC是在全球范围内广泛应用的控制。[ Since 2001, CJ1M-series PLCs are in control of a wide variety of applications worldwide. ]	29 页
OMRON	XW2B-20X5	[ INTERFACE MOD RCPT 34POS ]	11 页
