IXTF02N450

型号：

IXTF02N450

描述：

高压功率MOSFET[ High Voltage Power MOSFET ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

161 K

下载PDF手册

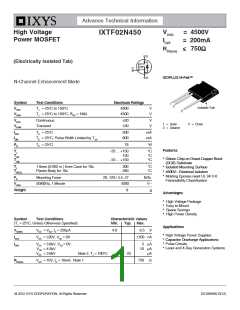

Advance Technical Information
High Voltage
Power MOSFET
VDSS
ID25
= 4500V
= 200mA
IXTF02N450
RDS(on) ≤ 750Ω
(Electrically Isolated Tab)
ISOPLUS i4-PakTM
N-Channel Enhancement Mode
Symbol
VDSS
Test Conditions
Maximum Ratings
1
2
Isolated Tab
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
4500
4500
V
V
5
VDGR
VGSS
VGSM
Continuous
Transient
±20
±30
V
V
1 = Gate
2 = Source
5 = Drain
ID25
IDM
TC = 25°C
TC = 25°C, Pulse Width Limited by TJM
200
600
mA
mA
PD
TC = 25°C
78
W
Features
TJ
TJM
Tstg
- 55 ... +150
150
- 55 ... +150
°C
°C
°C
z
Silicon Chip on Direct-Copper Bond
(DCB) Substrate
Isolated Mounting Surface
4500V~ Electrical Isolation
Molding Epoxies meet UL 94 V-0
Flammability Classification
z
z
z
TL
TSOLD
1.6mm (0.062 in.) from Case for 10s
Plastic Body for 10s
300
260
°C
°C
FC
Mounting Force
20..120 / 4.5..27
N/lb.
V~
g
VISOL
Weight
50/60Hz, 1 Minute
4500
6
Advantages
z
High Voltage Package
Easy to Mount
Space Savings
High Power Density
z
z
z
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ. Max.
6.5
±100 nA
μA
Applications
VGS(th)
IGSS
VDS = VGS, ID = 250μA
VGS = ±20V, VDS = 0V
4.0
V
z
High Voltage Power Supplies
Capacitor Discharge Applications
Pulse Circuits
z
z
IDSS
VDS = 3.6kV, VGS = 0V
VDS = 4.5kV
5
z
Laser and X-Ray Generation Systems
10 μA
VDS = 3.6kV
Note 2, TJ = 100°C
25
μA
RDS(on)
VGS = 10V, ID = 10mA, Note 1
750
Ω
DS100499(10/12)
© 2012 IXYS CORPORATION, All Rights Reserved
IXTF02N450
Symbol
Test Conditions
Characteristic Values
ISOPLUS i4-PakTM (HV) Outline
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 60V, ID = 30mA, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
Gate Input Resistance
60
100
mS
Ciss
Coss
Crss
256
19
pF
pF
pF
5.5
RGi
76
Ω
td(on)
tr
td(off)
tf
17
48
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 500V, ID = 100mA
RG = 10Ω (External)
28
143
Pin 1 = Gate
Pin 2 = Soure
Pin 3 = Drain
Pin 4 = Isolated
Qg(on)
Qgs
10.4
3.4
nC
nC
nC
VGS = 10V, VDS = 1kV, ID = 0.5 • ID25
Qgd
5.0
RthJC
RthCS
1.6 °C/W
°C/W
0.15
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
IS
VGS = 0V
200 mA
800 mA
ISM
VSD
trr
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
1.5
V
IF = 200mA, -di/dt = 50A/μs, VR = 100V
1.6
μs
Notes: 1. Pulse test, t ≤ 300μs, duty cycle, d ≤ 2%.
2. Part must be heatsunk for high-temp IDSS measurement.
ADVANCE TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are derived
from a subjective evaluation of the design, based upon prior knowledge and experience, and constitute a
"considered reflection" of the anticipated result. IXYS reserves the right to change limits, test
conditions, and dimensions without notice.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXTF02N450
Fig. 1. Output Characteristics @ TJ = 25ºC
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
200
180
160
140
120
100
80
350
300
250
200
150
100
50
VGS = 10V
VGS = 10V
9V
8V
9V
8V
7V
7V
60
40
20
6V
6V
0
0
0
50
100
150
200
250
300
350
400
0
20
40
60
80
100
120
140
160
350
350
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 100mA Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
200
180
160
140
120
100
80
2.6
2.2
1.8
1.4
1.0
0.6
0.2
VGS = 10V
8V
VGS = 10V
7V
I D = 200mA
I D = 100mA
6V
5V
60
40
20
0
-50
-25
0
25
50
75
100
125
150
0
50
100
150
200
250
300
TJ - Degrees Centigrade
VDS - Volts
Fig. 6. Maximum Drain Current vs.
Case Temperature
Fig. 5. RDS(on) Normalized to ID = 100mA Value vs.
Drain Current
220
200
180
160
140
120
100
80
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
VGS = 10V
TJ = 125ºC
TJ = 25ºC
60
40
20
0
-50
-25
0
25
50
75
100
125
150
0
50
100
150
200
250
300
TC - Degrees Centigrade
ID - MilliAmperes
© 2012 IXYS CORPORATION, All Rights Reserved
IXTF02N450
Fig. 8. Transconductance
Fig. 7. Input Admittance
500
400
300
200
100
0
250
200
150
100
50
TJ = - 40ºC
25ºC
TJ = 125ºC
25ºC
125ºC
- 40ºC
0
0
50
100
150
200
250
4.5
5.0
5.5
6.0
6.5
7.0
7.5
VGS - Volts
ID - MilliAmperes
Fig. 10. Gate Charge
Fig. 9. Forward Voltage Drop of Intrinsic Diode
10
9
8
7
6
5
4
3
2
1
0
600
500
400
300
200
100
0
VDS = 1000V
I D = 100mA
I G = 1mA
TJ = 125ºC
TJ = 25ºC
0
1
2
3
4
5
6
7
8
9
10
11
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
VSD - Volts
QG - NanoCoulombs
Fig. 11. Capacitance
Fig. 12. Maximum Transient Thermal Impedance
1,000
100
10
10
1
= 1 MHz
f
C
iss
0.1
C
oss
rss
0.01
0.001
C
1
0.0001
0.001
0.01
0.1
1
10
0
5
10
15
20
25
30
35
40
VDS - Volts
Pulse Width - Seconds
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXTF02N450
Fig. 13. Forward-Bias Safe Operating Area
@ TC = 25ºC
Fig. 14. Forward-Bias Safe Operating Area
@ TC = 75ºC
1,000
100
10
1,000
100
10
RDS(on) Limit
RDS(on) Limit
1ms
1ms
DC
10ms
10ms
TJ = 150ºC
TJ = 150ºC
TC = 75ºC
DC
100ms
TC = 25ºC
Single Pulse
Single Pulse
100ms
100
1,000
10,000
100
1,000
10,000
VDS - Volts
VDS - Volts
© 2012 IXYS CORPORATION, All Rights Reserved
IXYS REF: T_02N450(H5)10-31-12-A
