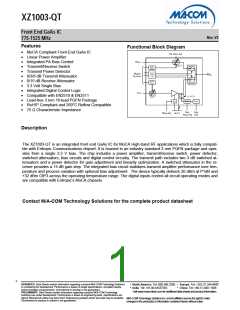

XZ1003-QT
Front End GaAs IC
775-1525 MHz
Rev. V3
Features
Functional Block Diagram
•
•
•
•
•
•
•
•
•
•
•
•
•
MoCA Compliant Front-End GaAs IC
Linear Power Amplifier
Integrated PA Bias Control
Transmit/Receive Switch
Transmit Power Detector
0/3/6 dB Transmit Attenuator
0/15 dB Receive Attenuator
3.3 Volt Single Bias
Integrated Digital Control Logic
Compatible with EN2510 & EN2511
Lead-free 3 mm 16-lead PQFN Package
RoHS* Compliant and 260°C Reflow Compatible
75 Ω Characteristic Impedance
Description
The XZ1003-QT is an integrated front end GaAs IC for MoCA High-band RF applications which is fully compati-
ble with Entropic Communications chipset. It is housed in an industry standard 3 mm PQFN package and oper-
ates from a single 3.3 V bias. The chip includes a power amplifier, transmit/receive switch, power detector,
switched attenuators, bias circuits and digital control circuitry. The transmit path includes two 3 dB switched at-
tenuators and a power detector for gain adjustment and linearity optimization. A switched attenuator in the re-
ceiver provides a 15 dB gain step. The integrated bias circuit stabilizes transmit amplifier performance over tem-
perature and process variation with optional bias adjustment. The device typically delivers 20 dBm at P1dB and
+32 dBm OIP3 across the operating temperature range. The digital inputs control all circuit operating modes and
are compatible with Entropic’s MoCA chipsets.
Contact M/A-COM Technology Solutions for the complete product datasheet
