XZ1002-BD-000V

型号:

XZ1002-BD-000V

品牌:

MIMIX[ MIMIX BROADBAND ]

页数:

11 页

PDF大小:

1519 K

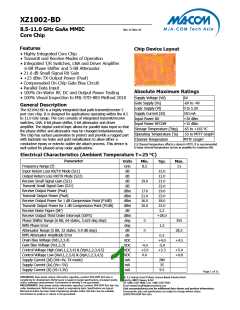

XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Features
• Highly Integrated Core Chip
Chip Device Layout
Transmit and Receive Modes of Operation
• Integrated T/R Switches, LNA and Driver Amplifier
6-Bit Phase Shifter and 5-Bit Attenuator
• 21.0 dB Small Signal RX Gain
• +23 dBm TX Output Power (Psat)
• Compensated On-Chip Gate Bias Circuit
• Parallel Data Input
• 100% On-Wafer RF, DC and Output Power Testing
• 100% Visual Inspection to MIL-STD-883 Method 2010
Absolute Maximum Ratings
Supply Voltage (Vd)
6V
Gate Supply (Vs)
-6V to -4V
0 to 5.5V
General Description
Logic Supply (Vl)
The XZ1002-BD is a highly integrated dual path transmit/receive 3
port core chip. It is designed for applications operating within the 8.5
to 11.0 GHz range. The core consists of integrated transmit/receive
switches, LNA, 6-bit phase shifter, 5-bit attenuator and driver
amplifier. The digital control logic allows for parallel data input so that
the phase shifter and attenuator may be changed instantaneously.
The chip has surface passivation to protect and provide a rugged part
with backside via holes and gold metallization to allow either a
conductive epoxy or eutectic solder die attach process. This device is
well suited for phased array radar applications.
Supply Current (Id)
Input Power RX
350 mA
+20 dBm
Input Power RFCOM
Storage Temperature (Tstg)
Operating Temperature (Ta)
Channel Temperature
+15 dBm
-65 to +165 ºC
-55 to MTTF Graph1
MTTF Graph1
(1) Channel temperature affects a device's MTTF. It is recommended
to keep channel temperature as low as possible for maximum life.
Electrical Characteristics (Ambient Temperature T=25 oC)
Parameter
Units
GHz
dB
dB
dB
Min.
8.5
Typ.
Max.
11
Frequency Range (f)
Input Return Loss RX/TX Mode (S11)
Output Return Loss RX/TX Mode (S22)
Receive Small Signal Gain (S21)
Transmit Small Signal Gain (S21)
Receive Output Power (Psat)
15.0
12.0
21.0
22.0
19.0
23.0
18.0
22.0
5.2
19.0
dB
dBm
dBm
dBm
dBm
dB
17.0
21.0
16.0
20.0
Transmit Output Power (Psat)
Receive Output Power for 1 dB Compression Point (P1dB)
Transmit Output Power for 1 dB Compression Point (P1dB)
Receive Noise Figure (NF)
Receive Output Third Order Intercept (OIP3)
Phase Shifter Range (6 Bit, 64 states, 5.625 deg step)
RMS Phase Error
Attenuator Range (5 Bit, 32 states, 0.9 dB step)
RMS Attenuator Amplitude Error
Drain Bias Voltage (Vd1,2,3,4)
Gate Bias Voltage (Vs1,2,3)
Control Voltage High (Va0,1,2,3,4) & (Vp0,1,2,3,4,5)
Control Voltage Low (Va0,1,2,3,4) & (Vp0,1,2,3,4,5)
Supply Current (Id) (Vd=4V, TX mode)
Supply Current (Ia) (Vs=-5V)
dBm
deg
deg
dB
+28.0
0
0
355
28.5
+4.5
1.5
dB
0.3
+4.0
-5.0
+3.3
-
VDC
VDC
VDC
VDC
mA
-
-4.0
+2.0
0.0
+5.0
+0.8
280
35
mA
Supply Current (Il) (Vl=3.3V)
mA
9.5
Page 1 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Measurements (Multiple Devices)
S21 in Receive Mode
S21 in Transmit Mode
TX mode reference state measured at TA=35 ºC
RX mode reference state measured at TA=35 ºC
23
22.5
22
29.5
29
28.5
28
27.5
27
26.5
26
21.5
21
20.5
20
19.5
19
25.5
25
24.5
18.5
18
Frequency (GHz)
Frequency (GHz)
S11 in Receive Mode
RX mode reference state measured at TA=35 ºC
S11 in Transmit Mode
TX mode reference state measured at TA=35 ºC
0
0
-5
-5
-10
-15
-20
-25
-30
-10
-15
-20
-25
-30
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
Frequency [GHz]
Frequency [GHz]
S22 in Receive Mode
RX mode reference state measured at TA=35 ºC
S22 in Transmit Mode
TX mode reference state measured at TA=35 ºC
0
-5
0
-5
-10
-15
-20
-25
-30
-10
-15
-20
-25
-30
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
Frequency [GHz]
Frequency [GHz]
Page 2 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Measurements (cont.)
Attenuator Performance in Receive Mode
Attenuator Performance in Receive Mode
RX mode measured at TA =35 ºC
RX mode measured at TA =35 ºC
30.0
29.5
29.0
28.5
28.0
27.5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
Frequency [GHz]
Frequency [GHz]
Attenuator Performance in Receive Mode
RX mode measured at TA =35 ºC
Phase Shifter Performance in Receive Mode
RX mode measured at TA=35 ºC
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
-350.0
-351.0
-352.0
-353.0
-354.0
-355.0
-356.0
-357.0
-358.0
-359.0
-360.0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
Frequency [GHz]
Frequency [GHz]
Phase Shifter Performance in Receive Mode
RX mode measured at TA=35 ºC
Phase Shifter Performance in Receive Mode
RX mode measured at TA =35 ºC
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
Frequency [GHz]
Frequency [GHz]
Page 3 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Measurements (cont.)
Attenuator Performance over 32 States in Receive Mode
30
29.0
28.5
28.0
27.5
27.0
26.5
20
10
0
26.0
7
7
8
9
10
11
12
8
9
10
11
12
Frequency [GHz]
Frequency [GHz]
Phase Shifter Performance over 64 States in Receive Mode
360
-350
-355
-360
-365
-370
-375
300
240
180
120
60
0
-380
7
7
8
9
10
11
12
8
9
10
11
12
Frequency [GHz]
Frequency [GHz]
Large Signal Performance
Sample measured at TA=35 C
NF versus Temperature in Receive Mode
10
9
25
24
23
22
21
20
19
18
17
8
7
6
5
4
Ta=10_C
Ta=35_C
Ta=60_C
3
2
1
0
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
8
8.25
8.5 8.75
9
9.25 9.5
9.75
10 10.25 10.5 10.75 11 11.25 11.5
Frequency [GHz]
Frequency (GHz)
Page 4 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Measurements (cont.)
Large Signal Performance
Sample measured at Ta=35 C
Large Signal Performance
Sample measured at Ta=35 C
26
22
24
22
20
18
16
14
12
10
8
8.5 GHz
8.5 GHz
20
18
16
14
12
10
10 GHz
10 GHz
8.75 GHz
9 GHz
8.75 GHz
9 GHz
10.25 GHz
10.5 GHz
10.75 GHz
11 GHz
10.25 GHz
10.5 GHz
10.75 GHz
11 GHz
9.25 GHz
9.5 GHz
9.75 GHz
9.25 GHz
9.5 GHz
9.75 GHz
6
4
-15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1
0
1
2
3
4
5
-15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1
0
1
2
3
4
5
Pin (dBm)
Pin (dBm)
IIP3 versus Temperature in Receive Mode
OIP3 versus Temperature in Receive Mode
35
34
33
32
31
30
29
28
27
26
25
15
14
13
12
11
10
9
Ta=10_C
Ta=35_C
Ta=60_C
Ta=10_C
Ta=35_C
Ta=60_C
8
7
6
5
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
Frequency [GHz]
Frequency [GHz]
Gain Phase Plots
Measured in RX-mode at f=10 GHz and Ta=35 °C
Measured in TX-mode at f=10 GHz and Ta=35 °C
360
315
270
225
180
135
90
360
315
270
225
180
135
90
45
45
0
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28
30
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28
Attenuation [dB]
30
Attenuation [dB]
Page 5 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Measurements (cont.)
4V Supply Current in Receive Mode over Temperature
4V Supply Current in Transmit Mode over Temperature
300
250
240
230
220
210
200
190
180
170
160
150
290
280
270
260
Ta=10_C
Ta=35_C
Ta=60_C
Ta=10_C
Ta=35_C
Ta=60_C
8
8.5
9
9.5
10
10.5
11
8
8.5
9
9.5
10
10.5
11
Frequency [GHz]
Frequency [GHz]
DC Power Dissipation in Receive Mode over Temperature
DC Power Dissipation in Transmit Mode over Temperature
1500
1500
1400
1300
1200
1100
1000
900
1400
1300
1200
1100
1000
900
Ta=10_C
Ta=35_C
Ta=60_C
Ta=10_C
Ta=35_C
Ta=60_C
800
800
700
700
600
600
500
500
8
8.5
9
9.5
10
10.5
11
8
8.5
9
9.5
10
10.5
11
Frequency [GHz]
Frequency [GHz]
Page 6 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Core Chip Block Diagram
Gate Bias
TX Switch
TX-OUT
MPA
Gate Bias
AMP2
-0.9 V
ATT
Common Switch
AMP1
0 /+3.3 V
Digital Input
TX/RX
-1.0 V
LNA
RX-IN
RX Switch
-1.0 V
Gate Bias
Page 7 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Mechanical Drawing
5.000 (0.197)
7
6
2
3
4
5
4.613 (0.182)
4.051 (0.159)
8
9
XZ1002-BD
3.700 (0.146)
3.550 (0.040)
3.400 (0.134)
10
11
12
13
14
3.250 (0.128)
3.100 (0.122)
2.950 (0.116)
2.800 (0.110)
2.650 (0.104)
2.500 (0.098)
2.350 (0.093)
2.200 (0.087)
2.050 (0.081)
1.900 (0.075)
1.750 (0.069)
1.600 (0.063)
1.450 (0.057)
1.300 (0.051)
15
16
17
18
19
20
21
22
23
2.500 (0.098)
1
24
25
26
1.006 (0.040)
27
28
0.500 (0.020)
32
31 30
29
0.000 (0.000)
Units: millimeters (inches) Bond pad dimensions are shown to center of bond pad.
Thickness: 0.110 +/- 0.010 (0.0043 +/- 0.0004), Backside is ground, Bond Pad/Backside Metallization: Gold
All Bond Pads are 0.100 x 0.100 (0.004 x 0.004).
Bond pad centers are approximately 0.109 (0.004) from the edge of the chip.
Dicing tolerance: +/- 0.005 (+/- 0.0002). Approximate weight: 12.4 mg.
Page 8 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Bond Pad Designations
Pad # Pad ID
Voltage
[VDC]
Description
Pad # Pad ID
Voltage
[VDC]
Description
17
18
19
20
21
22
23
P5
P2
P4
P3
P1
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
180° Phase Bit
22.5° Phase Bit
90° Phase Bit
45° Phase Bit
11.25° Phase Bit
5.625° Phase Bit
P0 Voltage Monitor -
Not Connected
P0 Voltage Monitor -
Not Connected
Gate Bias
1
2
3
4
5
TX/RX
Vd2
Vs1
GND
RX Qnot
RF
+4.0
-5.0
-
-3.4
(RX Mode)
0 / +4.0
TX input / RX output
Interstage Amp Supply
Gate Bias
Decoupling Ground
RF Switch Monitor -
Not Connected
Output PA Supply
Decoupling Ground
Transmit [TX] Output
Decoupling Ground
0.9 dB Atten Bit
7.2 dB Atten Bit
14.4 dB Atten Bit
3.6 dB Atten Bit
1.8 dB Atten Bit
RX/TX Switch
P0
6
7
8
9
10
11
12
13
14
15
16
Vd3
GND
TXOUT
GND
A0
A3
A4
A2
A1
Qnot P0
0
-
RF
-
(Ref State)
-3.4
24
Q P0
(Ref State)
-5.0
+3.3
-
RF
-5.0
+4.0
-
25
26
27
28
29
30
31
32
Vs2
V3
GND
RXIN
Vs3
Vd4
GND
Vd1
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
0 / +3.3
-
On-Chip Pull-Up
Decoupling Ground
Receive [RX] Input
Gate Bias
Interstage Amp Supply
Decoupling Ground
LNA Supply
RX
GND
Digital Ground
Cross Talk Suppression
0 / +4.0
App Note [1] Wire Bonding - Bond wires need to be as short as possible. The device is designed for a total bond wire
inductance of 130 pH/RF bond pad. Different bond wire inductance will result in degraded performance.
Page 9 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
App Note [2] Biasing - The core chip can be operated in either Transmit [TX] or Receive [RX] mode. The bias setup is slightly
different for each.
TX Mode - The TX mode is activated by setting the TX/RX switch, bond pad 15 (RX), to logic high (+3.3V) Vrx=3.3V. In this mode,
bond pad 6 (Vd3) for biasing the output power amplifier (MPA) must be set to Vd3=4V. Additionally, the LNA is not operational in
this [TX] mode so Vd1=0V.
RX Mode - To select the RX mode of operation the TX/RX switch, again bond pad 15 (RX), is set to logic low (0V) Vrx=0V. In this
mode bond pad 32 (Vd1) for biasing the Low Noise Amplifier stage (LNA) must be set to Vd1=4V. In the RX mode the MPA is not
used and must be set to Vd3=0V.
TX/RX Modes - Both the gate bias circuitry (Vs1,2,3) and the interstage amplifiers (Vd2,4) must be biased at Vs(1,2,3)=-5V and
Vd(2,4)=4V respectively in both TX and RX operation.
CAUTION! - Also, make sure to properly sequence the applied voltages to ensure negative gate bias (Vs1,2,3) is available before
applying the positive drain supply (Vd1,2,3,4).
App Note [3] Attenuator / Phase Shifter Control Bias - Logic buffering is integrated in the device to supply the necessary
internal switching voltages. The reference state is enabled with logic "low" on all inputs, and the binary weighted phase(amplitude)
states are switched by a logic "high" on the respective control input. Amplitude(phase) variation between phase(amplitude) states
is minimized by optimization of internal matching and isolation between bits. Each bit is controlled using a ‘0’ for the reference
state and a ‘1’ for the enabled state.
Atten Level
Phase Shift
(degrees)
0º
5.625º
11.25º
22.5º
45º
90º
180º
354.375º
Va0 Va1 Va2 Va3 Va4
Vp0 Vp1 Vp2 Vp3
Vp4 Vp5
(dB)
0
0
1
0
0
0
0
-
0
0
1
0
0
0
-
0
0
0
1
0
0
-
0
0
0
0
1
0
-
0
0
0
0
0
1
-
0
1
0
0
0
0
0
1
0
0
1
0
0
0
0
1
0
0
0
1
0
0
0
1
0
0
0
0
1
0
0
1
0
0
0
0
0
1
0
1
0
0
0
0
0
0
1
1
0.9
1.8
3.6
7.2
14.4
-
27.9
1
1
1
1
1
App Note [4] Bias Arrangement - Each DC Bias pad (Vd1,2,3,4) needs to have DC bypass capacitance (~80-120 pF) as close
to the device as possible.
MTTF Graphs
These numbers were calculated based on accelerated life test information and thermal model analysis received from the fabricating foundry.
TX mode
RX mode
2E11
1E11
2E11
1E11
1E10
1E9
1E10
1E9
m12
m11
1E8
1E8
10
20
30
40
50
60
10
20
30
40
50
60
Temperature [C]
Temperature [C]
m11
m12
temp=60.000
MTTF_MFC_TX=1.461E8
Pavs=-30.000000, RFfreq=12.000000
temp= 60.000
MTTF_MFC_RX=1.521E8
Pavs=-30.000000, RFfreq=12.000000
Page 10 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
XZ1002-BD
8.5-11.0 GHz GaAs MMIC
Core Chip
Rev 11-Nov-10
Handling and Assembly Information
CAUTION! - M/A-COM Tech Asia MMIC Products contain gallium arsenide (GaAs) which can be hazardous to the human body and the
environment. For safety, observe the following procedures:
• Do not ingest.
• Do not alter the form of this product into a gas, powder, or liquid through burning, crushing, or chemical processing as these by-products
are dangerous to the human body if inhaled, ingested, or swallowed.
• Observe government laws and company regulations when discarding this product. This product must be discarded in accordance with
methods specified by applicable hazardous waste procedures.
Life Support Policy - M/A-COM Tech Asia's products are not authorized for use as critical components in life support devices or systems
without the express written approval of the President and General Counsel of M/A-COM Tech Asia. As used herein: (1) Life support devices or
systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to
perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a
significant injury to the user. (2) A critical component is any component of a life support device or system whose failure to perform can be
reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
ESD - Gallium Arsenide (GaAs) devices are susceptible to electrostatic and mechanical damage. Die are supplied in anti-static containers, which
should be opened in cleanroom conditions at an appropriately grounded antistatic workstation. Devices need careful handling using correctly
designed collets, vacuum pickups or, with care, sharp tweezers.
Die Attachment - GaAs Products from M/A-COM Tech Asia are 0.100 mm (0.004") thick and have vias through to the backside to enable
grounding to the circuit. Microstrip substrates should be brought as close to the die as possible. The mounting surface should be clean and flat.
If using conductive epoxy, recommended epoxies are Tanaka TS3332LD, Die Mat DM6030HK or DM6030HK-Pt cured in a nitrogen atmosphere
per manufacturer's cure schedule. Apply epoxy sparingly to avoid getting any on to the top surface of the die. An epoxy fillet should be visible
around the total die periphery. For additional information please see the M/A-COM Tech Asia "Epoxy Specifications for Bare Die" application
note. If eutectic mounting is preferred, then a fluxless gold-tin (AuSn) preform, approximately 0.0012 thick, placed between the die and the
attachment surface should be used. A die bonder that utilizes a heated collet and provides scrubbing action to ensure total wetting to prevent
void formation in a nitrogen atmosphere is recommended. The gold-tin eutectic (80% Au 20% Sn) has a melting point of approximately 280º C
(Note: Gold Germanium should be avoided). The work station temperature should be 310ºC +/- 10º C. Exposure to these extreme
temperatures should be kept to minimum. The collet should be heated, and the die pre-heated to avoid excessive thermal shock. Avoidance of
air bridges and force impact are critical during placement.
Wire Bonding - Windows in the surface passivation above the bond pads are provided to allow wire bonding to the die's gold bond pads. The
recommended wire bonding procedure uses 0.076 mm x 0.013 mm (0.003" x 0.0005") 99.99% pure gold ribbon with 0.5-2% elongation to
minimize RF port bond inductance. Gold 0.025 mm (0.001") diameter wedge or ball bonds are acceptable for DC Bias connections. Aluminum
wire should be avoided. Thermo-compression bonding is recommended though thermosonic bonding may be used providing the ultrasonic
content of the bond is minimized. Bond force, time and ultrasonics are all critical parameters. Bonds should be made from the bond pads on the
die to the package or substrate. All bonds should be as short as possible.
Ordering Information
Part Number for Ordering
XZ1002-BD-000V
Description
RoHS compliant die packed in vacuum release gel paks
XZ1002-BD Evaluation Module with bias and digital control under software control
XZ1002-BD-EV1
Caution: ESD Sensitive
Appropriate precautions in handling, packaging
and testing devices must be observed.
Proper ESD procedures should be followed when handling this device.
Page 11 of 11
ADVANCED: Data sheets contain information regarding a product M/A-COM Tech Asia is
considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data sheets contain information regarding a product M/A-COM Tech Asia has
under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
3F, 3-2 Industry East IX Road, Science-Based Industrial Park
Hsinchu 30075 Taiwan, R.O.C
Tel +886-3-567-9680 / Fax +886-3-567-9433
Email mtatechnicalhelp@macomtech.com
Visit macomtechasia.com for additional data sheets and product information.
Characteristic data and specifications are subject to change without notice.
©2010 M/A-COM Tech Asia
厂商 型号 描述 页数 下载

TE

XZ1003-QT 前端的GaAs IC 775-1525兆赫集成PA偏置控制[ Front End GaAs IC 775-1525 MHz Integrated PA Bias Control ] 1 页

MIMIX

XZ1003-QT HI- RF前端IC[ Hi-RF Front End IC ] 1 页

TE

XZ1003-QT-0G0T [ MoCA Compliant Front-End GaAs IC ] 13 页

TE

XZ1003-QT-EV1 [ MoCA Compliant Front-End GaAs IC ] 13 页

TE

XZ1003-QT_15 [ MoCA Compliant Front-End GaAs IC ] 13 页

TE

XZ1004-QT [ MoCA Compliant Front-End GaAs IC ] 12 页

TE

XZ1004-QT-0G0T [ MoCA Compliant Front-End GaAs IC ] 12 页

TE

XZ1004-QT-EV1 [ MoCA Compliant Front-End GaAs IC ] 12 页

SEOUL

XZ10150 ž POWER LED[ Z Power LED ] 19 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.229259s
