KXTJ2

型号：

KXTJ2

描述：

超小型封装 - 2x2x0.9mm LGA[ Ultra-small Package - 2x2x0.9mm LGA ]

品牌：

ETC[ ETC ]

页数：

2 页

PDF大小：

598 K

下载PDF手册

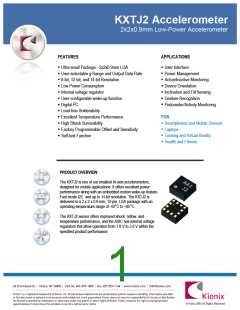

KXTJ2 Accelerometer
2x2x0.9mm Low-Power Accelerometer
FEATURES
APPLICATIONS
. Ultra-small Package - 2x2x0.9mm LGA
. User-selectable g Range and Output Data Rate
. 8-bit, 12-bit, and 14-bit Resolution
. Low Power Consumption
. User Interface
. Power Management
. Active/Inactive Monitoring
. Device Orientation
. Internal voltage regulator
. User-configurable wake-up function
. Digital I2C
. Inclination and Tilt Sensing
. Gesture Recognition
. Pedometer/Activity Monitoring
. Lead-free Solderability
. Excellent Temperature Performance
. High Shock Survivability
. Factory Programmable Offset and Sensitivity
. Self-test Function
FOR
. Smartphones and Mobile Devices
. Laptops
. Gaming and Virtual Reality
. Health and Fitness
PRODUCT OVERVIEW
The KXTJ2 is one of our smallest tri-axis accelerometers,
designed for mobile applications. It offers excellent power
performance along with an embedded motion wake-up feature
Fast-mode I2C and up to 14-bit resolution. The KXTJ2 is
delivered in a 2 x 2 x 0.9 mm, 12-pin, LGA package with an
operating temperature range of -40°C to +85°C.
The KXTJ2 sensor offers improved shock, reflow, and
temperature performance, and the ASIC has internal voltage
regulators that allow operation from 1.8 V to 3.6 V within the
specified product performance.
KXTJ2 Accelerometer
2x2x0.9mm Low-Power Accelerometer
The performance parameters below are programmed and tested at 2.6 volts and T = 25°C. The device can accept supply voltages from 1.8V to
3.6V. Due to internal voltage regulators, there should be minimal change with supply voltage variations.
PERFORMANCE SPECIFICATIONS
PARAMETERS
UNITS
KXTJ2-1009
±2.0, ±4.0, ±8.0
64, 32, 16
CONDITION
Range
g
User-selectable full-scale output range
8-bit
Sensitivity1
counts/g
1024, 512, 256
1024 typical
12-bit
14-bit2
0g Offset vs. Temp
mg/°C
%/°C
Hz
0.2
-40°C to +85°C
-40°C to +85°C
-3dB
Sensitivity vs. Temp
±0.01 (xy) ±0.03 (z) typical
3500 (xy) 1800 (z) typical
0.781 min; 50 typical; 1600 max
800
Mechanical Resonance3
Output Data Rate (ODR)4
Hz
RES = 0
RES = 1
Bandwidth (-3dB)5
Hz
ODR/2
Non-Linearity
% of FS
%
1.0 typical
% of full scale output
Cross-axis Sensitivity
I2C Communication Rate
Power Supply
2.0 typical
MHz
V
3.4 max
2.6 typical
1.8V – 3.6V
High resolution (RES = 1)
Low resolution (RES = 0)
Standby
135 typical
Current Consumption6
µA
10 typical
2 typical
ENVIRONMENTAL SPECIFICATIONS
PARAMETERS
Operating Temperature
Storage Temperature
UNITS
KXTJ2-1009
-40 to 85
CONDITION
Powered
°C
°C
-55 to 150
Un-powered
5,000, 0.5 ms
10,000, 0.2 ms
Powered or un-powered,
halversine
Mechanical Shock
ESD
g
V
2,000
Human body model
NOTES
1 Resolution and acceleration ranges are user selectable via I2C.
2 14-bit Resolution is only available for registers 0x06h – 0x0Bh in the 8g Full Power mode.
3 Resonance as defined by the dampened mechanical sensor.
4 User selectable through I2C.
5 User selectable; dependent on ODR and RES.
6 Current varies with Output Data Rate (ODR).
