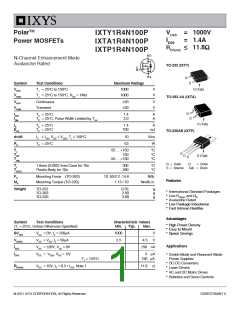

IXTY1R4N100P

型号:

IXTY1R4N100P

描述:

N沟道增强模式额定雪崩[ N-Channel Enhancement Mode Avalanche Rated ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

4 页

PDF大小:

157 K

PolarTM
Power MOSFETs
VDSS = 1000V
ID25 = 1.4A
RDS(on) 11.8Ω
IXTY1R4N100P
IXTA1R4N100P
IXTP1R4N100P
N-Channel Enhancement Mode
Avalanche Rated
TO-252 (IXTY)
G
S
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 150°C
1000
1000
V
V
D (Tab)
VDGR
TJ = 25°C to 150°C, RGS = 1MΩ
TO-263 AA (IXTA)
VGSS
VGSM
Continuous
Transient
±20
±30
V
V
G
S
ID25
IDM
TC = 25°C
TC = 25°C, Pulse Width Limited by TJM
1.4
3.0
A
A
D (Tab)
IA
EAS
TC = 25°C
TC = 25°C
1.4
100
A
mJ
TO-220AB (IXTP)
dv/dt
PD
IS IDM, VDD VDSS, TJ 150°C
TC = 25°C
10
63
V/ns
W
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
G
D
D (Tab)
= Drain
S
G = Gate
S = Source
D
TL
TSOLD
1.6mm (0.062) from Case for 10s
Plastic Body for 10s
300
260
°C
°C
Tab = Drain
FC
Mounting Force (TO-263)
Mounting Torque (TO-220)
10..65/2.2..14.6
1.13 / 10
N/lb.
Features
Md
Nm/lb.in.
Weight
TO-252
TO-263
TO-220
0.35
2.50
3.00
g
g
g
z
International Standard Packages
Low RDS(on) and QG
Avalanche Rated
Low Package Inductance
Fast Intrinsic Rectifier
z
z
z
z
Advantages
Symbol
Test Conditions
Characteristic Values
z
High Power Density
Easy to Mount
Space Savings
(TJ = 25°C, Unless Otherwise Specified)
Min.
1000
2.5
Typ.
Max.
z
z
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 250μA
VDS = VGS, ID = 50μA
VGS = ±20V, VDS = 0V
VDS = VDSS, VGS = 0V
V
4.5
±50 nA
μA
150 μA
11.8
V
Applications
z
IDSS
5
Switch-Mode and Resonant-Mode
TJ = 125°C
Power Supplies
DC-DC Converters
Laser Drivers
AC and DC Motor Drives
z
RDS(on)
VGS = 10V, ID = 0.5 ID25, Note 1
Ω
z
z
z
Robotics and Servo Controls
DS99737B(08/11)
© 2011 IXYS CORPORATION, All Rights Reserved
IXTY1R4N100P IXTA1R4N100P
IXTP1R4N100P
Symbol
Test Conditions
Characteristic Values
TO-220 (IXTP) Outline
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max
gfs
VDS= 20V, ID = 0.5 ID25, Note 1
0.70
1.10
S
Ciss
Coss
Crss
450
27
6
pF
pF
pF
VGS = 0V, VDS = 25V, f = 1MHz
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 30Ω (External)
td(on)
tr
td(off)
tf
25
35
65
28
ns
ns
ns
ns
Qg(on)
Qgs
Qgd
17.8
2.8
9.9
nC
nC
nC
VGS= 10V, VDS = 0.5 VDSS, ID = 0.5 ID25
Pins: 1 - Gate
3 - Source
2 - Drain
RthJC
RthCS
2.0 °C/W
°C/W
TO-220
0.50
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max
IS
VGS = 0V
1.4 A
4.2 A
1.5 V
ISM
VSD
trr
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
IF = 1.4A, -di/dt = 100A/μs,
VR = 100V, VGS = 0V
750
ns
TO-252 (IXTY) Outline
Note
1: Pulse test, t 300μs, duty cycle, d 2%.
TO-263 (IXTA) Outline
Pins: 1 - Gate
3 - Source
2,4 - Drain
Dim. Millimeter
Min. Max.
Inches
Min.
Max.
A
A1
2.19 2.38
0.89 1.14
0.086
0.035
0.094
0.045
A2
b
0
0.13
0
0.005
0.035
0.64 0.89
0.025
b1
b2
0.76 1.14
5.21 5.46
0.030
0.205
0.045
0.215
c
c1
0.46 0.58
0.46 0.58
0.018
0.018
0.023
0.023
D
D1
5.97 6.22
4.32 5.21
0.235
0.170
0.245
0.205
E
E1
6.35 6.73
4.32 5.21
0.250
0.170
0.265
0.205
e
e1
2.28 BSC
4.57 BSC
0.090 BSC
0.180 BSC
H
L
9.40 10.42
0.51 1.02
0.370
0.020
0.410
0.040
L1
L2
L3
0.64 1.02
0.89 1.27
2.54 2.92
0.025
0.035
0.100
0.040
0.050
0.115
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or more of the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,727,585
7,005,734 B2 7,157,338B2
7,063,975 B2
6,534,343
6,583,505
6,710,405 B2 6,759,692
6,710,463
6,771,478 B2 7,071,537
IXTY1R4N100P IXTA1R4N100P
IXTP1R4N100P
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
Fig. 1. Output Characteristics @ TJ = 25ºC
2.2
2
1.4
1.2
1
VGS = 10V
7V
VGS = 10V
7V
1.8
1.6
1.4
1.2
1
6V
0.8
0.6
0.4
0.2
0
6V
5V
0.8
0.6
0.4
0.2
0
5V
0
5
10
15
20
25
30
150
150
0
0
0
2
4
6
8
10
12
14
16
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 0.7A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
1.4
1.2
1
3.0
2.6
2.2
1.8
1.4
1.0
0.6
0.2
VGS = 10V
7V
VGS = 10V
6V
5V
I D = 1.4A
0.8
0.6
0.4
0.2
0
I D = 0.7A
5
10
15
20
25
30
35
-50
-25
0
25
50
75
100
125
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 0.7A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
1.6
1.4
1.2
1
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
TJ = 125ºC
VGS = 10V
0.8
0.6
0.4
0.2
0
TJ = 25ºC
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
-50
-25
0
25
50
75
100
125
TC - Degrees Centigrade
ID - Amperes
© 2011 IXYS CORPORATION, All Rights Reserved
IXTY1R4N100P IXTA1R4N100P
IXTP1R4N100P
Fig. 7. Input Admittance
Fig. 8. Transconductance
2
1.8
1.6
1.4
1.2
1
2.4
2
TJ = - 40ºC
25ºC
1.6
1.2
0.8
0.4
0
TJ = 125ºC
125ºC
25ºC
- 40ºC
0.8
0.6
0.4
0.2
0
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
ID - Amperes
2
2.2 2.4 2.6
3.0
0.4
0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
0.95
40
VGS - Volts
Fig. 9. Forward Voltage Drop of Intrinsic Diode
Fig. 10. Gate Charge
5
4.5
4
10
9
8
7
6
5
4
3
2
1
0
VDS = 500V
D = 0.7A
I G = 10mA
I
3.5
3
2.5
2
TJ = 125ºC
TJ = 25ºC
1.5
1
0.5
0
0.45
0.5
0.55
0.6
0.65
0.7
0.75
0.8
0.85
0.9
0
2
4
6
8
10
12
14
16
18
VSD - Volts
QG - NanoCoulombs
Fig. 11. Capacitance
Fig. 12. Maximum Transient Thermal Impedance
1,000
100
10
10
C
iss
1
C
oss
rss
0.1
0.01
C
= 1 MHz
5
f
1
10
15
20
25
30
35
0.00001
0.0001
0.001
0.01
0.1
1
10
VDS - Volts
Pulse Width - Seconds
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS REF: T_1R4N100P (2A)4-03-08-A
