NWK939/CG/TP1N

型号：

NWK939/CG/TP1N

品牌：

MICROSEMI[ Microsemi ]

页数：

15 页

PDF大小：

305 K

下载PDF手册

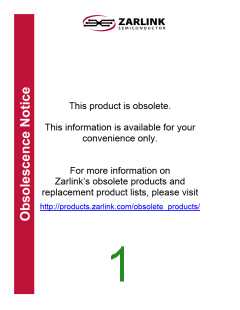

This product is obsolete.
This information is available for your
convenience only.
For more information on
Zarlink’s obsolete products and
replacement product lists, please visit
http://products.zarlink.com/obsolete_products/
NWK939
10/100 Base-TX Symbol Transeiver
Advance Information
DS4733 - 2.2 January 1998
The NWK939 is a CMOS Fast Ethernet Transceiver with
integrated clock and data recovery for combined 10BASE-T
and 100BASE-TX applications. The device connects through
a 5 bit symbol interface directly with the NWK960 and similar
controllers that incorporate the PCS function such as the
DEC21143. The NWK939 incorporates on-chip filtering and
pulse shaping to allow use of common 1:1 magnetics
(isolation transformers) for both 10 Mb/s and 100 Mb/s modes.
RDAT3
RDAT4
1
2
3
4
5
6
7
8
9
39 TP_TDP
38 REFCLK
37 OSCVDD
36 XTAL1
RXC
SDT100
ASDT
35 XTAL2
FEATURES
■ 10BASE-T and 100BASE-TX switchable
■ IEEE-802.3 compatible
■ ConnectswithNWK960forcomplete10/100NICsolution
■ Single 1:1 magnetics module for both 10BASE-T and
100BASE-TX
RXGND3
RXVDD3
LPWR_N
RESET_N
34 OSCGND
33 TXGND4
32 TXVDD4
31 SUBVDD
30 TXVDD3
29 TXGND3
28 TXREFF100
27 TXREF10
RXVDD2 10
RXGND2 11
TXOE 12
RDOE 13
■ Industry standard Symbol Interface
■ Supports half and full-duplex operation
■ Low latency
GP52
TP52
■ Integrated diagnostic loopback
■ Low power mode
Fig.1 Pin connections - top view
■ Operateswithcrystaloscillatororexternalclocksource
■ Integrated filters and pulse shaping
■ QuantizedFeedbackcircuitrytocorrectBaseLineWander
■ Integrated clock recovery and clock synthesis
■ Integrated adaptive equalizer
■ Low power CMOS technology
■ Single +5V supply
■ 52 Pin PQFP package
■ Also available in Thin PQFP package
■ Full support for auto-negotiation signalling
■ Internal loop filter components
■ Low external component count
ORDERING INFORMATION
NWK939C/CG/GH1N
NWK939/CG/TP1N thin quad
NWK936 10/100 PCS
or
Symbol
Interface
NIC Controller
(NWK960, DEC21143 or similar)
Isolation
Magnetics
NWK939
RJ-45
or
Repeater Controller
(NWK950, MXIC98741
or similar)
Fig.2 System block diagram
NWK939
Compliance to Standards
OVERVIEW
The NWK939 is designed for compliance with the IEEE 802.3
Standard, Clauses 14, 24 & 25, henceforth referred to as 802.3.
The 802.3 PMD sub-layer for 100BASE-TX is derived from the
FDDI TP-PMD Standard, henceforth referred to as TP-PMD.
The NWK939 is a mixed-signal CMOS 10/100Mb/s
transceiver which integrates all of the signal processing
components of the dual speed Ethernet Physical Layer. It is
designedforcompliancewithIEEE802.3Standardsanddirectly
interfaces to a variety of Network Interface Card and Repeater
controllerdevicesthroughtheindustrystandardsymbolinterface.
The NWK939 employs robust design techniques to provide a
very low bit-error rate and automatic recovery from fault
conditions.
Compatibility With Other Devices
For Network Interface Card applications the NWK939 is
designed to operate with controllers such as the NWK960 and
the DEC21143, connecting via the symbol interface.
For 100BASE-TX repeater applications the NWK939 is
designed to operate with controllers such as the NWK950 and
MXIC98741, also connecting via the symbol interface.
TX10REF
TP_TDP
TX10 PULSE
SHAPER &
FILTER
TX10
DRIVER
100MHz
SYNTHESIZER
LOOPBACK
TP_RDP
TP_RDM
RX10
FILTER
RX10 CLOCK
RECOVERY
RX10 SIGNAL
DETECT
TXC
RXC
TXOP
TXON
RXIP
RXIN
RDAT[4:0]
ASDT
RX100
EQUALIZER
& BLW
RX100 SIPO
& DECODER
RX100 CLOCK
RECOVERY
SDT100
CORRECTION
RX100
SIGNAL
DETECT
LOOPBACK
125MHz
SYNTHESIZER
TX100
DRIVER
TX100 PISO
& ENCODER
TDAT[4:0]
TX100REF
POWER
ON
RESET
CONTROLS
OSC
Fig.3 NWK939 block diagram
2
NWK939
FUNCTIONAL DESCRIPTION
TX10 Latency
TheNWK939hasthreeoperatingmodes:10BASE-Tmode,
100BASE-TX mode and LOW-POWER mode. The modes are
selected by the N10/100 and LPWR_N pins.The Control block
isdesignedtomanagethesemodesbystartingandstoppingthe
two transceivers in a well-controlled manner such that no
spurious signals are output on either the symbol or twisted-pair
interfaces. Furthermore, it continuously monitors the behaviour
of the transceivers and takes corrective action if a fault is
detected.
When connected to appropriate magnetics the latency
through the TX10 path is less than 1BT (100ns) for data
transmissions. This timing is measured from the falling edge of
TXC to the output of the transmit magnetics. The TX10 path will
not transmit the first two Manchester encoded bits of a data
transmission, as permitted by the 802.3 Standard.
RX10 Filter & RX10 Signal Detect
These blocks work in unison to remove noise and to block
signals that do not achieve the voltage levels specified in 802.3.
Signals that do not achieve the required level are not sampled
in the Clock Recovery block and are not passed to the DAT10/
SDT10 and TP_RDP/TP_RDM outputs.
25MHz REFERENCE CLOCK
TheNWK939requiresa25MHz+/-100ppmtimingreference
for 802.3 compliant operation. This may be supplied either from
the integrated oscillator or from an external source. When the
integratedoscillatorisused,asuitablecrystalmustbeconnected
across the XTAL1 & XTAL2 pins (see “External Components”).
Whenanexternalsourceisused,itmustbeinputtotheREFCLK
pinandXTAL1mustbetiedhigh. XTAL2mustbeunconnected.
RX10 Clock Recovery
The RX10 Clock Recovery employs a digital delay line
controlled by the 100MHz Synthesizer DLL to derive a sampling
clock from the incoming signal. The recovered clock runs at
twicethedatarate(nominally20MHz).Whenasignalisreceived
fromtheSignalDetectblock,SDT10isassertedandfallingRXC
is used to strobe Link Pulses and Manchester encoded serial
data out on DAT10 and TP_RDP/TP_RDM. When no signal is
being received, SDT10 is deasserted, RXC is driven from the
20MHztransmitclock,DAT10isheldlowandTP_RDP/TP_RDM
is driven to the zero state (see “DC Electrical Characteristics”).
10BASE-T OPERATION
In 10BASE-T mode Manchester encoded serial data is
loaded from the TP_TDP input, processed through the TX10
Path and output on the TXOP/TXON differential output for
transmission through 1:1 magnetics and onto the twisted-pair.
The incoming signal received from the magnetics into the
RXIP/RXIN differential input is processed through the RX10
Path. Received data is output serially on 2 interfaces. The
DAT10 & SDT10 signals form a Mitel Semiconductor-specific
interface for connection to the NWK936 PCS device. For NIC
controllers that have in-built 10BASE-T receivers, the received
signal is also provided on the TP_RDP/TP_RDM differential
output. The TX10 & RX10 paths are disabled when the device
is not in 10BASE-T mode.
RX10 Latency
When connected to appropriate magnetics the latency
through the RX10 path is less than 1BT (100ns). This timing is
measured from the input of the receive magnetics to the falling
edgeofRXC.TheRX10pathmayignoreuptothreeManchester
encoded bits at the start of data reception (802.3 allows up to 5
bits) and the first bit forwarded to TP_RDP/TP_RDM may have
timing violations (802.3 allows 1 bit).
100MHz Synthesizer
This synthesizer employs a delay-locked loop (DLL) to
generate a 100MHz timing reference from the 25MHz reference
clock.This100MHzreferenceisusedbythe10BASE-Ttransmit
and receive functions and is divided by 5 to provide a 20MHz
data strobe on TXC. The synthesizer is disabled when not in
10BASE-T mode.
100BASE-TX OPERATION
In 100BASE-TX mode 5-bit NRZ symbols are loaded from
theTDATbus,processedthroughtheTX100Pathandoutputon
theTXOP/TXONdifferentialoutputfortransmissionthroughthe
1:1 magnetics and onto the twisted-pair.
The incoming signal received from the magnetics into the
RXIP/RXIN differential input is processed through the RX100
Pathandoutputin5-bitparallelNRZformontheRDATbus. The
TX100 path is disabled when not in 100BASE-TX mode and,
with the exception of the RX100 Signal Detect, the RX100
Receive Path is disabled when not in 100BASE-TX mode.
TX10 Pulse Shaper & Filter
This block loads Link Pulses and Manchester encoded
serial data from the TP_TDP input on the falling edge of TXC.
This input may be connected directly to the TP_TDP output of
the DEC21143 and similar NIC controllers. The Pulse Shaper &
Filter employs a digital finite impulse response filter (FIR) to pre-
compensate for line distortion and to remove high frequency
components in accordance with the 802.3 Standard. The Pulse
Shaper & Filter is disabled when not in 10BASE-T mode.
125MHz Synthesizer
This synthesizer employs a phase-locked loop (PLL) to
generate a 125MHz timing reference from the 25MHz reference
clock. This 125MHz reference is used by the 100BASE-TX
transmit function and is divided by 5 to provide a 25MHz data
strobe on TXC. TXC is frequency and phase locked to the
25MHz reference with a small phase offset. The synthesizer is
disabled when not in 100BASE-TX mode.
TX10 Driver
The TX10 Driver operates with 1:1 magnetics to provide
impedancematchingandamplificationofthesignalinaccordance
with the 802.3 specifications. The transmit current is governed
bythecurrentthroughtheTXREF10pin,whichmustbegrounded
through a resistor as described in “External Components”.
3
NWK939
TX100 PISO & Encoder
RX100 Equalizer & Base-line Wander Correction
The TX100 PISO & Encoder loads NRZ-coded symbols
from TDAT on the rising edge of TXC, and converts them to
serial MLT3 for outputting to the TX100 Driver. The TDAT[4] bit
is output first. The PISO & Encoder do not operate until the
125MHz Synthesizer is locked to the 25MHz reference. This
avoids transmission of spurious signals onto the twisted-pair.
TheRX100Equalizercompensatesforthesignalattenuation
and distortion resulting from transmission down the cable and
throughtheisolationtransformers.TheEqualizerisself-adjusting
and is designed to restore signals received from up to 10dB
cable attenuation. The Equalizer is inactive when ASDT is
deasserted. WhenASDTisassertedhigh, theEqualizeradjusts
to the incoming signal within 1ms. Thereafter, the Equalizer will
continuously adjust to small variations in signal level without
corrupting the received data.
The 100BASE-TX MLT3 code contains significant low
frequencycomponentswhicharenotpassedthroughtheisolation
transformers and cannot be restored by an adaptive equalizer.
This leads to a phenomenon known as base-line wander which
willcauseanunacceptableincreaseinerrorrateifnotcorrected.
The NWK939 employs a quantized feedback technique to
restore the low frequency components and thus maintain a very
low error rate even when receiving signals such as the “killer
packet” described in the TP_PMD spec.
TX100 Driver
The TX100 Driver outputs the differential signal onto the
TXOP and TXON pins. It operates with 1:1 magnetics to provide
impedancematchingandamplificationofthesignalinaccordance
with the 802.3 specifications. The transmit current is governed
by the current through the TXREF100 pin, which must be
grounded through a resistor as described in “External
Components”. The TX100 driver is disabled in 10BASE-T mode
and when LBEN is active.
TX100 Latency
When connected to appropriate magnetics the typical latency
through the TX100 path is 1.2BT (12ns). This timing is measured
fromtherisingedgeofTXCtotheoutputofthetransmitmagnetics.
RX100 Clock Recovery
The RX100 Clock Recovery circuit uses a Phase-Locked
Loop (PLL) to derive a sampling clock from the incoming signal.
The recovered clock runs at the symbol bit rate rate (nominally
125MHz) and is used to clock the MLT3 decoder and the Serial
to Parallel converter (SIPO). The recovered clock is divided by
5 to generate the receive clock (RXC) which is used to strobe
received data across the symbol interface. When ASDT is
deasserted in 100BASE-TX mode, the PLL is locked to the
reference clock and runs at 125MHz. This ensures that RXC
runs continuously at 25MHz in 100BASE-TX mode. When
ASDT is asserted high, the Clock Recovery PLL remains locked
to the reference until the equalizer has adjusted, then it requires
up to 1ms to phase lock to the incoming signal. No data is
passed to the symbol interface until lock is established.
00000
TDAT[4:0]
11111
00000
TXC
+
twisted-pair
0
–
12ns 8ns 8ns 8ns 8ns
Fig.4 100BASE-TX transmit latency
RX100 Signal Detect
RX100 SIPO & Decoder
The RX100 SIPO & Decoder converts the received signal
from serial MLT3 to 5-bit parallel NRZ which is output on RDAT.
TheNWK939doesnotalignreceivedsymbolstotheRDATbus.
When ASDT is deasserted, RDAT is driven low. RDAT will
continue to be driven low until ASDT is asserted, the Equalizer
has adjusted, and the Clock Recovery is phase locked to the
incoming signal. This ensures that no invalid data is passed to
the higher layers.
TheRX100SignalDetectcontinuouslymonitorsthelevelon
theRXIP/Ndifferentialinput.ASDT(AsynchronousSignalDetect)
will be asserted high whenever the signal amplitude exceeds
the minimum that can be handled by the RX100 Equalizer.
RX100 Signal Detect does not discriminate between signal
types, therefore ASDT will be asserted for 10BASE-T signals
and Link Pulses as well as for100BASE-TX signals. RX100
Signal Detect is continuously active in all 3 operating modes,
therefore ASDT may be used to externally generate a wake-up
signal when the device is in LOW-POWER mode.
RX100 Signal Detect also generates SDT100 which is a
synchronousversionofASDT. SDT100issynchronoustoRXC
rising and operates in both 10BASE-T mode and 100BASE-TX
mode. In LOW-POWER mode RXC is stopped and SDT100 is
driven low.
RX100 Latency
The typical latency through the RX100 Receive Path is
6.4BT (64ns). This timing is measured from the start of a bit
seen on the twisted-pair medium to the RXC falling edge that
outputs that bit to the RDAT bus. The bit may appear in any
position on RDAT, and therefore the latency varies as follows:
twisted-pair -> RDAT[4] = 64ns
twisted-pair -> RDAT[3] = 56ns
twisted-pair -> RDAT[2] = 48ns
twisted-pair -> RDAT[1] = 40ns
twisted-pair -> RDAT[0] = 32ns
4
NWK939
Mode Selection (LPWR_N & N10/100)
+
0
–
LOW-POWERmodecanbeselectedatanytimebyasserting
LPWR_N low. When LPWR_N is inactive, 10BASE-T mode is
selectedbypullingN10/100low,100BASE-TXmodeisselected
by pulling N10/100 high. During mode changes the TXC & RXC
clocks will continue to run but there will be no data transfers until
the appropriate transceiver has been started up.
twisted-pair
RXC
00000
RDAT[4:0]
Diagnostic Loopback (LBEN)
64ns or 56ns or 48ns
or 40ns or 32ns
Diagnosticloopbackmaybeselectedatanytimebyasserting
LBEN high. In 10BASE-T mode transmission to the TXOP/
TXON output will be stopped and the RX10 Clock Recovery will
receive input from the TX10 transmit path rather than from the
RXIP/RXIN inputs. In 100BASE-TX mode transmission to the
TXOP/TXONoutputwillbestopped,theRX100ClockRecovery
will receive input from the TX100 transmit path and SDT100 will
be forced high.
Fig.5 100BASE-TX receive latency
LOW-POWER OPERATION
In LOW-POWER mode the 10BASE-T and 100BASE-TX
transceivers are disabled. This mode is intended to conserve
power when the network connection is not required.
The synthesizers and all TX10 & TX100 functions are
disabled and the TXOP/TXON output is undriven.
The oscillator continues to run and the 25MHz reference will
be driven out onto TXC if RDOE is asserted. This facility is
provided for interfacing to the DEC21143 where a continuous
clock is required.
All RX10 & RX100 functions except RX100 Signal Detect
are disabled. RX100 Signal Detect continues to monitor the
RXIP/RXIN input and to drive ASDT accordingly. ASDT may
therefore be used to externally generate a wake-up signal.
The RXC clock is stopped in LOW-POWER mode and the
RDAT & SDT100 outputs are held low.
Transmitter Output Enable (TXOE)
The TX10 Driver & TX100 Driver may be disabled by driving
TXOE low. This control signal is provided for compatibility with
earlier Mitel Semiconductor transceivers. It provides modest
power savings and can be used to reduce EMI generation from
unconnected twisted-pair ports, but is superseded on the
NWK939 by the LOW-POWER mode.
Receive Data Output Enable (RDOE)
ThissignalmustbepulledhighwheninterfacingtoDEC21143
and similar NIC controllers. RDOE enables the TP_RDP/
TP_RDM output and also keeps TXC running in LOW_POWER
mode. In 100Mb/s-only applications, or when interfacing to the
NWK936, noise and power savings may be achieved by setting
RDOE low.
CONTROL SIGNALS
Initialization,modeselectionandotheroptionsaregoverned
by the control inputs as described in the following paragraphs.
Initialization (RESET_N)
INTERFACE DESCRIPTIONS
The NWK939 incorporates a power-on-reset circuit for self-
initialization on power-up. During initialization the open-drain
RESET_N pin is driven low and all data outputs are disabled to
prevent spurious outputs to the twisted-pair and to the symbol
interface. RESET_N will remain low until either the 10BASE-T
or 100BASE-TX transceiver has been correctly initialized. The
NWK939 will then release RESET_N allowing the external pull-
up to pull the pin high. Data transmission and reception will not
commence until RESET_N is high. This allows the user to
extend the inactive period by externally holding RESET_N low.
It will not normally be necessary for the user to drive RESET_N
becausetheNWK939isdesignedtoautomaticallyrecoverfrom
fault conditions, however if required, the user may initialize the
device by pulsing RESET_N low.
10BASE-T Transmit Data (TP_TDP)
In 10BASE-T mode Link Pulses and Manchester encoded
serial data are loaded from the TP_TDP input for transmission
on the twisted-pair. TP_TDP is sampled on the falling edge of
TXC. The TP_TDP input is designed to be driven from either the
DEC21143 TP_TDP output or the NWK936 TP_TDP output.
LP
Packet SOI
LP
LP
Packet SOI
LP
Note1:HoldingRESET_Nlowwillnotholdthedeviceinastatic,
lowpowerstate.Itwillinitializetheselectedtransceiverandstart
the appropriate clocks. For power saving use the LPWR_N pin.
Note 2: The NWK936 PCS device is initialized by connecting its
RESET_N input to the NWK939 pin.
Fig.6 Signals on TP_TDP
Note 3: If the NWK939 is powered-up with LPWR_N low, then
the device will immediately enter LOW-POWER mode and
RESET_N will be held low until LPWR_N is deasserted and one
of the transceivers is started up.
10BASE-T data transmissions consist of Manchester
encoded data packets separated by an idle pattern (see Fig.6).
The idle pattern comprises a Start-of-Idle (SOI) pulse which is
appended to the end of each packet, and Link Pulses at 8 to
24ms intervals. During 802.3 Auto-negotiation a faster burst of
Link Pulses is transmitted.
5
NWK939
TXC
TXC
TP_TDP
(last data = 0)
TX_TDP
TP_TDP
(last data = 1)
Fig.10 Start-of-Idle on TP_TDP
Fig.7 Link pulse on TP_TDP
When no transmission is required, the TP_TDP input must
beheldlow. ToinitiateLinkPulsetransmission, TP_TDPshould
be driven high for 2 cycles of TXC (see Fig. 7). The NWK939
requiresthattheintervalbetweenLinkPulsesbegreaterthan10
cycles of TXC (500ns).
The TP_TDP input is ignored when the device is not in
10BASE_T mode.
10BASE_T Receive Data (TP_RDP/TP_RDM)
This serial interface is for passing received signals to the
DEC21143 and similar controllers. TP_RDP/TP_RDM is
equivalent to the signal received on RXIP/RXIN after filtering,
jitterreductionandsuppressionoflowlevelsignals.TheTP_RDP/
TP_RDM output is disabled when RDOE is deasserted and
when the device is not in 10BASE-T mode.
TXC
10BASE_T Receive Data (DAT10 & SDT10)
TP_TDP
This serial interface is for passing received signals to the
NWK936 PCS device. In 10BASE-T mode DAT10 & SDT10 are
multiplexed onto RDAT[0:1] and the remaining bits of RDAT are
heldlow. TheDAT10&SDT10outputsaresynchronoustoRXC
falling and are intended to be sampled by the NWK936 on RXC
rising. When no signal is being received from the twisted-pair
both DAT10 & SDT10 are held low.
Fig.8 Packet on TP_TDP
For data packet transmission the Manchester encoded data
must be presented to the TP_TDP input (see Fig. 8).
DAT10
(good polarity)
DAT10
(reverse polarity)
TXC
TP_TDP
SDT10
RXC
min 10 cycles of TXC
Fig.11 Link pulse on DAT10 & SDT10
Fig.9 Interval between link pulse and packet
When a Link Pulse is received SDT10 will be asserted high
for 2 or 3 cycles of RXC (see Fig. 11). If the Link Pulse has the
correct polarity then DAT10 will also be asserted high. If the
polarityisreversedduetoatwisted-pairwiringfault,thenDAT10
will remain low during reception of the Link Pulse. The NWK936
will check and correct for polarity reversal. Packet data and
Start-of-Idle (SOI) pulse reception are illustrated in Figs. 12 & 13.
The interval between a Link Pulse and the first logic 1 in the
packet signal should be greater than 10 cycles of TXC (see
Fig. 9). If theintervalislessthan10cyclesthenthefirstbitofthe
packettransmissionmaybecorrupted, butthecorruptionwillbe
within that allowed by 802.3.
The SOI pulse will be transmitted if the TP_TDP input is held
high for 6 cycles of TXC at the end of the data packet. If the last
data bit transmitted was a logic 1 then the latter half of this bit will
merge with the SOI pulse such that TP_TDP is high for 7 cycles
of TXC (see Fig.10).
DAT10
SDT10
RXC
Fig.12 Start of packet on DAT10 & SDT10
6
NWK939
as the source of the MII TX_CLK. When working with the
DEC21143 TXC should be used to drive the SYM_TCLK &
XTAL1 inputs.
DAT10
(good polarity)
DAT10
(reverse polarity)
Receive Clock (RXC)
In 10BASE-T mode RXC is a continuous clock. During
signal reception it is recovered from the incoming signal and
runs nominally at 20MHz. When no signal is being received it
is driven from the 20MHz transmit clock. At the start of data
receptionRXCmustsynchronisetotheincomingsignal, during
this time RXC conforms to the “during synchronization” timing
indicated in “AC Electrical Characteristics”.
In100BASE-TXmodeRXCisacontinuousclockrecovered
from the incoming signal and running nominally at 25MHz.
When there is no incoming signal the clock recovery PLL locks
to the 25MHz reference. In LOW-POWER mode RXC is held
low. On power-up, or following an external reset, RXC will be
held low until the appropriate clock source is available and
within specification. RXC starts up cleanly, i.e. with no short
pulses or spikes. When the operating mode is changed, RXC
continues to be driven from the old source until the new source
is available and within specification. At changeover there will be
no spikes, but RXC will have extended timing for one cycle only,
see “AC Electrical Characteristics” for details. These
specifications for start up and changeover ensure that higher
layer devices can safely use RXC. In particular, it can be used
as the source of the MII RX_CLK. When working with the
DEC21143 RXC should be used to drive the SYM_RCLK input.
SDT10
RXC
min 2 bit times
3 ->6 bit times
Fig.13 Start-of-Idle on DAT10 & SDT10
100BASE-TX Transmit Data (TDAT)
In 100BASE-TX mode symbol data is loaded from TDAT on
TXC rising. Symbol data is defined as data which is 4B/5B
encoded and scrambled. The user may present data either on
TXC or on REFCLK (if the integrated oscillator is not being
used). TXC & REFCLK are frequency and phase locked with a
small phase error. TDAT timing is quoted with respect to both
clocks, see “AC Electrical Characteristics”. TDAT is ignored
when the device is not in 100BASE-TX mode.
100BASE-TX Receive Data (RDAT)
In 100BASE-TX mode received symbols are output on
RDAT on RXC falling. The data is 5-bit parallel but symbols are
not aligned to the bus.
Signal Detect (ASDT & SDT100)
Transmit Clock (TXC)
ASDT (Asynchronous Signal Detect) will be asserted high
whenever the signal amplitude exceeds the minimum that
can be handled by the RX100 Equalizer. ASDT does not
discriminate between signal types, and therefore will be
asserted for 10BASE-T signals and Link Pulses as well as for
100BASE-TX signals. ASDT is available in all 3 operating
modes, therefore may be used to externally generate a wake-
up signal when the device is in LOW-POWER mode.
SDT100 is a synchronized and filtered version of ASDT,
intended for connection to controllers such as the DEC21143.
SDT100 is synchronous to RXC rising and pulses shorter than
30µs are filtered out. In 10BASE-T mode and 100BASE-TX
mode, SDT100 will respond to valid 100BASE-TX signals and
10BASE-T packets but will not respond to 10BASE-T Link
Pulses. In LOW-POWER mode RXC is stopped and SDT100 is
driven low.
In 10BASE-T mode TXC is a continuous 20MHz clock. In
100BASE-TXmodeTXCisacontinuous25MHzclock,frequency
&phaselockedtothe25MHzreference. InLOW-POWERmode
TXC is driven from the 25MHz reference if RDOE is asserted,
otherwise it is held low. On power-up, or following an external
reset, TXC will be held low until the appropriate clock source is
availableandwithinspecification.TXCstartsupcleanly,i.e.with
noshortpulsesorspikes. Whentheoperatingmodeischanged,
TXC continues to be driven from the old source until the new
sourceisavailableandwithinspecification.Atchangeoverthere
willbenospikes,butTXCwillhaveextendedtimingforonecycle
only, see “AC Electrical Characteristics” for details. These
specifications for start up and changeover ensure that higher
layer devices can safely use TXC. In particular, it can be used
7
NWK939
PIN DESCRIPTIONS
Pin Name
Pin Type
Pin Number
Pin Description
SYMBOL Interface
RXC
digital output
3
Receive Clock. Recovered from the incoming signal.
Derived from the reference clock when no incoming signal.
Runs at 25MHz nominal in 100BASE-TX mode, 20MHz nominal in
10BASE-T mode, and is held low in LOW-POWER mode.
SDT100
ASDT
digital output
digital output
4
5
100BASE-TX Signal Detect. Active high, synchronous to RXC rising.
Indicatestheincomingsignalexceeds100BASE-TXthresholds.Operatesin
both 100BASE-TX & 10BASE-T modes. Held low in LOW-POWER mode.
(Note: this signal responds to both 100BASE-TX & 10BASE-T signals.)
Asynchronous Signal Detect. Active high, independent of all clocks.
Indicates that the incoming signal exceeds 100BASE-TX thresholds.
Operates in 100BASE-TX, 10BASE-T & LOW-POWER modes.
(Note: this signal responds to both 100BASE-TX & 10BASE-T signals.)
TDAT4
TDAT3
TDAT2
TDAT1
TDAT0
digital inputs
no pull-up
42
43
44
45
46
100BASE-TX Transmit Data. In 100BASE-TX mode, transmit symbols
(i.e. encoded & scrambled data) are loaded on TXC rising. TDAT4 is
transmitted first. These inputs are ignored in 10BASE-T &
LOW-POWER modes.
TXC
digital output
49
Transmit Clock. Runs at 25MHz in 100BASE-TX mode and 20MHz in
10BASE-T mode. In LOW-POWER mode TXC runs at 25MHz if RDOE=1,
or is held low if RDOE=0.
RDAT0/DAT10 digital outputs
RDAT1/SDT10
RDAT2
RDAT3
RDAT4
50
51
52
1
ReceiveData.SynchronoustoRXCfalling.In100BASE-TXmodereceived
symbols (i.e. encoded & scrambled data) are output on RDAT[4:0].
RDAT4 is the first bit received, symbols are not aligned to the bus.
In 10BASE-T mode serial Manchester encoded receive data is output
on DAT10, and SDT10 indicates the incoming signal exceeds 10BASE-T
thresholds. In LOW-POWER mode RDAT[4:0] is held low.
2
Network Interface
RXIP
RXIN
differential
analog input
15
16
Receive Input. Input from the magnetics for both 100BASE-TX and
10BASE-T reception.
TXOP
TXON
differential
analog output
22
21
Transmit Output. Output to the magnetics for both 100BASE-TX and
10BASE-T transmission. High impedance in LOW-POWER mode and
when TXOE=0.
TXOE
digital input
no pull-up
12
Transmit Output Enable. Active high. Enables the TXOP/TXON output.
10BASE-T Interface
TP_RDM
TP_RDP
differential
analog output
41
40
10BASE-T Receive Signal. In 10BASE-T mode this is a filtered and
retimed copy of the twisted-pair receive signal. Held in the zero state
(TP-RDP = TP-RDM) in 100BASE-TX and LOW-POWER modes. High
impedance when RDOE=0.
RDOE
digital input
no pull-up
13
39
Receive differential output enable. Active high. Enables the TP-RDP/
TP-RDM output.
TP_TDP
digital input
no pull-up
10BaseTTransmitData.In10BASE-Tmode,serialManchesterencoded
data is loaded on TXC falling. This input is ignored in 100BASE-TX &
LOW-POWER modes.
8
NWK939
PIN DESCRIPTIONS CONT.
Pin Name
Pin Type
Pin Number
Pin Description
Control Pins
LBEN
digital input
no pull-up
25
Loopback Enable. Active high. Enables internal loopback for diagnostic
purposes in both 100BASE-TX & 10BASE-T modes. Suppresses
transmission on TXOP/TXON.
N10/100
digital input
no pull-up
open drain digital
output with digital
input,no pull up
26
9
10BASE-T/100BASE-TX Select. Low selects 10BASE-T mode, high
selects 100BASE-TX mode.
Reset. Active low, bidirectional. Driven low by the NWK939 during
initialisation. May be driven low from an external source to retrigger or
extend initialisation.
RESET_N
LPWR_N
TXREF10
TXREF100
digital input
no pull-up
8
LOW-POWER Mode Select. Active low.
analog
27
28
10BASE-TTransmitterReference.Setsthe10BASE-Ttransmittercurrent.
Connect to ground through external resistor.
analog
100BASE-TX Transmitter Reference. Sets the 100BASE-TX transmitter
current. Connect to ground through external resistor.
Clocks
REFCLK
digital input
with pull-up
38
36
35
25MHz Reference. Drive from external 25MHz source when the on-chip
oscillator is not used. Connect to OSCVDD when on-chip oscillator is used.
XTAL1
XTAL2
analog
25MHz crystal input. Connect to OSCVDD when the on-chip oscillator is
not used.
analog
25MHz crystal input. Leave unconnected when the on-chip oscillator
is not used.
Power
DIGGND
DIGVDD
RXGND
RXVDD
TXGND
TXVDD
ground
power
ground
power
ground
power
ground
power
power
47
48
Digital ground
Digital power
6,11,14
7,10,17
23,24,29,33
20,30,32
34
Receive ground
Receive power
Transmitter ground
Transmitter power
Oscillator ground
Oscillator power
Substrate power
OSCGND
OSCVDD
SUBVDD
37
31
No Connects
-
-
-
-
18
19
do not connect to this pin
do not connect to this pin
9
NWK939
RECOMMENDED OPERATING CONDITIONS
Neither performance nor reliability are guaranteed outside
these limits. Extended operation above these limits may affect
device reliability.
ABSOLUTE MAXIMUM RATINGS
Exceeding the absolute maximum ratings may cause
permanent damage to the device. Extended exposure at the
maximum ratings will affect device reliability.
Supply voltage (VDD
Input voltage
Output voltage
Static discharge voltage
Storage temperature (TA)
)
–0.5 to +7V
–0.5 to VDD+0.5V
–0.5 to VDD+0.5V
4kV HBM
Supply voltage (VDD
Input voltage
Output voltage
Current per pin
Ambient temperature (TA)
)
+5V ±5%
0 to VDD
0 to VDD
100mA
0°C to +70°C
-40 to +125°C
SUPPLY CURRENT
Recommended operating conditions apply except where stated.
Value
Typ.
Characteristic
Symbol
Units
Conditions
Min.
Max.
With external components
as shown in Fig.14.
Supply currents quoted
here include currents
through external
10BASE-T mode, not transmitting
10BASE-T mode, transmitting
100BASE-TX mode
IDD
IDD
IDD
IDD
-
-
-
-
105
178
108
35
115
190
120
40
mA
mA
mA
mA
Low Power mode
components.
DC ELECTRICAL CHARACTERISTICS
Recommended operating conditions apply except where stated.
Value
Typ.
Characteristic
Symbol
Units
Conditions
Min.
Max.
Digital input, no pull-up
Input high voltage
Input low voltage
Hysteresis
Input high current
Input low current
Capacitance
VIH
VIL
VH
IIH
IIL
CI
2
VSS
0.3
-
-
-
-
-
-
-
-
-
VDD
0.8
-
1
–1
8
V
V
V
µA
µA
pF
including package
including package
Digital input, with pull-up
Input high voltage
Input low voltage
Hysteresis
Input high current
Input low current
Capacitance
VIH
VIL
VH
IIH
IIL
CI
2
VSS
0.3
-
–17
-
-
-
-
-
-
-
VDD
0.8
-
V
V
V
µA
µA
pF
1
–130
8
Digital output
Output high voltage
Output low voltage
Rise time
Fall time
Capacitance
VOH
VOL
tR
tF
CO
4
VSS
-
-
-
-
-
-
-
-
VDD
0.4
4
3
8
V
V
ns
ns
pF
IOH = –6mA
IOL = 6mA
0.4V to 2.4V into 20pF
2.4V to 0.4V into 20pF
including package
Open drain digital output
Output low voltage
Fall time
Capacitance
VOL
tF
CO
VSS
-
-
-
-
-
0.4
TBD
8
V
ns
pF
IOL = 6mA
5V to 0.4V into 20pF
including package
TP_RDP/TD_RDM differential output
High level
Zero level
Low level
Centred voltage
VH
V0
VL
VC
1
-200
–1
-
-
-
-
3
200
–3
-
V
mV
V
VDD/2
V
10
NWK939
AC ELECTRICAL CHARACTERISTICS
Recommended operating conditions apply except where stated.
Value
Typ.
Characteristic
Symbol
Units
Conditions
Min.
Max.
REFCLK
Frequency
Duty cycle
25±100ppm
MHz
%
45
-
55
TXC
10BASE-T Mode
Frequency
20±100ppm
MHz
%
Duty cycle
45
45
40
-
55
55
60
100BASE-TX Mode
Frequency
25±100ppm
MHz
%
Duty cycle
-
LOW-POWER Mode with RDOE=1
Frequency
25±100ppm
MHz
%
Duty cycle
-
During transitions between modes
High pulse width
thi
tlo
15
15
-
-
30
110
ns
ns
for 1 cycle only
for 1 cycle only
Low pulse width
RXC
10BASE-T Mode
Frequency
20
-
-
MHz
%
ns
Duty cycle
High pulse width
Low pulse width
45
15
15
55
110
110
during data reception
during synchronization
during synchronization
-
ns
100BASE-TX Mode
Frequency
25
-
MHz
%
Duty cycle
45
55
During transitions between modes
High pulse width
thi
tlo
15
15
-
-
30
110
ns
ns
for 1 cycle only
for 1 cycle only
Low pulse width
TDAT[4:0] (100BASE-TX Mode only)
Setup to TXC↑
-
-
-
-
-
-
-
-
20
0
10
0
ns
ns
ns
ns
NIC applications
NIC applications
Repeater applications
Repeater applications
Hold from TXC↑
Setup to REFCLK↑
Hold from REFCLK↑
TP-TDP (10BASE-T Mode only)
Setup to TXC↓
Hold from TXC↓
-
-
-
-
10
0
ns
ns
RDAT[4:0] & DAT10 & SDT10
Prop delay from RXC↓
0
0
-
-
-
7
7
-
ns
ns
ns
SDT100
Prop delay from RXC↑
RESET_N
Pulse width
100
11
NWK939
AC Characteristics TXOP/TXON in 10BASE-T Mode
AC Characteristics TXOP/TXON in 100BASE-TX Mode
(Continued)
Parameter
Reference
Parameter
Reference
The peak differential voltage on the TD circuit
when terminated with a 100Ω resistive load
shall be between 2.2V and 2.8V for all data
sequences.
802.3 -
14.3.1.2.1
The rise and fall times measured from 10% to TP-PMD
90% of the steady state output voltage shall be
between 3ns and 5ns.
9.1.6.
When driven by an all-ones Manchester-
encoded signal, any harmonic measured
on the TD circuit shall be at least 27dB below
the fundamental.
The TX10 Transmitter shal provide equalisation 802.3 -
such that the output waveform shall fall within 14.3.1.2.1
the template shown in 802.3 Fig 14-9 for all
data sequences.
802.3 -
Difference between max. and min. rise and TP-PMD
fall times shall be less than 0.5ns. 9.1.6.
14.3.1.2.1
Duty cycle distortion must be less than ±0.25ns TP-PMD
measured at 50% of the steady state output
voltage for a data sequence of 01010101 (NRZ).
9.1.8.
Total transmit jitter, including duty cycle
distortionand baseline wander, must be less
than 1.4ns peak to peak.
TP-PMD
9.1.9.
The Start-of-Idle pulse shall conform to the
template of 802.3 Fig 14-10
802.3 -
14.3.1.2.1
AC Characteristics RXIP/RXIN in 10BASE-T Mode
The Link Pulse shall conform to the template
of 802.3 Fig 14-12.
802.3 -
14.3.1.2.1
Parameter
Reference
The differential output impedance as measured 802.3 -
on TD shall be such that any reflection shall be 14.3.1.2.2
at least 15dB below the incident.
Differential signals received on the RD that are 802.3
within the envelope of 802.3 Figs 14-16 &14-17 14.3.1.3.1
shall be passed to RX10DATA.
RD signals with up to ±13.5ns zero crossing 802.3
jitter is accepted.
The transmitter shall add no more than 3.5ns 14.3.1.2.3
jitter when TD drives into 100Ω through the
twisted pair.
802.3 -
14.3.1.3.1
The transmitter shall add no more than 8ns
jitter when TD drives into 100Ω.
802.3 -
14.3.1.2.3
RD signals corresponding to the envelope of
802.3
802.3 Fig 14-12 shall be accepted as a link pulse. 14.3.1.3.2
The common-mode to differential-mode
balance shall exceed 29-17log10 (f/10) dB
over the frequency range 1-20MHz.
The common-mode output voltage shall not
exceed 50mV peak.
802.3 -
The receiver shall reject as data signals which 802.3
14.3.1.2.4
would produce a peak magnitude of less than
300mV after being filtered through a 3-pole low-
pass Butterworth with a 3dB cutoff at 15MHz.
14.3.1.3.2
802.3 -
14.3.1.2.5
802.3 -
The receiver shall reject as data continuous
sinusoidal signals of amplitude less than 6.2V
peak-to-peak and frequency less than 2MHz.
802.3
14.3.1.3.2
Application of a common-mode 15V peak
10.1MHz sinusoid to the test circuit shall not 14.3.1.2.6
change the differentail voltage by more than
100mV and will add no more than 1ns jitter.
The receiver shall reject as data sine waves of 802.3
single cycle duration,starting with phase 0 or 14.3.1.3.2
180 degrees, and of amplitude less than 6.2V
peak-to-peak where the frequency is between
2MHz & 15MHz.
The RD circuit differential input impedance shall 802.3
be such that the reflection of any signal in the 14.3.1.3.4
frequency range 5MHz to 10MHz is at least
15dB below the incident.
Application of a short circuit to TD shall not 802.3 -
damage the circuit.
The short circuit shall not exceed 300mA.
14.3.1.2.7
802.3 -
14.3.1.2.7
802.3 -
14.3.1.2.7
The transmitter shall withstand without
damage a 1000V common-mode impulse.
There shall be no extraneous signals on TD
during normal power-up and power-down.
802.3 -
14.3.2.3
The RD circuit common mode rejection shall 802.3
be as defined in 802.3 14.3.1.3.5.
14.3.1.3.5
The RD circuit shall tolerate an indefinite
short circuit.
The RD circuit shall withstand a 1000V
common modeimpulse.
802.3
14.3.1.3.6
AC Characteristics TXOP/TXON in 100BASE-TX Mode
802.3
14.3.1.3.6
Parameter
The differential output voltage shall be in the TP-PMD
range 950mV to 1050mV. 9.1.2.2
Reference
AC Characteristics RXIP/RXIN in 100BASE-TX Mode
The differential overshoot shall not exceed 5%. TP-PMD
9.1.3.
Overshoot transients must decay to within 1% TP-PMD
of the steady state voltage within 8ns of the start 9.1.3.
of the differential signal transition.
Parameter
Reference
The return loss shall be greater than 16dB from TP-PMD
2MHz to 30MHz.
The return loss shall be greater than (16dB-20 TP-PMD
log(f/30MHz)) dB from 30MHz to 60MHz. 9.2.2
The return loss shall be greater than 10dB from TP-PMD
60MHz to 80MHz. 9.2.2
9.2.2
The signal amplitude symmetry shall be in the
range 98% to 102%.
TP-PMD
9.1.4.
The return loss shall be greater than 16dB from TP-PMD
2MHz to 30MHz.
9.1.5.
The return loss shall be greater than (16-20log
(f/30MHz) dB from 30MHz to 60MHz.
TP-PMD
9.1.5.
The return loss shall be greater than 10dB from TP-PMD
60MHz to 80MHz. 9.1.5.
12
NWK939
0.1µF
0.1µF
RDAT3
RDAT4
RXC
1
2
3
4
5
6
7
8
9
39
38
37
36
35
34
33
32
31
30
29
28
27
TP_TDP
RFCLK
OSVDD
XTAL1
SDT100
ASDT
25MHz
C2
XTAL2
RXGND3
RXVDD3
OSCGND
TXGND4
TXVDD4
SUBVDD
TXVDD3
C2
5k(5%)
LPWR_N
RESET_N
RXVDD2 10
RXGND2 11
TXOE 12
TXGND3
TXREFF100
TXREF10
RDOE 13
1k2
1k2
(0.1%) (0.1%)
50.1 (1%)
34 (1%)
34 (1%)
50.1 (1%)
0.01µF
0.01µF
16.2
(1%)
0.1µF
16.2
(1%)
1:1 MAGNETICS
Fig.14 External components
EXTERNAL COMPONENTS
Connecting an External 25MHz Reference
Let PC = power dissipation of the crystal in mW,
and ESR = equivalent series resistance of the crystal
If an external clock is used then it should be driven into the
REFCLK input, and XTAL1 must be connected to OSCVDD.
XTAL2 must be left unconnected.
in W.
IfPC >2.6mWthenC1 & C2 aredeterminedbytheloopgain:
RESET_N Pull-up Resistor
184
√ESR
This resistor is required regardless of whether RESET_N is
used externally.
C1 = C2 =
–7pF
TP-RDP/TP-RDM AC-coupling
If PC<2.6mW then C1 & C2 are determined by the power
dissipation of the crystal:
TP-RDP/TP-RDM must be AC-coupled when working with
a DEC21143 controller (or equivalent), but should be left
unconnected when working with the NWK936.
PC
C1 = C2 = 114
–7pF
RX Input Decoupling
√ ESR
The method of using a split input load resistor and de-
coupling the centre tap reduces common mode noise.
Tracking to the crystal and the capacitors must be as short
as possible. Other signal paths must not cross the area.
Crystal Oscillator
ForIEEE802.3compliancetheoscillatormustrunat25MHz
±100ppm. The NWK939 on-chip circuitry contributes less than
40ppm variability to the oscillator frequency, therefore the
crystalmustbespecifiedto60ppm.Thismustincludevariations
due to temperature and ageing.
The NWK939 is supported by magnetics from the following
vendors:
VENDOR
MAGNETICS
Bel
Pulse
Valor
S558-5999-39
H1012
External capacitors are required on the XTAL1 & XTAL2
pins. The values of these capacitors are dependent on the
power dissipation and the equivalent series resistance of the
chosen crystal, as follows:
ST6118
13
For more information about all Zarlink products
visit our Web Site at
www.zarlink.com
Information relating to products and services furnished herein by Zarlink Semiconductor Inc. or its subsidiaries (collectively “Zarlink”) is believed to be reliable.
However, Zarlink assumes no liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such
information, product or service or for any infringement of patents or other intellectual property rights owned by third parties which may result from such application or
use. Neither the supply of such information or purchase of product or service conveys any license, either express or implied, under patents or other intellectual
property rights owned by Zarlink or licensed from third parties by Zarlink, whatsoever. Purchasers of products are also hereby notified that the use of product in
certain ways or in combination with Zarlink, or non-Zarlink furnished goods or services may infringe patents or other intellectual property rights owned by Zarlink.
This publication is issued to provide information only and (unless agreed by Zarlink in writing) may not be used, applied or reproduced for any purpose nor form part
of any order or contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other
information appearing in this publication are subject to change by Zarlink without notice. No warranty or guarantee express or implied is made regarding the
capability, performance or suitability of any product or service. Information concerning possible methods of use is provided as a guide only and does not constitute
any guarantee that such methods of use will be satisfactory in a specific piece of equipment. It is the user’s responsibility to fully determine the performance and
suitability of any equipment using such information and to ensure that any publication or data used is up to date and has not been superseded. Manufacturing does
not necessarily include testing of all functions or parameters. These products are not suitable for use in any medical products whose failure to perform may result in
significant injury or death to the user. All products and materials are sold and services provided subject to Zarlink’s conditions of sale which are available on request.
Purchase of Zarlink’s I2C components conveys a licence under the Philips I2C Patent rights to use these components in and I2C System, provided that the system
conforms to the I2C Standard Specification as defined by Philips.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright Zarlink Semiconductor Inc. All Rights Reserved.
TECHNICAL DOCUMENTATION - NOT FOR RESALE
厂商 型号 描述 页数 下载

SEMIKRON

 		NWK40 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/180 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/240 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/300 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

ZARLINK

 		NWK914B PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ETC

 		NWK914BCGGH1N LAN收发器\n[ LAN Transceiver ] 10 页

MITEL

 		NWK914CG PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

MITEL

 		NWK914D PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ZARLINK

 		NWK914D PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ZARLINK

 		NWK914DCG PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.263874s
