WT-C3501DNDU

型号：

WT-C3501DNDU

品牌：

WEITRON[ WEITRON TECHNOLOGY ]

页数：

15 页

PDF大小：

1062 K

下载PDF手册

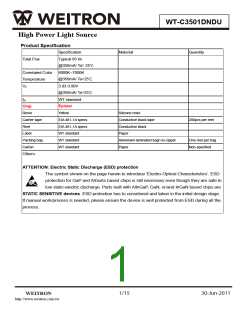

WT-C3501DNDU
High Power Light Source
Product Specification
Specification
Material
Quantity
Total Flux
Typical 95 lm
@350mA/ Ta= 25℃
Correlated Color
Temperature
VF
6000K~7000K
@350mA/ Ta=25℃
3.03-3.99V
@350mA/ Ta=25℃
WT standard
Epistar
IR
Chip
Resin
Yellow
Silicone resin
Conductive black tape
Conductive black
Paper
Carrier tape
Reel
EIA 481-1A specs
EIA 481-1A specs
WT standard
200pcs per reel
Label
Packing bag
Carton
Others:
WT standard
Aluminum laminated bag/ no-zipper
Paper
One reel per bag
Non-specified
WT standard
ATTENTION: Electric Static Discharge (ESD) protection
The symbol shown on the page herein to introduce ‘Electro-Optical Characteristics’. ESD
protection for GaP and AlGaAs based chips is still necessary even though they are safe in
low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based chips are
STATIC SENSITIVE devices. ESD protection has to considered and taken in the initial design stage.
If manual work/process is needed, please ensure the device is well protected from ESD during all the
process.
30-Jun-2011
1/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Label Spec.:
▓Customer P/N: To Be Defined
▓WEITRON P/N
U
W T C 3 5 0 1 DND
-
Company
Product Name
Package
Dice
1: Single
2: Twin
Emitter Color Current code
Outline
dimension
DND: White
U:350mA
CRI >80
WT: For WEITRON C:Ceramic substrate
▓ Lot No.
30-Jun-2011
2/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Product Feature
small package with high efficiency
Wide view angle
Lower forward voltage operated
More energy efficient than incandescent
and most halogen lamps
Easy to fixed
No UV
ESD with 1KV
Long operating time (Up to 50,000hrs)
point source with color uniformity
Instant light (less than 100nS)
Compatible with CREE XP-E optical
lens
Application
Reading lights (car, bus, aircraft)
Wayside lighting
LCD Backlights
Light Guides
Portable (flashlight, bicycle)
Task lighting
Garden lighting
Rail lighting
Traffic signaling
Architectural lighting
Product Out Line Dimension
Tolerance: +/-0.1
Unit: mm
Compatible with CREE XP-E optical lens
30-Jun-2011
3/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Electro-Optical
Absolute Maximum Ratings
(Ta =25°C)
Parameter
DC Forward Current*1
Peak Pulsed Forward Current *2
Rating
350
Unit
mA
mA
V
Conditions
-
1000
5
-
Reverse Voltage
-
LED junction Temperature
Operating Temperature
Storage Temperature
120
oC
oC
oC
oC
-
-30~+85
-40~+120
260
-
-
Soldering Temperature
For 5 sec. Max.
*1: Proper current derating must be observed to maintain junction temperature below the maximum
*2:tp≦10μs, Duty cycle=0.01
Electro-Optical Characteristics
(Ta =25°C)
Parameter
Viewing angle
Symbol
2θ ½
VF
Min.
115
3.03
-
TYP.
Max.
130
3.99
-
Unit
Deg.
V
-
Forward Voltage (IF=350mA)
Luminous Flux (Pure White)
Correlated Color Temperature
Temperature Coefficient of Forward
Voltage
-
100
-
Flux
lm
CCT
6000
7000
K
ΔVF/ΔT
RθJ-B
-
-
-2
9
-
-
mV/ oC
Thermal Resistance Junction to Board
(IF=350mA)
oC/W
Luminous Flux Rank
Rank Code Symbol
Full
Condition
Min.
87.4
87.4
99.6
Typ.
Max.
Unit
-
-
-
-
129.5
99.6
PU1
ΦV
IF=350mA
lm
PU2
113.6
129.5
PV1
113.6
Note: It maintains a tolerance of ±10% on flux
30-Jun-2011
4/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Electrical Rank
Rank Code Symbol
Condition
IF=350mA
Min.
3.03
3.03
3.27
3.51
3.75
Typ.
Max.
3.99
3.27
3.51
3.75
3.99
Unit
V
Full
P05
-
-
-
-
-
P06
P07
P08
VF
Note: It maintains a tolerance of ±0.1V on forward voltage measurements
Color Temperature Corrdinates
Correlated Color Temperature Rank
Color
Condition
Bin Code
Min.
Typ.
Max.
Unit
K
CU1~2
C/A~D
CL1~2
6,000
6,000
6,000
6,500
6,500
6,500
7,000
7,000
7,000
IF=350mA
White
30-Jun-2011
5/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Color Temperature Corrdinates
30-Jun-2011
6/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Characteristics Curve
30-Jun-2011
7/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
30-Jun-2011
8/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
30-Jun-2011
9/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
30-Jun-2011
10/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Tape & Packing
Tape Dimension
Part No.
Dim. A
3.8
Dim. B
8.0
Dim. C
2.5
Q’ty/Reel
500
WT-C3501
Unit: mm +/-0.1mm
Reel Dimension
30-Jun-2011
11/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Packing
5 boxes per carton is available depending on shipment quantity.
Dry Pack
All SMD optical devices are MOISTURE SENSITIVE. Avoid exposure to moisture at all times
during transportation or storage. Every reel is packaged in a moisture protected anti-static bag.
Each bag is properly sealed prior to shipment.
Upon request, a humidity indicator will be included in the moisture protected anti-static bag
prior to shipment.
Storage
It‟s recommended to store the products in the following conditions:
Humidity: 60 %RH Max.
Temperature: 5℃ ~30℃ (41℉~86℉)
30-Jun-2011
12/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
The packaging sequence is as follows
PRECAUTIONS
1. Avoid exposure to moisture at all times during transportation or storage.
2. Anti-Static precaution must be taken when handling GaN, InGaN, and AlInGaP products.
3. It is suggested to connect the unit with a current limiting resistor of the proper size. Avoid
applying a reverse voltage beyond the specified limit.
4. Avoid operation beyond the limits as specified by the absolute maximum ratings.
5. Avoid direct contact with the surface through which the LED emits light.
6. If possible, assemble the unit in a clean room or dust-free environment.
30-Jun-2011
13/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Soldering Pattern
The dimensions of the recommended soldering pattern may not meet every user. Please
confirm and study first before designing the soldering pattern in order to obtain the best
performance of soldering. Recommended soldering pattern is listed below:
Unit: mm
Reflow Soldering
Recommend soldering paste specifications:
1. Operating temp.: Above 220 OC ,60sec
2. Peak temp.:260 OCMax.,10sec Max.
3. Never take next process until the component is cooled down to room temperature after
reflow.
4. The recommended reflow soldering profile (measuring on the surface of the LED terminal)
is following:
Lead-free Solder Profile
30-Jun-2011
14/15
WEITRON
http://www.weitron.com.tw
WT-C3501DNDU
Cleaning
Following are cleaning procedures after soldering:
An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended.
Temperature x Time should be 50oC x 30sec. or <30oC x 3min
Ultra sonic cleaning: < 15W/ bath; bath volume ≤ 1liter
Curing: 100 OC max, <3min
Cautions of Pick and Place
Avoid stress on the resin at elevated temperature.
Avoid rubbing or scraping the resin by any object.
Electric-static may cause damage to the component. Please ensure that the equipment
is properly grounded. Use of an ionizer fan is recommended.
30-Jun-2011
15/15
WEITRON
http://www.weitron.com.tw
