NX301106

型号：

NX301106

品牌：

AAVID[ AAVID THERMALLOY, LLC ]

页数：

3 页

PDF大小：

669 K

下载PDF手册

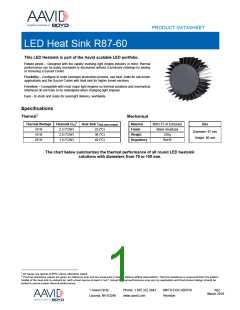

PRODUCT DATASHEET
LED Heat Sink R87-60
This LED Heatsink is part of the Aavid scalable LED portfolio.
Future proof – Designed with the rapidly evolving light engine industry in mind, thermal
performance can be easily increased or decreased without a luminaire redesign by adding
or removing a SynJet Cooler
Flexibility – Configure to order luminaire production process, use heat sinks for low lumen
applications and the SynJet Cooler with heat sink for higher lumen versions
Freedom – Compatible with most major light engines so thermal solutions and mechanical
interfaces do not have to be redesigned when changing light engines
Fast – In stock and ready for overnight delivery, worldwide
Specifications
1
Thermal
Mechanical
2
Thermal Wattage
Heatsink Θs-a
2.3 (°C/W)
2.0 (°C/W)
1.9 (°C/W)
Heat Sink TRise Above Ambient
Material
Finish
6063-T5 Al Extrusion
Black Anodized
235g
Size
10 W
18 W
26 W
23 (°C)
36 (°C)
49 (°C)
Diameter: 87 mm
Height: 60 mm
Weight
Regulatory
RoHS
The chart below summarizes the thermal performance of all round LED heatsink
solutions with diameters from 75 to 100 mm.
1 All values are typical at 25ºC unless otherwise stated.
2 Thermal resistance values are given as reference only and are measured in free air without airflow obstructions. Thermal resistance is measured from the bottom
middle of the heat sink to ambient air, with a heat source at least 4.1cm2. Actual thermal performance may vary by application and final product design should be
tested to assure proper thermal performance.
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000156
Revision
A02
March 2018
Laconia, NH 03246
PRODUCT DATASHEET
RiseAbove Ambient vs. Input Power
Heatsinks 100mm or Less in Diameter
70
60
50
40
30
20
10
0
Spotlight Cooler 34W Flush Mount
Twist Module Cooler 43W Heatsink
Spotlight Cooler 34W Heatsink
Spotlight Cooler 36W
Par 30 Cooler 40W Heatsink
LED Cooler R87-46
Spotlight Cooler 47W Heatsink
LED Cooler R87-60
Spotlight Cooler 38W Heatsink
10
15
20
25
30
35
40
Input Power (W)
Mechanical – LED Heatsink shown with Configurable heat sink
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000156
Revision
A02
March 2018
Laconia, NH 03246
PRODUCT DATASHEET
All dimensions are nominal and in mm unless otherwise stated. See product drawings for more detail.
Part Numbers
Notes
Part Number Description
NX301105
NX301106
NX301107
NX301108
NX301114
Heatsink, R87-60, Xicato XSM M3, Vossloh Schwabe Luga Shop, Black
Contact sales for other heatsink options
Heatsink, R87-60, Citizen CLL030, CLL050, Ledil, Black
Heatsink, R87-60, Osram Soleriq, Ledil, Sharp Megazenigata, Molex, Black
Heatsink, R87-60, Philips Luxeon K, Black
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Heatsink, R87-60, Config, Black
NX301115
NX301117
Heatsink, R87-60, Bridgelux, Vero 13/18, Vero 10, Black
Heatsink, R87-60, Bridgelux Vero 29, RS, Black
Aavid reserves the right to make changes to the products or information contained herein without notice. No liability
is assumed as a result of their use or applications. For additional information, please contact Aavid directly.
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000156
Revision
A02
March 2018
Laconia, NH 03246
