WT-182BP5

型号：

WT-182BP5

品牌：

WEITRON[ WEITRON TECHNOLOGY ]

页数：

10 页

PDF大小：

700 K

下载PDF手册

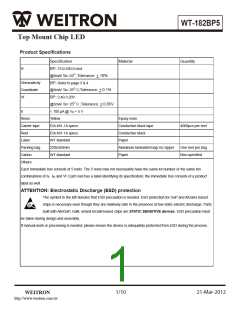

WT-182BP5
Top Mount Chip LED
Product Specifications
Specification
Material
Quantity
Iv
BP: 75.0-530.0 mcd
@5mA/ Ta= 25O ;Tolerance: + 10%
BP: Refer to page 3 & 4
@5mA/ Ta= 25O C;Tolerance: + 0.1%
BP: 2.40-3.20V
Chromaticity
Coordinate
Vf
@5mA/ Ta= 25O C ;Tolerance: + 0.05V
< 100 µA @ VR = 5 V
Yellow
Ir
Resin
Epoxy resin
Carrier tape
Reel
EIA 481-1A specs
Conductive black tape
Conductive black
Paper
4000pcs per reel
EIA 481-1A specs
Label
WT standard
Packing bag
Carton
Others:
220x240mm
Aluminum laminated bag/ no-zipper
Paper
One reel per bag
Non-specified
WT standard
Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin
combinations of Iv, λD and Vf. Each reel has a label identifying its specification; the immediate box consists of a product
label as well.
ATTENTION: Electrostatic Discharge (ESD) protection
The symbol to the left denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based
chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts
built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE devices. ESD precaution must
be taken during design and assembly.
If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.
21-Mar-2012
1/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Label Specifications
▓Customer P/N: To Be Defined
▓WEITRON P/N:
W T - 1 8 2 BP5
Series Name
WT-182
Emitting Color
BP5:
1.0(L)x0.5(W)x0.2(H) mm
White @ 5mA
▓ Lot No.
21-Mar-2012
2/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
▓ Luminous Intensity (Iv) Bin:
Color
White
Bin Code
RK0
Spec. Range
75.0~95.0 mcd
RK1
95.0~130.0 mcd
130.0~185.0 mcd
185.0~265.0 mcd
265.0~375.0 mcd
375.0~530.0 mcd
RK2
RK3
RK4
RK5
▓Color Bin
Bin Code
Spec. Range
Bin Code
Spec. Range
X
Y
X
Y
0.260
0.260
0.280
0.280
0.208
0.240
0.268
0.236
0.260
0.260
0.280
0.280
0.240
0.273
0.301
0.268
ST1
ST3
ST5
ST2
ST4
ST6
X
Y
X
Y
0.280
0.280
0.300
0.300
0.236
0.268
0.296
0.264
0.280
0.280
0.300
0.300
0.268
0.301
0.329
0.296
White
X
Y
X
Y
0.300
0.300
0.320
0.320
0.264
0.296
0.325
0.293
0.300
0.300
0.320
0.320
0.296
0.329
0.358
0.325
21-Mar-2012
3/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
▓ Chromaticity Coordinate:
▓ Forward Voltage (Vf) Bin:
Color
Bin Code
Spec. Range
2.4-2.5 V
2.5-2.6 V
2.6-2.7 V
2.7-2.8 V
2.8-2.9 V
2.9-3.0 V
3.0-3.1 V
3.1-3.2 V
G1
G2
G3
G4
H1
H2
H3
H4
White
21-Mar-2012
4/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Product Features
Electro-Optical Characteristics
(IF @ 5mA, Ta 25 oC)
λ (nm)
VF(V)
I*V(mcd)
Code for parts
Lighting Color
λ
λ
△λ
typ
max
Typical
D
P
X=0.28
y=0.27
WT-182BP5
InGaN
250
White
2.80
3.20
-
-
Package Outline Dimension and Recommended Soldering Pattern for Reflow Soldering
Unit: mm Tolerance: +/-0.1
Outline Dim.
Soldering Pattern
Soldering terminals may shift in the x, y direction.
Absolute Maximum Ratings
(Ta 25 oC)
TST (oC)
Series
Pd (mW)
78
IF (mA)
10
IFP (mA)
80
VR (V)
5
IR (uA)
TOP (oC)
-30~+85
<100@ VR = 5
-40~+85
White
** Condition for IFP is pulse of 1/10 duty and 0.1msec width
21-Mar-2012
5/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Characteristic of WT-182BP5
Directive Characteristics
21-Mar-2012
6/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Packaging
Tape Dimension
Part No.
WT-182
Dim. A
Dim. B
Dim. C
Q’ty/Reel
1.10±0.05 0.53±0.05 0.35±0.05
4K
Unit: mm
21-Mar-2012
7/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Reel Dimension
Packing
5 boxes per carton is available depending on shipment quantity.
21-Mar-2012
8/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Dry Pack
All SMD optical devices are MOISTURE SENSITIVE. Avoid exposure to moisture at all times
during transportation or storage. Every reel is packaged in a moisture protected anti-static bag.
Each bag is properly sealed prior to shipment.
Upon request, a humidity indicator will be included in the moisture protected anti-static bag
prior to shipment.
The packaging sequence is as follows:
PRECAUTIONS
1. Avoid exposure to moisture at all times during transportation or storage.
2. Anti-Static precaution must be taken when handling GaN, InGaN, and AlInGaP products.
3. It is suggested to connect the unit with a current limiting resistor of the proper size. Avoid
applying a reverse voltage beyond the specified limit.
4. Avoid operation beyond the limits as specified by the absolute maximum ratings.
5. Avoid direct contact with the surface through which the LED emits light.
6. If possible, assemble the unit in a clean room or dust-free environment.
21-Mar-2012
9/10
WEITRON
http://www.weitron.com.tw
WT-182BP5
Reflow Soldering
Recommend soldering paste specifications:
1. Operating temp.: Above 220 OC ,60sec
2. Peak temp.:260 OCMax.,10sec Max.
3. Never take next process until the component is cooled down to room temperature after
reflow.
4. The recommended reflow soldering profile (measuring on the surface of the LED terminal)
is following:
Lead-free Solder Profile
Reworking
Rework should be completed within 5 seconds under 260 OC.
The iron tip must not come in contact with the copper foil.
Twin-head type is preferred.
Cleaning
Following are cleaning procedures after soldering:
An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended.
Temperature x Time should be 50oC x 30sec. or <30oC x 3min
Ultra sonic cleaning: < 15W/ bath; bath volume ≤ 1liter
Curing: 100 OC max, <3min
21-Mar-2012
10/10
WEITRON
http://www.weitron.com.tw
