NX4108-18CZ1TR

型号:

NX4108-18CZ1TR

品牌:

MICROSEMI[ Microsemi ]

页数:

5 页

PDF大小:

160 K

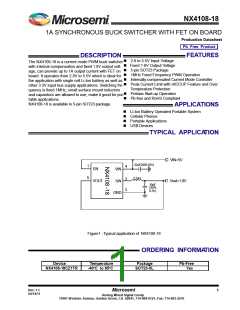

NX4108-18
1A SYNCHRONOUS BUCK SWITCHER WITH FET ON BOARD
Production Datasheet
Pb Free Product
FEATURES
DESCRIPTION
2.8 to 5.5V Input Voltage
The NX4108-18 is a current mode PWM buck switcher
with internal compensation and fixed 1.8V output volt-
age, can provide up to 1A output current with FET on
board. It operates from 2.8V to 5.5V which is ideal for
the application with single cell Li-Ion battery as well as
other 3.3V input bus supply applications. Switching fre-
quency is fixed 1MHz, small surface mount inductors
Fixed 1.8V Output Voltage
5-pin SOT23 Package
1MHz Fixed Frequency PWM Operation
Internally-compensated Current Mode Controller
Peak Current Limit with HICCUP Feature and Over
Temperature Protection
Prebias Start-up Operation
Pb-free and RoHS Compliant
and capacitors are allowed to use, make it good for por-
table applications.
NX4108-18 is available in 5-pin SOT23 package.
APPLICATIONS
Li-Ion Battery Operated Portable System
Cellular Phones
Portable Applications
USB Devices
TYPICAL APPLICATION
VIN=5V
22uF(X5R,10V)
1
4
EN
VIN
5
2.2uH
3
2
VOUT
Vout=1.8V
SW
10uF
(X5R,
6.3V)
GND
Figure1 -Typical application of NX4108-18
ORDERING INFORMATION
Device
NX4108-18CZ1TR
Temperature
-40oC to 85oC
Package
SOT23-5L
Pb-Free
Yes
Rev. 1.1
04/14/11
Microsemi
1
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108-18
ABSOLUTE MAXIMUM RATINGS
VIN to GND ..................................................................... -0.3V to 6V
SW,VOUT,EN to GND ...................................................... -0.3V to VIN + 0.3V
ESD Susceptibility ............................................................. 500V
Lead Temperature(Soldering,10sec.) .................................... 300oC
Storage Temperature Range ................................................ -55 oC to 150oC
Operating Junction Temperature Range ................................ -40oC to 150oC
CAUTION: Stresses above those listed in "ABSOLUTE MAXIMUM RATINGS", may cause permanent damage to
the device. This is a stress only rating and operation of the device at these or any other conditions above those
indicated in the operational sections of this specification is not implied.
PACKAGE INFORMATION
5-LEAD PLASTIC SOT23
qJA » 110oC/W
VOUT
VIN
EN
GND
SW
1
2
3
5
4
ELECTRICAL SPECIFICATIONS
VIN=3.5V,TA= 25oC, unless otherwise specified.
PARAMETER
VOUT Voltage
SYM
Test Condition
Min
TYP
1.8
3
MAX Units
VOUT Voltage
VOUT
1.77
1.822
V
Line Regualtion
Line Regulation
VIN=2.8V to 5.5V,IOUT=10mA
mV
VIN UVLO
VIN Rising Threshold
VIN Falling Threshold
Supply Voltage(VIN)
VIN Input Voltage Range
2.3
2.8
2.5
2.3
2.8
V
V
VIN
Ishutdown
Iq
V
5.5
2.5
EN=GND
1
uA
mA
Shutdown Current
No Load, switching
8.5
Quiescent Current
Oscillator (Rt)
Frequency
FS
1000
85
kHz
%
849
1185
Max Duty Cycle
Min ON Time
SS
100
nS
Soft Start Time
Tss
500
1.8
uS
A
Current Limit
Current Limit Threshold
Microsemi
Analog Mixed Signal Group
Rev. 1.1
04/14/11
2
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108-18
PARAMETER
Current Limit
SYM
Test Condition
Min
TYP
MAX Units
Current Limit Threshold
Thermal Shutdown
Thermal s hutdown trip point
Hysteresis
1.8
A
oC
oC
155
15
Internal Switch
Rdson ofControl FET
VIN=5V
VIN=3.3V
VIN=5V
400
480
300
360
mohm
mohm
Rdson ofSynchronous FET
VIN=3.3V
Enable
En low Threshold voltage
En high Threshold voltage
0.4
V
V
1.4
PIN DESCRIPTIONS
PIN SYMBOL
PIN DESCRIPTION
SW output. Junction of the internal high-side and low-side power MOSFETs, and
output inductor.
SW
Ground Connection for Chip. Connect GND with large copper areas to the input and
output supply returns, and negative terminals of the input and output capacitors.
GND
Sense output voltage .
VOUT
VIN
Supply voltage input for switcher.
Enable input. Set this pin to GND or less than 0.4V will shut down the regulato.r
Enable signal can not be high when VIN is low.
EN
Rev. 1.1
04/14/11
Microsemi
Analog Mixed Signal Group
3
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108-18
BLOCK DIAGRAM
Thermal
Shutdown
Bias
Generator
Vref
UVLO
POR
EN
3 cycle
counter
POR
VIN
+
-
OCPB
CLK
VIN
reset dom
start
70ns
one shot
S
OSC
Q
Hiccup
R
Soft start
timer
Vref
VOUT
280k
PWM
PWM comparator
Control
Logic
OCPB
POR
1Mohm
20pF
SW
VIN
LDen
GND
Figure 2 - Simplified block diagram of the NX4108-18
Rev. 1.1
04/14/11
Microsemi
Analog Mixed Signal Group
4
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108-18
SOT23-5 Outline Dimensions
NOTE:
1. Dimensions and tolerances are as perANSI Y14.5M,1982.
2. Package surface to be matte finish VDI11~13.
3. Dimensions are exclusive of mold flash and gate bu.rr
Rev. 1.1
04/14/11
Microsemi
Analog Mixed Signal Group
5
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
