NX4108

型号:

NX4108

描述:

1A同步降压切换器,带FET的ON BOARD[ 1A SYNCHRONOUS BUCK SWITCHER WITH FET ON BOARD ]

品牌:

MICROSEMI[ Microsemi ]

页数:

12 页

PDF大小:

819 K

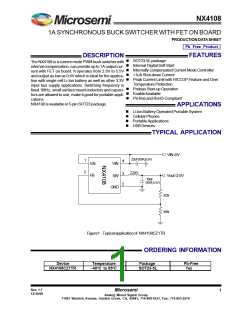

NX4108
1A SYNCHRONOUS BUCK SWITCHER WITH FET ON BOARD
PRODUCTION DATA SHEET
Pb Free Product
FEATURES
DESCRIPTION
n
n
n
n
n
SOT23-5L package
Internal Digital Soft Start
The NX4108 is a current mode PWM buck switcher with
internal compensation, can provide up to 1A output cur-
rent with FET on board. It operates from 2.8V to 5.5V
and output as low as 0.6V which is ideal for the applica-
tion with single cell Li-Ion battery as well as other 3.3V
input bus supply applications. Switching frequency is
fixed 1MHz, small surface mount inductors and capaci-
tors are allowed to use, make it good for portable appli-
cations.
Internally-compensated Current Mode Controller
<1uA Shut-down Current
Peak Current Limit with HICCUP Feature and Over
Temperature Protection
n
n
n
Prebias Start-up Operation
EnableAvailable
Pb-free and RoHS Compliant
NX4108 is available in 5-pin SOT23 package.
APPLICATIONS
n
n
n
n
Li-Ion Battery Operated Portable System
Cellular Phones
PortableApplications
USB Devices
TYPICAL APPLICATION
VIN=5V
22uF(X5R,6.3V)
1
5
4
EN
FB
VIN
2.2uH
3
2
Vout=2.5V
10uF
(X5R,6.3V)
SW
GND
332k
105k
Figure1 - Typical application of NX4108CZ1TR
ORDERING INFORMATION
Device
NX4108CZ1TR
Temperature
-40oC to 85oC
Package
SOT23-5L
Pb-Free
Yes
Rev. 1.7
12/30/09
Microsemi
1
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
ABSOLUTE MAXIMUM RATINGS
VIN to GND ..................................................................... -0.3V to 6V
SW,FB,EN to GND ........................................................... -0.3V to VIN + 0.3V
ESD Susceptibility ............................................................. 1kV
Lead Temperature(Soldering,10sec.) .................................... 300oC
Storage Temperature Range ................................................ -55oC to 150oC
Operating Junction Temperature Range ................................ -40oC to 150oC
CAUTION: Stresses above those listed in "ABSOLUTE MAXIMUM RATINGS", may cause permanent damage to
the device. This is a stress only rating and operation of the device at these or any other conditions above those
indicated in the operational sections of this specification is not implied.
PACKAGE INFORMATION
5-LEAD PLASTIC SOT23
qJA » 110oC/W
FB
EN
GND
SW
1
2
3
5
4
VIN
ELECTRICAL SPECIFICATIONS
VIN=3.5V. Typical data refers to TA= 25oC. Unless otherwise specified.
PARAMETER
Reference Voltage
Ref Voltage
SYM
Test Condition
Min
TYP
0.6
2
MAX Units
VFB
V
0.59
0.607
Line Regualtion
Line Regulation
VIN=3V to 5V,VOUT=1.8V,
IOUT=10mA
mV
VIN UVLO
VIN Rising Threshold
VIN Falling Threshold
Supply Voltage(VIN)
VIN Input Voltage Range
2.3
2.8
2.5
2.3
2.8
V
V
VIN
Ishutdown
Iq
V
5.5
2.5
EN=GND
1
4
uA
mA
Shutdown Current
No Load, switching
Quiescent Current
Oscillator (Rt)
Frequency
FS
1000
90
kHz
%
800
78
1200
0.05
Max Duty Cycle
Min ON time
100
nS
Error Amplifiers
Feedback Input Bias Current
SS
uA
uS
Soft Start time
Tss
500
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
2
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
PARAMETER
Current Limit
SYM
Test Condition
Min
TYP
MAX Units
Current Limit Threshold
Thermal Shutdown
Thermal shutdown trip point
Hysteresis
1.8
A
oC
oC
155
15
Internal Switch
Rdson of Control FET
Vin=5V
Vin=3.3V
Vin=5V
400
480
300
360
mohm
mohm
Rdson of Synchronous FET
Vin=3.3V
Enable
En low Threshold voltage
En high Threshold voltage
0.4
V
V
1.4
PIN DESCRIPTIONS
PIN SYMBOL
PIN DESCRIPTION
SW output. Junction of the internal high-side and low-side power MOSFETs, and
output inductor.
SW
GND
FB
Ground Connection for Chip. Connect GND with large copper areas to the input and
output supply returns, and negative terminals of the input and output capacitors.
Error amplifier inverting input. Error amplifier inverting input. This pin is connected via
resistor dividers to the output of the switching regulators to set the output DC voltage. A
332kohm resistor is recommended to be connected from VOUT and FB .
Supply voltage input for switcher.
VIN
EN
Enable input. Set this pin to GND or less than 0.4V will shut down the regulator.
Enable signal can not be high when VIN is low.
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
3
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
BLOCK DIAGRAM
Thermal
Shutdown
Bias
Generator
Vref
UVLO
POR
EN
3 cycle
counter
POR
VIN
+
-
OCPB
CLK
VIN
reset dom
start
70ns
one shot
S
OSC
Q
Hiccup
timer
R
Soft start
Vref
PWM
FB
PWM comparator
Control
Logic
OCPB
POR
1Mohm
SW
20pF
VIN
LDen
GND
Figure 2 - Simplified block diagram of the NX4108
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
4
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Typical Operating Characteristics
R e ference voltage vs tem p e rature
0 .604
0 .603
0 .602
0 .601
0 .6
0 .599
0 .598
0 .597
0 .596
0 .595
0 .594
0 .593
0
2 0
4 0
6 0
8 0
1 0 0
1 2 0
1 4 0
1 6 0
temperature(°C )
Fig.3 - Reference volateg vs temperature
Normalized frequency vs temperature
1
0.98
0.96
0.94
0.92
0.9
0
20
40
60
80
100
120
140
160
temperature(°C)
Fig.4 - Normalized frequency vs temperature
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
5
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Typical Application( VOUT=2.5V)
VIN=5V
22uF(X5R,6.3V)
1
4
EN
VIN
2.2uH
10uF
5
3
2
FB
Vout=2.5V
SW
(X5R,6.3V)
GND
332k
105k
Figure 5 - Demo board schematic
Figure 6 - Output ripple
Figure 7 - Transient response
Figure 8 - Efficiency
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
6
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Typical Application( VOUT=1.8V)
VIN=5V
22uF(X5R,6.3V)
1
4
EN
VIN
2.2uH
10uF
5
3
2
FB
Vout=1.8V
SW
(X5R,6.3V)
GND
332k
165k
Figure 9 - Demo board schematic
Figure 10 - Output ripple
Figure 11 - Transient response
Figure12 - Efficiency
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
7
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Typical Application( VOUT=1.2V)
VIN=5V
22uF(X5R,6.3V)
2.2uH
1
4
EN
VIN
5
3
2
FB
Vout=1.2V
SW
10uF
(X5R,
6.3V)
GND
332k
332k
Figure 13 - Demo board schematic
Figure 14 - Output ripple
Figure 15 - Transient response
Figure 17 - Shutdown
Figure 16 - Startup
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
8
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Typical Application( VOUT=1.2V)
Figure 18 - Efficiency
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
9
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Demoboard Layout
U1
L1
VIN
VOUT
1
4
3
5
1
2
VIN
VOUT
GND
VIN
SW
DO1608C-222
C1
22u
C2
10u
N X 4 1 0 8
R1
FB
332k
1
EN
R2
105k
Figure 19 - Demoboard schematic
Figure 20- Top layer
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
10
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Figure 21- Gound layer
Figure 22- Power layer
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
11
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
NX4108
Figure 22- Bottom layer
Rev. 1.7
12/30/09
Microsemi
Analog Mixed Signal Group
12
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
