PZTA27

型号：

PZTA27

描述：

NPN通用放大器[ NPN General Purpose Amplifier ]

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

4 页

PDF大小：

46 K

下载PDF手册

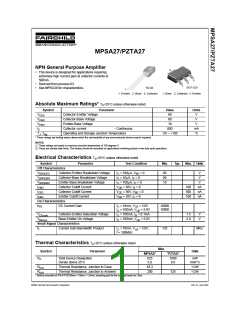

MPSA27/PZTA27
NPN General Purpose Amplifier
4
•
This device is designed for applications requiring
extremely high current gain at collector currents to
500mA.
Sourced from process 03.
3
2
•
•
1
SOT-223
TO-92
1. Emitter 2. Base 3. Collector
See MPSA28 for characteristics.
1
1. Base 2. Collector 3. Emitter
Absolute Maximum Ratings* T =25°C unless otherwise noted
A
Symbol
Parameter
Value
Units
V
V
V
V
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector current
60
60
CES
V
CBO
EBO
10
V
I
- Continuous
800
mA
°C
C
T , T
Operating and Storage Junction Temperature
-55 ~ +150
J
stg
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Electrical Characteristics T =25°C unless otherwise noted
A
Symbol
Parameter
Test Condition
Min.
Typ.
Max. Units
Off Characteristics
V
V
V
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
I
I
I
= 100µA, V = 0
60
60
10
V
V
V
(BR)CES
(BR)CBO
(BR)EBO
CBO
C
C
C
BE
= 10µA, I = 0
C
= 100µA, I = 0
C
I
I
I
V
V
V
= 50V, I = 0
100
500
100
nA
nA
nA
CB
CE
EB
E
Collector Cutoff Current
= 50V, V = 0
BE
CES
Emitter Cutoff Current
= 10V, I = 0
C
EBO
On Characteristics
h
DC Current Gain
I
I
= 10mA, V = 5.0V
10000
10000
FE
C
C
CE
= 100mA, V = 5.0V
CE
V
V
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
I
I
= 100mA, I = 0.1mA
1.5
2.0
V
V
CE(sat)
C
B
= 100mA, V = 5.0V
BE(on)
C
CE
Small Signal Characteristics
Current Gain Bandwidth Product
f
I
= 10mA, V = 5.0V,
125
MHz
T
C
CE
f = 100MHz
Thermal Characteristics T =25°C unless otherwise noted
A
Max.
Symbol
Parameter
Units
mW
MPSA27
*PZTA27
P
Total Device Dissipation
625
5.0
1000
8.0
D
Derate above 25°C
mW/°C
R
R
Thermal Resistance, Junction to Case
83.3
200
°C/W
θJC
θJA
Thermal Resistance, Junction to Ambient
125
°C/W
* Device mounted on FR-4 PCB 36mm × 18mm × 1.5mm: mounting pad for the collector lead min. 6cm.
©2002 Fairchild Semiconductor Corporation
Rev. A1, June 2002
Package Dimensions
TO-92
+0.25
–0.15
4.58
0.46 ±0.10
+0.10
–0.05
1.27TYP
1.27TYP
0.38
[1.27 ±0.20
]
[1.27 ±0.20]
3.60 ±0.20
(R2.29)
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation
Rev. A1, June 2002
Package Demensions (Continued)
SOT-223
3.00 ±0.10
MAX1.80
+0.04
–0.02
0.06
2.30 TYP
4.60 ±0.25
0.70 ±0.10
°
~10
°
0
+0.10
–0.05
(0.95)
(0.95)
0.25
6.50 ±0.20
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation
Rev. A1, June 2002
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not
intended to be an exhaustive list of all such trademarks.
ACEx™
FACT™
ImpliedDisconnect™ PACMAN™
SPM™
ActiveArray™
Bottomless™
CoolFET™
CROSSVOLT™ FRFET™
DOME™
FACT Quiet series™ ISOPLANAR™
POP™
Stealth™
FAST®
LittleFET™
MicroFET™
MicroPak™
Power247™
PowerTrench®
QFET™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
FASTr™
GlobalOptoisolator™ MICROWIRE™
QS™
EcoSPARK™
E2CMOS™
EnSigna™
Across the board. Around the world.™
The Power Franchise™
GTO™
HiSeC™
I2C™
MSX™
MSXPro™
OCX™
OCXPro™
OPTOLOGIC®
OPTOPLANAR™
QT Optoelectronics™ TinyLogic™
Quiet Series™
TruTranslation™
RapidConfigure™
RapidConnect™
UHC™
UltraFET®
SILENT SWITCHER® VCX™
SMART START™
Programmable Active Droop™
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY
LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR
CORPORATION.
As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, or (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in significant injury to the user.
2. A critical component is any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or In
Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
©2002 Fairchild Semiconductor Corporation
Rev. I1
