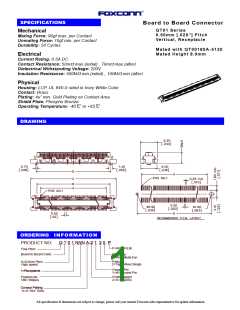

SPECIFICATIONS
Board to Board Connector
QT01 Series
0.50mm [.020”] Pitch
Vertical, Receptacle
Mechanical
Mating Force: 90gf max. per Contact
Unmating Force: 10gf min. per Contact
Durability: 50 Cycles
Mated with QT00180A-5120
Mated Height 8.0mm
Electrical
Current Rating: 0.5A DC
Contact Resistance: 50mΩ max.(initial) , 70mΩ max.(after)
Dielectrical Withstanding Voltage: 200V
Insulation Resistance: 500MΩ min.(initial) , 100MΩ min.(after)
Physical
Housing: LCP, UL 94V-0 rated in Ivory White Color
Contact: Brass
Plating: 4u” min. Gold Plating on Contact Area
Shield Plate: Phospho Bronze
Operating Temperature: -40℃ to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO:
P=W/PI-FILM
Fine Pitch
Board to Board Conn.
Metal Ear
0=W/O Metal Ear
Package
2=Tape&Reel Single
0=0.5mm Pitch
High speed
Ground Pin
1=W/ Ground Pin
Position No.
180=180pos
Profile Height
2=H=4.50mm
A=4~10u" Gold
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
