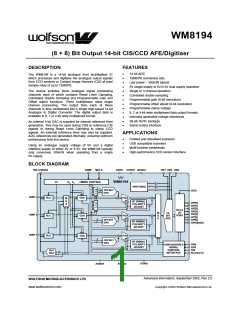

WM8194

(8 + 8) Bit Output 14-bit CIS/CCD AFE/Digitiser

DESCRIPTION

FEATURES

•

14-bit ADC

The WM8194 is a 14-bit analogue front end/digitiser IC

which processes and digitises the analogue output signals

from CCD sensors or Contact Image Sensors (CIS) at pixel

sample rates of up to 12MSPS.

12MSPS conversion rate

Low power – 300mW typical

5V single supply or 5V/3.3V dual supply operation

Single or 3 channel operation

Correlated double sampling

The device includes three analogue signal processing

channels each of which contains Reset Level Clamping,

Correlated Double Sampling and Programmable Gain and

Offset adjust functions. Three multiplexers allow single

channel processing. The output from each of these

channels is time multiplexed into a single high-speed 14-bit

Analogue to Digital Converter. The digital output data is

available in 8, 7 or 4-bit wide multiplexed format.

Programmable gain (8-bit resolution)

Programmable offset adjust (8-bit resolution)

Programmable clamp voltage

8, 7 or 4-bit wide multiplexed data output formats

Internally generated voltage references

28-pin SOIC package

An internal 4-bit DAC is supplied for internal reference level

generation. This may be used during CDS to reference CIS

signals or during Reset Level Clamping to clamp CCD

signals. An external reference level may also be supplied.

ADC references are generated internally, ensuring optimum

performance from the device.

Serial control interface

APPLICATIONS

•

Flatbed and sheetfeed scanners

USB compatible scanners

Using an analogue supply voltage of 5V and a digital

interface supply of either 5V or 3.3V, the WM8194 typically

Multi-function peripherals

High-performance CCD sensor interface

only consumes 300mW when operating from

5V supply.

a

single

BLOCK DIAGRAM

VRLC/VBIAS

VSMP MCLK

AVDD DVDD1 DVDD2

VRT VRX VRB

w

CL

R_SV_S

TIMING CONTROL

WM8194

VREF/BIAS

R

8

M

U

X

OFFSET

DAC

OEB

G

B

RINP

RLC

CDS

+

PGA

+

M

U

X

I/P SIGNAL

POLARITY

ADJUST

R

G

B

8

OP[0]

OP[1]

M

U

X

OP[2]

OP[3]

OP[4]

OP[5]

DATA

I/O

PORT

14-

BIT

ADC

M

U

X

GINP

BINP

PGA

8

OP[6]

OP[7]/SDO

OFFSET

DAC

8

I/P SIGNAL

POLARITY

ADJUST

RLC

CDS

PGA

+

8

OFFSET

DAC

8

I/P SIGNAL

POLARITY

ADJUST

SEN

SCK

CONFIGURABLE

SERIAL

CONTROL

INTERFACE

SDI

RLC/ACYC

RLC

DAC

4

DGND

AGND1

AGND2

Advanced Information, September 2002, Rev 2.0

WOLFSON MICROELECTRONICS LTD

www.wolfsonmicro.com

WM8194

Advanced Information

PIN CONFIGURATION

ORDERING INFORMATION

DEVICE

TEMP. RANGE

PACKAGE

RINP

1

2

28

27

GINP

BINP

XWM8194CDW/V

0 to 70^oC

28-pin SOIC

AGND2

DVDD1

OEB

3

4

5

6

7

8

26

25

24

23

22

21

VRLC/VBIAS

VRX

VSMP

VRT

RLC/ACYC

MCLK

VRB

AGND1

AVDD

DGND

SEN

DVDD2

SDI

9

20

19

18

17

16

15

OP[7]/SDO

OP[6]

10

11

12

13

14

OP[5]

SCK

OP[4]

OP[0]

OP[1]

OP[3]

OP[2]

PIN DESCRIPTION

1

NAME

RINP

TYPE

DESCRIPTION

Analogue input

Supply

Red channel input video.

Analogue ground (0V).

2

AGND2

DVDD1

3

Supply

Digital supply (5V) for logic and clock generator. This must be operated at the same

potential as AVDD.

4

5

6

OEB

VSMP

Digital input

Output Hi-Z control, all digital outputs disabled when OEB = 1.

Video sample synchronisation pulse.

RLC/ACYC

RLC (active high) selects reset level clamp on a pixel-by-pixel basis – tie high if

used on every pixel. ACYC autocycles between R, G, B inputs.

7

MCLK

Digital input

Master clock. This clock is applied at N times the input pixel rate (N = 2, 3, 6, 8 or

any multiple of 2 thereafter depending on input sample mode).

8

DGND

SEN

Supply

Digital ground (0V).

9

Digital input

Supply

Enables the serial interface when high.

Digital supply (5V/3.3V), all digital I/O pins.

Serial data input.

10

11

12

DVDD2

SDI

Digital input

SCK

Serial clock.

Digital multiplexed output data bus.

ADC output data (d13:d0) is available in three multiplexed formats as shown, under

the control of register bits MUXOP[1:0].

See ‘Output Formats’ description in Device Description section for further details.

8+8-bit

7+7-bit

4+4+4+4-bit

A

B

A

B

A

B

C

D

13

14

15

16

17

18

19

20

OP[0]

OP[1]

Digital output

d6

OVRNG

CC

d0

CC

d7

OVRNG

d0

d7

OP[2]

d8

d1

OP[3]

d9

d1

d9

d2

OP[4]

d10

d11

d12

d13

d2

d10

d11

d12

d13

d3

d10

d11

d12

d13

d6

d7

d8

d9

d2

d3

d4

d5

OVRNG

CC

OP[5]

d3

d4

OP[6]

d4

d5

d0

OP[7]/SDO

d5

D6

d1

Alternatively, pin OP[7]/SDO may be used to output register read-back data when

OEB = 0 and SEN has been pulsed high. See Serial Interface description in Device

Description section for further details.

AI Rev 2.0 September 2002

2

w

WM8194

Advanced Information

21

NAME

AVDD

AGND1

VRB

TYPE

Supply

DESCRIPTION

Analogue supply (5V). This must be operated at the same potential as DVDD1.

Analogue ground (0V).

22

23

Analogue output Lower reference voltage.

This pin must be connected to AGND via a decoupling capacitor.

Analogue output Upper reference voltage.

This pin must be connected to AGND via a decoupling capacitor.

Analogue output Input return bias voltage.

This pin must be connected to AGND via a decoupling capacitor.

24

25

VRT

VRX

26

VRLC/VBIAS

Analogue I/O

Selectable analogue output voltage for RLC or single-ended bias reference.

This pin would typically be connected to AGND via a decoupling capacitor.

VRLC can be externally driven if programmed Hi-Z.

27

28

BINP

GINP

Analogue input

Blue channel input video.

Green channel input video.

ABSOLUTE MAXIMUM RATINGS

Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at

or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical

Characteristics at the test conditions specified.

ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible

to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage

of this device.

As per IDC/JEDEC specification J-STD-020A, this product requires specific storage conditions prior to surface mount assembly.

It has a Moisture Sensitivity Level of 3 and as such will be supplied in vacuum-sealed moisture barrier bags, with an out of bag

°

exposure time limit of 1 week at less than 30 C / 60 %RH

CONDITION

MIN

MAX

Analogue supply voltage: AVDD

Digital supply voltages: DVDD1 − 2

Digital ground: DGND

GND - 0.3V

GND + 7V

GND + 0.3V

DVDD2 + 0.3V

AVDD + 0.3V

Analogue grounds: AGND1 − 2

Digital inputs, digital outputs and digital I/O pins

Analogue inputs (RINP, GINP, BINP)

Other pins

°

Operating temperature range: T_A

Storage temperature

0 C

+70 C

°

-65 C

+150 C

°

Package body temperature (soldering, 10 seconds)

Package body temperature (soldering, 2 minutes)

Notes:

+240 C

+183°C

1.

2.

GND denotes the voltage of any ground pin.

AGND1, AGND2 and DGND pins are intended to be operated at the same potential. Differential voltages

between these pins will degrade performance.

RECOMMENDED OPERATING CONDITIONS

CONDITION

SYMBOL

T_A

MIN

0

TYP

MAX

70

UNITS

Operating temperature range

Analogue supply voltage

Digital core supply voltage

Digital I/O supply voltage

°C

V

AVDD

DVDD1

4.75

5.0

5.25

V

5V I/O

DVDD2

4.75

2.97

5.0

3.3

5.25

3.63

V

3.3V I/O

AI Rev 2.0 September 2002

3

w

WM8194

Advanced Information

ELECTRICAL CHARACTERISTICS

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 24MHz unless

otherwise stated.

PARAMETER

SYMBOL

TEST

MIN

TYP

MAX

UNIT

CONDITIONS

Overall System Specification (including 14-bit ADC, PGA, Offset and CDS functions)

Conversion Rate

12

0.4

MSPS

Vp-p

V

Full-scale input voltage range

(see Note 1)

4.08

Input signal limits (see Note 2)

Full-scale transition error

V_IN

0

AVDD

Gain = 0dB;

PGA[7:0] = 4B(hex)

20

mV

Zero-scale transition error

Gain = 0dB;

mV

PGA[7:0] = 4B(hex)

Differential non-lineSarBity

Integral non-lineaSrBity

DNL1.25

INL10

L

Channel to channel gain matching

Total output noise

1

1.2

5

%

Min Gain

Max Gain

LSB rms

References

Upper reference voltage

VRT

VRB

VRX

V_RTB

2.85

1.35

1.65

1.5

V

Ω

Lower reference voltage

Input return bias voltage

Diff. reference voltage (VRT-VRB)

Output resistance VRT, VRB, VRX

VRLC/Reset-Level Clamp (RLC)

RLC switching impedance

VRLC short-circuit current

VRLC output resistance

1.4

1.6

1

50

2

Ω

mA

Ω

2

VRLC Hi-Z leakage current

RLCDAC resolution

VRLC = 0 to AVDD

AVDD=5V

1

µA

4

bits

V/step

V

RLCDAC step size, RLCDAC = 0

RLCDAC step size, RLCDAC = 1

V_RLCSTEP

V_RLCBOT

0.25

0.17

0.39

RLCDAC output voltage at

AVDD=5V

code 0(hex), RLCDACRNG = 0

RLCDAC output voltage at

code 0(hex), RLCDACRNG = 1

V_RLCBOT

V_RLCTOP

0.26

4.16

2.81

V

RLCDAC output voltage at

code F(hex) RLCDACRNG, = 0

AVDD=5V

RLCDAC output voltage at

V

code F(hex), RLCDACRNG = 1

VRLC deviation

-50

+50

mV

Offset DAC, Monotonicity Guaranteed

Resolution

8

bits

Differential non-linSeaBrity

Integral non-lineariStyB

Step size

DNL0.1

INL0.25

0.5

1

L

2.04

-260

+260

mV/step

mV

Output voltage

Code 00(hex)

Code FF(hex)

mV

Notes:

1.

2.

Full-scale input voltage denotes the maximum amplitude of the input signal at the specified gain.

Input signal limits are the limits within which the full-scale input voltage signal must lie.

AI Rev 2.0 September 2002

4

w

WM8194

Advanced Information

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 24MHz unless

otherwise stated.

PARAMETER

SYMBOL

TEST

MIN

TYP

MAX

UNIT

CONDITIONS

Programmable Gain Amplifier

Resolution

Gain

8

208

bits

V/V

283 − PGA[7 : 0]

Max gain, each channel

Min gain, each channel

Gain error, each channel

Analogue to Digital Converter

Resolution

G_MAX

G_MIN

7.4

0.74

1

V/V

%

14

12

3

bits

MSPS

V

Speed

Full-scale input range

(2*(VRT-VRB))

DIGITAL SPECIFICATIONS

Digital Inputs

High level input voltage

Low level input voltage

High level input current

Low level input current

Input capacitance

V_IH

V_IL

I_IH

0.8 DVDD2

V

0.2 DVDD2

V

1

µA

pF

I_IL

C_I

5

Digital Outputs

High level output voltage

Low level output voltage

High impedance output current

Digital IO Pins

V_OH

V_OL

I_OZ

I_OH= 1mA

I_OL= 1mA

DVDD2 - 0.5

V

0.5

1

µA

Applied high level input voltage

Applied low level input voltage

High level output voltage

Low level output voltage

Low level input current

High level input current

Input capacitance

V_IH

V_IL

V_OH

V_OL

I_IL

0.8 DVDD2

DVDD2 - 0.5

V

0.2 DVDD2

I_OH= 1mA

I_OL= 1mA

V

0.5

1

V

µA

pF

µA

I_IH

1

C_I

5

High impedance output current

Supply Currents

I_OZ

1

Total supply current − active

(Three channel mode)

Total supply current − active

(Single channel mode)

60

45

75

mA

MCLK = 24MHz

LINEBYLINE = 1

MCLK = 24MHz

Total analogue supply current −

active (Three channel mode)

I_AVDD

56

41

mA

MCLK = 24MHz

Total analogue supply current −

active (One channel mode)

LINEBYLINE = 1

MCLK = 24MHz

Digital core supply current,

DVDD1 − active (Note1)

3

1

mA

µA

MCLK = 24MHz

Digital I/O supply current,

DVDD2 − active (Note1)

Supply current − full power down

40

100

mode

AI Rev 2.0 September 2002

5

w

WM8194

Advanced Information

INPUT VIDEO SAMPLING

t_PER

t_MCLKHt_MCLKL

MCLK

t_VSMPH

t_VSMPSU

VSMP

INPUT

t_VSU

t_VH

t_RSU

t_RH

VIDEO

Figure 1 Input Video Timing

Note:

1. See Page 14 (Programmable VSMP Detect Circuit) for video sampling description.

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 24MHz unless

otherwise stated.

PARAMETER

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

UNITS

MCLK period

t_PER

41.6

ns

MCLK high period

MCLK low period

VSMP set-up time

VSMP hold time

t_MCLKH

t_MCLKL

t_VSMPSU

t_VSMPH

t_VSU

18.8

6

ns

3

Video level set-up time

Video level hold time

Reset level set-up time

Reset level hold time

Notes:

11

4

t_VH

t_RSU

11

4

t_RH

1.

2.

t

_VSUand t_RSUdenote the set-up time required after the input video signal has settled.

Parameters are measured at 50% of the rising/falling edge.

OUTPUT DATA TIMING

MCLK

t_PD

OP[7:0]

Figure 2 Output Data Timing

AI Rev 2.0 September 2002

6

w

WM8194

Advanced Information

OEB

t_PZE

t_PEZ

OP[7:0]

Hi-Z

Figure 3 Output Data Enable Timing

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 24MHz unless

otherwise stated.

PARAMETER

SYMBOL

t_PD

TEST CONDITIONS

MIN

TYP

MAX

40

UNITS

ns

Output propagation delay

Output enable time

Output disable time

I_OH= 1mA, I_OL= 1mA

t_PZE

20

ns

t_PEZ

15

ns

MCLK

t_ACYCSU

t_ACYCH

t_ACYCSU

RLC/ACYC

PGA/OFFSET

MUX OUTPUT

Figure 4 Auto Cycle Timing

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 32MHz unless

otherwise stated.

PARAMETER

SYMBOL

t_ACYCSU

t_ACYCH

TEST CONDITIONS

MIN

6

TYP

MAX

UNITS

ns

Auto Cycle set-up time

Auto Cycle hold time

3

ns

AI Rev 2.0 September 2002

7

w

WM8194

Advanced Information

SERIAL INTERFACE

t_SPER

t_SCKLt_SCKH

SCK

t_SSU

t_SH

SDI

SEN

SDO

t_SCE

t_SEWt_SEC

t_SCRDZ

t_SERD

t_SCRD

ADC

DATA

ADC DATA

MSB

LSB

REGISTER DATA

Figure 5 Serial Interface Timing

Test Conditions

AVDD = DVDD1 = 4.75 to 5.25V, DVDD2 = 2.97 to 3.63V, AGND = DGND = 0V, T_A= 0 to 70°C, MCLK = 24MHz unless

otherwise stated.

PARAMETER

SYMBOL

TEST CONDITIONS

MIN

TYP

MAX

UNITS

SCK period

t_SPER

41.6

ns

SCK high

t_SCKH

t_SCKL

t_SSU

18.8

6

ns

SCK low

SDI set-up time

SDI hold time

t_SH

6

SCK to SEN set-up time

SEN to SCK set-up time

SEN pulse width

t_SCE

12

25

t_SEC

t_SEW

t_SERD

t_SCRD

t_SCRDZ

SEN low to SDO = Register data

SCK low to SDO = Register data

SCK low to SDO = ADC data

30

Note:

1. Parameters are measured at 50% of the rising/falling edge

AI Rev 2.0 September 2002

8

w

WM8194

Advanced Information

DEVICE DESCRIPTION

INTRODUCTION

A block diagram of the device showing the signal path is presented on Page 1.

The WM8194 samples up to three inputs (RINP, GINP and BINP) simultaneously. The device then

processes the sampled video signal with respect to the video reset level or an internally/externally

generated reference level using either one or three processing channels.

Each processing channel consists of an Input Sampling block with optional Reset Level Clamping

(RLC) and Correlated Double Sampling (CDS), an 8-bit programmable offset DAC and an 8-bit

Programmable Gain Amplifier (PGA).

The ADC then converts each resulting analogue signal to a 14-bit digital word. The digital output from

the ADC is presented on an 8-bit wide bi-directional bus, with optional 8, 7 or 4-bit multiplexed

formats.

On-chip control registers determine the configuration of the device, including the offsets and gains

applied to each channel. These registers are programmable via a serial interface.

INPUT SAMPLING

The WM8194 can sample and process one to three inputs through one or three processing channels

as follows:

Colour Pixel-by-Pixel: The three inputs (RINP, GINP and BINP) are simultaneously sampled for

each pixel and a separate channel processes each input. The signals are then multiplexed into the

ADC, which converts all three inputs within the pixel period.

Monochrome: A single chosen input (RINP, GINP, or BINP) is sampled, processed by the

corresponding channel, and converted by the ADC. The choice of input and channel can be changed

via the control interface, e.g. on a line-by-line basis if required.

Colour Line-by-Line: A single chosen input (RINP, GINP, or BINP) is sampled and multiplexed into

the red channel for processing before being converted by the ADC. The input selected can be

switched in turn (RINP → GINP → BINP → RINP…) together with the PGA and Offset DAC control

registers by pulsing the RLC/ACYC pin. This is known as auto-cycling. Alternatively, other sampling

sequences can be generated via the control registers. This mode causes the blue and green

channels to be powered down. Refer to the Line-by-Line Operation section for more details.

RESET LEVEL CLAMPING (RLC)

To ensure that the signal applied to the WM8194 lies within its input range (0V to AVDD) the CCD

output signal is usually level shifted by coupling through a capacitor, C_IN.The RLC circuit clamps the

WM8194 side of this capacitor to a suitable voltage during the CCD reset period.

A typical input configuration is shown in Figure 6. A clamp pulse, CL, is generated from MCLK and

VSMP by the Timing Control Block. When CLis active the voltage on the WM8194 side of C _IN, at

RINP, is forced to the VRLC/VBIAS voltage (V_VRLC) by switch 1. When the CLpulse turns off, the

voltage at RINP initially remains at V_VRLCbut any subsequent variation in sensor voltage (from reset

to video level) will couple through C_INto RINP.

RLC is compatible with both CDS and non-CDS operating modes, as selected by switch 2. Refer to

the CDS/non-CDS Processing section.

AI Rev 2.0 September 2002

9

w

WM8194

Advanced Information

RLC/ACYC MCLK VSMP

TIMING CONTROL

FROM CONTROL

INTERFACE

CL

R_S

V_S

C_IN

S/H

+

-

TO OFFSET DAC

+

RINP

2

S/H

1

RLC

CDS

INPUT SAMPLING

BLOCK FORRED

CHANNEL

EXTERNAL VRLC

CDS

VRLC/

VBIAS

4-BIT

RLC DAC

FROM CONTROL

INTERFACE

VRLCEXT

Figure 6 Reset Level Clamping and CDS Circuitry

If auto-cycling is not required, RLC can be selected by pin RLC/ACYC. Figure 7 illustrates control of

RLC for a typical CCD waveform, with CL applied during the reset period.

The input signal applied to the RLC pin is sampled on the positive edge of MCLK that occurs during

each VSMP pulse. The sampled level, high (or low) controls the presence (or absence) of the internal

CLpulse on the next reset level. The position of CLcan be adjusted by using control bits

CDSREF[1:0] (Figure 8).

If auto-cycling is required, pin RLC/ACYC is no longer available for this function and control bit

RLCINT determines whether clamping is applied.

MCLK

VSMP

ACYC/RLC

or RLCINT

1

X

0

X

0

Programmable Delay

CL

(CDSREF = 01)

INPUT VIDEO

RGB

RLC on this Pixel

No RLC on this Pixel

Figure 7 Relationship of RLC Pin, MCLK and VSMP to Internal Clamp Pulse, CL

The VRLC/VBIAS pin can be driven internally by a 4-bit DAC (RLCDAC) by writing to control bits

RLCV[3:0]. The RLCDAC range and step size may be increased by writing to control bit

RLCDACRNG. Alternatively, the VRLC/VBIAS pin can be driven externally by writing to control bit

VRLCEXT to disable the RLCDAC and then applying a d.c. voltage to the pin.

CDS/NON-CDS PROCESSING

For CCD type input signals, the signal may be processed using CDS, which will remove pixel-by-pixel

common mode noise. For CDS operation, the video level is processed with respect to the video reset

level, regardless of whether RLC has been performed. To sample using CDS, control bit CDS must

be set to 1 (default), this controls switch 2 (Figure 6) and causes the signal reference to come from

the video reset level. The time at which the reset level is sampled, by clock R_s/CL, is adjustable by

programming control bits CDSREF[1:0], as shown in Figure 8.

AI Rev 2.0 September 2002

10

w

WM8194

Advanced Information

MCLK

VSMP

VS

R_S/CL (CDSREF = 00)

R_S/CL (CDSREF = 01)

R_S/CL (CDSREF = 10)

R_S/CL (CDSREF = 11)

Figure 8 Reset Sample and Clamp Timing

For CIS type sensor signals, non-CDS processing is used. In this case, the video level is processed

with respect to the voltage on pin VRLC/VBIAS, generated internally or externally as described

above. The VRLC/VBIAS pin is sampled by R_sat the same time as V_ssamples the video level in this

mode.

OFFSET ADJUST AND PROGRAMMABLE GAIN

The output from the CDS block is a differential signal, which is added to the output of an 8-bit Offset

DAC to compensate for offsets and then amplified by an 8-bit PGA. The gain and offset for each

channel are independently programmable by writing to control bits DAC[7:0] and PGA[7:0].

The gain characteristic of the WM8194 PGA is shown in Figure 9. Figure 10 shows the maximum

device input voltage that can be gained up to match the ADC full-scale input range (3V).

8

7

6

5

4

3

2

1

0

4.5

4

3.5

3

2.5

2

1.5

1

0.5

0

64

128

192

256

0

64

128

192

256

Gain register value (PGA[7:0])

Figure 9 PGA Gain Characteristic

Figure 10 Peak Input Voltage to Match ADC Full-scale Range

In colour line-by-line mode the gain and offset coefficients for each colour can be multiplexed in order

(Red → Green → Blue → Red…) by pulsing the ACYC/RLC pin, or controlled via the FME,

ACYCNRLC and INTM[1:0] bits. Refer to the Line-by-Line Operation section for more details.

ADC INPUT BLACK LEVEL ADJUST

The output from the PGA should be offset to match the full-scale range of the ADC (3V). For

negative-going input video signals, a black level (zero differential) output from the PGA should be

offset to the top of the ADC range by setting register bits PGAFS[1:0]=10. For positive going input

signal the black level should be offset to the bottom of the ADC range by setting PGAFS[1:0]=11.

Bipolar input video is accommodated by setting PGAFS[1:0]=00 or PGAFS[1:0]=01 (zero differential

input voltage gives mid-range ADC output).

AI Rev 2.0 September 2002

w

11

WM8194

Advanced Information

OVERALL SIGNAL FLOW SUMMARY

Figure 11 represents the processing of the video signal through the WM8194.

OUTPUT

INVERT

BLOCK

D₂

INPUT

SAMPLING

BLOCK

OFFSET DAC PGA

ADC BLOCK

BLOCK

x (65535/V_FS

)

V₁

V₂

V₃

D₁

+0

if PGAFS[1:0]=11

+65535 if PGAFS[1:0]=10

+32768 if PGAFS[1:0]=0x

X

OP[7:0]

+

V_IN

digital

analog

+

-

CDS = 1

CDS = 0

D2 = D1 if INVOP = 0

D2 = 65535-D1 if INVOP = 1

V_RESET

PGA gain

A = 208/(283-PGA[7:0])

V_VRLC

Offset

DAC

260mV*(DAC[7:0]-127.5)/127.5

V_INis RINP or GINP or BINP

V_RESETis V_INsampled during reset clamp

VRLC is voltage applied to VRLC pin

RLCEXT=1

RLCEXT=0

CDS, RLCEXT,RLCV[3:0], DAC[7:0],

PGA[7:0], PGAFS[1:0] and INVOP are set

by programming internal control registers.

CDS=1 for CDS, 0 for non-CDS

RLC

DAC

See parametrics for

DAC voltages.

Figure 11 Overall Signal Flow

The INPUT SAMPLING BLOCK produces an effective input voltage V₁. For CDS, this is the

difference between the input video level V_INand the input reset level V_RESET. For non-CDS this is the

difference between the input video level V_INand the voltage on the VRLC/VBIAS pin, V_VRLC

optionally set via the RLC DAC.

,

The OFFSET DAC BLOCK then adds the amount of fine offset adjustment required to move the

black level of the input signal towards 0V, producing V₂.

The PGA BLOCK then amplifies the white level of the input signal to maximise the ADC range,

outputting voltage V₃.

The ADC BLOCK then converts the analogue signal, V₃, to a 14-bit unsigned digital output, D₁.

The digital output is then inverted, if required, through the OUTPUT INVERT BLOCK to produce D_2.

CALCULATING OUTPUT FORANY GIVEN INPUT

The following equations describe the processing of the video and reset level signals through

the WM8194.

INPUT SAMPLING BLOCK: INPUT SAMPLING AND REFERENCING

If CDS = 1, (i.e. CDS operation) the previously sampled reset level, V_RESET, is subtracted from the

input video.

V₁

=

V_IN- V_RESET................................................................... Eqn. 1

If CDS = 0, (non-CDS operation) the simultaneously sampled voltage on pin VRLC is subtracted

instead.

V₁

=

V_IN- V_VRLC.................................................................... Eqn. 2

If RLCEXT = 1, V_VRLCis an externally applied voltage on pin VRLC/VBIAS.

If RLCEXT = 0, V_VRLCis the output from the internal RLC DAC.

V_VRLC

=

(V_RLCSTEPRLCV[3:0]) + V_RLCBOT................................. Eqn. 3

V_RLCSTEPis the step size of the RLC DAC and V_RLCBOTis the minimum output of the RLC DAC.

OFFSET DAC BLOCK: OFFSET (BLACK-LEVEL) ADJUST

The resultant signal V₁is added to the Offset DAC output.

V₂

=

V₁+ {260mV (DAC[7:0]-127.5) } / 127.5 ..................... Eqn. 4

AI Rev 2.0 September 2002

12

w

WM8194

Advanced Information

PGA NODE: GAIN ADJUST

The signal is then multiplied by the PGA gain,

V₃

=

V₂208/(283- PGA[7:0]) .............................................. Eqn. 5

ADC BLOCK: ANALOGUE-DIGITAL CONVERSION

The analogue signal is then converted to a 14-bit unsigned number, with input range configured by

PGAFS[1:0].

D₁[15:0] = INT{ (V₃/V_FS

)

16383} + 8191 PGAFS[1:0] = 00 or 01 ...... Eqn. 6

16383} PGAFS[1:0] = 11 ............... Eqn. 7

16383} + 16383 PGAFS[1:0] = 10 ............... Eqn. 8

where the ADC full-scale range, V_FS= 3V

OUTPUT INVERT BLOCK: POLARITY ADJUST

The polarity of the digital output may be inverted by control bit INVOP.

D₂[15:0] = D₁[15:0]

(INVOP = 0) ...................... Eqn. 9

(INVOP = 1) ...................... Eqn. 10

D₂[15:0] = 16383 – D₁[15:0]

OUTPUT FORMATS

The digital data output from the ADC is available to the user in 8, 7 or 4-bit wide multiplexed formats

by setting control bits MUXOP[1:0]. Latency of valid output data with respect to VSMP is

programmable by writing to control bits DEL[1:0]. The latency for each mode is shown in the

Operating Mode Timing Diagrams section.

Figure 12 shows the output data formats for Modes 1 – 2 and 4 – 6. Figure 13 shows the output data

formats for Mode 3. Table 1 summarises the output data obtained for each format.

MCLK

8+6 AND 7+7-BIT

OUTPUT

8+6 AND 7+7-BIT

OUTPUT

A

B

A

B

4+4+4+2-BIT

OUTPUT

4+4+4+2-BIT

OUTPUT

A

B

C

D

A

B A B C D

Figure 12 Output Data Formats

Figure 13 Output Data Formats

(Mode 3)

(Modes 1 − 2, 4 − 6)

OUTPUT

FORMAT

MUXOP[1:0]

OUTPUT

PINS

OUTPUT

8+8-bit

multiplexed

0x

10

11

OP[7:0]

OP[7:4]

A = d13, d12, d11, d10, d9, d8, d7, d6

B = d5, d4, d3, d2, d1,d0, CC, OVRNG

7+7-bit

multiplexed

A = d13, d12, d11, d10, d9, d8, d7, CC

B = d6, d5, d4, d3, d2, d1,d0, OVRNG

4+4+4+4-bit

(nibble)

A = d13, d12, d11, d10

B = d9, d8, d7, d6

C = d5, d4, d3, d2

D = d1, d0, CC, OVRNG

Table 1 Details of Output Data Shown in Figure 12 and Figure 13.

AI Rev 2.0 September 2002

13

w

WM8194

Advanced Information

FLAGS

The following flags are output during multiplexed modes:

CC can be used in colour modes 1 and 5 to identify the green channel output, from which the blue

and red channels can be identified.

INPUT

CC

CHANNEL

RINP

GINP

BINP

0

1

0

Table 2 Input Sampled Flag - CC

OVRNG indicates that the current output data was produced by an input signal that exceeded the

input range of the device. 1 = out of range, 0 = within range.

CONTROL INTERFACE

The internal control registers are programmable via the serial digital control interface. The register

contents can be read back via the serial interface on pin OP[7]/SDO.

It is recommended that a software reset is carried out after the power-up sequence, before writing to

any other register. This ensures that all registers are set to their default values (as shown in Table

6).

SERIAL INTERFACE: REGISTER WRITE

Figure 14 shows register writing in serial mode. Three pins, SCK, SDI and SEN are used. A six-bit

address (a5, 0, a3, a2, a1, a0) is clocked in through SDI, MSB first, followed by an eight-bit data

word (b7, b6, b5, b4, b3, b2, b1, b0), also MSB first. Each bit is latched on the rising edge of SCK.

When the data has been shifted into the device, a pulse is applied to SEN to transfer the data to the

appropriate internal register. Note all valid registers have address bit a4 equal to 0 in write mode.

SCK

a5

0

a3

a2

a1

a0

b7

b6

b5

b4

b3

b2

b1

b0

SDI

Address

Data Word

SEN

Figure 14 Serial Interface Register Write

A software reset is carried out by writing to Address “000100” with any value of data, i.e. Data Word

= XXXXXXXX

SERIAL INTERFACE: REGISTER READ-BACK

Figure 15 shows register read-back in serial mode. Read-back is initiated by writing to the serial bus

as described above but with address bit a4 set to 1, followed by an 8-bit dummy data word. Writing

address (a5, 1, a3, a2, a1, a0) will cause the contents (d7, d6, d5, d4, d3, d2, d1, d0) of

corresponding register (a5, 0, a3, a2, a1, a0) to be output MSB first on pin SDO (on the falling edge

of SCK). Note that pin SDO is shared with an output pin, OP[7], therefore OEB should always be

held low when register read-back data is expected on this pin. The next word may be read in to SDI

while the previous word is still being output on SDO.

AI Rev 2.0 September 2002

14

w

WM8194

Advanced Information

SCK

SDI

a5

1

a3 a2 a1 a0

x

Address

Data Word

SEN

SDO/

OP[7]

d7 d6 d5 d4 d3 d2 d1 d0

Output Data Word

OEB

Figure 15 Serial Interface Register Read-back

TIMING REQUIREMENTS

To use this device a master clock (MCLK) of up to 24MHz and a per-pixel synchronisation clock

(VSMP) of up to 12MHz are required. These clocks drive a timing control block, which produces

internal signals to control the sampling of the video signal. MCLK to VSMP ratios and maximum

sample rates for the various modes are shown in Table 5.

PROGRAMMABLE VSMP DETECT CIRCUIT

The VSMP input is used to determine the sampling point and frequency of the WM8194. Under

normal operation a pulse of 1 MCLK period should be applied to VSMP at the desired sampling

frequency (as shown in the Operating Mode Timing Diagrams) and the input sample will be taken on

the first rising MCLK edge after VSMP has gone low. However, in certain applications such a signal

may not be readily available. The programmable VSMP detect circuit in the WM8194 allows the

sampling point to be derived from any signal of the correct frequency, such as a CCD shift register

clock, when applied to the VSMP pin.

When enabled, by setting the VSMPDET control bit, the circuit detects either a rising or falling edge

(determined by POSNNEG control bit) on the VSMP input pin and generates an internal VSMP pulse.

This pulse can optionally be delayed by a number of MCLK periods, specified by the VDEL[2:0] bits.

Figure 16 shows the internal VSMP pulses that can be generated by this circuit for a typical clock

input signal. The internal VSMP pulse is then applied to the timing control block in place of the

normal VSMP pulse provided from the input pin. The sampling point then occurs on the first rising

MCLK edge after this internal VSMP pulse, as shown in the Operating Mode Timing Diagrams.

AI Rev 2.0 September 2002

15

w

WM8194

Advanced Information

MCLK

VSMP

INPUT

PINS

POSNNEG = 1

(VDEL = 000) INTVSMP

(VDEL = 001) INTVSMP

(VDEL = 010) INTVSMP

(VDEL = 011) INTVSMP

(VDEL = 100) INTVSMP

(VDEL = 101) INTVSMP

(VDEL = 110) INTVSMP

(VDEL = 111) INTVSMP

V_S

POSNNEG = 0

(VDEL = 000) INTVSMP

(VDEL = 001) INTVSMP

(VDEL = 010) INTVSMP

(VDEL = 011) INTVSMP

(VDEL = 100) INTVSMP

(VDEL = 101) INTVSMP

(VDEL = 110) INTVSMP

(VDEL = 111) INTVSMP

V_S

Figure 16 Internal VSMP Pulses Generated by Programmable VSMP Detect Circuit

REFERENCES

The ADC reference voltages are derived from an internal bandgap reference, and buffered to pins

VRT and VRB, where they must be decoupled to ground. Pin VRX is driven by a similar buffer, and

also requires decoupling. The output buffer from the RLCDAC also requires decoupling at pin

VRLC/VBIAS

POWERSUPPLY

The WM8194 can run from a 5V single supply or from split 5V (core) and 3.3V (digital interface)

supplies.

POWERMANAGEMENT

Power management for the device is performed via the Control Interface. The device can be powered

on or off completely by setting the EN bit and SELPD bit low. Alternatively, when control bit SELPD is

high, only blocks selected by further control bits (SELDIS[3:0]) are powered down. This allows the

user to optimise power dissipation in certain modes, or to define an intermediate standby mode to

allow a quicker recovery into a fully active state. In Line-by-line operation, the green and blue channel

PGAs are automatically powered down.

All the internal registers maintain their previously programmed value in power down modes and the

Control Interface inputs remain active. Table 3 summarises the power down control bit functions.

EN

0

SELDPD

0

1

Device completely powers down.

1

Device completely powers up.

X

Blocks with respective SELDIS[3:0] bit high are disabled.

Table 3 Power Down Control

AI Rev 2.0 September 2002

16

w

WM8194

Advanced Information

LINE-BY-LINE OPERATION

Certain linear sensors (e.g. Contact Image Sensors) give colour output on a line-by-line basis. i.e. a

full line of red pixels followed by a line of green pixels followed by a line of blue pixels. In order to

accommodate this type of signal the WM8194 can be set into Monochrome mode, with the input

channel switched by writing to control bits CHAN[1:0] between every line. Alternatively, the WM8194

can be placed into colour line-by-line mode by setting the LINEBYLINE control bit. When this bit is

set the green and blue processing channels are powered down and the device is forced internally to

only operate in MONO mode (because only one colour is sampled at a time) through the red channel.

Figure 17 shows the signal path when operating in colour line-by-line mode.

VRLC/VBIAS

VSMP

MCLK

CL

R_SV_STIMING CONTROL

R

8

OFFSET

MUX

OFFSET

DAC

G

B

14-

BIT

ADC

DATA

I/O

PORT

RINP

RLC

CDS

+

PGA

8

+

OP[7:0]

INPUT

MUX

R

I/P SIGNAL

POLARITY

ADJUST

PGA

MUX

G

GINP

BINP

B

SEN/STB

SCK/RNW

SDI/DNA

RLC/ACYC

NRESET

CONFIGURABLE

SERIAL/

PARALLEL

CONTROL

INTERFACE

RLC

DAC

4

Figure 17 Signal Path When in Line-by-Line Mode

In this mode the input multiplexer and (optionally) the PGA/Offset register multiplexers can be auto-

cycled by the application of pulses to the RLC/ACYC input pin by setting the ACYCNRLC register bit.

See Figure 4 for detailed timing information. The multiplexers change on the first MCLK rising edge

after RLC/ACYC is taken high. A write to the auto-cycle reset register causes these multiplexers to

be reset; selecting the RINP pin and the RED offset/gain registers. Alternatively, all three

multiplexers can be controlled via the serial interface by writing to register bits INTM[1:0] to select the

desired colour. It is also possible for the input multiplexer to be controlled separately from the PGA

and Offset multiplexers. Table 4 describes all the multiplexer selection modes that are possible.

FME ACYCNRLC

NAME

Internal,

no force mux

DESCRIPTION

0

1

0

1

0

Input mux, offset and gain registers determined by

internal register bits INTM1, INTM0.

Auto-cycling,

no force mux

Input mux, offset and gain registers auto-cycled, RINP

→ GINP → BINP → RINP… on RLC/ACYC pulse.

Internal,

Input mux selected from internal register bits FM1, FM0;

force mux

Offset and gain registers selected from internal register

bits INTM1, INTM0.

1

Auto-cycling,

force mux

Input mux selected from internal register bits FM1, FM0;

Offset and gain registers auto-cycled, Red → Green →

Blue → Red… on RLC/ACYC pulse.

Table 4 Colour Selection Description in Line-by-Line Mode

AI Rev 2.0 September 2002

17

w

WM8194

Advanced Information

OPERATING MODES

Table 5 summarises the most commonly used modes, the clock waveforms required and the register

contents required for CDS and non-CDS operation.

MODE

DESCRIPTION

CDS

MAX

SENSOR

INTERFACE

DESCRIPTION

TIMING

REQUIRE-

MENTS

REGISTER

CONTENTS

WITH CDS

REGISTER

CONTENTS

WITHOUT

CDS

AVAILABLE SAMPLE

RATE

1

Colour

Pixel-by-Pixel

Yes

4MSPS

The 3 input channels

are sampled in

MCLK max

= 24MHz

SetReg1:

03(hex)

SetReg1:

01(hex)

parallel. The signal is

then gain and offset

adjusted before being

multiplexed into a

single data stream

and converted by the

ADC, giving an output

data rate of 12MSPS

max.

MCLK:

VSMP

ratio is 6:1

2

3

Monochrome/

Colour

Line-by-Line

Yes

4MSPS

8MSPS

As mode 1 except:

Only one input

channel at a time

is continuously

sampled.

MCLK max

= 24MHz

SetReg1:

07(hex)

SetReg1:

05(hex)

MCLK:

VSMP

ratio is 6:1

Fast

Monochrome/

Colour

Identical to mode 2

MCLK max

= 24MHz

Identical to

mode 2 plus

SetReg3:

bits 5:4 must

be set to

Identical to

mode 2

MCLK:

VSMP

ratio is 3:1

Line-by-Line

0(hex)

4

5

Maximum

speed

Monochrome/

Colour

No

12MSPS

3MSPS

Identical to mode 2

Identical to mode 1

MCLK max

= 24MHz

CDS not

possible

SetReg1:

45(hex)

MCLK:

VSMP

ratio is 2:1

Line-by-Line

Slow Colour

Pixel-by-Pixel

Yes

MCLK max

= 24MHz

Identical to

mode 1

Identical to

mode 1

MCLK:

VSMP

ratio is

2n:1, n ≥ 4

6

Slow

Monochrome/

Colour

Yes

3MSPS

Identical to mode 2

MCLK max

= 24MHz

Identical to

mode 2

Identical to

mode 2

MCLK:

VSMP

Line-by-Line

ratio is

2n:1, n ≥ 4

Table 5 WM8194 Operating Modes

Notes:

1.

2.

In Monochrome mode, SetReg3 bits 7:6 determine which input is to be sampled.

For Colour Line-by-Line, set control bit LINEBYLINE. For input selection, refer to Table 4, Colour Selection

Description in Line-by-Line Mode.

AI Rev 2.0 September 2002

18

w

WM8194

Advanced Information

OPERATING MODE TIMING DIAGRAMS

The following diagrams show 8-bit multiplexed output data and MCLK, VSMP and input video

requirements for operation of the most commonly used modes as shown in Table 5. The diagrams

are identical for both CDS and non-CDS operation. Outputs from RINP, GINP and BINP are shown

as R, G and B respectively. X denotes invalid data.

16.5 MCLK PERIODS

MCLK

VSMP

INPUT VIDEO

OP[7:0]

(DEL = 00)

R_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_B

B_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_B

G_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_B

R_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_BG_AB_AB_BR_AR_BG_AG_BB_AB_BR_AR_BG_AG_BB_AB_B

OP[7:0]

(DEL = 01)

OP[7:0]

(DEL = 10)

OP[7:0]

(DEL = 11)

Figure 18 Mode 1 Operation

16.5 MCLK PERIODS

MCLK

VSMP

INPUT VIDEO

R_A

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

OP[7:0] (DEL = 00)

OP[7:0] (DEL = 01)

OP[7:0] (DEL = 10)

OP[7:0] (DEL = 11)

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

Figure 19 Mode 2 Operation

AI Rev 2.0 September 2002

19

w

WM8194

Advanced Information

23.5 MCLK PERIODS

MCLK

VSMP

INPUT VIDEO

OP[7:0]

(DEL = 00)

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

OP[7:0]

(DEL = 01)

OP[7:0]

(DEL = 10)

OP[7:0]

(DEL = 11)

Figure 20 Mode 3 Operation

16.5 MCLK PERIODS

MCLK

VSMP

INPUT VIDEO

OP[7:0]

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

(DEL = 00)

OP[7:0]

(DEL = 01)

R_A

R_B

R_A

R_B

R_A

R_B

OP[7:0]

(DEL = 10)

OP[7:0]

(DEL = 11)

Figure 21 Mode 4 Operation

AI Rev 2.0 September 2002

20

w

WM8194

Advanced Information

16.5 MCLK PERIODS

MCLK

VSMP

INPUT

VIDEO

OP[7:0]

(DEL = 00)

R_AR_BG_AG_BB_AB_B

R_AR_BG_AG_B

X

OP[7:0]

(DEL = 01)

B_AB_B

R_AR_BG_AG_BB_AB_B

R_AR_B

X

OP[7:0]

(DEL = 10)

G_AG_BB_AB_B

R_AR_BG_AG_BB_AB_B

X

OP[7:0]

(DEL = 11)

R_AR_BG_AG_BB_AB_B

X

Figure 22 Mode 5 Operation (MCLK:VSMP Ratio = 8:1)

16.5 MCLK PERIODS

MCLK

VSMP

INPUT VIDEO

OP[7:0]

(DEL = 00)

R_A

X

R_B

X

R_A

X

R_B

X

R_A

X

R_B

X

OP[7:0]

(DEL = 01)

R_A

R_B

R_A

R_B

X

R_A

R_B

OP[7:0]

(DEL = 10)

R_A

R_B

R_A

R_B

R_A

R_B

X

OP[7:0]

(DEL = 11)

R_A

R_B

R_A

R_B

R_A

R_B

R_A

R_B

X

Figure 23 Mode 6 Operation (MCLK:VSMP Ratio = 8:1)

AI Rev 2.0 September 2002

21

w

WM8194

Advanced Information

DEVICE CONFIGURATION

REGISTER MAP

The following table describes the location of each control bit used to determine the operation of the

WM8194. The register map is programmed by writing the required codes to the appropriate

addresses via the serial interface.

ADDRESS

<a5:a0>

000001

000010

000011

000100

000101

000110

000111

001000

001001

001010

001011

001100

100000

100001

DESCRIPTION

DEF

(hex)

03

RW

BIT

b7

b6

b5

b4

PGAFS[0]

0

b3

b2

b1

b0

Setup Reg 1

Setup Reg 2

Setup Reg 3

Software Reset

Auto-cycle Reset

Setup Reg 4

Revision Number

Setup Reg 5

Setup Reg 6

Reserved

RW

W

MODE4

DEL[0]

PGAFS[1]

RLCDACRNG

CDSREF [1]

SELPD

MONO

INVOP

RLCV[2]

CDS

EN

20

DEL[1]

VRLCEXT

RLCV[3]

MUXOP[1]

RLCV[1]

MUXOP[0]

RLCV[0]

1F

00

CHAN[1] CHAN[0]

CDSREF [0]

00

W

00

RW

R

FM[1]

FM[0]

INTM[1]

INTM[0]

RLCINT

FME

ACYCNRLC

LINEBYLINE

41

00

RW

0

POSNNEG

VDEL[2]

VDEL[1]

VDEL[0]

VSMPDET

00

0

SELDIS[3]

SELDIS[2]

SELDIS[1]

SELDIS[0]

00

0

Reserved

00

Reserved

00

0

DAC Value (Red)

80

DAC[7]

DAC[6]

DAC[5]

DAC[4]

DAC[3]

DAC[2]

DAC[1]

DAC[0]

DAC Value

(Green)

80

100010

100011

101000

101001

DAC Value (Blue)

DAC Value (RGB)

PGA Gain (Red)

80

00

RW

W

DAC[7]

PGA[7]

DAC[6]

PGA[6]

DAC[5]

PGA[5]

DAC[4]

PGA[4]

DAC[3]

PGA[3]

DAC[2]

PGA[2]

DAC[1]

PGA[1]

DAC[0]

PGA[0]

RW

PGA Gain

(Green)

101010

101011

PGA Gain (Blue)

PGA Gain (RGB)

00

RW

W

PGA[7]

PGA[6]

PGA[5]

PGA[4]

PGA[3]

PGA[2]

PGA[1]

PGA[0]

Table 6 Register Map

REGISTER MAP DESCRIPTION

The following table describes the function of each of the control bits shown in Table 6.

REGISTER

BIT

NO

BIT

NAME(S)

DEFAULT

DESCRIPTION

Setup

0

EN

1

When SELPD = 1 this bit has no effect.

Register 1

When SELPD = 0 this bit controls the global power down:

0 = complete power down, 1 = fully active.

1

CDS

1

Select correlated double sampling mode: 0 = single ended mode,

1 = CDS mode.

2

3

MONO

SELPD

0

Mono/colour select: 0 = colour, 1 = monochrome operation.

Selective power down: 0 = no individual control,

1 = individual blocks can be disabled (controlled by SELDIS[3:0]).

5:4

PGAFS[1:0]

MODE4

00

Offsets PGA output to optimise the ADC range for different polarity sensor output

signals. Zero differential PGA input signal gives:

00 = Zero output

(use for bipolar video)

01 = Zero output

10 = Full-scale positive output

(use for negative going video)

11 = Full-scale negative output

(use for positive going video)

6

0

Required when operating in MODE4: 0 = other modes, 1 = MODE4.

AI Rev 2.0 September 2002

22

w

WM8194

Advanced Information

REGISTER

BIT

NO

BIT

NAME(S)

DEFAULT

DESCRIPTION

Determines the output data format.

Setup

1:0

MUXOP[1:0]

0

Register 2

00 = 8-bit multiplexed (8+8 bits)

01 = 8-bit multiplexed (8+8 bits)

10 = 7-bit multiplexed (7+7 bits)

11 = 4-bit multiplexed mode (4+4+4+4-bits)

2

INVOP

0

Digitally inverts the polarity of output data.

0 = negative going video gives negative going output,

1 = negative-going video gives positive going output data.

3

5

VRL

CEXT

0

When set powers down the RLCDAC, changing its output to Hi-Z, allowing

VRLC/VBIAS to be externally driven.

RLCDACRNG

1

Sets the output range of the RLCDAC.

0 = RLCDAC ranges from 0 to AVDD (approximately),

1 = RLCDAC ranges from 0 to VRT (approximately).

7:6

DEL[1:0]

00

Sets the output latency in ADC clock periods.

1 ADC clock period = 2 MCLK periods except in Mode 3 where 1 ADC clock

period = 3 MCLK periods.

00 = Minimum latency

01 = Delay by one ADC clock

period

10 = Delay by two ADC clock periods

11 = Delay by three ADC clock periods

Setup

Register 3

3:0

5:4

RLCV[3:0]

1111

01

Controls RLCDAC driving VRLC pin to define single ended signal reference

voltage or Reset Level Clamp voltage. See Electrical Characteristics section for

ranges.

CDSREF[1:0]

CDS mode reset timing adjust.

00 = Advance 1 MCLK period

01 = Normal

10 = Retard 1 MCLK period

11 = Retard 2 MCLK periods

7:6

CHAN[1:0]

00

Monochrome mode channel select.

00 = Red channel select

01 = Green channel select

10 = Blue channel select

11 = Reserved

Software

Reset

Any write to Software Reset causes all cells to be reset. It is recommended that a

software reset be performed after a power-up before any other register writes.

Auto-cycle

Reset

Any write to Auto-cycle Reset causes the auto-cycle counter to reset

to RINP. This function is only required when LINEBYLINE = 1.

Setup

Register 4

0

1

LINEBYLINE

ACYCNRLC

0

Selects line by line operation 0 = normal operation,

1 = line by line operation.

When line by line operation is selected MONO is forced to 1 and CHAN[1:0] to 00

internally, ensuring that the correct internal timing signals are produced. Green

and Blue PGAs are also disabled to save power.

When LINEBYLINE = 0 this bit has no effect.

When LINEBYLINE = 1 this bit determines the function of the RLC/ACYC input

pin and the input multiplexer and offset/gain register controls.

0 = RLC/ACYC pin enabled for Reset Level Clamp. Internal selection of input and

gain/offset multiplexers,

1 = Auto-cycling enabled by pulsing the RLC/ACYC input pin.

See Table 4, Colour Selection Description in Line-by-Line Mode for colour

selection mode details.

When auto-cycling is enabled, the RLC/ACYC pin cannot be used for reset level

clamping. The RLCINT bit may be used instead.

2

FME

0

When LINEBYLINE = 0 this bit has no effect.

When LINEBYLINE = 1 this bit controls the input force mux mode:

0 = No force mux, 1 = Force mux mode. Forces the input mux to be selected by

FM[1:0] separately from gain and offset multiplexers.

See Table 4 for details.

3

RL

CINT

0 When LINEBYLINE = 1 and ACYCNRLC = 1 this bit is used to determine whether

Reset Level Clamping is used.

0 = RLC disabled, 1 = RLC enabled.

5:4

INTM[1:0]

00

Colour selection bits used in internal modes.

00 = Red, 01 = Green, 10 = Blue and 11 = Reserved.

See Table 4 for details.

7:6

FM[1:0]

Colour selection bits used in input force mux modes.

00 = RINP, 01 = GINP, 10 = BINP and 11 = Reserved.

See Table 4 for details.

AI Rev 2.0 September 2002

23

w

WM8194

Advanced Information

REGISTER

BIT

NO

BIT

NAME(S)

DEFAULT

DESCRIPTION

Setup

Register 5

0

3:1

4

VSMPDET

VDEL[2:0]

POSNNEG

0

0 = Normal operation, signal on VSMP input pin is applied directly to Timing

Control block.

1 = Programmable VSMP detect circuit is enabled. An internal synchronisation

pulse is generated from signal applied to VSMP input pin and is applied to Timing

Control block.

000

When VSMPDET = 0 these bits have no effect.

When VSMPDET = 1 these bits set a programmable delay from the detected

edge of the signal applied to the VSMP pin. The internally generated pulse is

delayed by VDELMCLK periods from the detected edge.

See Figure 16, Internal VSMP Pulses Generated for details.

0

When VSMPDET = 0 this bit has no effect.

When VSMPDET = 1 this bit controls whether positive or negative edges

are detected:

0 = Negative edge on VSMP pin is detected and used to generate internal timing

pulse.

1 = Positive edge on VSMP pin is detected and used to generate internal timing

pulse.

See Figure 16 for further details.

Setup

Register 6

3:0

7:0

SELDIS[3:0]

DAC[7:0]

0000

Selective power disable register - activated when SELPD = 1.

Each bit disables respective cell when 1, enabled when 0.

SELDIS[0] = Red CDS, PGA

SELDIS[1] = Green CDS, PGA

SELDIS[2] = Blue CDS, PGA

SELDIS[3] = ADC

Offset DAC

(Red)

0

Red channel offset DAC value.

Offset DAC

(Green)

7:0

DAC[7:0]

0

Green channel offset DAC value

Blue channel offset DAC value

Offset DAC

(Blue)

Offset DAC

(RGB)

A write to this register location causes the red, green and blue offset DAC

registers to be overwritten by the new value

PGA gain

(Red)

7:0

PGA[7:0]

0

Determines the gain of the red channel PGA according to the equation:

Red channel PGA gain = 208/(283-PGA[7:0])

PGA gain

(Green)

Determines the gain of the green channel PGA according to the equation:

Green channel PGA gain = 208/(283-PGA[7:0])

PGA gain

(Blue)

Determines the gain of the blue channel PGA according to the equation:

Blue channel PGA gain = 208/(283-PGA[7:0])

PGA gain

(RGB)

A write to this register location causes the red, green and blue PGA gain registers

to be overwritten by the new value

Table 7 Register Control Bits

AI Rev 2.0 September 2002

24

w

WM8194

Advanced Information

RECOMMENDED EXTERNAL COMPONENTS

DVDD1 DVDD2

3

8

DVDD1

DVDD2

DGND

10

C1

C2

AVDD

C3

21

22

2

AVDD

AGND1

AGND2

DGND

AGND

24

25

23

VRT

VRX

VRB

1

RINP

GINP

BINP

C4

C5

Video

Inputs

28

27

C6

C7

C8

26

VRLC/VBIAS

C9

AGND

WM8194

AGND

20

19

18

17

16

15

14

13

OP[7]/SDO

DVDD1 DVDD2

AVDD

7

5

6

MCLK

OP[6]

Timing

Signals

VSMP

OP[5]

C10

C11

+

C12

+

Output

Data

Bus

RLC/ACYC

OP[4]

OP[3]

12

11

9

SCK

SDI

OP[2]

DGND

AGND

OP[1]

SEN

OP[0]

Interface

Controls

4

OEB

NOTES: 1. C1-9 should be fitted as close to WM8194 as possible.

2. AGND and DGND should be connected as close to WM8194 as possible.

Figure 24 External Components Diagram

COMPONENT

REFERENCE

SUGGESTED

VALUE

DESCRIPTION

C1

C2

100nF

10nF

De-coupling for DVDD1.

De-coupling for DVDD2.

De-coupling for AVDD.

C3

C4

High frequency de-coupling between VRT and VRB.

C5

1µF

Low frequency de-coupling between VRT and VRB (non-polarised).

De-coupling for VRB.

C6

100nF

10µF

C7

De-coupling for VRX.

C8

De-coupling for VRT.

C9

De-coupling for VRLC.

C10

C11

C12

Reservoir capacitor for DVDD1.

Reservoir capacitor for DVDD2.

Reservoir capacitor for AVDD.

10µF

Table 8 External Components Descriptions

AI Rev 2.0 September 2002

25

w

WM8194

Advanced Information

PACKAGE DIMENSIONS

D: 28 PIN SOICW 7.5mm (0.3") Wide Body, 1.27mm Lead Pitch

DM016.B

e

B

28

15

ZONE A

ZONE B

E

H

L

h x 45^o

1

14

D

α

C

A1

SEATING PLANE

-C-

A

0.10 (0.004)

Dimensions

(mm)

Dimensions

(Inches)

Symbols

MIN

2.35

0.10

0.33

0.23

17.70

MAX

2.65

0.30

0.51

0.32

18.10

MIN

MAX

A

A₁

B

C

D

e

0.0926

0.0040

0.0130

0.0091

0.6969

0.1043

0.0118

0.0200

0.0125

0.7125

1.27 BSC

0.0500 BSC

E

h

H

L

α

7.40

0.25

10.00

0.40

0^o

7.60

0.75

10.65

1.27

8^o

0.2914

0.0100

0.3940

0.0160

0^o

0.2992

0.0290

0.4190

0.0500

8^o

REF:

JEDEC.95, MS-013

NOTES:

A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS (INCHES).

B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.

C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM (0.010IN).

D. MEETS JEDEC.95 MS-013, VARIATION = AE. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.

E. PIN ONE INDICATORS WILL BE LOCATED IN EITHERZONE A ORZONE B.

AI Rev 2.0 September 2002

26

w

WM8194

Advanced Information

IMPORTANT NOTICE

Wolfson Microelectronics Ltd (WM) reserve the right to make changes to their products or to discontinue any product or

service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing

orders, that information being relied on is current. All products are sold subject to the WM terms and conditions of sale

supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation

of liability.

WM warrants performance of its products to the specifications applicable at the time of sale in accordance with WM’s

standard warranty. Testing and other quality control techniques are utilised to the extent WM deems necessary to support

this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by

government requirements.

In order to minimise risks associated with customer applications, adequate design and operating safeguards must be used

by the customer to minimise inherent or procedural hazards.

WM assumes no liability for applications assistance or customer product design. WM does not warrant or represent that

any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual

property right of WM covering or relating to any combination, machine, or process in which such products or services might

be or are used. WM’s publication of information regarding any third party’s products or services does not constitute WM’s

approval, license, warranty or endorsement thereof.

Reproduction of information from the WM web site or datasheets is permissable only if reproduction is without alteration

and is accompanied by all associated warranties, conditions, limitations and notices. Representation or reproduction of this

information with alteration voids all warranties provided for an associated WM product or service, is an unfair and deceptive

business practice, and WM is not responsible nor liable for any such use.

Resale of WM’s products or services with statements different from or beyond the parameters stated by WM for that

product or service voids all express and any implied warranties for the associated WM product or service, is an unfair and

deceptive business practice, and WM is not responsible nor liable for any such use.

ADDRESS:

Wolfson Microelectronics Ltd

20 Bernard Terrace

Edinburgh

EH8 9NX

United Kingdom

Tel :: +44 (0)131 272 7000

Fax :: +44 (0)131 272 7001

Email :: sales@wolfsonmicro.com

AI Rev 2.0 September 2002
