XWM8146CDW/V

型号：

XWM8146CDW/V

描述：

12位（8 + 4位）的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ]

品牌：

WOLFSON[ WOLFSON MICROELECTRONICS PLC ]

页数：

17 页

PDF大小：

195 K

下载PDF手册

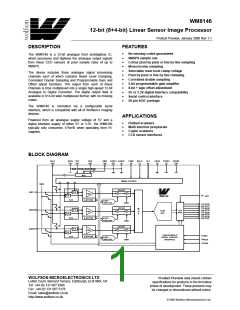

WM8146
12-bit (8+4-bit) Linear Sensor Image Processor
Product Preview, January 2000 Rev 1.1
DESCRIPTION
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
No missing codes guaranteed
6MSPS sample rate
Colour pixel by pixel or line by line sampling
Monochrome sampling
Selectable reset level clamp voltage
Pixel by pixel or line by line clamping
Correlated double sampling
5-bit programmable gain amplifier
8-bit + sign offset adjustment
5V or 3.3V digital interface compatibility
Serial control interface
The WM8146 is a 12-bit analogue front end/digitiser IC,
which processes and digitises the analogue output signals
from linear CCD sensors at pixel sample rates of up to
6MSPS.
The device includes three analogue signal processing
channels each of which contains Reset Level Clamping,
Correlated Double Sampling and Programmable Gain and
Offset adjust functions. The output from each of these
channels is time multiplexed into a single high-speed 12-bit
Analogue to Digital Converter. The digital output data is
available in 8+4-bit wide multiplexed format, with no missing
codes.
28-pin SOIC package
The WM8146 is controlled via
a configurable serial
interface, which is compatible with all of Wolfson’s imaging
devices.
APPLICATIONS
Powered from an analogue supply voltage of 5V and a
digital interface supply of either 5V or 3.3V, the WM8146
typically only consumes 175mW when operating from 5V
supplies.
•
•
•
•
Flatbed scanners
Multi-function peripherals
Copier scanners
CCD sensor interfaces
BLOCK DIAGRAM
VRLC
(26)
AVDD
(21)
VRT
(24)
VRB
(23)
VMID
(25)
AGND1 AGND2
(22) (2)
VSMP
(5)
MCLK
(7)
RLC
(6)
DGND
(8)
DVDD1
(3)
DVDD2
(10)
MUX
TIMING CONTROL
CL
RS
VS
VMID
OFFSET
RINP (1)
S/H
+
+
PGA
S/H
(4)
OEB
WM8146
CDS
5-BIT REG
8-BIT
+
VMID
SIGN DAC
(13) OP[0]
(14)
OP[1]
OFFSET
(15)
OP[2]
M
U
X
GINP(28)
S/H
8+4
MUX
(16) OP[3]
12-bit
ADC
+
+
PGA
(17)
(18)
(19)
(20)
OP[4]
OP[5]
OP[6]
OP[7]
S/H
CDS
5-BIT REG
8-BIT
+
SIGN DAC
VMID
OFFSET
S/H
BINP(27)
+
+
PGA
S/H
CONFIGURABLE
SERIAL CONTROL
INTERFACE
(11)SDI
CDS
5-BIT REG
8-BIT
SIGN DAC
+
(12)
VMID
SCK
(9) SEN
WOLFSON MICROELECTRONICS LTD
Product Preview data sheets contain
specifications for products in the formative
phase of development. These products may
be changed or discontinued without notice.
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
http://www.wolfson.co.uk
1999 Wolfson Microelectronics Ltd
.
WM8146
Product Preview
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
0 to 70oC
28-pin SOIC
RINP
1
2
3
4
5
6
7
8
28
27
26
25
24
23
22
21
GINP
BINP
XWM8146CDW/V
AGND2
DVDD1
OEB
VRLC
VMID
VRT
VSMP
RLC
VRB
MCLK
DGND
AGND1
AVDD
WM8146
SEN
DVDD2
SDI
9
20
19
18
17
16
15
OP[7]
OP[6]
OP[5]
OP[4]
OP[3]
OP[2]
10
11
12
13
14
SCK
OP[0]
OP[1]
PIN DESCRIPTION
PIN
1
NAME
RINP
TYPE
DESCRIPTION
Analogue input
Supply
Red channel input video.
Analogue ground (0V).
2
AGND2
DVDD1
3
Supply
Digital supply (5V) for logic and clock generator. This must be operated at the same
potential as AVDD.
4
5
6
OEB
VSMP
RLC
Digital input
Digital input
Digital input
Output Hi-Z control, all digital outputs disabled when OEB = 1.
Video sample synchronisation pulse.
Selects reset level clamp on a pixel-by-pixel basis – active high. Tie high to use on
every pixel.
7
MCLK
Digital input
Master clock. This clock is applied at N times the input pixel rate (N = 2, 3, 6, 8 or
any multiple of 2 thereafter depending on input sample mode).
8
DGND
SEN
Supply
Digital ground (0V).
9
Digital input
Supply
Enables the serial interface when high.
Digital supply (5V/3.3V), all digital I/O pins.
Serial interface data input.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
DVDD2
SDI
Digital input
Digital input
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Supply
SCK
Serial interface clock.
OP[0]
OP[1]
OP[2]
OP[3]
OP[4]
OP[5]
OP[6]
OP[7]
AVDD
AGND1
VRB
Digital multiplexed output data bus.
OEB = 0: ADC output data is available in (8+4bit) multiplexed format on pins OP[7] to
OP[0]. See Operational Timing diagrams for details.
OEB = 1: Output is Hi=Z.
Analogue supply (5V). This must be operated at the same potential as DVDD1.
Analogue ground (0V).
Supply
Analogue output Lower reference point of ADC reference string
This pin must be connected to AGND via a decoupling capacitor.
Analogue output Upper reference point of ADC reference string
This pin must be connected to AGND via a decoupling capacitor.
Analogue output Buffered mid-point of ADC reference string
This pin must be connected to AGND via a decoupling capacitor.
Analogue output Selectable analogue output voltage for RLC.
This pin must be connected to AGND via a decoupling capacitor.
Blue channel input video.
Green channel input video.
24
25
26
VRT
VMID
VRLC
27
28
BINP
GINP
Analogue input
Analogue input
PP Rev 1.1 January 2000
2
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
As per JEDEC specifications A112-A and A113-B, this product requires specific storage conditions prior to surface mount
assembly.
CONDITION
MIN
MAX
Analogue supply voltage: AVDD
Digital supply voltages: DVDD1 − 2
Digital ground: DGND
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND - 0.3V
GND + 7V
GND + 7V
GND + 0.3V
GND + 0.3V
DVDD2 + 0.3V
AVDD + 0.3V
AVDD + 0.3V
Analogue grounds: AGND1 − 2
Digital inputs, digital outputs and digital I/O pins
Analogue inputs (RINP, GINP, BINP)
Other pins
Operating temperature range: TA
Storage temperature
°
°
+70 C
0 C
°
°
+150 C
-65 C
Lead temperature (soldering, 10 sec)
Lead temperature (soldering, 2 mins)
°
+260 C
+183°C
Notes: 1. GND denotes the voltage of any ground pin.
2. AGND1, AGND2 and DGND pins are intended to be operated at the same potential. Differential voltages
between these pins will degrade performance.
RECOMMENDED OPERATING CONDITIONS
CONDITION
SYMBOL
TA
MIN
0
TYP
MAX
70
UNITS
Operating temperature range
Analogue supply voltage
Digital core supply voltage
Digital I/O supply voltage
°C
V
AVDD
DVDD1
4.75
4.75
5.0
5.0
5.25
5.25
V
5V I/O
DVDD2
DVDD2
4.75
2.97
5.0
3.3
5.25
3.63
V
V
3.3V I/O
PP Rev 1.1 January 2000
3
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
ELECTRICAL CHARACTERISTICS
Test Conditions
AVDD = DVDD1 = DVDD2 =4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated.
PARAMETER
SYMBOL
TEST
MIN
TYP
MAX
UNIT
CONDITIONS
Overall System Specification (including 12-bit ADC, PGA, Offset and CDS functions)
NO MISSING CODES GUARANTEED
Full-scale transition error
±25
±25
±100
±100
+1.5
mV
mV
Zero-scale transition error
Differential non-linearity
References
DNL
LSB
Upper reference voltage
Lower reference voltage
DAC reference voltage
RLC switching impedance
Reset level clamp options
VRT
VRB
AVDD = 5V
AVDD = 5V
AVDD = 5V
3.47
1.47
2.47
3.5
1.5
2.5
500
1.5
2.5
3.5
500
3.53
1.53
2.53
V
V
V
Ω
V
V
V
Ω
VMID
VRLC
AVDD = 5V
1.46
2.46
3.46
250
1.54
2.54
3.54
750
Voltage set by register
configuration
Impedance VRT to VRB
Input Multiplexer
2
CDS mode full scale input range
x denotes the channel selected
Vp-p
Gx
(VVS-VRS
)
Channel to channel gain matching
1
%
Offset DAC (monotonicity guaranteed)
Resolution
8 (+sign)
VMID-20
0
bits
mV
Zero code voltage
VMID+20
Full scale voltage error
Differential non-linearity
Integral non-linearity
Step size
20
0.5
1
mV
DNL
INL
0.1
0.25
4.9
LSB
LSB
DACRNG=0
DACRNG=1
DACRNG=0
DACRNG=1
mV/step
mV/step
7.4
Output voltage
+/-1.25
+/-1.875
V
V
Programmable Gain Amplifier (monotonicity guaranteed)
Resolution
5
bits
V/V
V/V
%
Max gain, each channel
Min gain, each channel
Gain error, each channel
DIGITAL SPECIFICATIONS
Digital Inputs
GMAX
GMIN
8.25
0.5
1
High level input voltage
VIH
VIL
0.8
DVDD2
V
V
Low level input voltage
0.2
DVDD2
High level input current
Low level input current
Input capacitance
IIH
IIL
CI
1
1
µA
µA
pF
5
Digital Outputs
High level output voltage
VOH
VOL
IOZ
IOH = 1mA
IOL = 1mA
DVDD2 -
0.5
V
V
Low level output voltage
DGND +
0.5
High impedance output current
1
µA
PP Rev 1.1 January 2000
4
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
Test Conditions
AVDD = DVDD1 = DVDD2 =4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated.
PARAMETER
SYMBOL
TEST
MIN
TYP
MAX
UNIT
CONDITIONS
Supply Currents
Total supply current − active
35
5
mA
mA
Supply current − full power down
mode
INPUT VIDEO SAMPLING
tPER
tMCLKH tMCLKL
MCLK
tVSMPH
tVSMPSU
VSMP
INPUT
tVSU
tVH
tRSU
tRH
VIDEO
Figure 1 Input Video Timing
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
MCLK period
tPER
83.3
ns
ns
ns
ns
ns
ns
ns
ns
ns
MCLK high period
MCLK low period
tMCLKH
tMCLKL
tVSMPSU
tVSMPH
tVSU
37.5
37.5
10
VSMP set-up time
VSMP hold time
10
Video level set-up time
Video level hold time
Reset level set-up time
Reset level hold time
10
tVH
15
tRSU
10
tRH
15
Notes: 1.
t
VSU and tRSU denote the set-up time required after the input video signal has settled.
2.
Parameters are measured at 50% of the rising/falling edge.
OUTPUT DATA TIMING
MCLK
tPD
OP[7:0]
Figure 2 Output Data Timing
PP Rev 1.1 January 2000
5
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
OEB
tPZE
tPEZ
OP[7:0]
Hi-Z
Hi-Z
Figure 3 Output Data Enable Timing
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
tPD
TEST CONDITIONS
MIN
TYP
MAX
75
UNITS
ns
Output propagation delay
Output enable time
Output disable time
IOH = 1mA, IOL = 1mA
tPZE
50
ns
tPEZ
25
ns
SERIAL INTERFACE
tSPER
tSCKL tSCKH
SCK
tSSU
tSH
SDI
tSCE
tSEW tSEC
SEN
Figure 4 Serial Interface Timing
Test Conditions
AVDD = DVDD1 = DVDD2 = 4.75 to 5.25V, AGND = DGND = 0V, TA = 0 to 70°C, MCLK = 12MHz unless otherwise stated
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
SCK period
tSPER
83.3
ns
SCK high
tSCKH
tSCKL
tSSU
tSH
37.5
37.5
10
ns
ns
ns
ns
ns
ns
ns
SCK low
SDI set-up time
SDI hold time
10
SCK to SEN set-up time
SEN to SCK set-up time
SEN pulse width
tSCE
tSEC
tSEW
20
20
50
Note: Parameters are measured at 50% of the rising/falling edge.
PP Rev 1.1 January 2000
6
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
DEVICE DESCRIPTION
GENERAL OPERATION
A block diagram of the device showing the signal path is presented on Page 1.
The WM8146 samples the three inputs (RINP, GINP and BINP) simultaneously. The device then
processes the sampled video signal with respect to the video reset level or the reference level VMID
using three processing channels.
Each processing channel consists of an input sampling block with optional reset level clamping
(RLC) and correlated double sampling (CDS), a 5-bit programmable gain amplifier (PGA) and an 8-
bit (+sign) programmable offset DAC.
For colour operation, the resulting analogue outputs from the three channels are multiplexed into a
12-bit ADC. For monochrome operation the resulting analogue output from the selected channel only
is multiplexed into the ADC. The ADC then converts the analogue signal to a 12-bit digital word. The
digital output from the ADC is presented on an 8-bit wide output bus, in 8+4-bit multiplexed format.
Internal control registers determine the configuration of the device, including the gain and offset
applied to each channel. These registers are programmable via the serial interface.
RESET LEVEL CLAMPING (RLC)
CONFIGURATION
To ensure that the signal applied to the WM8146 lies within its input range, the CCD output signal is
usually level shifted by a.c. coupling through a capacitor, CIN. The RLC circuit clamps the WM8146
side of this capacitor to a selected voltage during the CCD reset level. The RLC voltage VRLC, is
selected by control bits RLC[1:0] in setup register 3.
A typical input configuration demonstrating reset level clamping and CDS circuitry is shown in Figure
5. A clamp pulse, CL, is generated from MCLK and VSMP by the timing control block. When CL is
active the voltage on the WM8146 side of CIN, at RINP, is forced to the RLC voltage VRLC by switch
1. When the CL pulse turns off, the voltage at RINP initially remains at VRLC but any subsequent
variation in sensor voltage (from reset to video level) will couple through CIN to RINP.
Reset level clamping is compatible with both CDS and non-CDS operating modes, as selected by
switch 2.
RLC
MCLK VSMP
TIMING CONTROL
FROM CONTROL
INTERFACE
CL
RS
VS
CIN
+
-
S/H
TO PGA
+
RINP
2
S/H
1
RLC
CDS
INPUT SAMPLING
BLOCK FOR RED
CHANNEL
CDS
FROM CONTROL
INTERFACE
VRLC
VRLC
VMID
AGND
Figure 5 Reset Level Clamping and CDS Circuitry
PP Rev 1.1 January 2000
7
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
TIMING
Figure 6 illustrates the use of the RLC pin, MCLK and VSMP to control the timing of the CL pulse for
a typical CCD waveform. The CL pulse is applied during the reset period.
The input signal applied to the RLC pin is sampled on the positive edge of MCLK that occurs during
each VSMP pulse. The sampled level, high (or low) controls the presence (or absence) of the internal
CL pulse on the next reset level. The position of CL can be adjusted by using control bits
CDSREF[1:0], as shown in Figure 7.
The VRLC pin outputs the analogue RLC voltage selected via control set-up register 3 bits RLC[1:0].
MCLK
VSMP
1
X
X
0
X
X
0
RLC
Programmable Delay
CL
(CDSREF = 01)
INPUT VIDEO
RGB
RGB
RGB
No RLC on this Pixel
RLC on this Pixel
Figure 6 Relationship of RLC Pin, MCLK and VSMP to Internal Clamp Pulse, CL
CDS/NON-CDS PROCESSING
For CCD type input signals, the signal may be processed using CDS, which will remove pixel-by-pixel
common mode noise. For CDS operation, the video level is processed with respect to the video reset
level, regardless of whether RLC has been performed. To sample using CDS, control bit CDS must
be set to 1 (default), this controls switch 2 (Figure 5) and causes the signal reference to come from
the video reset level. The time at which the reset level is sampled, by clock Rs/CL, is adjustable by
programming control bits CDSREF[1:0], as shown in Figure 7 .
For CIS type sensor signals, non-CDS processing is used. In this case, the video level is processed
with respect to the reference voltage VMID.
MCLK
VSMP
VS
RS/CL (CDSREF = 00)
RS/CL (CDSREF = 01)
RS/CL (CDSREF = 10)
RS/CL (CDSREF = 11)
Figure 7 Reset Sample and Clamp Timing
PP Rev 1.1 January 2000
8
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
OFFSET ADJUST AND PROGRAMMABLE GAIN
The output from the CDS block is a differential signal, which is amplified by a 5-bit PGA then added
to the output of an 8-bit (+sign) offset DAC to compensate for sensor d.c. offsets. The gain and offset
for each channel are independently programmable by writing to control bits DAC[7:0] and PGA[4:0].
The following diagram shows the signal path through the device.
OUTPUT
INVERT
BLOCK
INPUT
SAMPLING
BLOCK
TO MULTIPLEXER
FOR 8-BIT OUTPUT
D2
OFFSET DAC
BLOCK
PGA
BLOCK
ADC BLOCK
V1
V2
V3
D1
V 3
x (4096/VFS) +2047
X
+
VIN
+
+
digital
analog
-
CDS
CDS
= 1
D2
=
D1 if INVOP = 0
D2 =4095-D1 if INVOP
= 1
VRESET
PGA gain
= 0.5+(PGA[4:0]*0.25)
=
0
A
VMID
Offset
DAC
V IN is RINP or GINP or BINP
V RESET is VIN sampled during reset clamp
V MID is AVDD/2
(1-2*DSIGN)*(DAC[7:0]/255)*(V MID/2
+ VMID/4*DACRNG)
CDS, DAC[7:0], DSIGN, DACRNG, PGA[4:0]
and INVOP are set by programming internal
control registers.
CDS=1 for CDS,
0 for non-CDS
Figure 8 Signal Flow Diagram
The following equations enable the user to calculate the settings required for the PGAs and offset
DACs.
INPUT SAMPLING AND REFERENCING
If CDS=1, the previously sampled reset level, VRESET, is subtracted from the input video signal VIN
(i.e. CDS operation).
V1 = VIN - VRESET
If CDS=0, the simultaneously sampled VMID is subtracted instead (i.e. non-CDS operation).
V1 = VIN - VMID
GAIN ADJUST
The signal is then multiplied by the PGA gain, approximately 0.5 to 8.25 in 32 equal gain steps.
V2 = V1 * G
= V1 * (0.5+(PGA[4:0]*0.25))
OFFSET (BLACK-LEVEL) ADJUST
The resultant signal is added to the Offset DAC output which has a range of VMID/2 (or 1.5*VMID/2 if
the DACRNG bit is set).
V3 = V2 + VDAC
= V2 + [(1-2*DSIGN) * DAC_CODE/255 * (VMID/2 + VMID/4 * DACRNG)]
ANALOGUE TO DIGITAL CONVERSION
The analogue signal is then converted to a 12-bit unsigned number. This is equivalent to a
multiplication by 4096/(VFS), where VFS = 2V .
D1 == INT{ (V3/VFS) * 4096 } + 2047
At this stage, the input to the ADC should be between -1V and +1V, so D1[11:0] should lie between
-2047 and +2048. If the input is over-range, it will be clipped to within the range (-2047,2048).
2047 is added to the ADC output, to give code 2047 for zero input signal to the ADC. This is
equivalent to the +VMID shown in the block diagram on page 1.
PP Rev 1.1 January 2000
9
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
DIGITAL POLARITY ADJUST
The polarity of the digital output may be inverted by control bit INVOP. If INVOP=0, negative-going
input video will give negative-going digital output. If INVOP=1, negative-going video will give positive-
going digital output.
D2 = D1
…
…
(INVOP=0)
(INVOP=1)
D2 = 4095 – D1
DIGITAL CONTROL AND I/O FUNCTIONS
OUTPUT DATA
Data appears on the pins OP[7:0] and changes after every negative-going MCLK edge, as shown in
Figure 9 .
tPD
MCLK
A
B
OP[7:0]
Figure 9 WM8146 Output Timing
A = d11, d10, d9, d8, d7, d6, d5, d4
Pin OP[7] to OP[0]
Pin OP[7] to OP[0]
B = d3, d2, d1, d0, 0, CC[1], CC[0], OVRNG
Where
CC1/CC0: These bits show from which channel the current output was taken. 00 = RED,
01 = GREEN, 10 = BLUE.
OVRNG: This bit indicates if the current output pixel has exceeded the maximum or minimum range
during processing. 1 = out of range, 0 = within range.
CONTROL INTERFACE
The internal control registers are programmable via the serial digital control interface.
REGISTER WRITE
The serial interface involves three dedicated pins, SCK, SDI, SEN (refer to Figure 10). A six-bit
address is clocked in through SDI MSB first followed by an eight-bit data word, also MSB first. Each
bit is latched on the rising edge of SCK. Once the data has been shifted into the device, a pulse is
applied to SEN to transfer the data to the appropriate internal register. Note all valid registers have
address bit a4 equal to 0.
SCK
a5
0
a3
a2
a1
a0
b7
b6
b5
b4
b3
b2
b1
b0
SDI
Address
Data Word
SEN
Figure 10 Register Write Timing
TIMING REQUIREMENTS
To use this device a master clock (MCLK) of up to 12MHz and a per-pixel synchronisation clock
(VSMP) of up to 6MHz are required. These clocks drive a timing control block, which produces
PP Rev 1.1 January 2000
10
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
internal signals to control the sampling of the video signal. MCLK to VSMP ratios and maximum
sample rates for the various modes are shown in Table 1.
POWER SUPPLY
The WM8146 can run from a 5V single supply or from split 5V (core) and 3.3V (digital interface)
supplies.
OPERATING MODES
Table 1 summarises the most commonly used modes, the clock waveforms required and the register
contents required for CDS and non-CDS operation.
MODE DESCRIPTION
CDS
MAX
SENSOR
INTERFACE
DESCRIPTION
TIMING
REQUIRE-
MENTS
REGISTER
CONTENTS
WITH
REGISTER
CONTENTS
WITH
AVAILABLE SAMPLE
RATE
CONTROL
BIT CDS=1
CONTROL
BIT CDS=0
1
Colour
Pixel-by-Pixel
Yes
2MSPS
The 3 input channels
are sampled in
MCLK max =
12MHz
SetReg1:
03(hex)
SetReg1:
01(hex)
parallel. The signal is
then gain and offset
adjusted before being
multiplexed into a
single data stream and
converted by the ADC,
giving an output data
rate of 6MSPS max.
As mode 1 except:
Only one input
MCLK:VSMP
ratio is 6:1
2
Monochrome/
Colour
Yes
2MSPS
MCLK max =
12MHz
SetReg1:
07(hex)
SetReg1:
05(hex)
Line-by-Line
channel at a time
is continuously
SetReg3 bits
7:6
SetReg3
bits 7:6
MCLK:VSMP
ratio is 6:1
sampled.
determine
determine
which input is which input
to be
is to be
sampled
sampled
3
4
Fast
Monochrome/
Colour
Yes
No
4MSPS
6MSPS
Identical to mode 2
Identical to mode 2
MCLK max =
12MHz
MCLK:VSMP
ratio is 3:1
Identical to
Identical to
mode 2
mode 2 plus
SetReg3: bits
5:4 must be
set to 0(hex)
Line-by-Line
Maximum
speed
MCLK max =
12MHz
CDS not
possible
SetReg1:
45(hex)
Monochrome/
Colour
SetReg3
bits 7:6
MCLK:VSMP
ratio is 2:1
Line-by-Line
determine
which input
is to be
sampled
5
6
Slow Colour
Pixel-by-Pixel
Yes
Yes
1.5MSPS Identical to mode 1
1.5MSPS Identical to mode 2
MCLK max =
12MHz
MCLK:VSMP
ratio is
Identical to
mode 1
Identical to
mode 1
2n:1, n ≥ 4
Slow
Monochrome/
Colour
MCLK max =
12MHz
MCLK:VSMP
ratio is
Identical to
mode 2
Identical to
mode 2
Line-by-Line
2n:1, n ≥ 4
Table 1 WM8146 Operating Modes
PP Rev 1.1 January 2000
11
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
OPERATING MODE TIMING DIAGRAMS
The following diagrams output data, MCLK, VSMP and input video requirements for operation of the
most commonly used modes as shown in Table 1 . The diagrams are identical for both CDS and
non-CDS operation. Outputs from RINP, GINP and BINP are shown as R, G and B respectively. X
denotes invalid data.
16.5 MCLK PERIODS
MCLK
VSMP
INPUT
VIDEO
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
OP[7:0]
Figure 11 Mode 1 Operation
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
OP[7:0]
Figure 12 Mode 2 Operation
23.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
OP[7:0]
Figure 13 Mode 3 Operation
PP Rev 1.1 January 2000
12
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0]
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
RA
RB
Figure 14 Mode 4 Operation
16.5 MCLK PERIODS
MCLK
VSMP
INPUT
VIDEO
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
BA
BB
RA
RB
GA
GB
X
X
X
X
X
X
X
X
OP[7:0]
Figure 15 Mode 5 Operation (MCLK:VSMP Ratio = 8:1)
16.5 MCLK PERIODS
MCLK
VSMP
INPUT VIDEO
OP[7:0])
RA
RB
RA
RB
RA
RB
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Figure 16 Mode 6 Operation (MCLK:VSMP Ratio = 8:1)
PP Rev 1.1 January 2000
13
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
DEVICE CONFIGURATION
REGISTER MAP
Table 2 describes the location of each control bit used to determine the operation of the WM8146.
The register map is programmed by writing the required codes to the appropriate addresses via the
serial interface.
Address
<a5:a0>
000001
000010
000011
000100
000101
100000
100001
100010
100011
100100
100101
100110
100111
101000
101001
101010
101011
Description
Def
(hex)
03
00
11
BIT
b7
b6
b5
b4
b3
b2
b1
b0
Setup Register 1
Setup Register 2
Setup Register 3
Software Reset
VSMP6M
MONO
INVOP
CDS
ENADC
CHAN[1]
CHAN[0]
CDSREF[1]
CDSREF[0]
RLC[1]
RLC[0]
00
00
00
00
00
00
Setup Register 4
DAC Value (Red)
DAC Value (Green)
DAC Value (Blue)
DAC Value (R+G+B)
DAC Sign (Red)
DAC Sign (Green)
DAC Sign (Blue)
DAC Sign (R+G+B)
PGA Gain (Red)
PGA Gain (Green)
PGA Gain (Blue)
PGA Gain (R+G+B)
DACRNG
DAC[1]
DAC[1]
DAC[1]
DAC[1]
DAC[7]
DAC[7]
DAC[7]
DAC[7]
DAC[6]
DAC[6]
DAC[6]
DAC[6]
DAC[5]
DAC[5]
DAC[5]
DAC[5]
DAC[4]
DAC[4]
DAC[4]
DAC[4]
DAC[3]
DAC[3]
DAC[3]
DAC[3]
DAC[2]
DAC[2]
DAC[2]
DAC[2]
DAC[0]
DAC[0]
DAC[0]
DAC[0]
DSIGN
DSIGN
DSIGN
DSIGN
PGA[0]
PGA[0]
PGA[0]
PGA[0]
00
00
00
00
00
PGA[4]
PGA[4]
PGA[4]
PGA[4]
PGA[3]
PGA[3]
PGA[3]
PGA[3]
PGA[2]
PGA[2]
PGA[2]
PGA[2]
PGA[1]
PGA[1]
PGA[1]
PGA[1]
00
00
00
Table 2 Register Map
PP Rev 1.1 January 2000
14
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
REGISTER MAP DESCRIPTION
REGISTER
BIT
NO
BIT NAME(S)
DEFAULT
DESCRIPTION
Setup
Register 1
0
1
ENADC
CDS
1
1
ADC standby control : 0=standby, 1=active
Select correlated double sampling mode:
0=single ended mode, 1=CDS mode
2
6
MONO
0
0
Mono/colour select: 0=colour, 1=monchrome operation
VSMP6M
Required when VSMP at 6MSPS:
0=other mode, 1=VSMP at 6MSPS
Setup
2
INVOP
0
Digitally inverts the polarity of input data.
Register 2
0= negative going video gives negative going output,
1=negative-going video gives positive going output data.
Setup
Register 3
1:0
5:4
RLC[1:0]
01
01
Reset Level Clamp Voltage:
00 = 1.5V; 01 = 2.5V; 10 = 1.5V; 11 = Reserved
CDS mode reset timing adjust
00 = advance 1 MCLK period
01 = Normal
CDSREF[1:0]
10 = Retard 1 MCLK period
11 = Retard 2 MCLK periods
Monochrome mode channel select
00 = Red channel select
7:6
CHAN[1:0]
00
01 = Green channel select
10 = Blue channel select
11 = Reserved
Software
Reset
Write any value to the Software Reset register to cause all
cells to be reset.
Setup
Register 4
1
0
DACRNG
DSIGN
0
0
Offset DAC Output Range:
0 = DAC Output range =VMID/2 = +/-1.25V
1 = DAC output Range = 1.5*VMID/2 = +/-1.875V
Polarity of Offset DAC output
Registers
100100 to
0 = Positive Output (Offset added)
100111
1 = Negative Output (Offset removed)
Table 3 Register Control Bits
PP Rev 1.1 January 2000
15
WOLFSON MICROELECTRONICS LTD
WM8146
Product Preview
RECOMMENDED EXTERNAL COMPONENTS
DVDD1 (5V)
C1
DVDD2 (3.3V or 5V)
3
8
C2
C3
C4
DVDD1
DVDD2
DGND
10
AVDD (5V)
21
22
2
AVDD
AGND1
AGND2
C6
C5
AGND
24
25
23
AGND
VRT
VMID
VRB
1
RINP
GINP
BINP
VIDEO
INPUTS
28
27
C7
C8
C9
C10 C11 C12
26
VRLC
C13
C14
AGND
WM8146
AGND
20
19
18
17
16
15
14
13
OP[7]
OP[6]
OP[5]
OP[4]
OP[3]
OP[2]
OP[1]
OP[0]
7
5
6
MCLK
VSMP
RLC
TIMING
SIGNALS
OUTPUT
DATA
BUS
12
11
9
SCK
SDI
SEN
INTERFACE
CONTROLS
4
OEB
NOTES: 1. C1-14 should be fitted as close to WM8146 as possible.
2. AGND and DGND should be connected as close to WM8146 as possible.
Figure 17 External Components Diagram
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1
C2
100nF
10µF
De-coupling for DVDD1.
Reservoir capacitor for DVDD1.
De-coupling for DVDD2.
C3
100nF
10µF
C4
Reservoir capacitor for DVDD2
De-coupling for AVDD.
C5
100nF
10µF
C6
Reservoir capacitor for AVDD
De-coupling for VRB..
C7
100nF
10µF
C8
Reservoir capacitor for VRB.
De-coupling for VMID
C9
100nF
22µF
C10
C11
C12
C13
C14
Reservoir capacitor for VMID.
De-coupling for VRT
100nF
10µF
Reservoir capacitor for VRT
De-coupling capacitor for VRLC
Reservoir capacitor VRLC
100nF
10µF
Table 4 External Components Descriptions
PP Rev 1.1 January 2000
16
WOLFSON MICROELECTRONICS LTD
Product Preview
WM8146
PACKAGE DIMENSIONS
D: 28 PIN SOICW 7.5mm (0.3") Wide Body, 1.27mm Lead Pitch
DM016.B
e
B
28
15
ZONE A
ZONE B
E
H
L
h x 45o
1
14
D
α
C
A1
SEATING PLANE
-C-
A
0.10 (0.004)
Dimensions
(mm)
Dimensions
(Inches)
Symbols
MIN
2.35
0.10
0.33
0.23
17.70
MAX
2.65
0.30
0.51
0.32
18.10
MIN
MAX
A
A1
B
C
D
e
0.0926
0.0040
0.0130
0.0091
0.6969
0.1043
0.0118
0.0200
0.0125
0.7125
1.27 BSC
0.0500 BSC
E
h
H
L
7.40
0.25
10.00
0.40
0o
7.60
0.75
10.65
1.27
8o
0.2914
0.0100
0.3940
0.0160
0o
0.2992
0.0290
0.4190
0.0500
8o
α
REF:
JEDEC.95, MS-013
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS (INCHES).
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.25MM (0.010IN).
D. MEETS JEDEC.95 MS-013, VARIATION = AE. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
E. PIN ONE INDICATORS WILL BE LOCATED IN EITHER ZONE
A OR ZONE B.
PP Rev 1.1 January 2000
17
WOLFSON MICROELECTRONICS LTD
厂商 型号 描述 页数 下载

WOLFSON

 		XWM8148CFT/V 12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ] 43 页

WOLFSON

 		XWM8170CFT/V 3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ] 41 页

WOLFSON

 		XWM8181CDW 12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ] 14 页

WOLFSON

 		XWM8190CDW/V （ 8 + 6 ）位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ] 25 页

WOLFSON

 		XWM8191CFT 14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ] 27 页

WOLFSON

 		XWM8192 （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

WOLFSON

 		XWM8192CDW/V （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

CIRRUS

 		XWM8194CDW/V [ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ] 27 页

WOLFSON

 		XWM81955CFT/RV 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 33 页

WOLFSON

 		XWM8195CFT 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 31 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201711s
