IXTF1R4N450

型号：

IXTF1R4N450

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

192 K

下载PDF手册

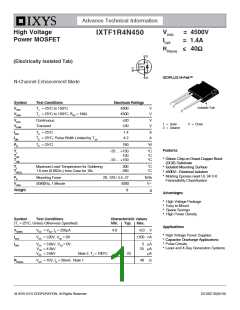

Advance Technical Information
High Voltage
Power MOSFET
VDSS
ID25
= 4500V
= 1.4A
IXTF1R4N450
RDS(on)  40
(Electrically Isolated Tab)
ISOPLUS i4-PakTM
N-Channel Enhancement Mode
Symbol
VDSS
Test Conditions
Maximum Ratings
1
2
Isolated Tab
TJ = 25C to 150C
TJ = 25C to 150C, RGS = 1M
4500
4500
V
V
5
VDGR
VGSS
VGSM
Continuous
Transient
20
30
V
V
1 = Gate
2 = Source
5 = Drain
ID25
IDM
TC = 25C
TC = 25C, Pulse Width Limited by TJM
1.4
4.2
A
A
PD
TC = 25C
190
W
Features
TJ
TJM
Tstg
- 55 ... +150
150
- 55 ... +150
C
C
C
Silicon Chip on Direct-Copper Bond
(DCB) Substrate
Isolated Mounting Surface
4500V~ Electrical Isolation
Molding Epoxies meet UL 94 V-0
Flammability Classification
TL
TSOLD
Maximum Lead Temperature for Soldering
1.6 mm (0.062in.) from Case for 10s
300
260
C
C
FC
Mounting Force
20..120 / 4.5..27
N/lb
V~
g
VISOL
Weight
50/60Hz, 1 Minute
4500
6
Advantages
High Voltage Package
Easy to Mount
Space Savings
High Power Density
Symbol
Test Conditions
Characteristic Values
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ. Max.
Applications
VGS(th)
IGSS
VDS = VGS, ID = 250A
VGS = 20V, VDS = 0V
4.0
6.0
V
High Voltage Power Supplies
Capacitor Discharge Applications
Pulse Circuits
100 nA
A
IDSS
VDS = 3.6kV, VGS = 0V
VDS = 4.5kV
5
Laser and X-Ray Generation Systems
25 μA
VDS = 3.6kV
Note 2, TJ = 100C
25
μA
RDS(on)
VGS = 10V, ID = 50mA, Note 1
40
DS100710(02/16)
© 2016 IXYS CORPORATION, All Rights Reserved
IXTF1R4N450
Symbol
Test Conditions
Characteristic Values
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 50V, ID = 700mA, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
Gate Input Resistance
1.2
2.0
S
Ciss
Coss
Crss
3300
134
52
pF
pF
pF
RGi
7.8
td(on)
tr
td(off)
tf
44
60
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 500V, ID = 0.5 • ID25
RG = 10(External)
126
170
Qg(on)
Qgs
88
16
42
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
RthJC
RthCS
0.65C/W
C/W
0.15
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max
IS
VGS = 0V, Note1
1.4
A
A
ISM
VSD
Repetitive, pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
5.6
1.5
V
trr
QRM
IRM
660
4.6
14.0
ns
IF = 1A, -di/dt = 100A/μs
μC
VR = 100V
A
Notes: 1. Pulse test, t 300s, duty cycle, d 2%.
2. Part must be heatsunk for high-temp IDSS measurement.
ADVANCE TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are derived
from a subjective evaluation of the design, based upon prior knowledge and experience, and constitute a
"considered reflection" of the anticipated result. IXYS reserves the right to change limits, test
conditions, and dimensions without notice.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXTF1R4N450
Fig. 2. Output Characteristics @ TJ = 125ºC
Fig. 1. Output Characteristics @ TJ = 25ºC
1.0
0.8
0.6
0.4
0.2
0.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
V
= 10V
GS
V
= 10V
GS
7V
6V
6.5V
6V
5.5V
5V
0
10
20
30
40
50
60
70
80
0
10
20
30
40
50
60
70
80
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 0.7A Value
vs. Drain Current
Fig. 3. RDS(on) Normalized to ID = 0.7A Value
vs. Junction Temperature
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
V
= 10V
GS
V
= 10V
GS
T = 125ºC
J
I
= 1.4A
D
I
= 0.7A
D
T = 25ºC
J
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
-50
-25
0
25
50
75
100
125
150
ID - Amperes
TJ - Degrees Centigrade
Fig. 5. Maximum Drain Current vs. Case Temperature
Fig. 6. Input Admittance
1.6
1.4
1.2
1
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
T
J
= 125ºC
25ºC
- 40ºC
0.8
0.6
0.4
0.2
0
-50
-25
0
25
50
75
100
125
150
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
TC - Degrees Centigrade
VGS - Volts
© 2016 IXYS CORPORATION, All Rights Reserved
IXTF1R4N450
Fig. 7. Transconductance
Fig. 8. Forward Voltage Drop of Intrinsic Diode
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
T
= - 40ºC
25ºC
J
125ºC
T
J
= 125ºC
T
J
= 25ºC
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
ID - Amperes
VSD - Volts
Fig. 9. Gate Charge
Fig. 10. Capacitance
10
9
8
7
6
5
4
3
2
1
0
10,000
1,000
100
f = 1 MHz
V
= 1000V
DS
I
I
= 0 .7A
D
G
= 10mA
C
C
iss
oss
C
rss
10
0
5
10
15
20
25
30
35
40
0
10
20
30
40
50
60
70
80
90
VDS - Volts
QG - NanoCoulombs
Fig. 12. Maximum Transient Thermal Impedance
Fig. 11. Forward-Bias Safe Operating Area
1
10
R
DS(
on
Limit
)
25µs
100µs
1
0.1
1ms
0.1
0.01
T = 150ºC
J
10ms
T
C
= 25ºC
Single Pulse
DC
100ms
0.01
0.0001
0.001
0.01
0.1
1
10
100
100
1,000
10,000
VDS - Volts
Pulse Width - Seconds
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXTF1R4N450
ISOPLUS i4-Pak Outline
1 = Gate
2 = Source
3,4 = Drain
© 2016 IXYS CORPORATION, All Rights Reserved
IXYS REF: T_1R4N450(H8-P640) 2-25-16
