2Y2C307-82-RN

型号:

2Y2C307-82-RN

品牌:

FOXCONN[ FOXCONN ]

页数:

1 页

PDF大小:

185 K

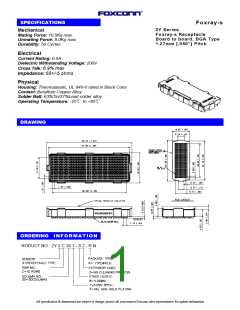

SPECIFICATIONS
Foxray-s
2Y Series
Foxray-s Receptacle
Board to board, BGA Type
1.27mm [.050”] Pitch
Mechanical
Mating Force: 10.5Kg max.
Unmating Force: 8.0Kg max
Durability: 50 Cycles
Electrical
Current Rating: 0.5A
Dielectric Withstanding Voltage: 200V
Cross Talk: 6.9% max
Impedance: 55+/-5 ohms
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Beryllium Copper Alloy
Solder Ball: 63%Tin/37%Lead solder alloy
Operating Temperature: -25to +85℃
DRAWING
ORDERING INFORMATION
RODUCT NO.: 2Y 2 C 30 7 - 8 2 - R N
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
