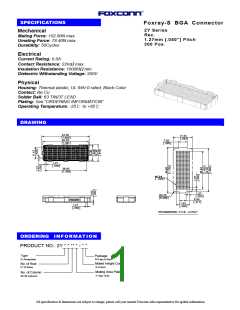

SPECIFICATIONS
Foxray-S BGA Connector
2Y Series
Rec.
1.27mm [.050”] Pitch
300 Pos.
Mechanical
Mating Force: 102.90N max.
Umating Force: 78.40N max.
Durability: 50Cycles
Electrical
Current Rating: 0.5A
Contact Resistance: 22mΩ max.
Insulation Resistance: 1000MΩ min.
Dielectric Withstanding Voltage: 200V
Physical
Housing: Thermal plastic, UL 94V-0 rated, Black Color
Contact: Be Cu
Solder Ball: 63 TIN/37 LEAD
Plating: See “ORDERING INFORMATION”
Operating Temperature: -25℃ to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: 2Y * * ** * - * *
Type
2= Receptacle
Package
R=Tape & Reel
Mated Height Code
No. of Row
C=10 Rows
8=5.5mm
Mating Area Plating
7=16 " Gold
No. of Column
30=30 Columns
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
