WT-T169USD-K852

型号：

WT-T169USD-K852

品牌：

WEITRON[ WEITRON TECHNOLOGY ]

页数：

9 页

PDF大小：

1330 K

下载PDF手册

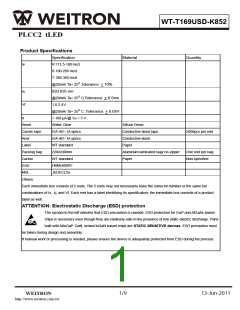

WT-T169USD-K852
PLCC2 tLED
Product Specifications
Specification
Material
Quantity
Iv
R:112.5-180 mcd
S:180-285 mcd
T: 285-360 mcd
@20mA/ Ta= 25O ;tolerance: + 10%
λD
620-635 nm
@20mA/ Ta= 25O C;Tolerance: + 0.5nm
1.6-2.4V
Vf
@20mA/ Ta= 25O C ;Tolerance: + 0.05V
< 100 µA @ VR = 5 V
Water Clear
Ir
Resin
Silicon Resin
Carrier tape
Reel
EIA 481-1A specs
EIA 481-1A specs
WT standard
Conductive black tape
Conductive black
Paper
2000pcs per reel
Label
Packing bag
Carton
ESD
220x240mm
Aluminum laminated bag/ no-zipper
Paper
One reel per bag
Non-specified
WT standard
HBM±8000V
MSL
JEDECL2a
Others:
Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin
combinations of Iv, λD and Vf. Each reel has a label identifying its specification; the immediate box consists of a product
label as well.
ATTENTION: Electrostatic Discharge (ESD) protection
The symbol to the left denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based
chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts
built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE devices. ESD precaution must
be taken during design and assembly.
If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.
13-Jun-2011
1/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Label Spec.:
▓Customer P/N: To Be Defined
▓WEITRON P/N
W T - T 1 6 9 USD-KXXX
Series Name
Emitting Color
USD:Ultra Bright Red @20mA
Kxxx: Product Code
WT-T169 ( PLCC2 tLED)
3.2(L)x2.7(W)x1.8(H) mm
▓ Lot No.
13-Jun-2011
2/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
▓ Luminous Intensity (Iv) Bin:
Color
Bin Code
Spec. Range
112.5-180 mcd
180-285 mcd
285-360 mcd
R
S
T
USD
▓ Dominant Wavelength (λD) Bin:
Color
USD
Bin Code
-
Spec. Range
620-635 nm
▓ Forward Voltage (Vf) Bin:
Color
USD
Bin Code
-
Spec. Range
1.6-2.4 V
13-Jun-2011
3/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Product Features
Electro-Optical Characteristics
o
(IF @ 20mA, Ta 25 C)
λ (nm)
VF(V)
I*V(mcd)
Code for parts
Lighting Color
λ
λ
△λ
typ
max
Typical
112.5
D
P
WT-T169USD-K852 Ultar Bright Red
AlInGaP
1.9
2.4
622
636
17
Package Outline Dimension and Recommended Soldering Pattern for Reflow Soldering
Unit: mm Tolerance: +/-0.1
Outline Dim.
Soldering Pattern
Soldering terminals may shift in the x, y direction.
Absolute Maximum Ratings
o
(Ta 25 C)
TST (oC)
Series
Pd (mW)
72
IF (mA)
30
IFP (mA)**
200
VR (V)
5
IR (uA)
TOP (oC)
T169USD-K852
<100@ VR = 5
-40~+100
-40~+100
** Condition for IFP is pulse of 1/10 duty and 0.1msec width
13-Jun-2011
4/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Characteristics
Directive Characteristics
Directive Characteristics
13-Jun-2011
5/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Packaging Tape, Reel, and Packing Model
Tape Dimension
Part No.
WT-T 169
Dim. A
Dim. B
Dim. C
Q’ty/Reel
3.73±0.10
2.95±0.10
2.12±0.10
2K
Unit: mm
13-Jun-2011
6/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Reel Dimension
Packing
5 boxes per carton is available depending on shipment quantity.
13-Jun-2011
7/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Dry Pack
All SMD optical devices are MOISTURE SENSITIVE. Avoid exposure to moisture at all times
during transportation or storage. Every reel is packaged in a moisture protected anti-static bag.
Each bag is properly sealed prior to shipment.
Upon request, a humidity indicator will be included in the moisture protected anti-static bag
prior to shipment.
The packaging sequence is as follows:
PRECAUTIONS
1. Avoid exposure to moisture at all times during transportation or storage.
2. Anti-Static precaution must be taken when handling GaN, InGaN, and AlInGaP products.
3. It is suggested to connect the unit with a current limiting resistor of the proper size. Avoid
applying a reverse voltage beyond the specified limit.
4. Avoid operation beyond the limits as specified by the absolute maximum ratings.
5. Avoid direct contact with the surface through which the LED emits light.
6. If possible, assemble the unit in a clean room or dust-free environment.
13-Jun-2011
8/9
WEITRON
http://www.weitron.com.tw
WT-T169USD-K852
Reflow Soldering
Recommend soldering paste specifications:
1. Operating temp.: Above 220 OC ,60 sec.
2. Peak temp.:260 OCMax.,10sec Max.
3. Never attempt next process until the component is cooled down to room temperature
after reflow.
4. The recommended reflow soldering profile (measured on the surface of the LED terminal)
is as following:
Lead-free Solder Profile
Reworking
Rework should be completed within 5 seconds under 260 OC.
The iron tip must not come in contact with the copper foil.
Twin-head type is preferred.
Cleaning
Following are cleaning procedures after soldering:
An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended.
Temperature x Time should be 50oC x 30sec. or <30oC x 3min
Ultrasonic cleaning: < 15W/ bath; bath volume ≤ 1liter
Curing: 100 OC max, <3min
13-Jun-2011
9/9
WEITRON
http://www.weitron.com.tw
