Alpha Wire | 711 Lidgerwood Avenue, Elizabeth, NJ 07207

Tel: 1-800-52 ALPHA (25742), Web: www.alphawire.com

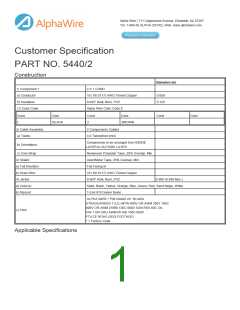

Customer Specification

PART NO. 5440/2

Construction

Diameters (In)

1) Component 1

a) Conductor

b) Insulation

2 X 1 COND

16 (19/.0117) AWG Tinned Copper

0.032" Wall, Nom. PVC

0.059

0.123

(1) Color Code

Alpha Wire Color Code E

Cond

Color

Cond

Color

Cond

Color

BLACK

BROWN

2) Cable Assembly

a) Twists:

2 Components Cabled

4.0 Twists/foot (min)

Components to be arranged from INSIDE

LAYER to OUTSIDE LAYER

b) Orientation:

c) Core Wrap

3) Shield:

Nonwoven Polyester Tape, 25% Overlap, Min.

Alum/Mylar Tape, 25% Overlap, Min.

Foil Facing In

a) Foil Direction

b) Drain Wire

4) Jacket

16 (19/.0117) AWG Tinned Copper

0.063" Wall, Nom.,PVC

0.380 (0.398 Max.)

a) Color(s)

Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White

1 End 810 Denier Nylon

b) Ripcord

ALPHA WIRE-* P/N 5440/2 2C 16 AWG

XTRAGUARD(R) 1 (UL) MTW 600V OR AWM 2501 105C

600V OR AWM 21896 105C 600V SUN RES 60C OIL

VW-1 OR CRU AWM I/II A/B 105C 600V

FT4 CE ROHS (SEQ FOOTAGE)

c) Print

* = Factory Code

Applicable Specifications

1) UL

105°C / 600 VRMS

a) Component 1

AWM/STYLE 1015

MTW

90°C Dry / 60°C Wet / 600 VRMS

105°C / 600 VRMS

b) Overall

MTW

AWM/STYLE 21896

SUN RES

60C OIL

105°C / 600 VRMS

AWM/STYLE 2501

VW-1

2) CSA International

a) Component 1

105°C / 600 VRMS

TEW

b) Overall

C(RU) AWM I/II A/B

FT4

3) IEC

EN 60332-1 Flame Behavior

EN 60332-2 Flame Behavior

EU Low Voltage Directive 2014/35/EC

4) CE:

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):

This product complies with European Directive 2011/65/EU (RoHS Directive) of the European

Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4

June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha

Wire's web site for RoHS C of C.

2) REACH Regulation (EC 1907/2006):

This product does not contain Substances of Very High Concern (SVHC) listed on the European

Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information,

please see Alpha's REACH SVHC Declaration.

Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65

Statement for more information.

3) California Proposition 65:

Properties

Physical & Mechanical Properties

1) Temperature Range

2) Bend Radius

-30 to 105°C

10X Cable Diameter

61 Lbs, Maximum

Yes

3) Pull Tension

4) Sunlight Resistance

Electrical Properties

(For Engineering purposes only)

600 VRMS

1) Voltage Rating

2) Capacitance

39 pF/ft @1 kHz, Nominal Conductor to Conductor

70 pF/ft @1 kHz, Nominal

54 Ω

3) Ground Capacitance

4) Characteristic Impedance

5) Inductance

0.2 µH/ft, Nominal

6) Conductor DCR

7) OA Shield DCR

4.4 Ω/1000ft @20°C, Nominal

3.8 Ω/1000ft @20°C, Nominal

Other

Packaging

Flange x Traverse x Barrel (inches)

20 x 11 x 8 Continuous length

16 x 11 x 8 Continuous length

12 x 10 x 5 Continuous length

a) 1000 FT

b) 500 FT

c) 100 FT

d) Bulk(Made-to-order)

[Spool dimensions may vary slightly]

www.alphawire.com

Alpha Wire | 711 Lidgerwood Avenue, Elizabeth, NJ 07207

Tel: 1-800-52 ALPHA (25742)

Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy at the time of publication, information and specifications

described herein are subject to errors or omissions and to changes without notice, and the listing of such information and specifications does not

ensure product availability.

Alpha provides the information and specifications herein on an “AS IS” basis, with no representations or warranties, whether express, statutory or

implied. In no event will Alpha be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary) whatsoever,

even if Alpha had been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out

of or in connection with the use, or inability to use, the information or specifications described herein.

ALPHA WIRE - CONFIDENTIAL AND PROPRIETARY

Notice to persons receiving this document and/or technical information. This document is confidential and is the exclusive property of ALPHA WIRE,

and is merely on loan and subject to recall by ALPHA WIRE at any time. By taking possession of this document, the recipient acknowledges and

agrees that this document cannot be used in any manner adverse to the interests of ALPHA WIRE, and that no portion of this document may be

copied or otherwise reproduced without the prior written consent of ALPHA WIRE. In the case of conflicting contractual provisions, this notice shall

EU/China ROHS CERTIFICATE OF COMPLIANCE

To Whom It May Concern:

Alpha Wire Part Number: 5440/2

5440/2 , RoHS-Compliant Commencing With 8/1/2005 Production

Note: all colors and put-ups

This document certifies that the Alpha part number cited above is manufactured in accordance with Directive 2011/65/EU of the European

Parliament, better known as the RoHS Directive (commonly known as RoHS 2), with regards to restrictions of the use of certain hazardous

substances used in the manufacture of electrical and electronic equipment. This certification extends to amending Directive 2015/863/EU which

expanded the list of restricted substances to 10 items (commonly known as RoHS 3) The reader is referred to these Directives for the specific

definitions and extents of the Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed

part number is in compliance with China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2014.

Substance

Maximum Control Value

Lead

0.1% by weight (1000 ppm)

0.01% by weight (100 ppm)

0.1% by weight (1000 ppm )

0.1% by weight (1000 ppm)

Mercury

Cadmium

Hexavalent Chromium

Polybrominated Biphenyls (PBB)

Polybrominated Diphenyl Ethers (PBDE) ,

Including Deca-BDE

0.1% by weight (1000 ppm)

Bis(2-ethylhexyl) phthalate (DEHP)

Butyl benzyl phthalate (BBP)

Dibutyl phthalate (DBP)

Diisobutyl phthalate (DIBP)

The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its

release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or

the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is

for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual

usage of the product.

Authorized Signatory for the Alpha Wire:

Dave Watson, Director of Engineering & QA

Alpha Wire

10/7/2019

711 Lidgerwood Ave.

Elizabeth, NJ 07207

Tel: 1-908-925-8000
