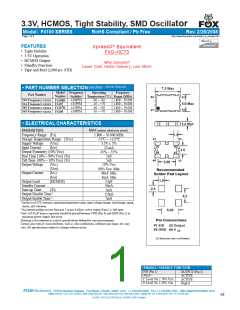

3.3V, HCMOS, Tight Staꢁility, SMD Oscillator
RoHS Compliant / Pꢁ Free
Model: F4100 SERIES
Rev. 2/26/2008
http://www.foxonline.com/need_a_sample.htm
Page 1 of 2
XpressO® Equivalent
FXO-HC73
FEATURES
• Tight Stability
• 3.3V Operation
• HCMOS Output
• Standby Function
• Tape and Reel (2,000 pcs. STD)
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
• PART ꢀUMbER SELECTIOꢀLearn More - Internet Required
Model
Number
F4108R
F4107
F4107R
F4109
Frequency
Operating
Frequency
Part Number
Stability1 Temperature (ºC) Range (MHz)
549-Frequency-xxxxx
544-Frequency-xxxxx
565-Frequency-xxxxx
545-Frequency-xxxxx
±20PPM
±15PPM
±15PPM
±10PPM
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
• ELECTRICAL CHARACTERISTICS
MAX (unless otherwise noted)
1.800 ~ 50.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
22 mA
PARAMETERS
Frequency Range (Fo)
Storage Temperature Range (Tstg)
Supply Voltage
Input Current
(Vdd)
(Idd)
Output Symmetry (50% Vdd)
Rise Time (10% ~ 90% Vdd) (Tr)
Fall Time (90% ~ 10% Vdd) (Tf)
45% ~ 55%
5nS
5nS
Output Voltage
(Vol)
(Voh)
(Iol)
(Ioh)
10% Vdd
90% Vdd Min
8mA Min
4mA Min
15pF
Output Current
Output Load
(HCMOS)
Standby Current
Start-up Time
50µA
5mS
150nS
5mS
(Ts)
Output Disable Time 2
Output Enable Time 2
1 Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2 An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
All dimensions are in millimeters.
• EꢀAbLE / DISAbLE FUꢀCTIOꢀ
INH (Pin 1)
OPEN 2
OUTPUT (Pin 3)
ACTIVE
'1' Level Vih ≥ 70% Vdd
'0' Level Vil ≤ 30% Vdd
ACTIVE
High Z
