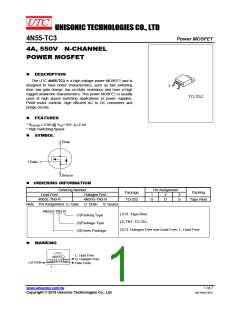

UNISONIC TECHNOLOGIES CO., LTD
4N55-TC3
Power MOSFET
4A, 550V N-CHANNEL
POWER MOSFET
DESCRIPTION
The UTC 4N55-TC3 is a high voltage power MOSFET and is
designed to have better characteristics, such as fast switching
time, low gate charge, low on-state resistance and have a high
rugged avalanche characteristics. This power MOSFET is usually
used at high speed switching applications in power supplies,
PWM motor controls, high efficient AC to DC converters and
bridge circuits.
1
TO-252
FEATURES
* RDS(ON) 2.9Ω @ VGS=10V, ID=2.5A
* High Switching Speed
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Pin Assignment
2
Package
TO-252
Packing
Lead Free
Halogen Free
4N55G-TN3-R
D: Drain S: Source
1
3
4N55L-TN3-R
G
D
S
Tape Reel
Note: Pin Assignment: G: Gate
4N55G-TN3-R
(1) R: Tape Reel
(2) TN3: TO-252
(1)Packing Type
(2)Package Type
(3)Green Package
(3) G: Halogen Free and Lead Free, L: Lead Free
MARKING
UTC
4N55
L: Lead Free
G: Halogen Free
Date Code
Lot Code
1
www.unisonic.com.tw
Copyright © 2019 Unisonic Technologies Co., Ltd
1 of 7
QW-R205-585.A
4N55-TC3
Power MOSFET
ABSOLUTE MAXIMUM RATINGS (TC=25°C, unless otherwise specified)
PARAMETER
SYMBOL
VDSS
VGSS
ID
RATINGS
UNIT
V
Drain-Source Voltage
Gate-Source Voltage
550
±30
V
Continuous
4
A
Drain Current (TC=25°C)
Pulsed (Note 2)
Single Pulsed
IDM
8
44
A
Avalanche Energy (Note 3)
EAS
mJ
V/ns
W
Peak Diode Recovery dv/dt (Note 4)
Power Dissipation
dv/dt
PD
2.2
50
Junction Temperature
TJ
+150
-55 ~ +150
°C
°C
Storage Temperature
TSTG
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Repetitive Rating: Pulse width limited by maximum junction temperature.
3. L=20mH, IAS=2.1A, VDD=50V, RG=25 Ω, Starting TJ = 25°C.
4. ISD4.0A, di/dt≤200A/μs, VDD≤BVDSS, Starting TJ=25°C.
THERMAL DATA
PARAMETER
SYMBOL
θJA
RATINGS
110
UNIT
°С/W
°С/W
Junction to Ambient
Junction to Case
θJC
2.5 (Note)
Note: Device mounted on FR-4 substrate PC board, 2oz copper, with 1inch square copper plate.
ELECTRICAL CHARACTERISTICS (TJ=25°C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
ID=250µA, VGS=0V
MIN TYP MAX UNIT
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
BVDSS
IDSS
550
V
VDS=550V, VGS=0V
VGS=+30V, VDS=0V
VGS=-30V, VDS=0V
10
µA
Forward
+100 nA
-100 nA
Gate- Source Leakage Current
IGSS
Reverse
ON CHARACTERISTICS
Gate Threshold Voltage
VGS(TH)
RDS(ON)
VDS=VGS, ID=250µA
VGS=10V, ID=2.0A
2.0
4.0
2.9
V
Static Drain-Source On-State Resistance
DYNAMIC PARAMETERS
Input Capacitance
CISS
COSS
CRSS
307
43
4
pF
pF
pF
Output Capacitance
VGS=0V, VDS=25V, f=1.0MHz
Reverse Transfer Capacitance
SWITCHING PARAMETERS
Total Gate Charge (Note 1)
Gate to Source Charge
Gate to Drain Charge
QG
QGS
QGD
tD(ON)
tR
8.5
2.8
1.4
5
nC
nC
nC
ns
ns
ns
ns
VDS=440V, VGS=10V, ID=4.0A,
IG=1mA (Note 1, 2)
Turn-ON Delay Time (Note 1)
Rise Time
15
28
24
VDD=100V, VGS=10V, ID=4.0A,
RG=25Ω (Note 1, 2)
Turn-OFF Delay Time
Fall-Time
tD(OFF)
tF
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Maximum Body-Diode Continuous Current
Maximum Body-Diode Pulsed Current
Drain-Source Diode Forward Voltage (Note 1)
Reverse Recovery Time (Note 1)
IS
ISM
VSD
trr
4
8
A
A
IS=4.0A, VGS=0V
IS=4.0A, VGS=0V,
dIF/dt = 100A/μs
1.4
V
304
1.4
ns
μC
Reverse Recovery Charge
Qrr
Notes: 1. Pulse Test: Pulse width 300µs, Duty cycle 2%.
2. Essentially independent of operating temperature.
UNISONICTECHNOLOGIESCO.,LTD
2 of 7
QW-R205-585.A
www.unisonic.com.tw
4N55-TC3
Power MOSFET
TEST CIRCUITS AND WAVEFORMS
+
D.U.T.
VDS
-
+
-
ISD
L
RG
Driver
VDD
* dv/dt controlled by RG
* ISD controlled by pulse period
* D.U.T.-Device Under Test
Same Type
as D.U.T.
VGS
Peak Diode Recovery dv/dt Test Circuit
P. W.
Period
VGS
(Driver)
Period
D=
P.W.
10V
=
VGS
IFM, Body Diode Forward Current
ISD
(D.U.T.)
di/dt
IRM
Body Diode Reverse Current
Body Diode Recovery dv/dt
VDS
VDD
(D.U.T.)
Body Diode
Forward Voltage Drop
Peak Diode Recovery dv/dt Waveforms
UNISONICTECHNOLOGIESCO.,LTD
3 of 7
QW-R205-585.A
www.unisonic.com.tw
4N55-TC3
Power MOSFET
TEST CIRCUITS AND WAVEFORMS
RL
VDS
VDS
90%
VGS
RG
VDD
10%
VGS
D.U.T.
tD(ON)
tD(OFF)
Pulse Width1μs
Duty Factor0.1%
tF
tR
Switching Test Circuit
Switching Waveforms
VGS
QG
Same Type
as D.U.T.
QGS
QGD
VDS
VGS
DUT
Charge
Gate Charge Test Circuit
Gate Charge Waveform
L
VDS
BVDSS
IAS
RD
VDD
ID(t)
VDS(t)
VDD
D.U.T.
tp
Time
tp
Unclamped Inductive Switching Test Circuit
Unclamped Inductive Switching Waveforms
UNISONICTECHNOLOGIESCO.,LTD
4 of 7
QW-R205-585.A
www.unisonic.com.tw
4N55-TC3
Power MOSFET
TYPICAL CHARACTERISTICS
Drain-Source On-Resistance vs.
Drain Current vs. Drain-Source Voltage
Gate-Source Voltage
20
15
10
5
5
Note:
1.TA=25°C
2.Pulse test
Note:
1.TA=25°C
2.Pulse test
4
3
2
1
0
VGS=6~10V
ID=2A
4A
5V
0
2
0
4
8
12
16
20
4
6
10
8
Drain-Source Voltage, VDS (V)
Gate-Source Voltage, VGS (V)
Capacitance Characteristics
Gate Charge Characteristics
1000
100
10
12
10
8
VDS=440V
VGS=10V
ID=4A
CISS
Pulsed
COSS
CRSS
6
4
2
0
1
45 50
20 25 30 35 40
0
5
10
15
0
2
4
6
8
10
Drain-Source Voltage, VDS (V)
Total Gate Charge, QG (nC)
Breakdown Voltage vs. Junction
Temperature
Drain-Source On-Resistance vs.
Junction Temperature
3
1.4
1.2
VGS=10V
ID=2A
Pulsed
ID=0.25mA
Pulsed
2.5
2
1.5
1
1
0.8
0.5
25
50
75
100
125
150
25
50
75
100
125
150
Junction Temperature, TJ (°C)
Junction Temperature, TJ (°C)
UNISONICTECHNOLOGIESCO.,LTD
5 of 7
QW-R205-585.A
www.unisonic.com.tw
4N55-TC3
Power MOSFET
TYPICAL CHARACTERISTICS (Cont.)
Gate Threshold Voltage vs.
Junction Temperature
Source Current vs. Source-Drain
Voltage
1.1
10
ID=0.25mA
Pulsed
1
0.9
0.8
0.7
0.6
TA=150°C
25°C
1
0.1
0.5
0.7 0.9 1.1 1.3
1.5
25
50
75
100
125
150
0.3
Source-Drain Voltage, VSD (V)
Junction Temperature, TJ (°C)
Drain Current vs. Gate-Source
Voltage
Drain-Source On-Resistance vs.
Drain Current
4
3
2
1
0
6
5
7
TA=25°C
VGS=10V
Pulsed
TA=25°C
Pulsed
3
2
1
0
0
1
2
3
4
5
2
4
6
8
Drain Current, ID (A)
Gate-Source Voltage, VGS (V)
Power Dissipation vs. Junction
Temperature
Drain Current vs. Junction
Temperature
60
50
40
6
TO-252
4
2
0
30
20
10
0
25
50
75
100
125
150
0
25
50
75 100 125 150
Junction Temperature, TJ (°C)
Junction Temperature, TJ (°C)
UNISONICTECHNOLOGIESCO.,LTD
6 of 7
QW-R205-585.A
www.unisonic.com.tw
4N55-TC3
Power MOSFET
TYPICAL CHARACTERISTICS (Cont.)
Safe Operating Area
10
1
MAX
Operation in
this area is
limited by
RDS(ON)
100us
1ms
10ms
0.1
0.01
DC
TO-252
TJ=150°C
TC=25°C
Single Pulse
1
10
100
1000
Drain-Source Voltage, VDS (V)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all UTC products described or contained herein.
UTC products are not designed for use in life support appliances, devices or systems where malfunction
of these products can be reasonably expected to result in personal injury. Reproduction in whole or in
part is prohibited without the prior written consent of the copyright owner. UTC reserves the right to
make changes to information published in this document, including without limitation specifications and
product descriptions, at any time and without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
UNISONICTECHNOLOGIESCO.,LTD
7 of 7
QW-R205-585.A
www.unisonic.com.tw
