WV3HG64M72AER403AD6SG

型号:

WV3HG64M72AER403AD6SG

品牌:

MICROSEMI[ Microsemi ]

页数:

10 页

PDF大小:

180 K

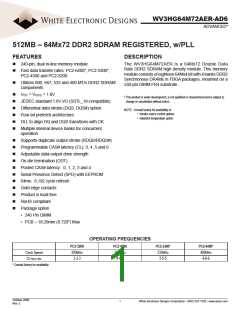

WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED*
512MB – 64Mx72 DDR2 SDRAM REGISTERED, w/PLL
FEATURES
DESCRIPTION
„
240-pin, dual in-line memory module
The WV3HG64M72AER is a 64Mx72 Double Data
Rate DDR2 SDRAM high density module. This memory
module consists of eighteen 64Mx4 bit with 4 banks DDR2
Synchronous DRAMs in FBGA packages, mounted on a
240-pin DIMM FR4 substrate.
„
Fast data transfer rates: PC2-6400*, PC2-5300*,
PC2-4300 and PC2-3200
„
Utilizes 800, 667, 533 and 400 MT/s DDR2 SDRAM
components
„
„
„
„
„
„
VCC = VCCQ = 1.8V
* This product is under development, is not qualied or characterized and is subject to
change or cancellation without notice.
JEDEC standard 1.8V I/O (SSTL_18-compatible)
Differential data strobe (DQS, DQS#) option
Four-bit prefetch architecture
NOTE: Consult factory for availability of:
• Vendor source control options
• Industrial temperature option
DLL to align DQ and DQS transitions with CK
Multiple internal device banks for concurrent
operation
„
„
„
„
„
„
„
„
„
„
„
Supports duplicate output strobe (RDQS/RDQS#)
Programmable CAS# latency (CL): 3, 4, 5 and 6
Adjustable data-output drive strength
On-die termination (ODT)
Posted CAS# latency: 0, 1, 2, 3 and 4
Serial Presence Detect (SPD) with EEPROM
64ms: 8,192 cycle refresh
Gold edge contacts
Product is lead-free
RoHS compliant
Package option
• 240 Pin DIMM
• PCB – 18.29mm (0.720") Max
OPERATING FREQUENCIES
PC2-3200
200MHz
3-3-3
PC2-4300
266MHz
4-4-4
PC2-5300*
333MHz
5-5-5
PC2-6400*
400MHz
6-6-6
Clock Speed
CL-tRCD-tRP
* Consult factory for availability
October 2006
Rev. 2
1
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
PIN CONFIGURATION
PIN NAMES
Pin No.
1
Symbol
VREF
VSS
Pin No.
Symbol
Pin No.
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
Symbol
Pin No.
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
Symbol
VCCQ
Pin Name
Function
61
A4
VSS
CK0,CK0#
CKE0
Clock Inputs, positive line
Clock Enables
2
62
VCCQ
A2
DQ4
A3
3
DQ0
DQ1
VSS
63
DQ5
A1
4
64
VCC
VSS
VCC
CB0-CB7
RAS#
Check Bits
5
65
VSS
DM0/DQS9
NC/DQS9#
VSS
CK0
Row Address Strobe
Column Address Strobe
Write Enable
6
DQS0#
DQS0
VSS
66
VSS
CK0#
VCC
CAS#
7
67
VCC
8
68
NC/Par_In*
VCC
DQ6
A0
WE#
9
DQ2
DQ3
VSS
69
DQ7
VCC
S0#
Chip Selects
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
70
A10/AP
BA0
VSS
BA1
A0-A12
BA0,BA1
ODT0
Address Inputs
71
DQ12
DQ13
VSS
VCCQ
DQ8
DQ9
VSS
72
VCCQ
WE#
CAS#
VCCQ
NC
RAS#
S0#
SDRAM Bank Address
On-die termination control
Serial Presence Detect(SPD) Clock Input
SPD Data Input/Output
SPD address
73
74
DM1/DQS10
NC/DQS10#
VSS
VCCQ
SCL
DQS1#
DQS1
VSS
75
ODT0
NC
76
SDA
77
NC
NC
VCC
SA0-SA2
DQ0-DQ63
DQS0-DQS17
RESET#
NC
78
VCCQ
VSS
NC
VSS
Data Input/Output
Data strobes
79
VSS
DQ36
DQ37
VSS
VSS
80
DQ32
DQ33
VSS
DQ14
DQ15
VSS
DQ10
DQ11
VSS
81
DQS0#-DQS17# Data strobes complement
82
DM4/DQS13
NC/DQS13#
VSS
TEST*
VCC
Memory Bus Test
83
DQS4#
DQS4
VSS
DQ20
DQ21
VSS
DQ16
DQ17
VSS
84
Core and I/O Power (1.8V)
I/O Power (1.8V)
85
DQ38
DQ39
VSS
VCCQ
VSS
86
DQ34
DQ35
VSS
DM2/DQS11
NC/DQS11#
VSS
Ground
DQS2#
DQS2
VSS
87
88
DQ44
DQ45
VSS
VREF
Input/Output Reference
SPD Power
89
DQ40
DQ41
VSS
DQ22
DQ23
VSS
V
CCSPD
DQ18
DQ19
VSS
90
NC
Spare pins, No connect
Register Reset Input
Parity bit for control bus
Parity error found in control
91
DM5/DQS14
NC/DQS14#
VSS
92
DQS5#
DQS5
VSS
DQ28
DQ29
VSS
RESET#
Par_In*
Err_Out*
DQ24
DQ25
VSS
93
94
DQ46
DQ47
VSS
95
DQ42
DQ43
VSS
DM3/DQS12
NC/DQS12#
VSS
DQS3#
DQS3
VSS
96
* These pins are not used in this module
97
DQ52
DQ53
VSS
98
DQ48
DQ49
VSS
DQ30
DQ31
VSS
DQ26
DQ27
VSS
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
NC
SA2
CB4
NC
CB0
NC(TEST)*
VSS
CB5
VSS
CB1
VSS
DM6/DQS15
NC/DQS15#
VSS
VSS
DQS6#
DQS6
VSS
DM8/DQS17
NC/DQS17#
VSS
DQS8#
DQS8
VSS
DQ54
DQ55
VSS
DQ50
DQ51
VSS
CB6
CB2
CB7
CB3
VSS
DQ60
DQ61
VSS
VSS
DQ56
DQ57
VSS
VCCQ
VCCQ
CKE0
VCC
NC
VCC
DM7/DQS16
NC/DQS16#
VSS
DQS7#
DQS7
VSS
NC
NC
NC
Err_Out*
VCCQ
A11
VCCQ
DQ62
DQ63
VSS
DQ58
DQ59
VSS
A12
A9
A7
VCC
VCCSPD
SA0
VCC
SDA
A8
A5
SCL
A6
SA1
October 2006
Rev. 2
2
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
FUNCTIONAL BLOCK DIAGRAM
VSS
RS0#
DQS0
DQS0#
DM0/DQS9
NC/DQS9#
DM
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
DM
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
DQ0
DQ1
DQ2
DQ3
I/O 0
I/O 1
I/O 2
I/O 3
DQ4
DQ5
DQ6
DQ7
I/O 0
I/O 1
I/O 2
I/O 3
DQS1
DQS1#
DM1/DQS10
NC/DQS10#
DM
DM
DQ8
DQ9
DQ10
DQ11
I/O 0
I/O 1
I/O 2
I/O 3
DQ12
DQ13
DQ14
DQ15
I/O 0
I/O 1
I/O 2
I/O 3
DQS2
DQS2#
DM2/DQS11
NC/DQS11#
DM
DM
DQ16
I/O 0
I/O 1
I/O 2
I/O 3
DQ20
DQ21
DQ22
DQ23
I/O 0
I/O 1
I/O 2
I/O 3
DQ17
DQ18
DQ19
DQS3
DQS3#
DM3/DQS12
NC/DQS12#
DM
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
DM
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
CS# DQS DQS#
DQ24
I/O 0
I/O 1
I/O 2
I/O 3
DQ28
I/O 0
I/O 1
I/O 2
I/O 3
DQ25
DQ26
DQ27
DQ29
DQ30
DQ31
DQS4
DQS4#
DM4/DQS13
NC/DQS13#
DM
DM
DQ32
I/O 0
I/O 1
I/O 2
I/O 3
DQ36
I/O 0
I/O 1
I/O 2
I/O 3
DQ33
DQ34
DQ35
DQ37
DQ38
DQ39
DQS5
DQS5#
DM5/DQS14
NC/DQS14#
DM
DM
DQ40
I/O 0
I/O 1
I/O 2
I/O 3
DQ44
I/O 0
I/O 1
I/O 2
I/O 3
DQ41
DQ42
DQ43
DQ45
DQ46
DQ47
Serial PD
DQS6
DQS6#
DM6/DQS15
NC/DQS15#
SCL
SDA
DM
DM
WP A0 A1 A2
SA0 SA1 SA2
DQ48
I/O 0
I/O 1
I/O 2
I/O 3
DQ52
I/O 0
I/O 1
I/O 2
I/O 3
DQ49
DQ50
DQ51
DQ53
DQ54
DQ55
DQS7
DQS7#
DM7/DQS16
NC/DQS16#
DM
DM
VCCSPD
VCC/VCCQ
VREF
Serial PD
DQ56
I/O 0
I/O 1
I/O 2
I/O 3
DQ60
I/O 0
I/O 1
I/O 2
I/O 3
DQ57
DQ58
DQ59
DQ61
DQ62
DQ63
DDR2 SDRAMs
DDR2 SDRAMs
DDR2 SDRAMs
DQS8
DQS8#
DM8/DQS17
NC/DQS17#
DM
DM
VSS
CB0
CB1
CB2
CB3
I/O 0
I/O 1
I/O 2
I/O 3
CB4
CB5
CB6
CB7
I/O 0
I/O 1
I/O 2
I/O 3
CK0
PCK0-PCK6, PCK8, PCK9 CK : DDR2 SDRAMs
1:2
R
E
G
I
P
L
L
RS0# : DDR2 SDRAMs
S0#
RBA0 - RBA1 : DDR2 SDRAMs
RA0 - RA12 : DDR2 SDRAMs
RRAS# : DDR2 SDRAMs
RCAS# : DDR2 SDRAMs
RWE# : DDR2 SDRAMs
RCKE0 : DDR2 SDRAMs
RODT0 : DDR2 SDRAMs
BA0 - BA1
A0 - A12
RAS#
CAS#
WE#
PCK0#-PCK6#, PCK8#, PCK9# CK# : DDR2 SDRAMs
PCK7 CK : Register
PCK7# CK# : Register
CK0#
OE
RESET#
S
T
E
R
CKE0
ODT0
RESET#
RST#
PCK7
PCK7#
NOTE: All resistor values are 22 ohms unless otherwise specied.
October 2006
Rev. 2
3
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
RECOMMENDED DC OPERATING CONDITIONS
All Voltages Referenced to VSS
Rating
Parameter
Symbol
VCC
Min.
1.7
Type
1.8
Max.
1.9
Units
Notes
Supply Voltage
V
V
V
V
V
Supply Voltage for DLL
Supply Voltage for Output
Input Reference Voltage
Termination Voltage
VCCL
VCCQ
VREF
VTT
1.7
1.8
1.9
4
4
1.7
1.8
1.9
0.49*VCCQ
VREF-0.04
0.50*VCCQ
VREF
0.51*VCCQ
VREF+0.04
1, 2
3
There is no specic device VCC supply voltage requirement for SSTL-1.8 compliance. However under all conditions VCCQ must be less than or equal to VCC
1. The value of VREF may be selected by the user to provide optimum noise margin in the system. Typically the value of VREF isexpected to be about 0.5 x VCCQ of the transmitting
device and VREF is expected to track variations in VCCQ
2. Peak to peak AC noise on VREF may not exceed ±2% VREF(DC).
3. TT of transmitting device must track VREF of receiving device.
4. AC parameters are measured with VCC, VCCQ and VCCDL tied together.
.
.
V
ABSOLUTE MAXIMUM RATINGS
SSTL_1.8V
Symbol
VCC
Parameter
Rating
Units
Notes
Voltage on VCC pin relative to VSS
Voltage on VCCQ pin relative to VSS
Voltage on VCCL pin relative to VSS
Voltage on any pin relative to VSS
Storage Temperature
- 1.0 V - 2.3 V
- 0.5 V - 2.3 V
- 0.5 V - 2.3 V
- 0.5 V - 2.3 V
-55 to +100
V
V
V
V
C
5
5
VCCQ
VCCL
5
VIN, VOUT
TSTG
5
5, 6
5. Stresses greater than those listed under ìAbsolute Maximum Ratingsî may cause permanent damage to the device. This is a stress rating only and functional operation of the
device at these or any other conditions above those indicated in the operational sections of this specication is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
6. Storage Temperature is the case surface temperature on the center/top side of the DRAM. For the measurement conditions, please refer to JESD51-2 standard.
CAPACITANCE
TA = 25°C, f = 1MHz, VCC = VCCQ = 1.8V
Parameter
Symbol
CCK
CI1
Max
11
Units
pF
Input Capacitance: CK, CK#
Input Capacitance: CKE, CS#
Input Capacitance: Addr. RAS#, CAS#, WE#
Input/Output Capacitance: DQ, DQS, DM, DQS#
12
pF
CI2
12
pF
CIO
10
pF
October 2006
Rev. 2
4
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
DDR2 ICC SPECIFICATIONS AND CONDITIONS
Includes DDR2 SDRAM components only
Symbol Proposed Conditions
ICC0 Operating one bank active-precharge current;
534
403
Units
tCK = tCK(ICC), tRC = tRC(ICC), tRAS = tRASmin(ICC); CKE is HIGH, CS# is HIGH between valid commands;
Address bus inputs are SWITCHING; Data bus inputs are SWITCHING
2,420
2,250
mA
ICC1
Operating one bank active-read-precharge current;
IOUT = 0mA; BL = 4, CL = CL(ICC), AL = 0; tCK = tCK(ICC), tRC = tRC (ICC), tRAS = tRASmin(ICC), tRCD = tRCD(ICC);
CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are SWITCHING; Data pattern is
same as IDAD6W
2,640
2,400
mA
ICC2P
ICC2Q
ICC2N
ICC3P
Precharge power-down current;
All banks idle; tCK = tCK(ICC); CKE is LOW; Other control and address bus inputs are STABLE; Data bus
inputs are FLOATING
730
670
mA
mA
mA
Precharge quiet standby current;
All banks idle; tCK = tCK(ICC); CKE is HIGH, CS# is HIGH; Other control and address bus inputs are STABLE;
Data bus inputs are FLOATING
1,110
1,090
1,040
1,060
Precharge standby current;
All banks idle; tCK = tCK(ICC); CKE is HIGH, CS# is HIGH; Other control and address bus inputs are
SWITCHING; Data bus inputs are SWITCHING
Active power-down current;
All banks open; tCK = tCK(ICC); CKE is LOW; Other control and address
bus inputs are STABLE; Data bus inputs are FLOATING
Fast PDN Exit MRS(12) = 0mA
Slow PDN Exit MRS(12) = 1mA
1,190
600
1,130
570
mA
mA
ICC3N
Active standby current;
All banks open; tCK = tCK(ICC), tRAS = tRASmax(ICC), tRP = tRP(ICC); CKE is HIGH, CS# is HIGH between valid
commands; Other control and address bus inputs are SWITCHING; Data bus inputs are SWITCHING
1,840
3,550
1,730
2,810
mA
mA
IDAD6W
Operating burst write current;
All banks open, Continuous burst writes; BL = 4, CL = CL(ICC), AL = 0; tCK = tCK(ICC), tRAS = tRASmax(ICC), tRP
= tRP(ICC); CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are SWITCHING; Data
bus inputs are SWITCHING
IDAD6R
Operating burst read current;
All banks open, Continuous burst reads, IOUT = 0mA; BL = 4, CL = CL(ICC), AL = 0; tCK = tCK(ICC), tRAS
tRASmax(ICC), tRP = tRP(ICC); CKE is HIGH, CS# is HIGH between valid commands; Address bus inputs are
SWITCHING; Data pattern is same as IDAD6W
=
3,230
2,730
mA
ICC5B
ICC6
ICC7
Burst auto refresh current;
tCK = tCK(ICC); Refresh command at every tRFC(ICC) interval; CKE is HIGH, CS# is HIGH between valid
commands; Other control and address bus inputs are SWITCHING; Data bus inputs are SWITCHING
3,610
740
3,430
680
mA
mA
Self refresh current;
CK and CK# at 0V; CKE 0.2V; Other control and address bus inputs
are FLOATING; Data bus inputs are FLOATING
Operating bank interleave read current;
All bank interleaving reads, IOUT = 0mA; BL = 4, CL = CL(ICC), AL = tRCD(ICC)-1*tCK(ICC); tCK = tCK(ICC), tRC
tRC(ICC), tRRD = tRRD(ICC), tRCD = 1*tCK(ICC); CKE is HIGH, CS# is HIGH between valid commands; Address
bus inputs are STABLE during DESELECTs; Data pattern is same as IDAD6R; Refer to the following page for
detailed timing conditions
=
5,540
5,210
mA
October 2006
Rev. 2
5
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
DDR2 SDRAM COMPONENT AC TIMING PARAMETERS & SPECIFICATIONS
0°C TCASE < +85°C; VCCQ = + 1.8V ± 0.1V, VCC = +1.8V ± 0.1V
AC CHARACTERISTICS
PARAMETER
534
403
SYMBOL
tCK (4)
tCK (3)
tCH
MIN
3,750
MAX
8,000
8,000
0.55
MIN
5,000
MAX
8,000
8,000
0.55
UNIT
ps
CL = 4
CL = 3
Clock cycle time
5,000
5,000
ps
CK high-level width
0.45
0.45
tCK
tCK
ps
CK low-level width
tCL
0.45
0.55
0.45
0.55
Half clock period
tHP
MIN (tCH, tCL
)
MIN (tCH, tCL
)
DQ output access time from CK/CK#
Data-out high-impedance window from CK/CK#
Data-out low-impedance window from CK/CK#
DQ and DM input setup time relative to DQS
DQ and DM input hold time relative to DQS
A DQ and DM input pulse width (for each input)
Data hold skew factor
tAC
-500
+500
-600
+600
ps
tHZ
tAC MAX
tAC MAX
tAC MAX
tAC MAX
ps
tLZ
tAC MIN
100
tAC MIN
150
ps
tDS
ps
tDH
225
275
ps
tDIPW
tQHS
tQH
0.35
0.35
tCK
ps
400
450
DQ…DQS hold, DQS to rst DQ to go nonvalid, per access
DQS input high pulse width
tHP - tQHS
0.35
0.35
-450
0.2
tHP - tQHS
0.35
0.35
-500
0.2
ps
tDQSH
tDQSL
tDQSCK
tDSS
tDSH
tCK
tCK
ps
DQS input low pulse width
DQS output access time from CK/CK#
DQS falling edge to CK rising … setup time
DQS falling edge from CK rising … hold time
+450
300
+500
350
tCK
tCK
0.2
0.2
DQS…DQ skew, DQS to last DQ valid, per group,
per access
tDQSQ
ps
DQS read preamble
tRPRE
tRPST
tWPRE
tWPST
tDQSS
0.9
0.4
1.1
0.6
0.9
0.4
1.1
0.6
tCK
tCK
tCK
tCK
tCK
DQS read postamble
DQS write preamble
0.35
0.35
DQS write postamble
0.4
0.6
0.4
0.6
Write command to rst DQS latching transition
WL - 0.25
WL + 0.25
WL - 0.25
WL + 0.25
Continued on next page
October 2006
Rev. 2
6
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
DDR2 SDRAM COMPONENT AC TIMING PARAMETERS & SPECIFICATIONS (cont'd)
0°C TCASE < +85°C; VCCQ = + 1.8V ± 0.1V, VCC = +1.8V ± 0.1V
AC CHARACTERISTICS
534
403
PARAMETER
Address and control input pulse width for each input
Address and control input setup time
Address and control input hold time
CAS# to CAS# command delay
SYMBOL
tIPW
tIS
MIN
0.6
250
375
2
MAX
MIN
0.6
350
475
2
MAX
UNIT
tCK
ps
tIH
ps
tCCD
tRC
tCK
ns
ACTIVE to ACTIVE (same bank) command
ACTIVE bank a to ACTIVE bank b command
ACTIVE to READ or WRITE delay
ACTIVE to PRECHARGE command
Internal READ to precharge command delay
6 Write recovery time
55
55
tRRD
tRCD
tRAS
tRTP
tWR
7.5
15
7.5
15
ns
ns
40
70,000
40
70,000
ns
7.5
15
7.5
15
ns
ns
Auto precharge write recovery + precharge time
Internal WRITE to READ command delay
PRECHARGE command period
tDAL
tWTR
tRP
tWR + tRP
7.5
15
tWR + tRP
10
ns
ns
15
ns
LOAD MODE command cycle time
OCD Drive mode delay
tMRD
tOIT
2
2
tCK
ns
0
12
0
12
CKE low to CK,CK# uncertainty
tDELAY
tIS + tCK + tIH
105
tIS + tCK + tIH
105
ns
REFRESH to REFRESH command interval
Average periodic refresh interval
tRFC
70,000
7.8
70,000
7.8
ns
tREF
I
µs
Exit self refresh to non-READ command
Exit self refresh to READ command
Exit self refresh timing reference
ODT turn-on delay
tXSNR
tXSRD
tISXR
tAOND
tRFC (MIN) + 10
tRFC (MIN) + 10
ns
tCK
ps
200
250
2
200
350
2
2
2
tCK
tAC (MAX) +
1000
tAC (MAX) +
1000
ODT turn-on
tAON
tAOFD
tAOF
tAC (MIN)
2.5
tAC (MIN)
2.5
ps
tCK
ps
ODT turn-off delay
ODT turn-off
2.5
2.5
tAC (MAX) +
600
tAC (MAX) +
600
tAC (MIN)
tAC (MIN)
2 x tCK
tAC (MAX) +
1000
+
2 x tCK +
tAC (MAX) +
1000
tAC (MIN) +
2000
tAC (MIN) +
2000
ODT turn-on (power-down mode)
ODT turn-off (power-down mode)
tAONPD
ps
ps
2.5 x tCK
tAC (MAX) +
1000
+
2.5 x tCK +
tAC (MAX) +
1000
tAC (MIN) +
2000
t
AC (MIN) +
2000
tAOFPD
ODT to power-down entry latency
tANPD
tAXPD
tXARD
tXARDS
tXP
3
3
tCK
tCK
tCK
tCK
tCK
tCK
ODT power-down exit latency
8
8
Exit active power-down to READ command, MR[bit12=0]
Exit active power-down to READ command, MR[bit12=1]
A Exit precharge power-down to any non-READ command.
CKE minimum high/low time
2
6 - AL
2
2
6 - AL
2
tCKE
3
3
October 2006
Rev. 2
7
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
ORDERING INFORMATION FOR AD6
Part Number
Speed
CAS Latency
tRCD
4
tRP
4
Height*
WV3HG64M72AER534AD6
WV3HG64M72AER403AD6
266MHz/533Mb/s
200MHz/400Mb/s
4
3
18.29mm (0.72")
18.29mm (0.72")
3
3
NOTES:
• RoHS product. (“G” = RoHS Compliant)
• Vendor specic part numbers are used to provide memory component source control. The place holder for this is shown as a lower case "x"
in the part numbers above and is to be replaced with respective vendors code. Consult factory for qualied sourcing options.
(M = Micron, S = Samsung & consult factory for others)
• Consult factory for availability of industrial temperature (-40°C to 85°C) option
PACKAGE DIMENSIONS FOR AD6
Front View
133.35 (5.25)
ꢀ.00
(0.157)
3.00
(0.118)
18.29
(0.720)
PLL
ꢀ.00
0.80 0.002
ꢀ.00 (0.157)
(0.157)
1.7
(0.066)
(0.031 0.002)
2.50 0.20
(0.098 0.007)
1.50 0.10
1.00 (0.039)
MAX
(0.059 0.00ꢀ)
1.27 0.10
0.05 .00ꢀ
5.00
(0.196)
Back View
63.00 (2.ꢀ8)
55.00 (2.165)
* ALL DIMENSIONS ARE IN MILLIMETERS AND (INCHES)
October 2006
Rev. 2
8
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
PART NUMBERING GUIDE
WV 3 H G 64M 72 A E R xxx AD6 x G
WEDC
MEMORY
DDR 2
GOLD
DEPTH
BUS WIDTH
x4
1.8V
REGISTERED
SPEED (MHz)
PACKAGE 240 PIN (.72)
COMPONENT VENDOR
NAME
(M = Micron)
(S = Samsung)
G = ROHS COMPLIANT
October 2006
Rev. 2
9
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
WV3HG64M72AER-AD6
White Electronic Designs
ADVANCED
Document Title
512MB – 64Mx72 DDR2 SDRAM REGISTERED, w/PLL
Revision History
Rev #
Rev 0
History
Release Date Status
Created
March 2005
Advanced
Rev 1
March 2005
Advanced
1.0 New Updates
Rev 2
October 2006
Advanced
2.0 Updated AC title to indicate component AC spec only
October 2006
Rev. 2
10
White Electronic Designs Corporation • (602) 437-1520 • www.wedc.com
厂商 型号 描述 页数 下载

WEDC

WV3DG64127V-D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V10D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V75D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V75D2F [ DRAM, ] 8 页

WEDC

WV3DG64127V75D2G [ 暂无描述 ] 8 页

WEDC

WV3DG64127V7D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V7D2F [ DRAM, ] 8 页

WEDC

WV3DG64127V7D2G [ 暂无描述 ] 8 页

WEDC

WV3DG72256V-AD2 2GB - 2x128Mx72 SDRAM ,注册[ 2GB - 2x128Mx72 SDRAM, REGISTERED ] 9 页

MICROSEMI

WV3DG72256V10AD2MG [ Synchronous DRAM Module, 256MX72, 5.4ns, CMOS, ROHS COMPLIANT, DIMM-168 ] 9 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.166995s
