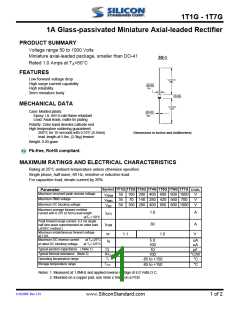

1T1G - 1T7G
1A Glass-passivated Miniature Axial-leaded Rectifier
PRODUCT SUMMARY
Voltage range 50 to 1000 Volts
Miniature axial-leaded package, smaller than DO-41
Rated 1.0 Amps at TA=50°C
SS-1
FEATURES
Low forward voltage drop
High surge current capability
High reliability
3mm miniature body
MECHANICAL DATA
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, matte tin plating
Polarity: Color band denotes cathode end
High temperature soldering guaranteed:
260°C for 10 seconds with 0.375”,(9.5mm)
lead length at 5 lbs. (2.3kg) tension
Dimensions in inches and (millimeters)
Weight: 0.20 gram
Pb-free, RoHS compliant.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
VRRM
VRMS
VDC
1T1G 1T2G 1T3G 1T4G 1T5G 1T6G 1T7G
Parameter
Units
Maximum recurrent peak reverse voltage
50 100 200 400 600 800 1000
V
V
V
Maximum RMS voltage
35
70 140 280 420 560 700
Maximum DC blocking voltage
50 100 200 400 600 800 1000
Maximum average forward rectified
current with 0.375 (9.5mm) lead length
1.0
A
I(AV)
atTA = 50°C
Peak forward surge current, 8.3 ms single
half sine-wave superimposed on rated load
(JEDEC method )
Maximum instantaneous forward voltage
at 1.0A
30
A
V
IFSM
VF
IR
1.1
1.0
Maximum DC reverse current
at rated DC blocking voltage
at TA=25°C
at TA=125°C
5.0
100
10
uA
uA
pF
°C/W
°C
Typical junction capacitance ( Note 1)
Typical thermal resistance (Note 2)
Operating temperature range
Cj
Rθ JA
TJ
100
-65 to +150
Storage temperature range
TSTG
-65 to +150
°C
Notes: 1. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts D.C.
2. Mounted on a copper pad, size 5mm x 5mm, on a PCB
3/16/2006 Rev.3.01
www.SiliconStandard.com
1 of 2
