IXTN17N120L

型号：

IXTN17N120L

品牌：

LITTELFUSE[ LITTELFUSE ]

页数：

6 页

PDF大小：

131 K

下载PDF手册

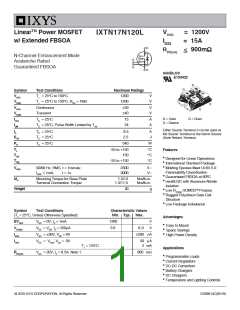

LinearTM Power MOSFET
w/ Extended FBSOA
VDSS
ID25
= 1200V
= 15A
IXTN17N120L
D
S
RDS(on) < 900mΩ
N-Channel Enhancement Mode
Avalanche Rated
Guaranteed FBSOA
G
S
miniBLOC
E153432
S
G
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 150°C
1200
1200
V
V
VDGR
TJ = 25°C to 150°C, RGS = 1MΩ
S
VGSS
VGSM
Continuous
Transient
±30
±40
V
V
D
G = Gate
S = Source
D = Drain
ID25
IDM
TC = 25°C
15
34
A
A
TC = 25°C, Pulse Width Limited by TJM
Either Source Terminal S can be used as
the Source Terminal or the Kelvin Source
(Gate Return) Terminal.
IA
TC = 25°C
TC = 25°C
8.5
2.5
A
J
EAS
PD
TC = 25°C
540
W
TJ
-55 to +150
150
°C
°C
°C
Features
TJM
Tstg
z Designed for Linear Operations
z International Standard Package
z Molding Epoxies Meet UL94 V-0
Flammability Classification
z Guaranteed FBSOA at 60ºC
z miniBLOC with Aluminum Nitride
Isolation
-55 to +150
VISOL
50/60 Hz, RMS, t = 1minute
2500
3000
V~
V~
IISOL ≤ 1mA,
t = 1s
Md
Mounting Torque for Base Plate
Terminal Connection Torque
1.5/13
1.3/11.5
Nm/lb.in.
Nm/lb.in.
Weight
30
g
z Low RDS(on) HDMOSTM Process
z Rugged Polysilicon Gate Cell
Structure
z Low Package Inductance
Symbol
Test Conditions
Characteristic Values
Min. Typ. Max.
(TJ = 25°C, Unless Otherwise Specified)
Advantages
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 1mA
VDS = VGS, ID = 250μA
VGS = ±30V, VDS = 0V
VDS = VDSS, VGS = 0V
1200
V
V
z
Easy to Mount
Space Savings
High Power Density
3.0
6.0
z
z
±200 nA
IDSS
50 μA
TJ = 125°C
2 mA
Applications
RDS(on)
VGS = 20V, ID = 8.5A, Note 1
900 mΩ
z Programmable Loads
z Current Regulators
z DC-DC Convertors
z Battery Chargers
z DC Choppers
z Temperature and Lighting Controls
DS99814C(05/10)
© 2010 IXYS CORPORATION, All Rights Reserved
IXTN17N120L
Symbol
Test Conditions
Characteristic Values
SOT-227B (IXTN) Outline
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 20V, ID = 8.5A, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
3.5
5.0
6.5
S
Ciss
Coss
Crss
8300
520
90
pF
pF
pF
td(on)
tr
td(off)
tf
42
31
ns
ns
ns
ns
Resistive Switching Times
V
GS = 15V, VDS = 0.5 • VDSS, ID = 8.5A
110
83
RG = 2Ω (External)
(M4 screws (4x) supplied)
Qg(on)
Qgs
155
41
nC
nC
nC
VGS = 15V, VDS = 0.5 • VDSS, ID = 8.5A
Qgd
60
RthJC
RthCS
0.23 °C/W
°C/W
0.05
Safe Operating Area Specification
Symbol
SOA
Test Conditions
Characteristic Values
Min. Typ. Max.
VDS = 800V, ID = 0.23A, TC = 60°C, tP = 3s 184
W
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
IS
VGS = 0V
17
A
A
ISM
VSD
trr
Repetitive, Pulse Width Limited by TJM
50
IF = 17A, VGS = 0V, Note 1
1.5
V
IF = IS, -di/dt = 100A/μs, VR = 100V
1830
ns
Note: 1. Pulse test, t ≤ 300μs, duty cycle, d ≤ 2%.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463 6,771,478 B2 7,071,537
7,005,734 B2 7,157,338B2
7,063,975 B2
IXTN17N120L
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
Fig. 1. Output Characteristics @ TJ = 25ºC
35
30
25
20
15
10
5
18
16
14
12
10
8
VGS = 20V
14V
VGS = 20V
16V
14V
12V
12V
10V
9V
10V
9V
6
4
8V
7V
2
8V
7V
0
0
0
2
4
6
8
10
12
14
30
35
0
5
10
15
20
25
30
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 8.5A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ = 125ºC
18
16
14
12
10
8
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
VGS = 20V
VGS = 20V
14V
12V
10V
I D = 17A
I D = 8.5A
9V
8V
6
4
7V
2
6V
5V
0
-50
-25
0
25
50
75
100
125
150
0
5
10
15
20
25
TJ - Degrees Centigrade
VDS - Volts
Fig. 5. RDS(on) Normalized to ID = 8.5A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
16
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
VGS = 20V
14
12
10
8
TJ = 125ºC
6
4
TJ = 25ºC
2
0
0
5
10
15
20
25
30
-50
-25
0
25
50
75
100
125
150
ID - Amperes
TC - Degrees Centigrade
© 2010 IXYS CORPORATION, All Rights Reserved
IXTN17N120L
Fig. 7. Input Admittance
Fig. 8. Transconductance
20
18
16
14
12
10
8
9
8
7
6
5
4
3
2
1
0
T
= - 40ºC, 25ºC, 125ºC
J
TJ = 125ºC
25ºC
- 40ºC
6
4
2
0
0
2
4
6
8
10
12
14
16
18
20
160
10
4
0.4
0
5
6
7
8
9
10
11
12
1.0
40
VGS - Volts
ID - Amperes
Fig. 9. Forward Voltage Drop of Intrinsic Diode
Fig. 10. Gate Charge
50
45
40
35
30
25
20
15
10
5
16
14
12
10
8
VDS = 600V
I
I
D = 8.5A
G = 10mA
6
TJ = 125ºC
4
TJ = 25ºC
2
0
0
0.5
0.6
0.7
0.8
0.9
0
20
40
60
80
100
120
140
VSD - Volts
QG - NanoCoulombs
Fig. 12. Maximum Transient Thermal Impedance
Fig. 11. Capacitance
1
100,000
10,000
1,000
100
= 1 MHz
f
0.1
C
iss
C
oss
0.01
0.001
C
rss
10
5
10
15
20
25
30
35
0.00001
0.0001
0.001
0.01
0.1
1
VDS - Volts
Pulse Width - Seconds
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXTN17N120L
Fig. 13. Forward-Bias Safe Operating Area
@ TC = 25ºC
Fig. 14. Forward-Bias Safe Operating Area
@ TC = 60ºC
100
10
1
100
10
1
R
Limit
R
Limit
DS(on)
DS(on)
25µs
100µs
25µs
100µs
1ms
1ms
10ms
10ms
TJ = 150ºC
TJ = 150ºC
100ms
TC = 25ºC
DC
100ms
TC = 60ºC
DC
Single Pulse
Single Pulse
0.1
0.1
10
100
1000
10000
10
100
1000
10000
VDS - Volts
VDS - Volts
© 2010 IXYS CORPORATION, All Rights Reserved
IXYS REF: IXT_17N120L (8N)02-18-09-B
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently
evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for,
and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.
