WT-E17C1BP-C10

型号：

WT-E17C1BP-C10

品牌：

WEITRON[ WEITRON TECHNOLOGY ]

页数：

16 页

PDF大小：

527 K

下载PDF手册

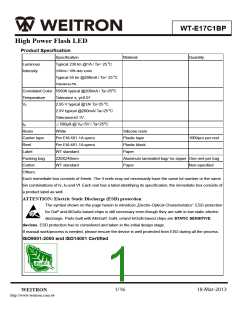

WT-E17C1BP
High Power Flash LED
Product Specification
Specification
Material
Quantity
Luminous
Intensity
Typical 230 lm @1A / Ta= 25 oC
(100ms / 10% duty cycle)
Typical 55 lm @200mA / Ta= 25 oC
Tolerance±7%
Correlated Color 5500K typical @200mA / Ta=25oC
Temperature
VF
Tolerance x, y±0.01
2.95 V typical @1A/ Ta=25 oC
2.9V typical @200mA/ Ta=25 oC
Tolerance±0.1V
≧500µA @ VR=5V / Ta=25oC
IR
Resin
White
Silicone resin
Plastic tape
Plastic black
Paper
Carrier tape
Reel
Per EIA 481-1A specs
Per EIA 481-1A specs
WT standard
1000pcs per reel
Label
Packing bag
Carton
Others:
220X240mm
Aluminum laminated bag/ no-zipper One reel per bag
Paper Non-specified
WT standard
Each immediate box consists of 4reels. The 4 reels may not necessarily have the same lot number or the same
bin combinations of Iv, λD and Vf. Each reel has a label identifying its specification; the immediate box consists of
a product label as well.
ATTENTION: Electric Static Discharge (ESD) protection
The symbol shown on the page herein to introduce „Electro-Optical Characteristics‟. ESD protection
for GaP and AlGaAs based chips is still necessary even though they are safe in low static-electric
discharge. Parts built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE
devices. ESD protection has to considered and taken in the initial design stage.
If manual work/process is needed, please ensure the device is well protected from ESD during all the process.
ISO9001-2000 and ISO14001 Certified
18-Mar-2013
1/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Label Specifications
Customer P/N: To Be Defined
WEITRON P/N:
C10
WT E 17C 1BP--
-
Company
Product
E: PCB package with
zener
Package
Outline
Dice
Color Current Code
BP:
Current:
1000mA
WT: For WEITRON
1: Single
Dimension
White
Lot No.
18-Mar-2013
2/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Product Features
Super luminosity white Flash LED
High Performance
140° view angle
Rated to 1000mA pulse current
Very small emitter size
Pb Free / RoHS compliant
ESD: InGaN / Ceramics with8KV
No UV
High Performance
Instant light (less than 100mS)
Applications
Flash Light for Cell Phone
Flash Light for DSC
Flash Light for PDAs
Flash Light for Tablet PC
Lighting for small size device
Product Outline Dimension
Unit: mm
Notes:1.Dimensions are in millimeters
2.Tolerances unless dimension +/-0.1mm
18-Mar-2013
3/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Absolute Maximum Ratings
(Ta =25°C)
Parameter
DC Forward Current
Rating
200
Unit
mA
A
Conditions
-
Peak Pulsed Forward Current *
Reverse Voltage
1
-
5
V
-
LED junction Temperature
Operating Temperature
Storage Temperature
125
oC
oC
oC
oC
-
-30~+85
-40~+120
260
-
-
Soldering Temperature
* 100ms / 10% duty cycle
10s max.
Electro-Optical Characteristics
(Ta =25°C)
Parameter
Luminous Flux (If=0.20A)
Symbol Min.
Typ.
Max. Unit
Flux
Flux
-
55
230
-
-
lm
lm
Luminous Flux * (If=1.0A)
-
120
2.79
5250
-
-
140
3.75
6750
-
Viewing angle
2θ ½
VF
Deg.
V
Forward Voltage *
-
Correlated Color Temperature *
Temperature Coefficient of Forward Voltage *
Thermal Resistance Junction to Board *
* Peak Pulsed Forward Current = 1.0A , 100ms / 10% duty cycle
CCT
ΔVF/ΔT
RθJ-B
-
K
-1.5
45
mV/oC
oC/W
-
-
18-Mar-2013
4/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Bin Code.
▓ Iv Bin:
Rank Code
Full
Symbol
ΦV
Condition
Min.
Typ.
Max.
249.6
218.9
249.6
Unit
lm
212.18
212.18
218.9
-
-
-
XB1B
IF=1000mA
PX2
Note: 1.It maintains a tolerance of ±7% on flux
2. Electric and optical data is tested at 100ms / 10% duty cycle.
Color Temperature
Iv Bin
Min.
Max.
Min.
Typ.
PX2
PX2
PX2
Max.
PX2
PX2
PX2
5250K
5750K
6250K
5750K
6250K
6750K
XB1B
XB1B
XB1B
▓ Vf Bin:
Rank Code
Symbol
VF
Condition
Min.
Typ.
Max.
3.75
3.03
3.27
3.51
3.75
Unit
V
Full
PD
PE
PF
2.79
2.79
3.03
3.27
3.51
-
-
-
-
-
IF=1000m A
PG
Note:1. It maintains a tolerance of ±0.1V on forward voltage measurements.
2. Electric and optical data is tested at 100ms / 10% duty cycle.
18-Mar-2013
5/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Color Rank:
Rank D0
0.3135 0.31 0.317
Rank D1
X
Y
0.32
X
Y
0.31
0.306 0.314 0.317
0.301 0.322 0.329 0.307
0.322 0.347 0.353 0.329
Rank E0
Rank E1
X
Y
0.32
0.317 0.326 0.327
X
Y
0.317 0.314 0.325 0.326
0.329 0.353 0.362 0.337
0.307 0.329 0.337 0.313
Rank F0
Rank F1
X
Y
0.327 0.326 0.339 0.337
0.313 0.337 0.347 0.321
X
Y
0.326 0.325 0.341 0.339
0.337 0.362 0.373 0.347
Color
Condition
Bin Code
Min.
Typ.
Max.
Unit
F0
F1
E0
E1
D0
D1
5,250
5,250
5,750
5,750
6,250
6,250
5,500
5,500
6,000
6,000
6,500
6,500
5,750
5,750
6,250
6,250
6,750
6,750
IF=1000mA
White
18-Mar-2013
6/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Color Temperature Corrdinates
18-Mar-2013
7/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Characteristic Curves
18-Mar-2013
8/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Characteristic Curves
18-Mar-2013
9/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Carrier Tape Dimension
Part No.
Dim.A
Dim.B
Dim.C
Q’ty/Reel
1K
WT-E17C1 2.28+/-0.05 1.85+/-0.05 0.95+/-0.05
Unit: mm
Reel Dimension
Note:1.Dimension are in millimeters.
2.The tolerances unless mentioned is +/- 0.1mm.
18-Mar-2013
10/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Packing
5 boxes per carton is available depending on shipment quantity.
18-Mar-2013
11/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Precaution for Use
(1). The chips should not be used directly in any type of fluid such as water, oil, organic
solvent, etc.
(2). When the LEDs are illuminating, the maximum ambient temperature should be first
considered before operation.
(3). LEDs must be stored in a clean environment. A sealed container with a nitrogen
atmosphere is necessary if the storage period is over 3 months after shipping.
(4). The LEDs are recommended to be used within seven days after unpacked. In accordance
with MSL 2a: After the bag is opened, devices that will be subjected to infrared reflow,
vapor-phase reflow, or equivalent processing must be mounted within 672 hours at factory
conditions of ≦30℃/60%RH.
(5). The appearance and specifications of products may be modified for improvement. We will
provide PCN for any change or improvement.
(6). The LEDs are sensitive to the static electricity and surge. It is strongly recommended to
use a grounded wrist band and anti-electrostatic glove when handling the LEDs.
If a voltage over the absolute maximum rating is applied to LEDs, it will damage LEDs.
Damaged LEDs will show some abnormal characteristics such as remarkable increase
of leak current, lower turn-on voltage and getting unlit at low current.
18-Mar-2013
12/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
LEDs and Eye Safety:
In the 1993 edition of IEC-60825-1, LEDs were included: “Throughout this part 1 light emitting
diodes (LED) are included whenever the word “laser” is used. ”The CENELEC document EN
60825-1 contains all the technical content of the IEC standard.
The scope of the IEC standard status that “…products which are sold to other manufacturers
for use as components of any system for subsequent sale are not subject to IEC 60825-1,
since the final product will itself be subject to this standard. ”Therefore, it is important to
determine the Laser Safety Class of the final product. However, it is important that employees
working with LEDs are trained to use them safely.
Most of the products containing LEDs will fall in either Class 1 or Class 2. A Class 1 label is
optional. WT-D1711BP is a Class 1 LED product.
If a label is not used, this description must be included in the information for the user.
Amendment 2 to IEC 60825-1 is expected to be published in January 2001. The CENELEC
equivalent is expected to follow three months after the IEC publication. This document
contains increased Class 1 and Class 2 limits, as well as the introduction of less restrictive
Class 1M and Class 2M.
For the exact classification and further information, the IEC document can be used:
IEC-60825-1 ISBN 2-8318-4169-0
18-Mar-2013
13/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Precaution of Application
Designing 1: Soldering Pattern
The dimensions of the recommended soldering pattern may not meet every user. Please
confirm and study first before designing the soldering pattern in order to obtain the best
performance of soldering. Recommended soldering pattern is listed below:
Designing 2: Circuit Layout
Designing 3: Max Rating
Any application should refer to the specifications of absolute maximum ratings.
Dry Pack
Any SMD optical device, like this chip LED, is MOISTURE SENSITIVE device. Avoid
absorbing moisture at any time during transportation or storage. Every reel will be packaged in
the moisture barrier anti-static bag (Specific bag material will depend upon customers‟
requirement or option). And the bag is well sealed before shipment.
By customer‟s requirement, we will put a humidity indicator in each moisture barrier anti-static
bag before shipment.
18-Mar-2013
14/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
The package
Storage
It‟s recommended to store the products in the following conditions:
Humidity: 60 %RH Max.
Temperature: 5 OC ~30 OC (41OF~86 OF)
1
Shelf life in sealed bag: 12 month at<40 OC and <90%RH. (Base on aluminum laminated
moisture barrier bag.)
2
After the bag is opened, devices that will be subjected to infrared reflow, vapor-phase
reflow, or equivalent processing must be:
2.1 Mounted within 72 hours at factory conditions of≦ 30 OC /60% RH, or
2.2 Stored at ≦ 20% RH with zip-lock sealed.
Baking
It‟s recommended to bake before soldering once the pack is unsealed open & re-sealed after
72 hours. The conditions are as followings:
60 ±3OC×(12~24hrs) and < 5% RH, taped reel type
100±3OC×(45min~1hr), bulk type
130±3OC×(15~30min), bulk type
Soldering
Manual soldering (We do not recommend this method strongly.)
Soldering wire: 63/37 Sn/Pb, flux contained.
To prevent cracking, please bake before manual soldering, if the device is subject to moisture.
Temperature at tip of soldering tool : 300 OC±5 OC Max.(25W)
It‟s banned to load any stress on the resin during soldering.
Soldering time : 3±1sec
18-Mar-2013
15/16
WEITRON
http://www.weitron.com.tw
WT-E17C1BP
Reflow Soldering
1. Recommend soldering paste specifications:
2. Operating temp.: Above 220 OC ,60sec
3. Peak temp.:260 OCMax.,10sec Max.
4. Never take next process until the component is cooled down to room temperature after
reflow.
5. The recommended reflow soldering profile (measuring on the surface of the LED terminal)
is following:
Lead-free Solder
Cleaning
The conditions of cleaning after soldering:
An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended.
Temperature×Time: <50 OC×30sec, or <30 OC×3min
Ultra sonic cleaning: < 15W/ bath; Bath volume: 1liter max.
Curing: 100 OC max, <3min
Do not contact with component on the assembly board.
Cautions of Pick and Place
It should be avoided to load stress on the resin during high temperature.
Avoid rubbing or scraping the resin by any object.
Electric-static may cause damage to the component. Please confirm that the equipment
grounding well. Using an ionizer fan is recommended.
18-Mar-2013
16/16
WEITRON
http://www.weitron.com.tw
厂商 型号 描述 页数 下载

ETC

 		WT-009/10M(IEC) 电缆T型热电偶\n[ CABLE THERMOCOUPLE TYPE T ] 4 页

ETC

 		WT-009/50M(IEC) 电缆T型热电偶\n[ CABLE THERMOCOUPLE TYPE T ] 4 页

ETC

 		WT-046/25M(IEC) VERLAENGERUNGSKABEL牛逼PTFE 25M\n[ VERLAENGERUNGSKABEL T PTFE 25M ] 4 页

ETC

 		WT-056/10M(IEC) VERLAENGERUNGSKABEL GLASFASERISOL牛逼10M\n[ VERLAENGERUNGSKABEL GLASFASERISOL T 10M ] 4 页

TDK

 		WT-1005660-12K2-A6-G 线径：我?? 0.08毫米×105 （类型2线）线圈匝数： 12TS / 1层[ Wire Diameter: φ0.08mm x 105 ( Type2 Wire) Coil Turns: 12TS / 1 layer ] 8 页

MOLEX

 		WT-12 最终的电线塔，黄色， 12 AWG[ Ultimate Wire Tap, Yellow, 12 AWG ] 2 页

SOBERTON

 		WT-1201 可水洗型[ Washable Type ] 2 页

SOBERTON

 		WT-1205 可水洗型[ Washable Type ] 2 页

SOBERTON

 		WT-1212 可水洗型[ Washable Type ] 1 页

SOBERTON

 		WT-1601 可水洗型[ Washable Type ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.265251s
