SZW07A0A

型号:

SZW07A0A

品牌:

SEOUL[ Seoul Semiconductor ]

页数:

23 页

PDF大小:

566 K

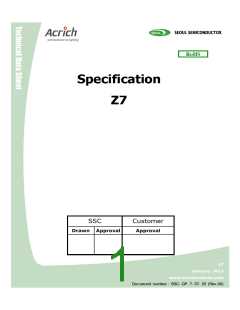

Specification
Z7
SSC
Customer
Drawn Approval
Approval
Z7
January. 2013
www.seoulsemicon.com
Document number : SSC- QP- 7- 07- 25 (Rev.00)
[ Contents ]
1. Description
------- 3
2. Full code of Z7 series
3. Outline dimension
4. Characteristics of Z7
5. Characteristic diagrams
6. CIE Chromaticity Diagram
7. Binning Table
------- 4
------- 5
------- 6
------- 8
------- 15
------- 17
8. Labeling
------- 18
------- 19
9. Reel Packing
8. Recommended solder pad
9. Soldering profile
10. Precaution for Use
11. Revision Profile
------- 20
------- 21
------- 22
------- 24
Z7
January. 2013
www.seoulsemicon.com
Document number : SSC- QP- 7- 07- 25 (Rev.00)
Z7
Z7
Description
Features
• Super high Flux output
and high Luminance
• Designed for high
current operation
The Z-Power series is designed for high
current operation and high flux output
applications. It incorporates state of the
art SMD design and low thermal resistant
material.
• SMT solderable
• Lead Free product
• RoHS compliant
The Z Power LED is ideal light sources for general illumination
applications, custom designed solutions, automotive, large LCD
backlights and high performance torches.
Applications
• General Torch
• Architectural lighting
• Task lighting
• Decorative / Pathway
lighting
• Remote / Solar
powered lighting
• Street lighting
* The appearance and specifications of the product can be changed
for improvement without notice.
Z7
January. 2013
www.seoulsemicon.com
Full code of Z7 series
1. Part Number Form : X1X2X3X4X5X6X7X8 – X9X10X11X12X13
X1
X2
Company
S
Z
W
0
7
A
0
A
-
SSC
Package series
Z-Power
X3
Color
Pure White
X4
X5
Z-Power series number
Lens type
Z7 series
X6
Dome-Wide
X7
PCB type
Emitter
X8
Revision No.
Luminous flux
Color bin
Rev0
X9X10
X11X12
X13
-
-
-
-
Forward Voltage
-
2. Sticker Diagram on Reel & Aluminum Vinyl Bag
Rank :
X9
X10
X11
X12
X13
QUANTITY : 500
Lot No : # # # # # # # # #
SSC PART NUMBER :
X1
X2
X3
X4
X5
X6
X7
X8
X1
X2
X3
X4
X5
X6
X7
X8
Z7
January. 2013
www.seoulsemicon.com
Outline dimensions
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is 0.2mm
Z7
January. 2013
www.seoulsemicon.com
Characteristics of Z7 (SZW07A0A)
1. Pure white
1-1 Electro-Optical characteristics at 1400mA
(Ta=25 , RH30%)
Value
Typ
550
6000
70
Parameter
Symbol
Unit
Max
Min
440
4700
65
[1]
[2]
Luminous Flux
ФV
600
8200
75
lm
K
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
[4]
Forward Voltage
VF
-
3.3
4
V
[6]
Thermal resistance (J to S)
View Angle
J-S
2Θ ½
1.6
K/W
deg.
130
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Symbol
Value
Unit
I
F
V
2800 (each chip 700mA)
mA
V
Reverse Voltage
5
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Pd
Tj
11
W
135
Topr
Tstg
-
-40 ~ +85
-40 ~ +100
3,000V HBM
[5]
ESD Sensitivity
-
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] ФV is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
[6] At thermal Resistance, J to S means junction to solder point on metal PCB.
Z7
January. 2013
www.seoulsemicon.com
Characteristics of Z7 (SZWW7A0A)
1. Warm white
1-1 Electro-Optical characteristics at 1400mA
Value
Typ
450
3000
80
Parameter
Symbol
Unit
Min
340
2600
-
Max
500
3500
-
[1]
[2]
Luminous Flux
ФV
lm
K
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
[4]
Forward Voltage
VF
-
3.3
4
V
[6]
Thermal resistance (J to S)
View Angle
J-S
2Θ ½
1.6
K/W
deg.
130
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Symbol
Value
Unit
IF
V
2800 (each chip 700mA)
mA
V
Reverse Voltage
5
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Pd
Tj
11
W
135
Topr
Tstg
-
-40 ~ +85
-40 ~ +100
3,000V HBM
[5]
ESD Sensitivity
-
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] ФV is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
[6] At thermal Resistance, J to S means junction to solder point on metal PCB.
Z7
January. 2013
www.seoulsemicon.com
Color Spectrum
(IF=350mA, Ta=25 , RH 30%)
2.5
2.0
1.5
1.0
0.5
0.0
Pure
Warm
300
400
500
600
700
800
900
Wavelength [nm]
Z7
January. 2013
www.seoulsemicon.com
Forward Current Characteristics
Forward Voltage vs. Forward Current, Ta=25
2800
2400
2000
1600
1200
800
400
0
-400
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Forward Voltage [V]
Forward Current vs. Normalized Relative Luminous Flux, Ta=25
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
400
800
1200
1600
2000
2400
2800
Z7
Forward Current (mA)
January. 2013
www.seoulsemicon.com
Chromaticity Coordinate vs. Forward Current, Ta=25
Pure x-axis
Pure y-axis
Warm x-axis
Warm y-axis
0.012
0.009
0.006
0.003
0.000
-0.003
-0.006
0
400
800
1200 1600 2000 2400 2800
Current [mA]
CCT vs. Forward Current, Ta=25
7000
Pure
Warm
6000
5000
4000
3000
0
500
1000
1500
2000
2500
3000
Z7
Current [mA]
January. 2013
www.seoulsemicon.com
Junction Temperature Characteristics
Relative Light Output vs. Junction Temperature at IF=1400mA
100
80
60
40
20
0
25
50
75
100
125
150
Junction Temperature [Celcius]
VF vs. Junction Temperature at IF=350mA
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
25
50
75
100
125
150
Junction Temperature [Celcius]
Z7
January. 2013
www.seoulsemicon.com
Chromaticity Coordinate vs. Junction Temperature at IF=350mA
0.015
Pure x-axis
0.012
0.009
0.006
0.003
0.000
-0.003
-0.006
-0.009
-0.012
-0.015
Pure y-axis
Warm x-axis
Warm y-axis
25
50
75
100
125
150
Junction Temperature [Celcius]
CCT vs. Junction Temperature at IF=350mA
8000
7000
6000
5000
4000
3000
Pure
Warm
25
50
75
100
125
150
Junction Temperature [Celcius]
Z7
January. 2013
www.seoulsemicon.com
Ambient Temperature vs. Allowable Forward Current
@1400mA
1600
1400
1200
1000
Rj-a=10 /W
800
Rj-a=15 /W
600
Rj-a=20 /W
400
200
0
0
20
40
60
80
100
Ambient Temperature(C)
Ambient Temperature vs. Allowable Forward Current
@2800mA
3000
2500
2000
1500
Rj-a=8 /W
Rj-a=10 /W
Rj-a=12 /W
1000
500
0
0
20
40
60
80
100
Ambient Temperature(C)
Z7
January. 2013
www.seoulsemicon.com
Radiation pattern @1400mA
1.0
0.8
0.6
0.4
0.2
0.0
-90
-60
-30
0
30
60
90
Angle [degree]
Z7
January. 2013
www.seoulsemicon.com
CIE Chromaticity Diagram (Pure)
IF=1400mA, Ta=25
Z7
January. 2013
www.seoulsemicon.com
CIE Chromaticity Diagram (Warm)
IF=1400mA, Ta=25
Z7
January. 2013
www.seoulsemicon.com
Binning Table
Bin Code
Luminous Flux (lm)
Color Chromaticity Coordinate
Forward Voltage (V)
@ IF = 1400mA
@ IF = 1400mA
@ IF = 1400mA
V2
C2
H
Color Chromaticity Coordinate
Forward Voltage (V)
Luminous Flux (lm)
@ IF = 1400mA
@ IF = 1400mA
@ IF = 1400mA
Bin
Code
Bin
Code
Bin
Code
Min.
340
390
440
490
540
590
Max.
Min.
Max.
Min.
Max.
G
H
I
2.75
3.0
3.00
3.25
3.5
Z1
390
440
490
540
590
640
Ref. 15, 16 pages
Z2
A1
A2
B1
B2
3.25
3.5
J
3.75
3.8
K
3.6
Available ranks
Z7
January. 2013
www.seoulsemicon.com
Label
Rank :
X9
X10
X11
X12
X13
QUANTITY : 500
Lot No : # # # # # # # # #
: SZW07A0A
SSC PART NUMBER
SZDW7A0A
Full code form :
X1X2X3X4X5X6X7X8
- X1 : Company
- X2 : Z-Power LED series number
- X3X4 : Color
- X5 : Series number
- X6 : Lens type
- X7 : PCB type
- X8 : Revision number
Rank
X9X10X11X12X13
- X9X10 : Luminous Flux : LF [lm]
- X11X12 : Color Coordinates : x, y
- X13 : Forward Voltage : VF [V]
Z7
January. 2013
www.seoulsemicon.com
Emitter Carrier & Reel Packaging
Z7
January. 2013
www.seoulsemicon.com
Recommended solder pad
Solder Pad
Isolation
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] This drawing without tolerances are for reference only
[4] Recommended solder paste height : ≥ 30um
Z7
January. 2013
www.seoulsemicon.com
Reflow Soldering Conditions / Profile
IPC/JEDEC J-STD-020C
Profile Feature
Sn-Pb Eutectic Assembly
Pb-Free Assembly
Average ramp-up rate (Tsmax to Tp)
3°C/second max.
3°C/second max.
Preheat
- Temperature Min (Tsmin)
- Temperature Max (Tsmax)
- Time (Tsmin to Tsmax) (ts)
100 °C
150 °C
60-120 seconds
150 °C
200 °C
60-180 seconds
Time maintained above:
- Temperature (TL)
- Time (tL)
183 °C
60-150 seconds
217 °C
60-150 seconds
Peak Temperature (Tp)
215
260
Time within 5°C of actual Peak
Temperature (tp)2
10-30 seconds
20-40 seconds
Ramp-down Rate
6 °C/second max.
6 °C/second max.
Time 25°C to Peak Temperature
6 minutes max.
8 minutes max.
* Caution
1. Reflow soldering should not be done more than one time.
2. Repairs should not be done after the LEDs have been soldered. When
repair is unavoidable, suitable tools must be used.
3. Die slug is to be soldered.
4. When soldering, do not put stress on the LEDs during heating.
5. After soldering, do not warp the circuit board.
6. Recommend to use a convection type reflow machine with 7 ~ 8 zones.
Z7
January. 2013
www.seoulsemicon.com
Precaution for use
• Storage
To avoid the moisture penetration, we recommend storing Z Power LEDs in a dry box
with a desiccant . The recommended storage temperature range is 5C to 30C and a maximum
humidity of 50%.
• Use Precaution after Opening the Packaging
Use proper SMD techniques when the LED is to be soldered dipped as separation of the lens may
affect the light output efficiency.
Pay attention to the following:
a. Soldering should be done immediately after opening the package (within 24Hrs).
b. Required conditions after opening the package
- Sealing
- Temperature : 5 ~ 40
Humidity : less than 30%
c. If the package has been opened more than 1 week or the color of the desiccant changes,
components should be dried for 10-12hr at 60 5
• Do not apply mechanical force or excess vibration during the cooling process to normal
temperature after soldering.
• Do not rapidly cool device after soldering.
• Components should not be mounted on warped (non coplanar) portion of PCB.
• Radioactive exposure is not considered for the products listed here in.
• Gallium arsenide is used in some of the products listed in this publication. These products are
dangerous if they are burned or shredded in the process of disposal. It is also dangerous to
drink the liquid or inhale the gas generated by such products when chemically disposed of.
• This device should not be used in any type of fluid such as water, oil, organic solvent and etc.
When washing is required, IPA (Isopropyl Alcohol) should be used.
• When the LEDs are in operation the maximum current should be decided after measuring the
package temperature.
• LEDs must be stored properly to maintain the device. If the LEDs are stored for 3 months or
more after being shipped from SSC, a sealed container with a nitrogen atmosphere should be used
for storage.
• The appearance and specifications of the product may be modified for improvement without
notice.
• Long time exposure of sunlight or occasional UV exposure will cause lens discoloration.
• The slug is isolated from anode electrically.
Therefore, we recommend that you don’t isolate the heat sink.
Z7
• Attaching LEDs, do not use adhesives that outgas organic vapor.
January. 2013
www.seoulsemicon.com
Handling of Silicone resin LEDs
The Z-Power LED is encapsulated with a silicone resin for the highest flux efficiency.
Notes for handling:
• Avoid touching silicone resin parts especially with sharp tools such as Pincette
(Tweezers)
• Avoid leaving fingerprints on silicone resin parts.
• Silicone resin will attract dust so use covered containers for storage.
• When populating boards in SMT production, there are basically no restrictions
regarding the form of the pick and place nozzle, except that excessive mechanical
pressure on the surface of the resin must be prevented.
• It is not recommend to cover the silicone resin of the LEDs with other resin
(epoxy, urethane, etc)
• Especially, if a reverse voltage is continuously applied to the product, such operation can
cause the electro-migration resulting in LED damage.
Z7
January. 2013
www.seoulsemicon.com
厂商 型号 描述 页数 下载

SEOUL

SZW05A0A [ Single Color LED, Pure White, T-1, 2.9mm, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN ] 19 页

SEOUL

SZW05A0B [ Single Color LED, ] 22 页

SEOUL

SZWN5A0A [ Single Color LED, Natural White, T-1, 2.9mm, ROHS COMPLIANT, SMD, 2 PIN ] 17 页

SEOUL

SZWW05A0A [ Single Color LED, Warm White, T-1, 2.9mm, ROHS COMPLIANT, SMD, 3 PIN ] 16 页

SEOUL

SZWW4A0A [ Single Color LED, Warm White, 4.4mm, ROHS COMPLIANT, SMD, 2 PIN ] 20 页

SEOUL

SZWW5A0B [ Single Color LED ] 22 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.170488s
