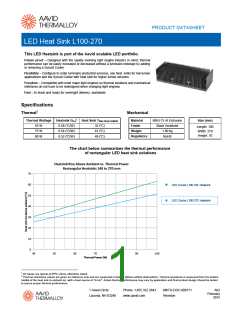

PRODUCT DATASHEET
LED Heat Sink L100-270
This LED Heatsink is part of the Aavid scalable LED portfolio.
Future proof – Designed with the rapidly evolving light engine industry in mind, thermal
performance can be easily increased or decreased without a luminaire redesign by adding
or removing a SynJet Cooler
Flexibility – Configure to order luminaire production process, use heat sinks for low lumen
applications and the SynJet Cooler with heat sink for higher lumen versions
Freedom – Compatible with most major light engines so thermal solutions and mechanical
interfaces do not have to be redesigned when changing light engines
Fast – In stock and ready for overnight delivery, worldwide
Specifications
1
Thermal
Mechanical
2
Thermal Wattage
Heatsink Θs-a
0.58 (°C/W)
0.54 (°C/W)
0.52 (°C/W)
Heat Sink TRise Above Ambient
Material
Finish
6063-T5 Al Extrusion
Black Anodized
1.80 kg
Size (mm)
55 W
75 W
90 W
32 (°C)
41 (°C)
49 (°C)
Length: 100
Width: 270
Height: 70
Weight
Regulatory
RoHS
The chart below summarizes the thermal performance
of rectangular LED heat sink solutions
Heatsink Rise Above Ambient vs. Thermal Power
Rectangular Heatsinks 140 to 270 mm
70
60
50
40
30
20
10
0
LED Cooler L100-180 Heatsink
LED Cooler L100-270 Heatsink
40
50
60
70
80
90
100
Thermal Power (W)
1 All values are typical at 25ºC unless otherwise stated.
2 Thermal resistance values are given as reference only and are measured in free air without airflow obstructions. Thermal resistance is measured from the bottom
middle of the heat sink to ambient air, with a heat source of 19 cm2. Actual thermal performance may vary by application and final product design should be tested
to assure proper thermal performance.
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000171
Revision
A02
February
2015
Laconia, NH 03246
PRODUCT DATASHEET
Mechanical – LED Heatsink shown with Configurable heat sink
All dimensions are nominal and in mm unless otherwise stated. See product drawings for more detail.
Part Numbers
Notes
Part Number
Description
NX302103
Heatsink, LED Cooler L100-270, Configurable, Black
Contact sales for other heatsink options
NX302113
NX302114
NX302115
NX302116
NX302117
NX302118
NX302119
NX302122
Heatsink, LED Cooler L100-270, 2xZhaga B4 LES3, Black
Heatsink, LED Cooler L100-270, 3xZhaga B4 LES3, Black
Heatsink, LED Cooler L100-270, 2xBridgelux RS, Black
Heatsink, LED Cooler L100-270, 3xBridgelux RS, Black
Heatsink, LED Cooler L100-270, 2xCitizen CLL050, Black
Heatsink, LED Cooler L100-270, 3xCitizen CLL050, Black
Heatsink, LED Cooler L100-270, 2xVossloh Schwabe, Panasonic, Black
Heatsink, L100-270, 2xBridgelux Vero 29, Black
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000171
A02
February
2015
Laconia, NH 03246
Revision
PRODUCT DATASHEET
NX302123
Heatsink, L100-270, 3xBridgelux Vero 29, Black
Contact sales for other heatsink options
Aavid reserves the right to make changes to the products or information contained herein without notice. No liability
is assumed as a result of their use or applications. For additional information, please contact Aavid directly.
1 Aavid Circle
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000171
Revision
A02
February
2015
Laconia, NH 03246
