MYSSM00502EEPL

型号:

MYSSM00502EEPL

品牌:

MURATA[ muRata ]

页数:

18 页

PDF大小:

705 K

MYSSM00502EEPL DATA Sheet
1

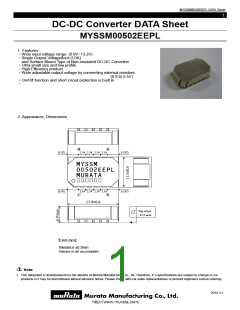

DC-DC Converter DATA Sheet
MYSSM00502EEPL
1. Features
Wide input voltage range. (6.8V~13.2V)
Single Output Voltage(Iout=2.0A)
and Surface Mount Type of Non-insulated DC-DC Converter.
Ultra small size and low profile.
High Efficiency product.
Wide adjustable output voltage by connecting external resistors.
(0.9 to 5.5V)
On/Off function and short circuit protection is built in.
2. Appearance, Dimensions
(3.87)
2.54 2.54 2.54 2.54
(3.87)
MYSSM
00502
MURATA
EEPL
(3.87)
2.54 2.54 2.54 2.54
(3.87)
17.9±0.6
Top of pin
0.15 max.
Unitmm】
Tolerance ±0.3mm
Toleranc is not accumulated.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
2
Marking
Engraved on the metal case
(1) Pin No.1 Side Marking
(2) Manufacturer Parts No.
(3) Manufacturer ID
MYSSM00502EEPL
MURATA
(4) Lot No.
■■■■■■
①②③④④⑤
Production factory Mark
Production Year
Production Month(1,2,3,・・・・・・,9,O,N,D)
Production day
Production Line No.
Pin Number and Function
Pin No.
Symbol
ON/OFF
Vin
Function
1
Remote ON/OFF
Input
2,3
4,5
6,7
8
GND
GND
Vout
Output
SENSE
VAR
Output voltage Sense
Output voltage adjustment
GND
9
10
GND
3. Block Diagram
Vout
Vin
2,3
6,7
SENSE
8
9
4,5,10
1
GND
Control Circuit
ON/OFF
VAR
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
3
4. Environmental Conditions
4 .1 Operating Temperature Range
4 .2 Storage Temperature Range
4 .3 Operating Humidity Range
4 .4 Storage Humidity Range
-10 oC ~ +70 oC
-20 oC ~ +85 oC
10% ~ 85%(No water condenses in any cases.)
5% ~ 90%(No water condenses in any cases.)
5. Absolute Maximum Rating
Item
Maximum Input Voltage
ON/OFF
Unit
V
V
Absolute Rating
Remarks
+16
+7
No voltage, no matter how instantaneous, shall be applied beyond the absolute maximum voltage rating to this
product. If you apply any voltage over this limit the product characteristics will deteriorate or the product itself will be
destroyed. Even though it may continue operating for a while after the over-voltage event, its life will likely be
shortened significantly. Reliability and life of the module may degrade similarly if the maximum operating voltage
rating is continuously exceeded. This product is designed to operate within the maximum operating voltage rating
specification.
6. Characteristics
6.1 Electrical Characteristics (Ta=25 oC)
Value
Item
Condition
Unit
Symbol
Vin
Min.
+6.8
Typ.
Max.
+12.0
+13.2
Input Voltage
RVAR=2.8kΩ
RVAR=727Ω
+3.184
+4.825
+3.300
+5.000
+3.416
+5.175
V
A
Output Voltage
Vin=12.0±10%
Vout
Iout
Output voltage
adjustable range
+0.9
0
-
-
+5.5
2.0
Vin=12.0±10%
Output Current
Ripple Voltage
Efficiency
Vin =24.0V,
Vrip
EFF
-
20
87
-
mV(p-p)
%
Vout=5.0V,Iout=2.0A,BW=20MHz
Vin =12.0V
Vout=5.0V,Iout=2.0A
-
-
-
-
0.3
OFF
ON
Open
VON/OFF
SCP
V
ON/OFF Voltage
1.0
-
7.0
If output is shorted to GND , DC-DC Converter shall be operated in a drooping characteristic.
After the short circuit event has cleared, the output is automatically brought back into
regulation.
Short Circuit Protection
Caution>
When it is open after the short circuit output,overshoot will occur,please be careful.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
4
6. 2 Output Current Derating
2.5
2.0
1.5
1.0
0.5
0.0
-10
0
10
20
30
40
50
60
70
80
Taꢀ(℃)
7. Operation in information
7.1 Output Voltage Adjustment
The output voltage can be adjusted by connecting resistors between VAR-pin(9pin) to GND-pin.
The following chart gives the required external-resistor value to adjust the output voltage .
RVAR calculation example>
Vout[V]
3.3V
3.6V
5.0V
5.5V
RVAR
2.8kΩ
2.24kΩ
727Ω
408Ω
Vout (V)0.8(122.2RVAR(kΩ))(2210×RVAR(kΩ))
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
5
7.2 ON/OFF control
ON/OFF function
The DC-DC Converter can be inactive by using ON/OFF function.
ON/OFF control method
When ON/OFF-pin(1pin) is connected to Vin
・・・ Output Voltage=OFF
When ON/OFF-pin(1pin) is connected to GND or Open ・・・ Output Voltage=ON
Usage example
MYSSM00502EEPL
Vin pin
or
R1
100kΩ
ON/OFF pin
1MΩ
2.2kΩ
R1=10kΩ 100kΩ
8. Reliability
8.1 Humidity
According to JIS-C-0022.
40 2°C, 90 to 95%RH, 100 hours. Leave for 4 hours at room temperature.
No damage in appearance and no deviation from electrical characteristics (section 6.1.).
8.2 Temperature Cycles
Repeat cycle 5 times. Leave 2 hours at room temp.
No damage in appearance and no deviation from electrical characteristics (section 6.1.).
Step
Condition
-40°C±3°C
Room Temp.
+85°C±2°C
Room Temp.
Time
1
2
3
4
30 minutes
5-10 minutes
30 minutes
5-10 minutes
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
6
9. Test Circuit
In the following test circuit, the initial values under item 6.1. should be met.
9.1. General Measure Circuit
MYSSM00502EEPL
SENSE
Iin
A
Vin
Vout
VAR
GND
Vout
A
Iout
RL
RVAR
ON/OFF
GND
r
DCIN
Vin
Vrip
RVAR Chip Resistor ±0.5%1/16W
9.2. Ripple Voltage Measurement Circuit
L
L3cm
Ripple Voltmeter or Oscilloscope
Keisokugiken RM-101 equivalent
or Tektronix 460A equivalent
DC-DC
load
Converter
Terminating resistance
Keisokugiken TRC-50F equivalent
Output capacitor
Coaxial cable1.5D-2VL=1.5m)
A
B
C
Output Ripple Noise
Output Ripple Voltage
A
B
Switching cycle
C
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
7
10. Packaging Specification
10.1. Embossed Tape Dimension
B
Z
24.0±0.1
0.50±0.05
φ2.0±0.1
(ポケット底穴)
A
A
2.0±0.15
4.0±0.1
φ1.5 +0.1
B’
0
7.1±0.1
断面図 B-B’
(送り穴)
2.0)
1.5
詳細Z
12.2±0.1
(14.2)
断面図 A-A’
ポケット上面図
10.2. Reel Dimensions
49.4±1.0
45.4±1.0
A
2.0±0.5
表示
Indication
φ 21.0±0.8
A部詳細図
φ 13.0±0.5
Portion A
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
8
10.3. Taping Specification
未実装部
Empty portion
(200mm MIN)
未実装部
Empty portion
(180mm MIN)
リーダー部
Leader portion
(200mm MIN)
部品収納部
"Module on tape" portion
表示
Indication
引き出し方向
Pull direction
The modules is located such as case in upper side and terminal in lower side.
10.4. Note
1. The adhesive strength of the protective tape must be within 0.1-1.0N.
2. Each reel contains 250pcs.
3. No vacant pocket in “Module on tape” section.
4. The reel is labeled with Murata part number, quantity and Inspection No..
5. The color of reel is not specified.
11. Production factory
Wakura Murata Mfg. Co., Ltd.
Kanazu Murata Mfg. Co., Ltd.
Murata Electronics(Thailand).Ltd.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
9
12. Characteristics Data
12.1.Static Electrical Characyeristics
Vin=6.8V13.2V, Vout=0.9V
Ta=25, RVAR=Open)
Vin=6.8V
Vin=12V
Vin=6.8V
Vin=13.2V
Vin=12V
Vin=13.2V
Fig.12-1-1. Output Voltage vs. Output Current
Fig.12-1-2. Efficiency vs. Output Current
Vin=6.8V
Vin=12V
Vin=13.2V
Fig.12-1-3. Ripple Voltage vs. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
10
Vin=6.8V13.2V, Vout=3.3V
Ta=25, RVAR=2.8kΩ)
Vin=6.8V
Vin=12V
Vin=13.2V
Vin=13.2V
Vin=6.8V
Vin=12V
Fig.12-1-4. Output Voltage vs. Output Current
Fig.12-1-5. Efficiency vs. Output Current
Vin=13.2V
Vin=12V
Vin=6.8V
Fig.12-1-6. Ripple Voltage vs. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
11
Vin=6.8V13.2V, Vout=5.0V
Ta=25, RVAR=727Ω)
Vin=6.8V
Vin=12V
Vin=13.2V
Vin=6.8V
Vin=13.2V Vin=12V
Fig.12-1-7. Output Voltage vs. Output Current
Fig.12-1-8. Efficiency vs. Output Current
Vin=13.2V
Vin=12V
Vin=6.8V
Fig.12-1-9. Ripple Voltage vs. Output Current
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
12
12.2.Dynamic Electrical Characyeristics
Vin=12V, Vout=0.9V
Ta=25, RVAR=Open)
Vout(200mV/div)
ON/OFF(5V/div)
Vout(200mV/div)
ON/OFF(5V/div)
Iin(50mV/div)
Fig.12-2-1. Start-up Waveform (Io=0A)
Fig.12-2-2. Start-up Waveform (Io=2.0A)
ON/OFF(5V/div)
ON/OFF(5V/div)
Vout(200mV/div)
Vout(200mV/div)
Fig.12-2-3. Stop-down Waveform (Io=0A)
Fig.12-2-4. Stop-down Waveform (Io=2.0A)
Vout(20mV/div)
Vout(20mV/div)
Iout(2A/div)
40us/div
Iout(2A/div)
40us/div
Fig.12-2-5. Load Transient Response
Fig.12-2-6. Load Transient Response
(Io= 0 → 2.0A/10μs)
(Io= 3.5A → 0/10μs)
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
13
Vin=12V, Vout=3.3V
Ta=25, RVAR=2.8kΩ)
ON/OFF(5V/div)
ON/OFF(5V/div)
Vout(1V/div)
Vout(1V/div)
Iin(200mV/div)
Fig.12-2-7. Start-up Waveform (Io=0A)
Fig.12-2-8. Start-up Waveform (Io=2.0A)
ON/OFF(5V/div)
ON/OFF(5V/div)
Vout(1V/div)
Vout(1V/div)
Fig.12-2-9. Stop-down Waveform (Io=0A)
Fig.12-2-10. Stop-down Waveform (Io=2.0A)
Vout(50mV/div)
Vout(50mV/div)
Iout(2A/div)
40us/div
Iout(2A/div)
40us/div
Fig.12-2-11. Load Transient Response
Fig.12-2-12. Load Transient Response
(Io= 0 → 2.0A/10μs)
(Io= 2.0A → 0/10μs)
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
14
Vin=12V, Vout=5.0V
Ta=25, RVAR=727Ω)
ON/OFF(5V/div)
ON/OFF(5V/div)
Vout(1V/div)
Iin(200mV/div)
Vout(1V/div)
Fig.12-2-13. Start-up Waveform (Io=0A)
Fig.12-2-14. Start-up Waveform (Io=2.0A)
ON/OFF(5V/div)
ON/OFF(5V/div)
Vout(1V/div)
Vout(1V/div)
Fig.12-2-15. Stop-down Waveform (Io=0A)
Fig.12-2-16. Stop-down Waveform (Io=2.0A)
Vout(50mV/div)
Vout(50mV/div)
Iout(2A/div)
40us/div
Iout(2A/div)
40us/div
Fig.12-2-17. Load Transient Response
Fig.12-2-18. Load Transient Response
(Io= 0 → 2.0A/10μs)
(Io=2.0A → 0/10μs)
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
15
13. Mounting Condition
13.1. PCB Land Pattern Recommendation
2.5
1pin
1.0
2.0
7.5
2.0
1.0
11.5
13.5
Area prohibits wirings other than land.
There are wiring coppers or through-hole via at the bottom side of the DC-DC converter.
When you design your PCBs, please be careful not to short the circuit of the DC-DC converter
or PCBs.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
16
13.2. Recommendable Condition of Soldering
13.2.1. Re-flow Soldering
Please solder under the following condition.
Method
:
:
:
Infrared ray re-flow soldering.
Soldering temperatture
Case surface temperature 260 oC Max.
Soldering time (Over 250 oC)
20 seconds max (Case surface temperature)
(Over 220 oC) : 3075 seconds (Case surface temperature)
Preheating
Times
: 60 150 seconds(150200 oC)
:
1time
260Max.
250℃
20 seconds max.
220℃
200℃
Colling curve
23/seconds
3075 seconds
150℃
60150 seconds
Soldering time
Do not vibrate for the products on reflow.
Please need to take care temperature control because mounted parts may come off if the product are left
under the high temperature.
Do not reflow DC-DC converter as follows, because DC-DC converter may fall down from a substrate
during reflowing
Substrate
DC-DC Converter
13.2.2. Recondition the soldering after re-flow
Perform within 4 seconds while the temperature of soldering iron is 380max., andit’s power is
30W or less. Don’t put the edge of soldering iron and solder on the pin of product, but put on
the end of solder land.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
17
14. Notice
14. 1. Both input-side and output side, please make the wiring loop between plus and minus as small as possible.
The influence of leakage inductance can be reduced.
14. 2. Please design the print pattern of the main circuit as wide and short as possible.
14. 3. Please do not use a connector or a socket for connection with your board of this product.
Electrical performance may be deteriorated the influence of contact resistance.
Please be sure to mount this product with solder.
14. 4. Be sure to provide an appropriate fail-safe function on your product to prevent a second damage that
may be caused by the abnormal function or the failure of our product.
14. 5. Inrush current protection is not a feature of this product.
14. 6. Please connect the input terminal with proper polarity. If you connect wrong polarity, the DC-DC
Converter may be broken. In the case of the DC-DC Converter is damaged, abnormal input current may
flow in, and abnormal overheat of the DC-DC Converter, or some damage of your products may occur.
Please use a diode and a fuse to as following figure.
fuse
+
+
+
Load
OUT
IN
-
diode
-
Please select diode and fuse after confirming the operation.
14. 7 Cleaning
Please use no-cleaning type flux and do not wash this product.
14. 8 Storage
14.8.1. Please store the products in room where the temperature / humidity is stable direct sunlight cannot
come in and use the products within 6 months after delivery. Avoid damp heated places or such places
where there are large temperature changes, because water may condense on the products, the
characteristics may be reduced in quality, and / or be degraded in the solder-ability. If you store the products
for a long time (more than 1 year), use caution because the products may be degraded in the solder-ability
and / or rusty. Please confirm solder-ability and characteristics for the products regularly.
14.8.2. Please do not store this product in places such as :
A dusty place, a place exposed directly to sea breeze, or in an atmosphere containing corrosive gas
(Cl2,NH3,SO2,NOX and so on).
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
MYSSM00502EEPL DATA Sheet
18
14. 9 Operational Environment and Operational Conditions
14. 9.1 Operational Environment
The products are not waterproof, chemical-proof or rust-proof.
In order to prevent leakage of electricity and abnormal temperature increase of the products, do not use the
products under the following circumstances:
(1) in an atmosphere containing corrosive gas (Cl2, NH3, SO2, NOX and so on).
(2) in a dusty place.
(3) in a place exposed to direct sunlight.
(4) in such a place where water splashes or in such a humid place where water condenses.
(5) in a place exposed to sea breeze.
(6) in any other places similar to the above (1)through (5).
14. 9.2 Operational Conditions
Please use the products within specified values (power supply, temperature, input, output and load condition,
and so on). Input voltage drop for line impedance, so please make sure that input voltage is included in
specified values.
If you use the products over the specified values, it may break the products, reduce the quality, and even if the
products can endure the condition for short time, it may cause degradation of the reliability.
Also please take care that the external voltage over output voltage of DC-DC Converter does not applies to
output of this DC-DC Converter.
14. 9.3 Note prior to use
If you apply high static electricity, over rated voltage or reverse voltage to the products, it may cause defects in
the products or degrade the reliability.
Please avoid the following items:
(1) over rating power supply, reverse power supply or not-enough connection of 0 V(DC) line.
(2) electrostatic discharge by production line and/or operator.
(3) electrified product by electrostatic induction.
Do not give an excessive mechanical shock..
If you drop the products on the floor, etc., it may occur a crack to the core of inductors and monolithic ceramic
capacitors.
Do not give a strong shock such as a drop in handling.
14. 10 Transportation
If you transport the products, please pack them so that the package will not be damaged by mechanical
vibration or mechanical shock, and please educate and guide a carrier to prevent rough handling.
If you transport the products to overseas (in particular, by sea), it is expected that the transportation
environment will be the worst, so please pack the products, in the package designed on the consideration of
mechanical strength, vibration-resistant and humidity-resistant. The package of the products which Murata
sells in Japan, may not resist over seas transport.
Please consult us if you are to use the Murata package of the products sold in Japan for transport to overseas.
!
Note
. Murata recommends that customers ensure that the evaluation and testing of these devices are completed
with this product actually assembled on their product.
. Please contact our main sales office or nearby sales office before using our products for the applications listed
below which require especially high reliability for the prevention of defects which might directly
cause damage to the third party’s life, body or property or this products for any other applications that
described in the above.
Aircraft equipment
Aerospace equipment
Undersea equipment
Medical equipment
Power plant control equipment
Transportation equipment (vehicles, trains, ships, etc.)
Disaster prevention /crime prevention equipment
Data-processing equipment
Traffic signal equipment
Application of similar complexity and/or reliability requirements to the applications listed in the above.
This DATA Sheet is indicated in Mar. 2014. About the written contents, since changing without a preliminary
announcement for improvement and supply are sometimes stopped, please confirm in case of ordering.
If written contents are unknown, please ask to our main sales office or nearby sales office.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, its specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2014.3.1
厂商 型号 描述 页数 下载

MOLEX

MYS-00003-01 [ Fiber Optic Connector Adapter, Single Mode, Simplex ] 1 页

DIOTEC

MYS125 表面贴装硅桥式整流器[ Surface Mount Si-Bridge Rectifiers ] 2 页

DIOTEC

MYS250 表面贴装硅桥式整流器[ Surface Mount Si-Bridge Rectifiers ] 2 页

DIOTEC

MYS380 表面贴装硅桥式整流器[ Surface Mount Si-Bridge-Rectifiers ] 2 页

DIOTEC

MYS40 表面贴装硅桥式整流器[ Surface Mount Si-Bridge Rectifiers ] 2 页

DIOTEC

MYS40_07 表面贴装硅桥式整流器[ Surface Mount Si-Bridge-Rectifiers ] 2 页

DIOTEC

MYS40_11 表面贴装硅桥式整流器[ Surface Mount Si-Bridge-Rectifiers ] 2 页

DIOTEC

MYS80 表面贴装硅桥式整流器[ Surface Mount Si-Bridge Rectifiers ] 2 页

MURATA

MYSGK02506BRSR [ DC-DC Regulated Power Supply Module, ] 18 页

MURATA

MYSSM01204BENL [ DC-DC Regulated Power Supply Module, ] 19 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.187158s
