IXTP18N60PM

型号：

IXTP18N60PM

品牌：

IXYS[ IXYS CORPORATION ]

页数：

4 页

PDF大小：

114 K

下载PDF手册

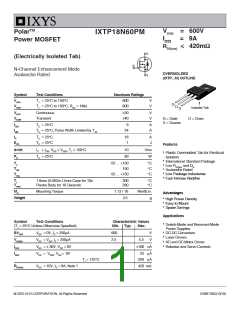

PolarTM
Power MOSFET
VDSS = 600V
ID25 = 9A
RDS(on) ≤ 420mΩ
IXTP18N60PM
(Electrically Isolated Tab)
N-Channel Enhancement Mode
Avalanche Rated
OVERMOLDED
(IXTP...M) OUTLINE
Symbol
VDSS
Test Conditions
Maximum Ratings
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
600
600
V
V
G
VDGR
D
Isolated Tab
D = Drain
S
VGSS
VGSM
Continuous
Transient
±30
±40
V
V
G = Gate
S = Source
ID25
IDM
TC = 25°C
9
A
A
TC = 25°C, Pulse Width Limited by TJM
54
IA
TC = 25°C
TC = 25°C
18
1
A
J
EAS
Features
dv/dt
PD
IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C
TC = 25°C
10
90
V/ns
W
z
Plastic Overmolded Tab for Electrical
Isolation
International Standard Package
Low RDS(on) and QG
Avalanche Rated
Low Package Inductance
Fast Intrinsic Rectifier
z
z
z
z
z
TJ
-55 ... +150
150
°C
°C
°C
TJM
Tstg
-55 ... +150
TL
Tsold
1.6mm (0.062in.) from Case for 10s
Plastic Body for 10 Seconds
300
260
°C
°C
Md
Mounting Torque
1.13 / 10
2.5
Nm/lb.in.
g
Advantages
Weight
z
High Power Density
Easy to Mount
z
z
Space Savings
Applications
Symbol
Test Conditions
Characteristic Values
z
Switch-Mode and Resonant-Mode
Power Supplies
DC-DC Converters
Laser Drivers
AC and DC Motor Drives
Robotics and Servo Controls
(TJ = 25°C Unless Otherwise Specified)
Min. Typ.
Max.
z
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 250μA
VDS = VGS, ID = 250μA
VGS = ± 30V, VDS = 0V
VDS = VDSS, VGS = 0V
600
2.5
V
V
z
4.5
z
z
±100 nA
IDSS
25 μA
TJ = 125°C
250 μA
RDS(on)
VGS = 10V, ID = 9A, Note 1
420 mΩ
© 2010 IXYS CORPORATION, All Rights Reserved
DS99739G(10/10)
IXTP18N60PM
Symbol
Test Conditions
Characteristic Values
Min. Typ. Max.
OVERMOLDED TO-220
(TJ = 25°C, Unless Otherwise Specified)
gfs
VDS = 20V, ID = 9A, Note 1
9
16
S
Ciss
Coss
Crss
2500
280
23
pF
pF
pF
VGS = 0V, VDS = 25V, f = 1MHz
1
2
3
td(on)
tr
td(off)
tf
21
22
62
22
ns
ns
ns
ns
Resistive Switching Times
V
GS = 10V, VDS = 0.5 • VDSS, ID = 9A
RG = 5Ω (External)
Qg(on)
Qgs
50
15
18
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 9A
Qgd
RthJC
1.39 °C/W
Terminals: 1 - Gate
2 - Drain (Collector)
3 - Source (Emitter)
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min. Typ.
Max.
IS
VGS = 0V
18
A
A
ISM
VSD
trr
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
54
1.5
V
500
ns
IF = IS, VGS = 0V, -di/dt = 100A/μs
VR = 100V
Note: 1. Pulse test, t ≤ 300μs, duty cycle, d ≤ 2%.
IXYS Reserves the Right to Change Limits,Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,850,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXTP18N60PM
Fig. 2. Extended Output Characteristics @ TJ = 25ºC
Fig. 1. Output Characteristics @ TJ = 25ºC
40
35
30
25
20
15
10
5
18
16
14
12
10
8
VGS = 10V
8V
VGS = 10V
8V
7V
7V
6V
6V
6
4
5V
5V
2
0
0
0
0
0
1
2
3
4
5
6
7
8
0
5
10
15
20
25
30
VDS - Volts
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 9A Value vs.
Junction Temperature
Fig. 3. Output Characteristics @ TJ =125ºC
18
16
14
12
10
8
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
VGS = 10V
7V
VGS = 10V
I D = 18A
6V
5V
I D = 9A
6
4
2
0
2
4
6
8
10
12
14
16
18
-50
-25
0
25
50
75
100
125
150
VDS - Volts
TJ - Degrees Centigrade
Fig. 5. RDS(on) Normalized to ID = 9A Value vs.
Drain Current
Fig. 6. Maximum Drain Current vs.
Case Temperature
10
9
8
7
6
5
4
3
2
1
0
3.4
3.0
2.6
2.2
1.8
1.4
1.0
0.6
VGS = 10V
TJ = 125ºC
TJ = 25ºC
5
10
15
20
25
30
35
40
45
-50
-25
0
25
50
75
100
125
150
ID - Amperes
TC - Degrees Centigrade
© 2010 IXYS CORPORATION, All Rights Reserved
IXTP18N60PM
Fig. 8. Transconductance
Fig. 7. Input Admittance
40
35
30
25
20
15
10
5
TJ = - 40ºC
24
20
16
12
8
25ºC
125ºC
TJ = 125ºC
25ºC
- 40ºC
4
0
0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
0
4
8
12
16
20
24
28
32
36
40
50
10
VGS - Volts
ID - Amperes
Fig. 9. Forward Voltage Drop of Intrinsic Diode
Fig. 10. Gate Charge
70
60
50
40
30
20
10
0
10
9
8
7
6
5
4
3
2
1
0
VDS = 300V
I D = 9A
I G = 10mA
TJ = 125ºC
TJ = 25ºC
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
0
5
10
15
20
25
30
35
40
45
VSD - Volts
QG - NanoCoulombs
Fig. 11. Capacitance
Fig. 12. Maximum Transient Thermal Impedance
10
10,000
1,000
100
= 1MHz
f
C
iss
1
C
oss
0.1
0.01
C
rss
10
0
5
10
15
20
25
30
35
40
0.0001
0.001
0.01
0.1
1
VDS - Volts
Pulse Width - Seconds
IXYS Reserves the Right to Change Limits,Test Conditions, and Dimensions.
IXYS REF: F_18N60P(63)8-21-06-B
