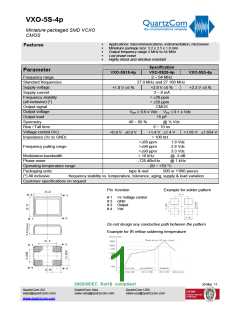

VXO-5S-4p
Miniature packaged SMD VCXO
CMOS
.
.
.
.
.
Applications: telecommunications, instrumentation, microwave
Miniature package size: 3.2 x 2.5 x 1.0 mm
Output frequency range 2 MHz to 54 MHz
Low phase noise
Features
Highly shock and vibration resistant
Specification
VXO-5S28-4p
2 ~ 54 MHz
Parameter
VXO-5S18-4p
VXO-5S3-4p
Frequency range
Standard frequencies
Supply voltage
27.0 MHz and 27.160 MHz
+1.8 V 5 %
+2.8 V 5 %
3 ~ 8 mA
+3.3 V 5 %
Supply current
Frequency stability
(all inclusive) (*)
Output signal
< 30 ppm
< 50 ppm
CMOS
Output voltage
Output load
VOH 0.9 x Vdc VOL 0.1 x Vdc
15 pF
Symmetry
40 ~ 60 %
+0.9 V 0.9 V
@ ½ Vdc
6 ~ 10 ns
Rise / Fall time
Voltage control (Vc)
Impedance (Vc to GND)
+1.4 V 1.4 V
> 100 k
+1.65 V 1.654 V
>80 ppm
1.8 Vdc
Frequency pulling range
>90 ppm
>90 ppm
> 10 kHz
2.8 Vdc
3.3 Vdc
@ -3 dB
@ 1 kHz
Modulation bandwidth
Phase noise
-125 dBc/Hz
Operating temperature range
Packaging units
-20 ~ +70 °C
500 or 1’000 pieces
tape & reel
(*) All inclusive
frequency stability vs. temperature, tolerance, aging, supply & load variation
Customer specifications on request
Pin function
Example for solder pattern
# 1 Vc Voltage control
# 2 GND
# 3 Output
# 4 Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
30 Mar. 11
QuartzCom AG
QuartzCom Asia
QuartzCom USA
