Applications

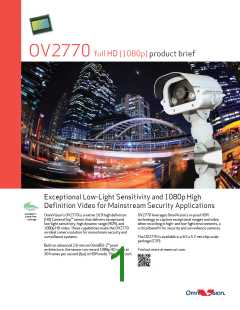

OV2770
¬
Security and Surveillance Cameras
¬
Smart Home
¬
Video Applications
Ordering Information
¬
OV02770-H77A-1C
(color, lead-free, 77-pin CSP)
¬
OV02770-H77A-MC
(color, lead-free, 77-pin CSP packed
in tray with protective film)
Product Features
¬
support for image size:
- 1920 x 1080
¬
¬
¬
¬
supported output formats: RAW
horizontal and vertical sub-sampling
SCCB for register programming
- VGA
- QVGA, and any cropped size
¬
¬
¬
¬
high dynamic range
high sensitivity
Product Specifications
high speed serial data transfer
with MIPI CSI-2/LVDS
¬
active array size: 1920 x 1080
¬
output formats: linear - 12-bit RAW,
10-bit compressed RAW; single
exposure HDR - 16-bit combined RAW,
12-bit compressed combined RAW,
2x12 bit RAW; dual exposure HDR -
16-bit combined RAW + 12-bit VS
RAW, 12-bit compressed combined
RAW + 12-bit VS RAW, 3x12 bit RAW,
3x10 bit combined RAW, 12-bit
(10-bit) RAW (HCG or LCG) + 12-bit
(10-bit) VS
low power consumption
¬
¬
parallel 12-bit DVP output
¬
power supply:
- analog: 3.14 ~ 3.47V
- digital: 1.2 ~ 1.4V
- DOVDD: 1.7 ~ 1.9V
- AVDD: 1.7 ~ 1.9V
image sensor processor functions:
- lens correction
external frame synchronization
capability
- defective pixel cancelation
- HDR combination
- automatic black level correction
¬
¬
embedded temperature sensor
¬
¬
¬
power requirements:
- active: 395 mW
- software standby: 20 mW
one time programmable (OTP) memory
temperature range:
- operating: -30°C to +85°C
junction temperature
¬
¬
¬
¬
¬
¬
¬
maximum image transfer rate: 30 fps
-
sensitivity: 26200 e /lux.sec @ 530 nm
output interfaces: up to 4-lane MIPI
CSI-2/LVDS, 12-bit DVP
max S/N ratio: 42.6 dB
dynamic range: 120 dB
¬
¬
¬
¬
¬
input clock frequency: 6 ~ 36 MHz
lens size: 1/2.9"
pixel size: 2.8 µm x 2.8 µm
image area: 5482.35 µm x 3202 µm
lens chief ray angle: 15°
scan mode: progressive
shutter: rolling shutter
package dimensions:
6544 µm x 5734 µm
Functional Block Diagram
OV2770
image sensor core
signal
processor
output
interface
temperature
sensor
array
MIPI
LVDS
DVP
column
ADC (12b)
BLC,
DigGain
analog gain
control
timing generator and
system control logic
SCCB
interface
PLL 1
PLL 2
OTP
OmniVision reserves the right to make changes to their products or to discontinue any product or
service without further notice. OmniVision and the OmniVision logo are registered trademarks of
OmniVision Technologies, Inc. CameraChip and OmniBSI-2 are trademarks of OmniVision
Technologies, Inc. All other trademarks are the property of their respective owners.
4275 Burton Drive
Santa Clara, CA 95054
USA
Tel: + 1 408 567 3000
Fax: + 1 408 567 3001
www.ovt.com
Version 1.0, October, 2017
