DXW21HN5011BL

型号：

DXW21HN5011BL

品牌：

MURATA[ muRata ]

页数：

9 页

PDF大小：

266 K

下载PDF手册

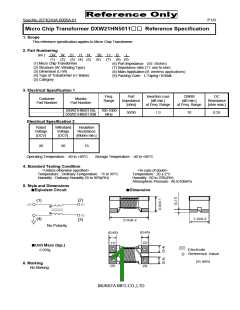

Reference Only
SpecNo.JEFK243A-0005A-01
P1/9
Micro Chip Transformer DXW21HN5011□□ Reference Specification
1. Scope
This reference specification applies to Micro Chip Transformer.
2. Part Numbering
(ex.)
DX
(1)
W
21
H
N
50 11
(6) (7)
B
L
(2) (3) (4) (5)
(8) (9)
(1) Micro Chip Transformer
(2) Structure (W: Winding Type)
(3) Dimension (L×W)
(4) Type of Transformer (H: Balun)
(5) Category
(6) Port Impedance (50: 50ohm)
(7) Impedance ratio (11: one to one)
(8) Main Application (B: wireless applications)
(9) Packing Code L:Taping / B:Bulk
3. Electrical Specification 1
Freq.
Range
Port
Impedance
[ohm]
Insertion Loss
[dB min.]
at Freq. Range
CMRR
[dB min.]
at Freq. Range
DC
Resistance
[ohm max.]
Customer
Part Number
Murata
Part Number
DXW21HN5011BL
DXW21HN5011BB
100-1000
MHz
50/50
1.0
10
0.35
Electrical Specification 2
Rated
Voltage
[DCV]
Withstand
Voltage
[DCV]
Insulation
Resistance
[Mohm min.]
20
50
10
Operating Temperature : -40 to +85°C
Storage Temperature : -40 to +85°C
4. Standard Testing Condition
<Unless otherwise specified>
<In case of doubt>
Temperature : 20 ± 2°C
Humidity : 60 to 70%(RH)
Temperature : Ordinary Temperature 15 to 35°C
Humidity : Ordinary Humidity 25 to 85%(RH)
Atmospheric Pressure : 86 to106kPa
5. Style and Dimensions
■Eqivalent Circuit
■Dimension
(2)
B1
(1)
UB
B2
1.2±0.2
(4)
(3)
2.0±0.2
No Polarity
(0.45)
(2)
(0.45)
(1)
■Unit Mass (typ.)
Electrode
() : Reference Value
0.009g
:
(in mm)
6. Marking
(4)
(3)
No Marking.
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P2/9
7. Electrical Performance
No.
Item
Specification
Meet item 3.
Definition and Measurement Method
7.1 Insertion
Insertion Loss is given by Sds21 mag. extracted from the below circuit.
Loss
(IL)
IL[dB] = 20log10(Sds21)
Where
Sds21 is S-parameter of single mode stimulus - Differential mode response
Parasitics and loss factors caused by the test board have to be removed.
UB
B1
B2
PORT1
PORT2
50Ω
25Ω
PORT3
25Ω
7.2 CMRR
Meet item 3.
CMRR is given by the following equation, S-parameters are extracted from
the below circuit.
CMRR[dB] = 20log10(Sds21/Scs21)
Where
Sds21 is S-parameter of single mode stimulus - Differential mode response
Scs21 is S-parameter of single mode stimulus - Common mode response
Parasitics and loss factors caused by the test board have to be removed.
UB
B1
B2
PORT1
PORT2
50Ω
25Ω
PORT3
25Ω
7.3 Withstand
Voltage
No damage.
Test Voltage : 50V
Time : 5 seconds
Charge Current : 1mA max.
UB
B1
B2
Terminal to be tested
Terminal to be tested
DC
Resistance
(Rdc)
7.4
Meet item 3.
Measuring current : 10mA max.
(In case of doubt in the above mentioned standard condition, measure by
4 terminal method.)
UB
B1
Terminal to be tested
Terminal to be tested
B2
B1
UB
B2
Terminal to be tested
Terminal to be tested
Insulation
Resistance
(I.R.)
7.5
Meet item 3.
Measuring voltage : Rated Voltage
Measuring time : 1 minute max.
UB
B1
B2
Terminal to be tested
Terminal to be tested
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P3/9
8. Mechanical Performance
No.
Item
Specification
Test Method
8.1 Appearance
and
Meet all dimension on item 5.
Visual Inspection and measurement with microscope.
Dimensions
8.2 Bonding
Strength
No evidence of coming off
substrate.
Products shall not be
mechanical damaged.
It shall be soldered on the substrate.
Applying Force(F) : 5N
Applying Time : 5±1seconds
Pressure
Substrate
Product
Test board fixture
8.3
Meet Table 1.
Table 1
It shall be soldered on the Glass-epoxy substrate.
Bending
Strength
Deflection : 2mm
(t=1.0mm).
Keeping time : 5 seconds
Speed of Applying Force : 0.5mm/s
Appearance
IL
No damaged
Meet Item 3.
Pressure jig
CMRR
R230
F
DC Resistance
I.R.
Deflection
Product
Withstand
Voltage
45
45
8.4
Drop
It shall be dropped on concrete or steel board.
Method : free fall
Height : 1 m
The Number of Times : 3 times
8.5 Vibration
It shall be soldered on the substrate.
Oscillation Frequency : 10 to 55 to 10Hz for 1 minute
Total Amplitude : 1.5mm
Testing Time : A period of 2 hours in each of 3
mutually perpendicular directions. (Total 6 hours)
Flux:Ethanol solution of rosin,25(wt)% includes
activator equivalent to 0.06 to 0.10(wt)% chlorine
Pre-Heating : 80 to 120°C 1minute
The electrodes shall be at least
90% covered with new solder
coating.
8.6 Solderability
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 245±3°C
Immersion Time : 4±1 seconds
Immersion and emersion rates : 25mm/s
Flux : Ethanol solution of rosin,25(wt)%
includes activator equipment to 0.06 to
0.10(wt)% chlorine
8.7 Resistance
to Soldering
Heat
Meet Table 1.
Pre-Heating : 80 to 120°C ,1minute
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 260±5°C
Immersion Time : 5±0.5 seconds
Immersion and emersion rates : 25mm/s
Then measured after exposure in the room
condition for 4 to 48 hours.
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P4/9
9. Environmental Performance(Products shall be soldered on the substrate.)
No.
Item
Specification
Meet Table 1.
Test Method
9.1 Temperature
Cycle
1 Cycle
Step 1 -40°C(+0°C,-3°C) / 30±3 min
Step 2 Ordinary Temp. / 10 to 15 minutes
Step 3 +85°C(+3°C,-0°C) / 30±3 min
Step 4 Ordinary Temp. / 10 to 15 minutes
Total of 10 cycles
Then measured after exposure in the
room condition for 4 to 48 hours
9.2 Humidity
9.3 Heat life
Temperature : 40±2°C
Humidity : 90~95%(RH)
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
Temperature : 85±2°C
Applying Voltage : 2times for Rated Voltage
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
9.4 Cold
Resistance
Temperature : -40± 2°C
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
10. Specification of Packaging
10.1 Appearance and Dimensions ( 8mm-wide,Plastic tape)
Sprocket Hole
1.5± 0.1
φ
4.0±0.1
2.0±0.05
0.25±0.05
0
*Dimension of the Cavity is measured at
the bottom side.
1.1±0.1
4.0±0.1
1.55±0.1
Cavity
(in mm)
Direction of feed
10.2 Specification of Taping
(1)Packing quantity(Standard quantity) 3000 pcs. / reel
(2)Packing Method
Products shall be packaged in each embossed cavity of plastic tape and sealed with cover tape.
(3) Spliced point
The cover tape have no spliced point.
(4) Sprocket Hole
The sprocket holes are to the right as the tape is pulled toward the user.
(5)Missing components number
Missing components number within 0.1% of the number per reel or 1 pc, whichever is greater, and are not
continuous. The specified quantity per reel is kept.
10.3 Pull Strength of the Tape Package
Plastic Tape
Cover Tape
5N min.
10N min.
165 to 180 degree
10.4 Peeling force of the Cover Tape
F
Cover tape
Plastic tape
0.2 to 0.7N(Minimum value is Typical)
Peeling verosity is 300 mm / min
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P5/9
10.5 Dimensions of Leader-tape, Trailer and Reel
Leader
Trailer
160 min.
2.0±0.5
190 min.
210 min.
Label
Empty tape Top tape
φ
13.0±0.2
φ
60± 10
9± 10
13±1.4
φ
21.0±0.8
Direction of feed
φ
180±03
10.6 Marking for reel
Customer part number, MURATA part number, Inspection number(∗1), RoHS Marking(∗2), Quantity, etc
∗1) « Expression of Inspection No. »
□□ OOOO ×××
(1) (2) (3)
(1) Factory Code
(2) Date
First digit
: Year / Last digit of year
Second digit
: Month / Jan. to Sep. → 1 to 9, Oct. to Dec. → O,N,D
Third, Fourth digit : Day
(3) Serial No.
∗2) « Expression of RoHS Marking »
ROHS – Y (△)
(1) (2)
(1) RoHS regulation conformity parts.
(2) MURATA classification number
10.7 Marking for Outside package
Customer name Purchasing Order Number, Customer Part Number, MURATA part number,
RoHS Marking (∗2), Quantity, etc
10.8 Specification of Outer Case
Outer Case Dimensions
Standard Reel Quantity in Outer Case
(Reel)
Label
(mm)
W
D
H
H
186
186
93
5
D
∗ Above Outer Case size is typical. It depends on a quantity of an order.
W
!
11. △Caution
11.1 Mounting Direction
Mount products in right direction.
Wrong direction which is 90°rotated from right direction causes not only open or short circuit but also
flames or other serious trouble.
Ｚ
Ｚ
right direction
wrong direction
11.2 Limitation of Application
Please contact us before using our products for the applications listed below which require especially
high reliability for the prevention of defects which might directly cause damage to the third party's life, body
or property.
(1) Aircraft equipment
(6) Transportation equipment (vehicles, trains, ships, etc.)
(7) Traffic signal equipment
(8) Disaster prevention / crime prevention equipment
(9) Data-processing equipment
(10) Applications of similar complexity and / or reliability
requirements to the applications listed in the above.
(2) Aerospace equipment
(3) Undersea equipment
(4) Power plant control equipment
(5) Medical equipment
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P6/9
12. Notice
Products can only be soldered with reflow.
This product is designed for solder mounting.
Please consult us in advance for applying other mounting method such as conductive adhesive.
12.1 Flux and Solder
Flux
Use rosin-based flux, (with converting chlorine content 0.06 to 0.1(wt)%. ),
but not highly acidic flux
(with Halogen content exceeding 0.2(wt)% conversion to chlorine).
Do not use water-soluble flux.
Solder
Use Sn-3.0Ag-0.5Cu solder
12.2 Assembling
<Exclusive use of Reflow soldering>
Flow soldering may cause deterioration in insulation resistance.
So, reflow soldering shall be applied for this product.
12.3 Cleaning Conditions
Products shall be cleaned on the following conditions.
(1) Cleaning temperature shall be limited to 60°C max. (40°C max. for Isopropyl alcohol.)
(2) Ultrasonic cleaning shall comply with the following conditions, avoiding the resonance phenomenon
at the mounted products and P.C.B..
・Power : 20W/ l max. ・Frequency : 28kHz to 40kHz ・Time : 5 minutes max.
(3) Cleaner
1. Alternative cleaner • Isopropyl alcohol (IPA)
2. Aqueous agent
• PINE ALPHA ST-100S
(4) There shall be no residual flux and residual cleaner after cleaning.
In the case of using aqueous agent, products shall be dried completely after rinse with de-ionized
water in order to remove the cleaner.
(5) Other cleaning
Please contact us.
12.4 Resin coating
The electrical performance may change due to high cure-stress of resin to be used for coating/molding
products. An open circuit issue may occur by mechanical stress caused by the resin, amount/cured shape of
resin, or operating condition etc. Some resin contains some impurities or chloride possible to generate
chlorine by hydrolysis under some operating condition may cause corrosion of wire of coil, leading to open
circuit. So, please pay your careful attention when you select resin in case of coating/molding the products
with the resin. Prior to use the coating resin, please make sure no reliability issue is observed by evaluating
products mounted on your board.
12.5 Attention regarding P.C.B. bending
The following shall be considered when designing and laying out P.C.B.'s.
(1) P.C.B. shall be designed so that products are not subject to the mechanical stress due to
warping the board.
［Products direction］
Products shall be location the sideways
a
Direction (Length : a<b) to the mechanical
b
Stress.
Poor example
〈
〉
Good example
〈
〉
(2)Products location on P.C.B. separation
C
B
Seam
Products(A,B,C,D) shall be located carefully
so that products are not subject to the
mechanical stress due to warping the board.
Because they may be subjected the mechanical stress
in order of A>C>B ≅ D.
D
A
a
b
Slit
<
Length:a b
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P7/9
Portion of
Perforation
12.6 Attention Regarding P.C.B. Design
< The Arrangement of Products >
×
P.C.B. shall be designed so that products are far from the portion
of perforation.
P.C.B.
○
○
Product
The portion of perforation shall be designed as narrow as possible
and shall be designed so as not to be applied the stress in the case
of P.C.B. separation.
Portion of
Perforation
×
Products shall not be arranged on the line of a series of holes when
there are big holes in P.C.B. (Because the stress concentrate on the
line of holes.)
○
×
P.C.B.
Product
Hole
< Products Placing >
Support pins shall be set under P.C.B . to prevent causing a warp to P.C.B.
during placing the products on the other side of P.C.B.
Pick-up nozzle
Product
< P.C.B. Separation >
P.C.B. shall not be separated with hand.
P.C.B. shall be separated with the fixture so as not to cause P.C.B. bending.
P.C.B.
12.7 Standard Land Dimensions (Reflow)
Support pin
2
∗
1
∗
3
∗
Resist
Copper foil pattern
0.8
2.6
No pattern
(in mm)
∗1 If the pattern is made with wider than 1.2mm. It will result to let component turn around,
because melting speed is different. In the worst case, short circuit between lines may be occured.
∗2 If the pattern is made with less than 0.4mm , in the worst case , short circuit between lines may be
occurred deu to the spread of soldering paste or mount placeing accuracy.
∗3 If the pattern is made with wider than 0.8mm, the strength of bending will be reduced.
∗4 Do not use gilded pattern. A copper wire may cause open by dissolution of metallization.
12.8 Standard Soldering Condition
1. Reflow Soldering
(1) Standard printing pattern for soldering.
• Standard thickness of the solder paste should be 100 to 150µm.
• Use the solder paste printing pattern of the right pattern.
• For the resist and copper foil pattern, use standard land dimensions.
• Use the Solder Sn-3.0Ag-0.5Cu for pattern printing.
0.8
• Spread of soldering paste between lines may cause short circuit of lines.
(in mm)
2.6
(2) Soldering Temperature
Temperature difference between soldering and surface of components must be within 150°C, in preheating.
When components are immersed in liquid after soldering, temperature difference should be within 100°C. If
preheating is not enough, components may be cracked and cause deterioration in insulation resistance.
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
(3) Soldering Condition
P8/9
Standard soldering profile and the limit soldering profile is as follows.
The excessive limit soldering conditions may cause leaching of the electrode and / or resulting
in the deterioration of product quality.
Temp.
260℃/10s
230℃
(℃)
245±3℃
220℃
Limit Profile
180
150
Standard Profile
30～60s
60s max.
90s±30s
Time（ｓ）
Standard Profile
Limit Profile
Pre-heating
150～180°C 、90s±30s
above 220°C、30s～60s
245±3°C
Heating
above 230°C、60s max.
260°C、10s
Peak temperature
Cycle of reflow
2 times
2 times
2. Reworking with Soldering iron
The following conditions must be strictly followed when using a soldering iron after being
mounted by reflow soldering.
· Pre-heating: 150°C, 1 min
· Tip temperature: 350°C max.
· Soldering time : 3(+1,-0) seconds.
· Soldering iron output: 30W max.
· Tip diameter:φ3mm max.
· Times : 2times max.
Notes: Do not touch the products directly with the soldering iron.
3. Solder Volume
Solder shall be used not to be exceeded the upper limits as shown below.
Upper limit
Recommendable
ｔ
T
1/3T t T (T:Tickness of electrode)
≦≦
Accordingly increasing the solder volume, the mechanical stress to Chip is also increased.
Exceeding solder volume may cause the failure of mechanical or electrical performance.
12.9 Caution for use
tweezer
･When you hold products with a tweezer, please hold
like a figure of the right side, and sharp material,
such as a pair of tweezers, shall not be touched to
the winding portion to prevent the breaking of wire.
･Mechanical shock should not be applied to the products
mounted on the board to prevent the breaking
of the core.
MURATA MFG.CO.,LTD
Reference Only
SpecNo.JEFK243A-0005A-01
P9/9
12.10 Handling of a substrate
After mounting products on a substrate, do not apply any stress to the product caused by bending or twisting to
the substrate when cropping the substrate, inserting and removing a connector from the substrate or tightening
screw to the substrate.
Excessive mechanical stress may cause cracking in the product.
Bending
Twisting
12.11 Brushing of neighborhood of products
When you clean the neighborhood of products such as connector pins, bristles of cleaning brush shall not
be touched to the winding portion to prevent the breaking of wire.
12.12 Operating Environment
Do not use this product under the following environmental conditions, on deterioration of the performance, such
as insulation resistance may result from the use.
(1) in corrosive gases (acidic gases, alkaline gases, chlorine, sulfur gases, organic gases and etc.)
(2) in the atmosphere where liquid such as organic solvent, may splash on the products.
12.13 Storage Condition
(1) Storage period
Use the products within 12 months after delivered.
Solderability should be checked if this period is exceeded.
(2) Storage environment conditions
·Products should be stored in the warehouse on the following conditions.
Temperature ： -10 ~ +40°C
Humidity
： 15 to 85% relative humidity No rapid change on temperature and humidity.
· Products should not be stored in corrosive gases, such as sulfureous, acid gases, alkaline gases,
to prevent the following deterioration. Poor solderability due to the oxidized electrode.
· Products should be stored on the palette for the prevention of the influence from humidity,dust and so on.
· Products should be stored in the warehouse without heat shock, vibration, direct sunlight and so on.
· Products should not be stored under the air tights packaged condition.
(3) Delivery
Care should be taken when transporting or handling product to avoid excessive vibration or mechanical shock.
!
13.△Note
(1)Please make sure that your product has been evaluated in view of your specifications with our product being
mounted to your product.
(2)You are requested not to use our product deviating from the reference specifications.
(3)The contents of this reference specification are subject to change without advance notice. Please approve our
product specifications or transact the approval sheet for product specifications before ordering.
MURATA MFG.CO.,LTD
厂商 型号 描述 页数 下载

MURATA

 		DXW21B [ Microchip Transformer (Balun) Wire Wound Type ] 2 页

MURATA

 		DXW21BN2511NB [ RF TRANSFORMER, ] 3 页

MURATA

 		DXW21BN7511 [ This reference specification applies to Micro Chip Transformer ] 9 页

MURATA

 		DXW21BN7511S [ RF Transformer, 1000MHz Min, 1500MHz Max, ] 2 页

MURATA

 		DXW21BN7511SB [ RF Transformer, 1000MHz Min, 1500MHz Max, ] 2 页

MURATA

 		DXW21BN7511SK [ RF Transformer, 1000MHz Min, 1500MHz Max ] 2 页

MURATA

 		DXW21BN7511SL [ RF Transformer, 1000MHz Min, 1500MHz Max, ] 9 页

MURATA

 		DXW21BN7511T [ Operating Temperature Range ] 3 页

MURATA

 		DXW21BN7511TB [ RF Transformer, 50MHz Min, 870MHz Max, ] 2 页

MURATA

 		DXW21BN7511TK [ RF Transformer, 50MHz Min, 870MHz Max ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.221320s
