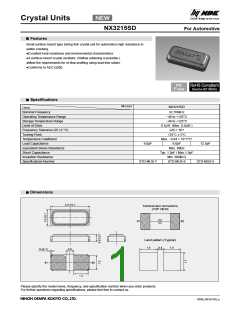

Crystal Units
NX3215SD
For Automotive
Features
■
Small surface-mount type tuning fork crystal unit for automotive.High resistance to
solder cracking.
●Excellent heat resistance and environmental characteristics.
●A surface-mount crystal oscillator. (Reflow soldering is possible.)
●Meet the requirements for re-flow profiling using lead-free solder.
●Conforms to AEC-Q200.
Specifications
■
Model
NX3215SD
32.768kHz
Item
Nominal Frequency
Operating Temperature Range
Storage Temperature Range
Level of Drive
−40 to +125°C
−40 to +125°C
0.1µW (Max. 0.5µW )
±20 × 10−6
Frequency Tolerance (25 ±3 °C)
Turning Point
+25°C ± 5°C
Temperature Coefficient
Load Capacitance
Max. −0.04 × 10−6/°C2
6.0pF
9.0pF
12.5pF
Equivalent Series Resistance
Shunt Capacitance
Max. 80kΩ
Typ. 1.2pF / Max.1.5pF
Min. 500M Ω
Insulation Resistance
Specifications Number
STD-MUS-7
STD-MUS-6
STD-MUS-5
Dimensions
■
3.2±0.1
Terminal land connections
(TOP VIEW)
#1
#2
Land pattern (Typical)
1.5
0.4
1.5
6-(0.1)
#1
0.6
#2
1.2
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
