LM30-00J0512-03E

型号：

LM30-00J0512-03E

品牌：

MORNSUN[ MORNSUN SCIENCE& TECHNOLOGY LTD. ]

页数：

5 页

PDF大小：

896 K

下载PDF手册

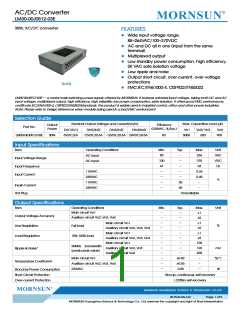

AC/DC Converter
LM30-00J0512-03E
30W, AC/DC converter
FEATURES
Wide input voltage range:
85~264VAC/100~370VDC
AC and DC all in one (input from the same
terminal)
Multiplexed output
Low standby power consumption, high efficiency,
2K VAC safe isolation voltage
Low ripple and noise
Output short circuit, over-current, over-voltage
protections
EMC:IEC/EN61000-4, CISPR22/EN55022
RoHS
LM30-00J0512-03E---- a metal mask switching power supply offered by MORNSUN. It features universal input voltage, taking both DC and AC
input voltage, multiplexed output, high efficiency, high reliability, low power consumption, safer isolation. It offers good EMC performance,
certificate IEC/EN61000-4, CISPR22/EN55022standards. The product is widely used in industrial control, office and other power industries.
Note: Please refer to Design Reference when module being used in a bad EMC environment.
Selection Guide
Nominal Output Voltage and Current(Vo/Io)
Max. Capacitive Load (µF)
Output
Power
Efficiency
(230VAC, %/Typ.)
Part No.
(Vo1/Io1)
5VDC/2A
(Vo2/Io2)
(Vo3/Io3)
(Vo4/Io4)
Vo1
Vo2/ Vo3
650
Vo4
900
12VDC/0.3A -12VDC/0.3A 24VDC/0.5A
LM30-00J0512-03E
30W
83
5000
Input Specifications
Item
Operating Conditions
AC input
Min.
85
100
47
--
Typ.
--
Max.
264
370
63
Unit
VAC
VDC
Hz
Input Voltage Range
Input Frequency
Input Current
--
DC input
--
115VAC
230VAC
115VAC
230VAC
--
0.65
0.40
--
--
--
A
--
30
50
Inrush Current
Hot Plug
--
--
Unavailable
Output Specifications
Item
Operating Conditions
Min.
--
Typ.
Max.
±1
±5
±1
±5
±1
±5
100
120
200
--
Unit
%
Main circuit Vo1
--
--
Output Voltage Accuracy
Line Regulation
Auxiliary circuit Vo2, Vo3, Vo4
--
Main circuit Vo1
--
--
Full load
Auxiliary circuit Vo2, Vo3, Vo4
Main circuit Vo1
--
--
--
--
Load Regulation
10%-100% load
Auxiliary circuit Vo2, Vo3, Vo4
Main circuit Vo1
--
--
--
--
20MHz bandwidth
(peak-peak value)
Auxiliary circuit Vo2, Vo3
Auxiliary circuit Vo4
--
--
mV
Ripple & Noise*
--
--
Main circuit Vo1
--
±0.02
±0.06
0.85
%/
℃
Temperature Coefficient
Auxiliary circuit Vo2, Vo3, Vo4
230VAC
--
--
--
--
W
Stand-by Power Consumption
Short Circuit Protection
Hiccup, continuous, self-recovery
≥120%Io self-recovery
Over-current Protection
2015.06.08-A/2
Page 1 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LM30-00J0512-03E
Over-voltage Protection
Min. Load
Zener clamp diode
0
--
--
--
--
--
--
%
15
115VAC input
230VAC input
ms
Hold-up Time
115
Note: * Ripple and noise are measured by “parallel cable” method, please see AC-DC Converter Application Notes for specific operation.
General Specifications
Item
Operating Conditions
Test time: 1min
Min.
2000
2000
1000
500
-40
Typ.
--
Max.
--
Unit
Input-output
Input-
--
--
VAC
Isolation Voltage
--
--
Output-
--
--
Output-output
--
+70
+85
95
Operating Temperature
Storage Temperature
Storage Humidity
℃
-40
--
--
--
%RH
260±5℃; time:5~10s
360±10℃; time:3~5s
Wave-soldering
Manual-welding
Welding Temperature
Switching Frequency
Power Derating
--
4.0
65
--
--
--
--
KHz
-40℃～-25℃
+50℃～+70℃
%/℃
3.5
--
IEC60950
CLASS I
Safety Standard
Safety Class
MTBF
MIL-HDBK-217F@25℃ > 300,000 h
Physical Specifications
Casing Material
Dimension
Metal case
109.00*58.50*30.00 mm
180g (Typ.)
Weight
Cooling Method
Free convection
EMC Specifications
CE
CISPR22/EN55022, CLASS B
EMI
RE
CISPR22/EN55022, CLASS B
IEC/EN61000-4-2 ±6KV/8KV
IEC/EN61000-4-3 10V/m
ESD
RS
Perf. Criteria B
perf. Criteria A
perf. Criteria B
perf. Criteria B
perf. Criteria B
perf. Criteria A
perf. Criteria A
EFT
IEC/EN61000-4-4 ±4KV
IEC/EN61000-4-5 ±2KV/4KV
Surge
EMS
IEC/EN61000-4-5 ±4KV/6KV (See Fig. 2 for recommended circuit)
IEC/EN61000-4-6 10 Vr.m.s
CS
PFM
IEC/EN61000-4-8 10A/m
Voltage dips, short interruptions
and voltage variations immunity
IEC/EN61000-4-11 0%-70%
perf. Criteria B
2015.06.08-A/2
Page 2 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LM30-00J0512-03E
Product Characteristic Curve
Input Voltage Derating Curve
Temperature Derating Curve
100
100
80
Ambient temperature:25℃
70
40
60
：
Input voltage
85~264VAC
100~370VDC
40
30
25
85
100
100
120
264 VAC
370 VDC
-25
-40
0
50
70
℃
Ambient Tem.(
)
Input Voltage
Note: ①Input voltage should be derated based on temperature derating when it is 85~100VAC/100~120VDC;
②This product is suitable for use in natural air cooling environments, if in a closed environment, please contact our company’s FAE.
Design Reference
1. Typical application circuit
C1 C2 TVS1 RL
+Vo1
FUSE
NTC
AC(L)
AC(N)
AC(L)
-Vo1
Vo2
C3 C4 TVS2 RL
+
AC/DC
COM
AC(N)
-Vo3
-Vo4
C5 C6 TVS3 RL
C7 C8 TVS4 RL
+Vo4
Fig. 1
Model
C1/C3/C5/C7(µF)
1
C2 (µF)
680
C4/C6(µF)
220
C8(µF)
120
TVS1
TVS2/ TVS3
SMBJ20A
TVS4
SMBJ30A
LM30-00J0512-03
SMBJ7.0A
Note: Output filtering capacitor C2/C4/C6/C8 is electrolytic capacitor, it is recommended to use high frequency and low impedance electrolytic capacitor. For
capacitance and current of capacitor please refer to manufacture’s datasheet. Capacitor withstand voltage derating should be 80% or above. C1/C3/C5/C7
is ceramic capacitor, which is used to filter high-frequency noise. TVS is a recommended component to protect post-circuits if converter fails.
2. EMC solution-recommended circuit
MOV4
FUSE
R2
NTC
Vo1
+
AC(L)
AC(L)
OUTPUT1
-Vo1
+Vo2
COM
CY4
CY3
MOV2
R3
CX
LCM
MOV1
AC/DC
OUTPUT2
OUTPUT3
MOV3
R1
GDT4
MOV5
Vo3
Vo4
-
-
AC(N)
AC(N)
OUTPUT4
+Vo4
Fig 2
2015.06.08-A/2
Page 3 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LM30-00J0512-03E
EMC solution-recommended circuit PCB layout
Fig 3
Note: Suggestions for safety regulation and wiring width: wire width ≥3mm, distance between wires ≥6mm, and distance between wire and ground ≥6mm
Element model
MOV1
MOV2
MOV3
MOV4
MOV5
CX
Recommended value
S20K350
S14K350
S14K350
S07K350
S07K350
0.15µF/300VAC
2.2nF/400VAC
CY3/ CY4
R1/R2
R3
2
Ω/3W winding resistor
1MΩ/2W
LCM
3.3 mH, recommended to use MORNSUN’s FL2D-10-332
GDT4
NTC
B5G3600
5D-11
FUSE
3.15A/250V, slow fusing, necessary
3.For more information about Mornsun EMC Filter products, please visit www.mornsun-power.com to
download the Selection Guide of EMC Filter
Dimensions and Recommended Layout
2015.06.08-A/2
Page 4 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LM30-00J0512-03E
Notes:
1. Packing information please refer to Product Packing Information which can be downloaded from www.mornsun-power.com. Packing
bag number: 58220013;
2. If the product is not operated within the required load range, the product performance cannot be guaranteed to comply with all
parameters in the datasheet;
3. Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25 ℃, humidity<75% with nominal
input voltage and rated output load;
4. All index testing methods in this datasheet are based on our Company’s corporate standards;
5. The performance parameters of the product models listed in this manual are as above, but some parameters of non-standard model
products may exceed the requirements mentioned above. Please contact our technicians directly for specific information;
6. We can provide product customization service;
7. Specifications are subject to change without prior notice.
MORNSUN Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail: info@mornsun.cn
2015.06.08-A/2
Page 5 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
